Friction Torque Gauge / Torsiometer 0–6 Nm with Drag Pointer – Left & Right Rotation
-
Code:118535
-
Weight:1.060 Kgs
Overview:

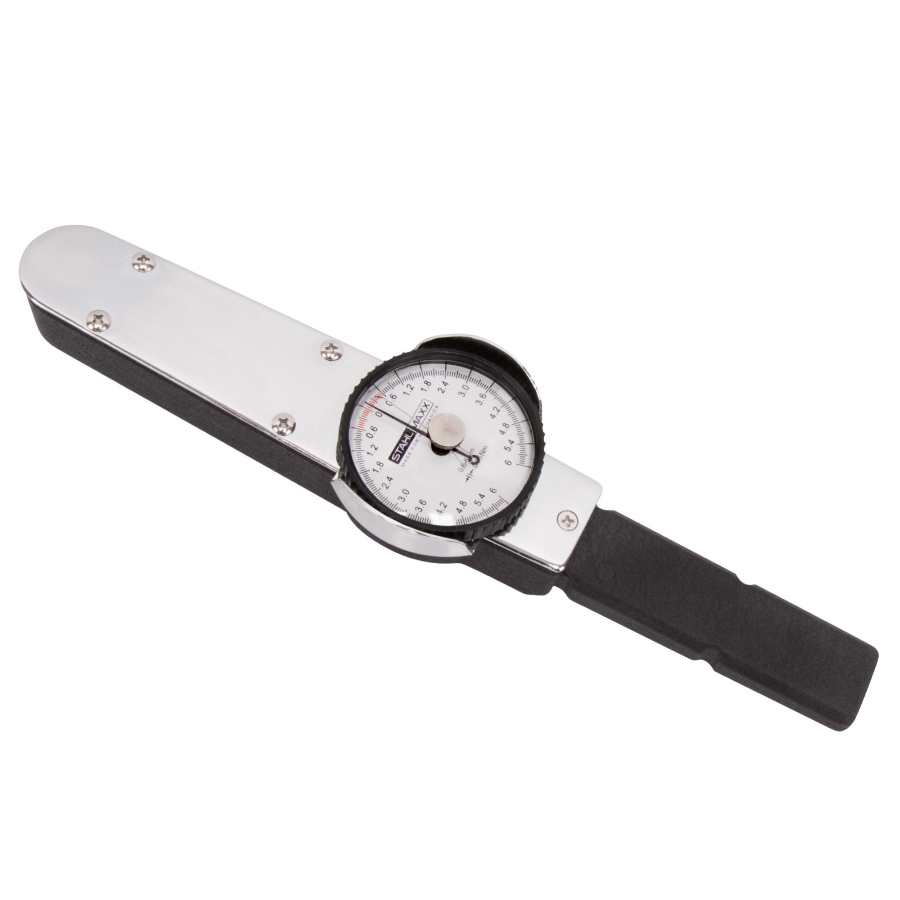

✔ Professional precision friction torque gauge / torsiometer
✔ Measuring range from 0–6 Nm / 0–600 Ncm
✔ Suitable for left and right rotation measurements
✔ Designed for bearing preload and rotational resistance testing
✔ Ideal for gearboxes, differentials, steering gears and shafts
✔ Large 55 mm dual-direction scale with drag pointer
✔ Robust full-metal construction with storage case
✔ Suitable for professional workshop and precision measurement applications
High-quality precision friction torque gauge / torsiometer designed for measuring rotational resistance and preload on bearing assemblies, tapered roller bearings, helical roller bearings, gear transmissions, shafts, rear axle differentials, steering gears, and many other drivetrain components.
The tool can also be used as a precision torque wrench with drag pointer indication when exact rotational torque measurement is required during assembly and adjustment procedures.
The large round scale allows excellent readability, including very low measurement values within the 0–6 Nm / 0–600 Ncm measuring range. An integrated maximum value drag pointer enables easy reading of the peak torque value even after rotation has stopped.
The gauge is suitable for both clockwise and counterclockwise operation, allowing precise measurement of rotational resistance in both directions.
The measuring scale is protected by two metal plates for increased durability and long service life.

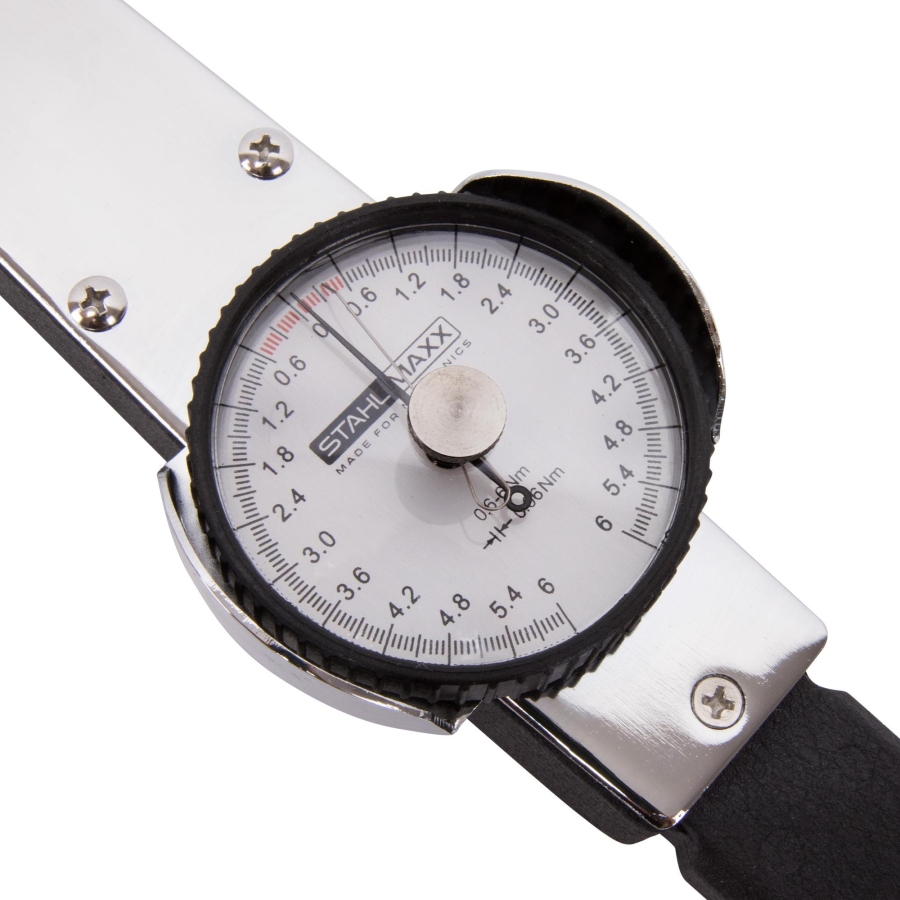

Scale Specifications
✔ Scale diameter: 55 mm
✔ Measuring range: 0–6 Nm in both directions
✔ Scale increments: 0.3 Nm / 3 Ncm
✔ Subdivision accuracy: 0.06 Nm / 6 Ncm
✔ Fast adjustable maximum value drag pointer

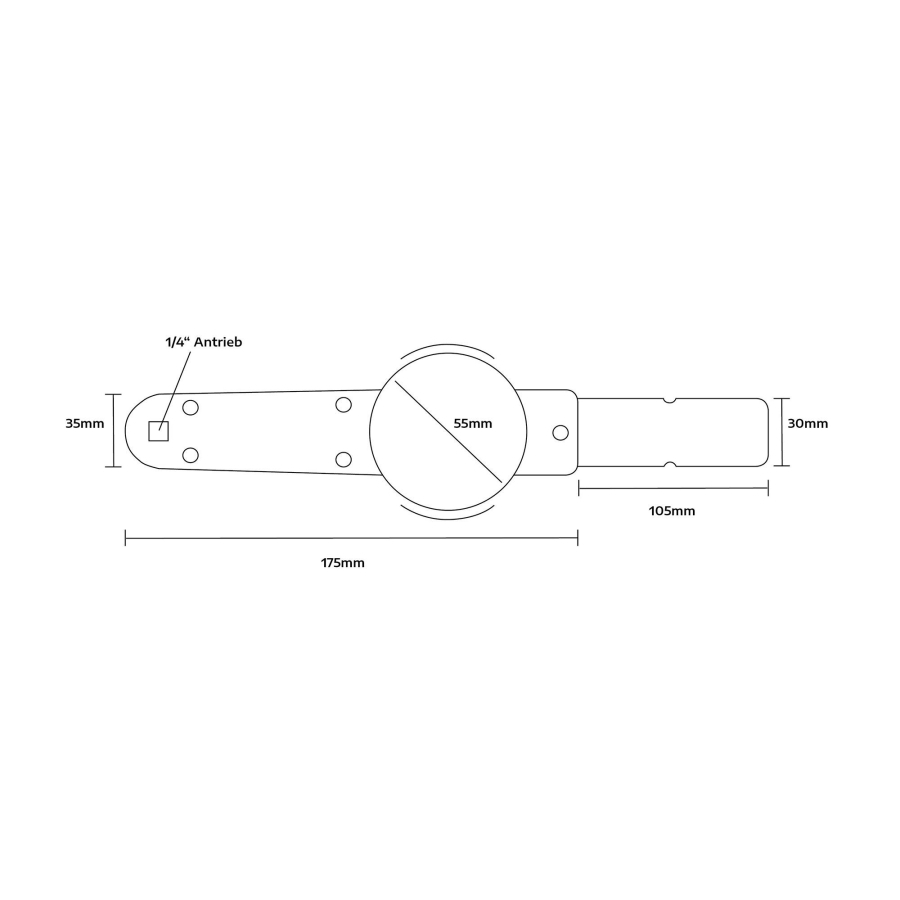

Technical Specifications
✔ Total length: 280 mm

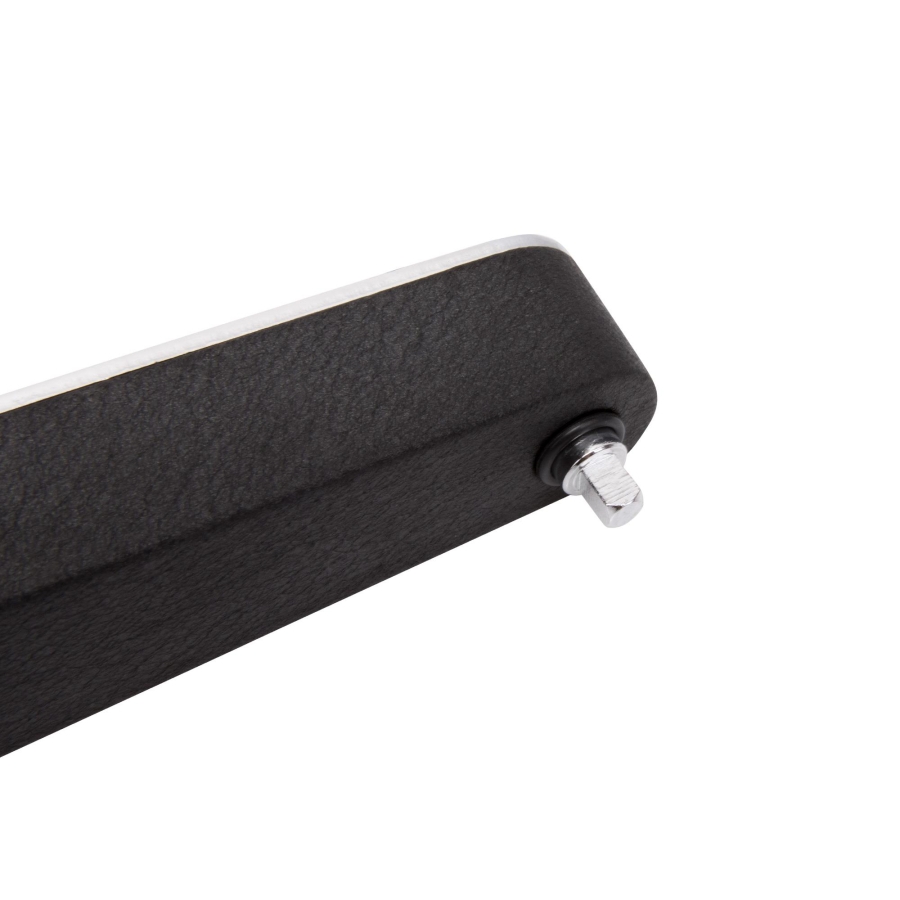

✔ Drive size: 1/4"
✔ Heavy-duty full-metal construction

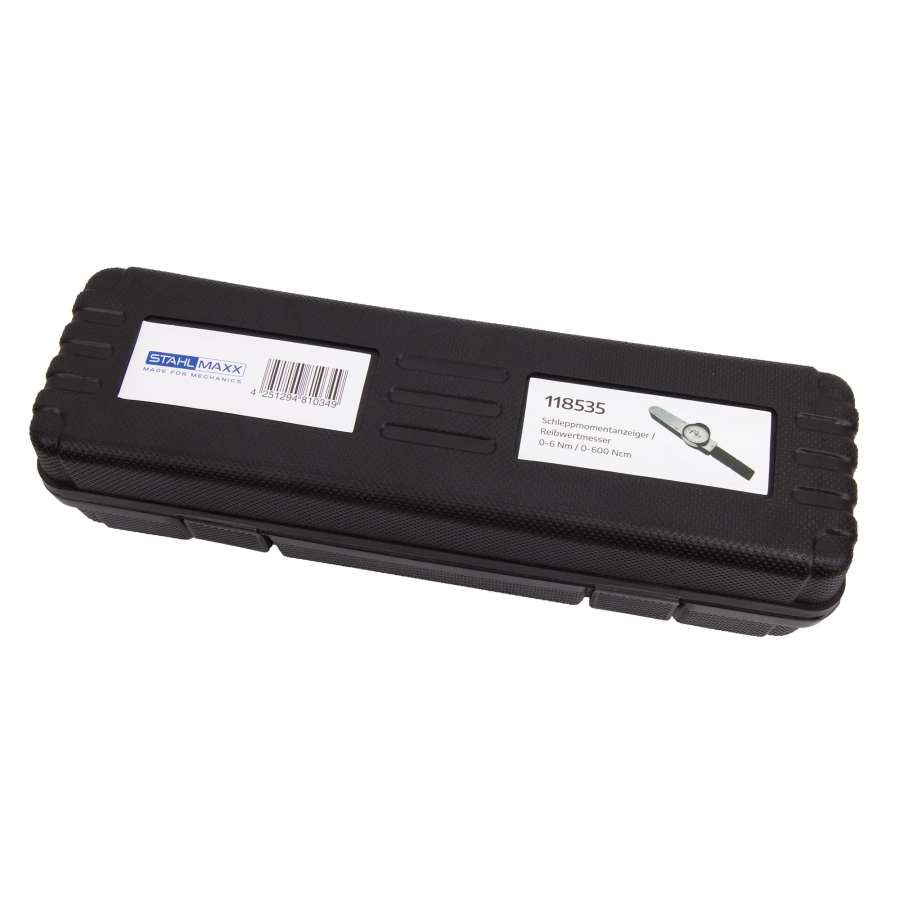

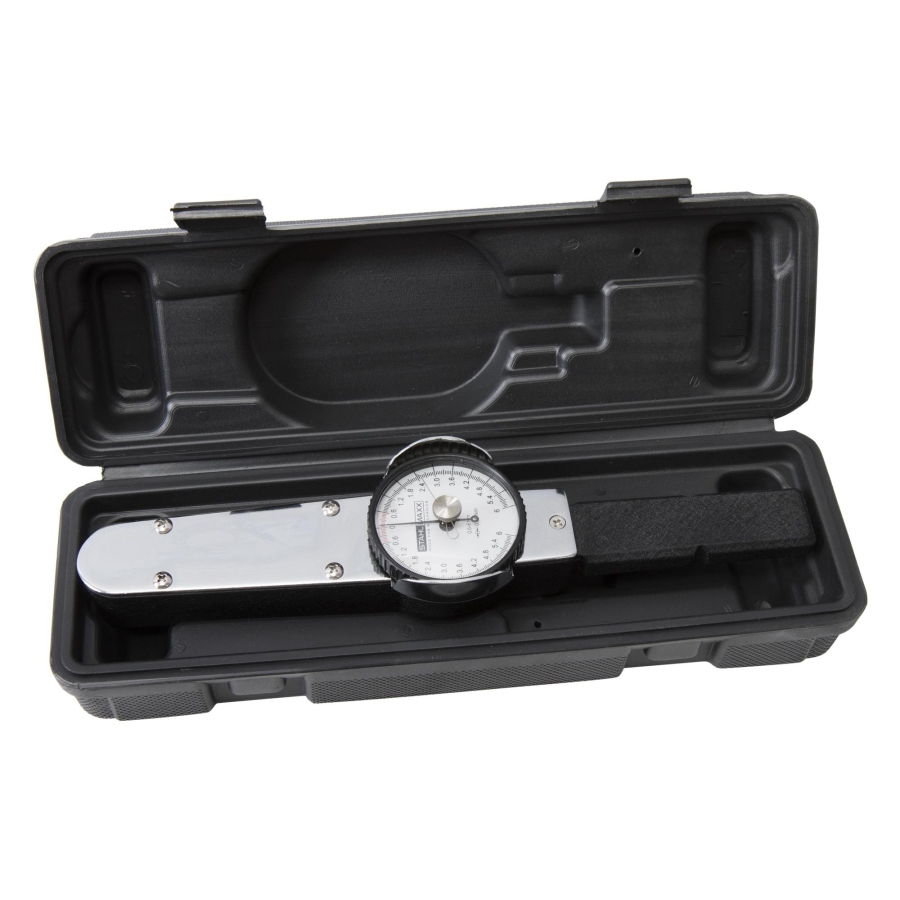

✔ Supplied with durable storage case
Recommended Additional Tool (Not Included)
- Item No. 118252 Socket adapter set for compact adaptation 1/4" > 3/8" > 1/2" > 3/4", 3-piece
Applications
Suitable for measuring:
- Bearing preload
- Rotational resistance
- Differential bearing drag
- Gear transmission friction
- Steering gear resistance
- Shaft rotational torque
Used As
- BMW 002000
- BMW 0490130
- Ford 205-067
- VW 6222
- VW 6523
- Klann KL-0140-2
- Mercedes W123589022100
- Jaguar / Land Rover 205-067
- Stahlwille 50240015
- Stahlwille 51040015
- KS-Tools 516.3260
Original reference numbers are used for comparison purposes only. This is not an original manufacturer tool.
