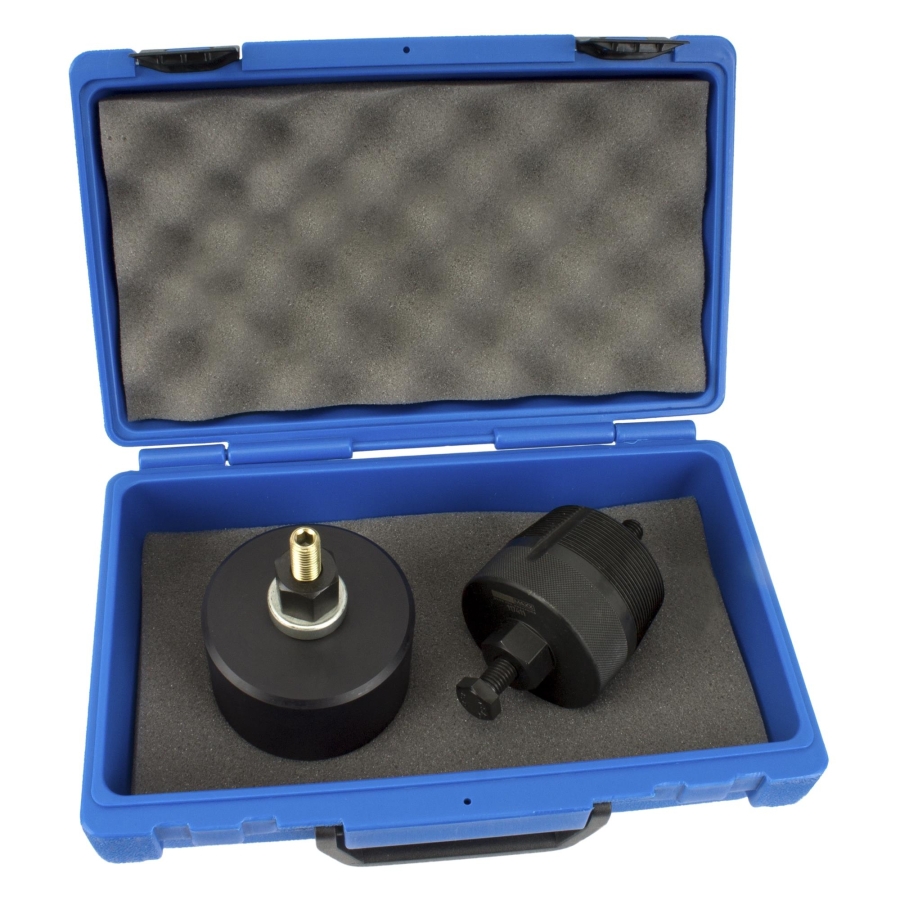

Front Crankshaft Oil Seal Removal and Installation Tool for BMW N20 and N26, as BMW 110370, 2212822, 119230

Price: €165.00 322.71лв.

Code:

117411
Weight:

2.320 Kgs

Overview:
✔ Special tool set for removing and installing the front crankshaft oil seal
✔ Suitable for BMW engines N20 and N26
✔ Supports controlled extraction and precise installation of the radial shaft seal
✔ For use with oil seals supplied with an installation sleeve
✔ Extension available for BMW S55 engines under Item no. 120729
✔ To be used as BMW 110370, 2212822 and 119230

Front Crankshaft Oil Seal Removal and Installation Tool for BMW N20 and N26, as BMW 110370, 2212822, 119230

Send to friend

Rate this product

This special tool set is designed for removing and installing the front crankshaft oil seal on BMW N20 and N26 engines.

The procedure is largely identical for all compatible engine versions. The following instructions refer specifically to N20 and N26 engines.

To avoid errors caused by differences between vehicle versions, always consult suitable workshop documentation or the vehicle manufacturer’s repair instructions.

Compatible Crankshaft Oil Seals

For use with crankshaft oil seals with the following comparison numbers:

BMW 11117593353
BMW 11117636055
BMW 11118618864
Elring 902.860

Only use oil seals supplied with an installation sleeve.

Required Preparatory Work

Remove the auxiliary drive belt.
Remove the vibration damper.
Do not loosen the central crankshaft bolt.
Only loosen and remove the M8 x 35 mm screws.

Removal

Position the extraction adapter on the crankshaft oil seal.
Screw the adapter into the oil seal and tighten it to 50 Nm.
Screw in the extraction spindle to pull out the oil seal.
Depending on the installation position, it may be necessary to repeat the extraction procedure.

Installation

Only use a crankshaft oil seal supplied with an installation sleeve.
Carefully slide the oil seal onto the crankshaft adapter until the installation sleeve can be removed.
Secure the adapter to the crankshaft using two screws.
Apply an additional bead of silicone sealing compound to the oil seal in the area between the crankcase and the oil sump sealing joint.
Use the installation bell and draw-in nut to press the radial shaft seal in until it reaches the stop.
Remove the tool.
Reinstall the vibration damper.

Tightening torque for the vibration damper on N20 and N26 engines: 35 Nm.

Reinstall the auxiliary drive belt.

Extension for S55 Engines

For BMW S55 engines, extension Item no. 120729 is additionally required.

To Be Used As

BMW 110370
BMW 2212822
BMW 119230

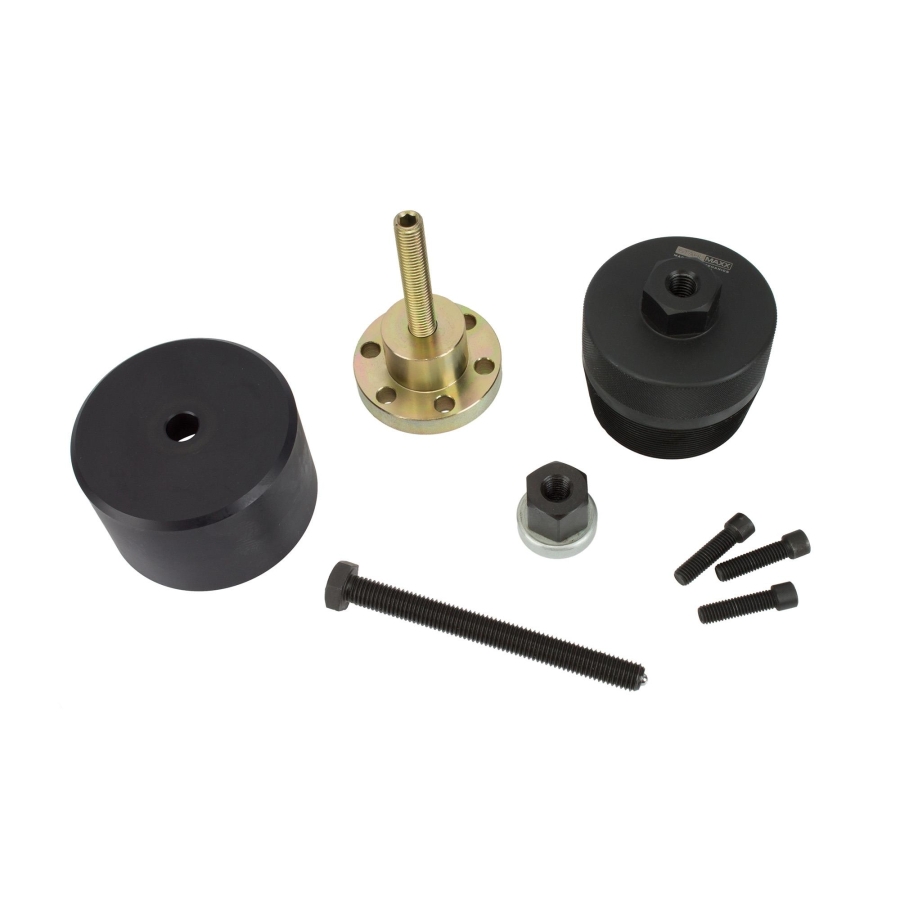

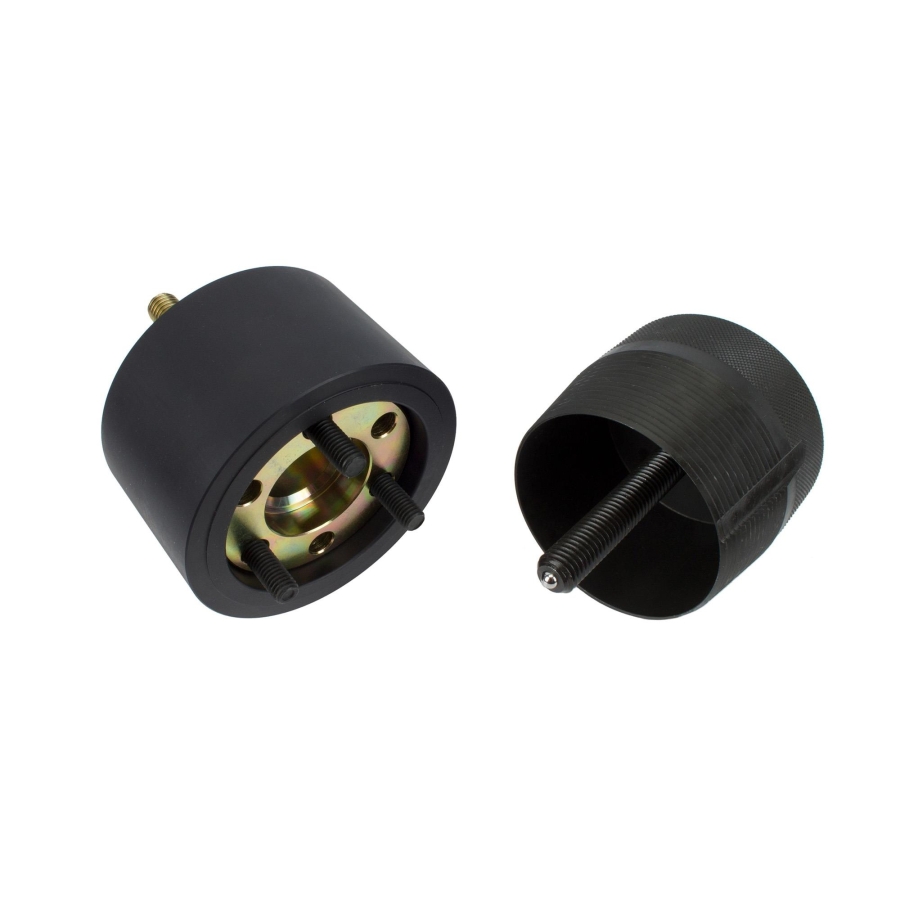

Scope of Delivery

1 x crankshaft stub adapter, as BMW 2212822 and 83302212822
3 x screws, as BMW 119234
1 x extraction screw, as BMW 110372 and 83300496275
1 x extraction adapter and threaded bell, as BMW 110371 and 83300496275
1 x installation bell, as BMW 119231 and 83300494021
1 x draw-in nut, as BMW 119233

Original numbers are for comparison purposes only; this is not an original tool!

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.

0 vehicles found

BMW 1 (F20) (07.2011 - 06.2019) 120 i Active Flex (184 hp, 135 kW) BMW 1 (F20) (07.2011 - 06.2019) 125 i (218 hp, 160 kW) BMW 1 (F20) (07.2011 - 06.2019) 125 i (238 hp, 175 kW) BMW 1 (F20) (07.2011 - 06.2019) 125 i Active Flex (218 hp, 160 kW) BMW 1 (F21) (12.2011 - 12.2019) 120 i Active Flex (184 hp, 135 kW) BMW 1 (F21) (12.2011 - 12.2019) 125 i (218 hp, 160 kW) BMW 1 (F21) (12.2011 - 12.2019) 125 i (238 hp, 175 kW) BMW 1 (F21) (12.2011 - 12.2019) 125 i Active Flex (218 hp, 160 kW) BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 220 i (184 hp, 135 kW) BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 228 i (245 hp, 180 kW) BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 228 i AWD (245 hp, 180 kW) BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 220 i (184 hp, 135 kW) BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 228 i (243 hp, 179 kW) BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 228 i (245 hp, 180 kW) BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 228 i AWD (245 hp, 180 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i (182 hp, 134 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i (184 hp, 135 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i ActiveFlex (184 hp, 135 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i AWD (182 hp, 134 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i AWD (184 hp, 135 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 328 i (245 hp, 180 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 328 i ActiveFlex (245 hp, 180 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 328 i AWD (243 hp, 179 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 328 i AWD (245 hp, 180 kW) BMW 3 (F30, F80) (04.2011 - 10.2018) 328i (218 hp, 160 kW) BMW 3 Cabriolet (E93) (05.2006 - 12.2013) 328 i (243 hp, 179 kW) BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 320 i (163 hp, 120 kW) BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 320 i (184 hp, 135 kW) BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 320 i AWD (163 hp, 120 kW) BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 320 i AWD (184 hp, 135 kW) BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 328 i (245 hp, 180 kW) BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 328 i AWD (245 hp, 180 kW) BMW 3 Estate (F31) (07.2012 - 06.2019) 320 i (163 hp, 120 kW) BMW 3 Estate (F31) (07.2012 - 06.2019) 320 i (184 hp, 135 kW) BMW 3 Estate (F31) (07.2012 - 06.2019) 320 i AWD (163 hp, 120 kW) BMW 3 Estate (F31) (07.2012 - 06.2019) 320 i AWD (184 hp, 135 kW) BMW 3 Estate (F31) (07.2012 - 06.2019) 328 i (245 hp, 180 kW) BMW 3 Estate (F31) (07.2012 - 06.2019) 328 i AWD (245 hp, 180 kW) BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 420 i (163 hp, 120 kW) BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 420 i (184 hp, 135 kW) BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 428 i (243 hp, 179 kW) BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 428 i (245 hp, 180 kW) BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 428 i AWD (243 hp, 179 kW) BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 428 i AWD (245 hp, 180 kW) BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 420 i (163 hp, 120 kW) BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 420 i (184 hp, 135 kW) BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 420 i AWD (163 hp, 120 kW) BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 420 i AWD (184 hp, 135 kW) BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 428 i (243 hp, 179 kW) BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 428 i (245 hp, 180 kW) BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 428 i AWD (243 hp, 179 kW) BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 428 i AWD (245 hp, 180 kW) BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 420 i (163 hp, 120 kW) BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 420 i (184 hp, 135 kW) BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 420 i AWD (163 hp, 120 kW) BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 420 i AWD (184 hp, 135 kW) BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 428 i (243 hp, 179 kW) BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 428 i (245 hp, 180 kW) BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 428 i AWD (243 hp, 179 kW) BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 428 i AWD (245 hp, 180 kW) BMW 5 (F10) (01.2009 - 10.2016) 520 i (163 hp, 120 kW) BMW 5 (F10) (01.2009 - 10.2016) 520 i (170 hp, 125 kW) BMW 5 (F10) (01.2009 - 10.2016) 520 i (184 hp, 135 kW) BMW 5 (F10) (01.2009 - 10.2016) 528 i (218 hp, 160 kW) BMW 5 (F10) (01.2009 - 10.2016) 528 i (245 hp, 180 kW) BMW 5 (F10) (01.2009 - 10.2016) 528 i AWD (245 hp, 180 kW) BMW 5 Gran Turismo (F07) (01.2009 - 02.2017) 528 i (245 hp, 180 kW) BMW 5 Estate (F11) (11.2009 - 02.2017) 520 i (163 hp, 120 kW) BMW 5 Estate (F11) (11.2009 - 02.2017) 520 i (184 hp, 135 kW) BMW 5 Estate (F11) (11.2009 - 02.2017) 528 i (245 hp, 180 kW) BMW 5 Estate (F11) (11.2009 - 02.2017) 528 i AWD (245 hp, 180 kW) BMW X1 (E84) (03.2009 - 06.2015) sDrive 16 i (143 hp, 105 kW) BMW X1 (E84) (03.2009 - 06.2015) sDrive 20 i (184 hp, 135 kW) BMW X1 (E84) (03.2009 - 06.2015) sDrive 20 i Flex (184 hp, 135 kW) BMW X1 (E84) (03.2009 - 06.2015) sDrive 28 i (245 hp, 180 kW) BMW X1 (E84) (03.2009 - 06.2015) AWD 20 i (184 hp, 135 kW) BMW X1 (E84) (03.2009 - 06.2015) AWD 28 i (245 hp, 180 kW) BMW X1 (E84) (03.2009 - 06.2015) AWD 28 i Flex (245 hp, 180 kW) BMW X3 (F25) (09.2010 - 08.2017) sDrive 20 i (170 hp, 125 kW) BMW X3 (F25) (09.2010 - 08.2017) sDrive 20 i (184 hp, 135 kW) BMW X3 (F25) (09.2010 - 08.2017) sDrive 28 i (245 hp, 180 kW) BMW X3 (F25) (09.2010 - 08.2017) AWD 20 i (150 hp, 110 kW) BMW X3 (F25) (09.2010 - 08.2017) AWD 20 i (184 hp, 135 kW) BMW X3 (F25) (09.2010 - 08.2017) AWD 28 i (245 hp, 180 kW) BMW X4 (F26) (04.2014 - 03.2018) AWD 20 i (184 hp, 135 kW) BMW X4 (F26) (04.2014 - 03.2018) AWD 28 i (243 hp, 179 kW) BMW X4 (F26) (04.2014 - 03.2018) AWD 28 i (245 hp, 180 kW) BMW X5 (F15, F85) (08.2013 - 07.2018) AWD 28 i (245 hp, 180 kW) BMW X5 (F15, F85) (08.2013 - 07.2018) AWD 40e (211 hp, 155 kW) BMW X5 (F15, F85) (08.2013 - 07.2018) AWD 40e (245 hp, 180 kW) BMW X5 (F15, F85) (08.2013 - 07.2018) AWD 40e (279 hp, 205 kW) BMW X5 (F15, F85) (08.2013 - 07.2018) AWD 40e (313 hp, 230 kW) BMW X6 (F16, F86) (08.2014 - 07.2019) AWD 28 i (245 hp, 180 kW) BMW Z4 Roadster (E89) (02.2009 - 08.2016) sDrive 18 i (156 hp, 115 kW) BMW Z4 Roadster (E89) (02.2009 - 08.2016) sDrive 20 i (163 hp, 120 kW) BMW Z4 Roadster (E89) (02.2009 - 08.2016) sDrive 20 i (184 hp, 135 kW) BMW Z4 Roadster (E89) (02.2009 - 08.2016) sDrive 28 i (245 hp, 180 kW)
