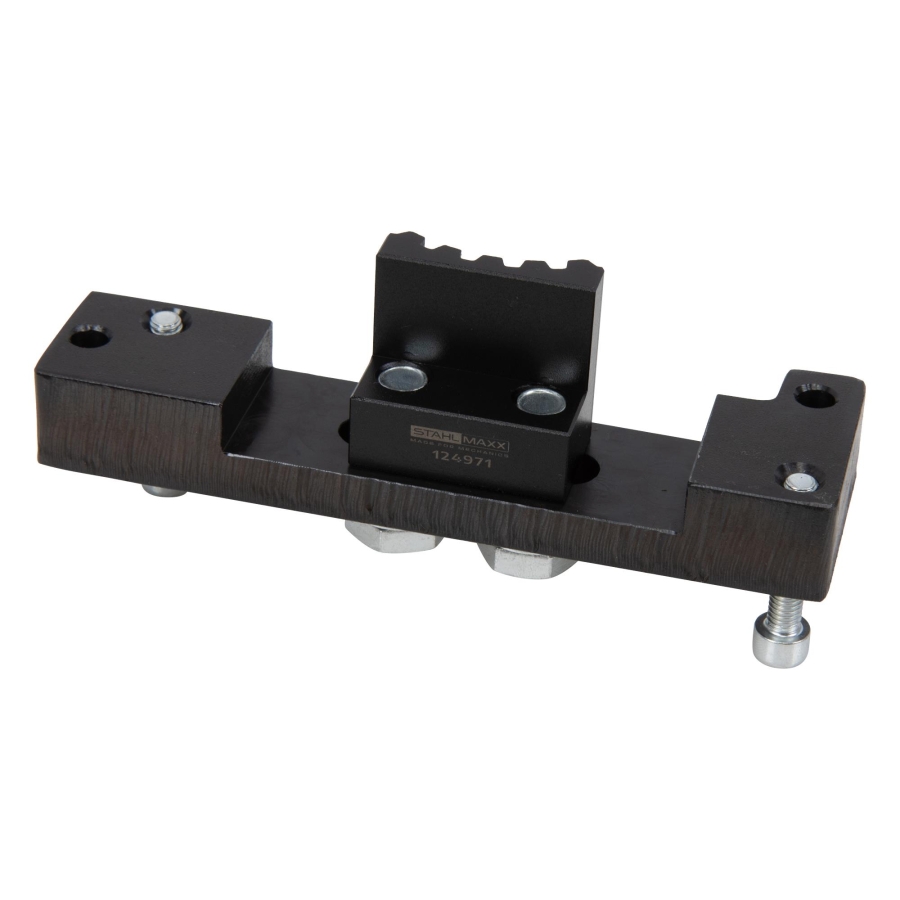

High-Pressure Fuel Pump Pulley Locking Tool for Opel 2.0L CDTi LFS/LFO, as EN-51413-1

Price: €54.50
  • Code:
    124971
  • Weight:
    0.571 Kgs

Overview:
✔ Locks the high-pressure fuel pump timing-belt pulley
✔ For selected Opel/Vauxhall 2.0L CDTi engines from 2014
✔ Positively engages the pulley for secure counterholding
✔ Enables controlled loosening and tightening of the pulley nut
✔ Reduces the risk of damage during pump removal and installation

In Stock (28 pcs) • 5-10 Days Delivery

Add to wishlist
New Product
High-Pressure Fuel Pump Pulley Locking Tool for Opel 2.0L CDTi LFS/LFO, as EN-51413-1
High-Pressure Fuel Pump Pulley Locking Tool for Opel 2.0L CDTi LFS/LFO, as EN-51413-1
Send to friend
Rate this product

Removing or installing the high-pressure fuel pump on Opel B20DT and D20DT engine series used from 2014 requires the timing-belt drive pulley to be loosened and removed.

Counterholding the pump with standard workshop tools is difficult and may cause damage. This special tool positively locks the fuel pump drive pulley, allowing the retaining nut to be loosened and tightened in a controlled manner.

Important Compatibility Information for D20DTH

Vehicle identification based only on the German KBA registration number may lead to selection of the wrong tool or repair instructions.

Always verify the engine displacement:

  • D20DTH with 1956 cm³: GM engine – tool suitable
  • D20DTH with 1997 cm³: PSA DW10 engine – tool not suitable

Suitable Opel/Vauxhall Vehicles

Antara, Cascada, Grandland, Insignia A, Insignia B, Vivaro, Zafira C Tourer, Zafira Life

Compatible Engine Codes

LFS, LFO, B20DTH, B20DTR, B20DTJ, D20DTH*, D20DTR, D20DTJ, A20DT, D20DTH (DW10FC), D20DTH (DW10FD), D20DTR (DW10FDCU), Y20DTJ, Z20DTJ

*For D20DTH engines, verify the engine displacement as explained above.

Reference Tightening Torques

Reference application: Opel Cascada 2018 with B20DTH engine.

  • Fuel pump pulley nut: 80 Nm
  • Fuel pump mounting bolts: 25 Nm

Torque specifications may vary. Always verify the values using the applicable manufacturer repair instructions.

To Be Used as Opel / GM

EN-51413-1

Scope of Delivery

1 × high-pressure fuel pump timing-belt pulley locking tool for Opel 2.0L CDTi LFS/LFO, to be used as Opel/GM EN-51413-1



Original numbers are provided for comparison purposes only. This is not an original tool.

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.
0 vehicles found
CHEVROLET CAPTIVA (C100, C140) (06.2006 - 09.2018) 2.0 D (170 hp, 125 kW) OPEL ANTARA (L07) (07.2006 - 12.2015) 2.0 CDTI (170 hp, 125 kW) OPEL ANTARA (L07) (07.2006 - 12.2015) 2.0 CDTI AWD (170 hp, 125 kW) OPEL CASCADA (W13) (03.2013 - 04.2019) 2.0 CDTI (67) (170 hp, 125 kW) OPEL GRANDLAND X (A18) (06.2017 - ) 2.0 D (75) (177 hp, 130 kW) OPEL GRANDLAND X (A18) (06.2017 - ) 2.0 D (75) (179 hp, 132 kW) OPEL GRANDLAND X Van (11.2017 - ) 2.0 CDTI (75) (177 hp, 130 kW) OPEL INSIGNIA A (G09) (07.2008 - 03.2017) 2.0 CDTI (68) (170 hp, 125 kW) OPEL INSIGNIA A (G09) (07.2008 - 03.2017) 2.0 CDTI AWD (68) (170 hp, 125 kW) OPEL INSIGNIA A Country Tourer (G09) (07.2008 - 03.2017) 2.0 CDTi (47) (170 hp, 125 kW) OPEL INSIGNIA A Country Tourer (G09) (07.2008 - 03.2017) 2.0 CDTi AWD (47) (170 hp, 125 kW) OPEL INSIGNIA A Sports Tourer (G09) (07.2008 - 03.2017) 2.0 CDTI (35) (170 hp, 125 kW) OPEL INSIGNIA A Sports Tourer (G09) (07.2008 - 03.2017) 2.0 CDTI AWD (35) (170 hp, 125 kW) OPEL INSIGNIA A Saloon (G09) (07.2008 - 03.2017) 2.0 CDTI (69) (170 hp, 125 kW) OPEL INSIGNIA A Saloon (G09) (07.2008 - 03.2017) 2.0 CDTI AWD (69) (170 hp, 125 kW) OPEL INSIGNIA B Country Tourer (Z18) (06.2017 - ) 2.0 CDTi (47) (170 hp, 125 kW) OPEL INSIGNIA B Country Tourer (Z18) (06.2017 - ) 2.0 CDTi AWD (47) (170 hp, 125 kW) OPEL INSIGNIA B Country Tourer (Z18) (06.2017 - ) 2.0 CDTi AWD (47) (210 hp, 154 kW) OPEL INSIGNIA B Grand Sport (Z18) (03.2017 - ) 2.0 CDTi (68) (170 hp, 125 kW) OPEL INSIGNIA B Grand Sport (Z18) (03.2017 - ) 2.0 CDTi AWD (68) (170 hp, 125 kW) OPEL INSIGNIA B Grand Sport (Z18) (03.2017 - ) 2.0 CDTi AWD (68) (210 hp, 154 kW) OPEL INSIGNIA B Sports Tourer (Z18) (03.2017 - ) 2.0 CDTi (35) (170 hp, 125 kW) OPEL INSIGNIA B Sports Tourer (Z18) (03.2017 - ) 2.0 CDTi AWD (35) (170 hp, 125 kW) OPEL INSIGNIA B Sports Tourer (Z18) (03.2017 - ) 2.0 CDTi AWD (35) (210 hp, 154 kW) OPEL VIVARO C Bus (K0) (03.2019 - ) 2.0 (150 hp, 110 kW) OPEL VIVARO C Box Body (K0) (03.2019 - ) 2.0 (150 hp, 110 kW) OPEL VIVARO C Box Body (K0) (03.2019 - ) 2.0 (177 hp, 130 kW) OPEL VIVARO C Box Body (K0) (03.2019 - ) 2.0 AWD (150 hp, 110 kW) OPEL VIVARO C Platform Cabin (K0) (03.2019 - ) 2.0 (150 hp, 110 kW) OPEL ZAFIRA LIFE Bus (K0) (03.2019 - ) 2.0 (150 hp, 110 kW) OPEL ZAFIRA LIFE Bus (K0) (03.2019 - ) 2.0 (177 hp, 130 kW) OPEL ZAFIRA LIFE Bus (K0) (03.2019 - ) 2.0 AWD (150 hp, 110 kW) OPEL ZAFIRA TOURER C (P12) (10.2011 - ) 2.0 CDTi (75) (130 hp, 96 kW) OPEL ZAFIRA TOURER C (P12) (10.2011 - ) 2.0 CDTi (75) (170 hp, 125 kW)
