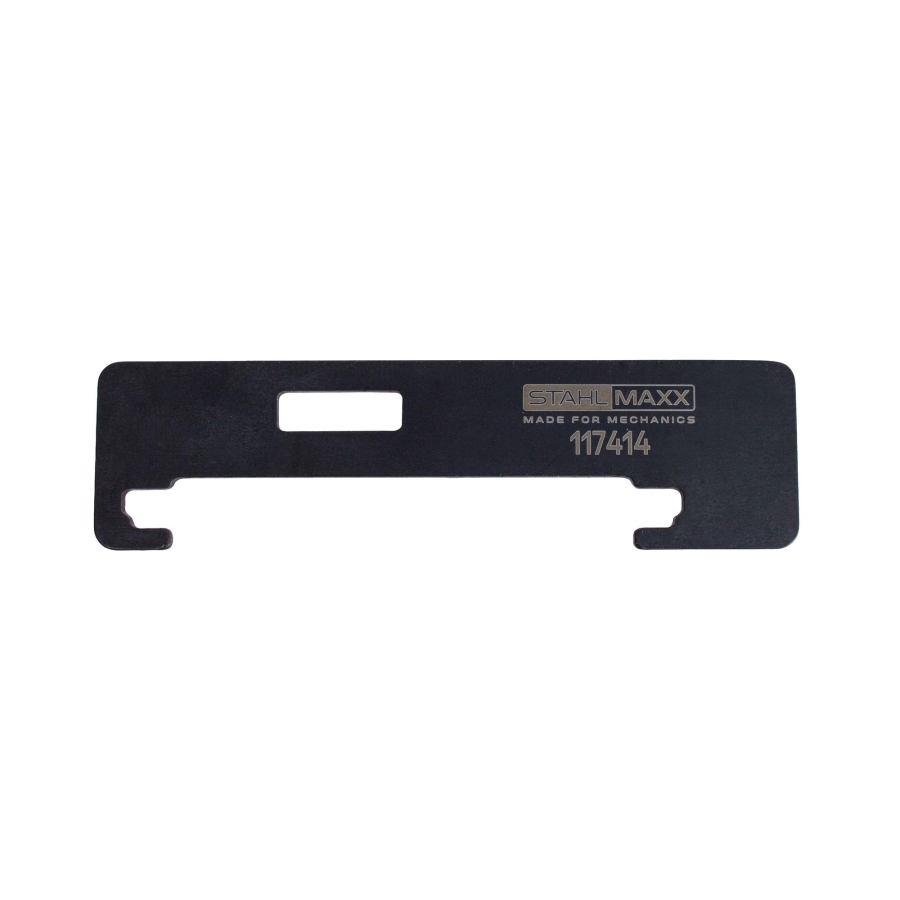

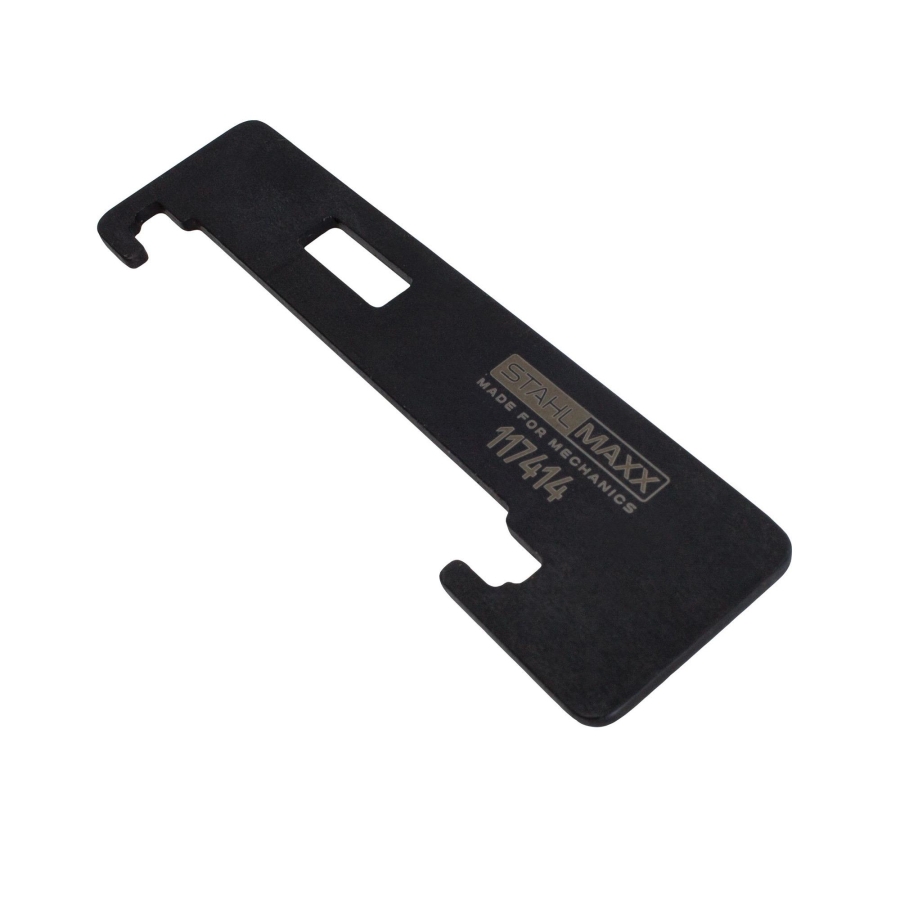

Gear Shift Lever Alignment Tool for VW Golf 2 Golf 3 Vento Polo 6N as VAG 3285

Price: €10.50 20.54лв.

Code:

117414
Weight:

0.030 Kgs

Overview:
✔ Professional shift lever alignment tool for VAG vehicles
✔ Designed for adjustment of gearbox shift cables and linkage systems
✔ Locks the gear lever in adjustment position during setup procedures
✔ Suitable for 5-speed shift tower systems with shift cables
✔ Compatible with Golf II, Golf III, Vento and Polo 6N1
✔ Essential for gear selector basic adjustment procedures
✔ Used as VAG 3285 and U-40026
✔ Suitable for workshop and transmission service applications

Gear Shift Lever Alignment Tool for VW Golf 2 Golf 3 Vento Polo 6N as VAG 3285

Send to friend

Rate this product

This special tool is designed for adjustment and alignment procedures on gearbox shift cable systems and shift relay mechanisms in various VAG vehicles.

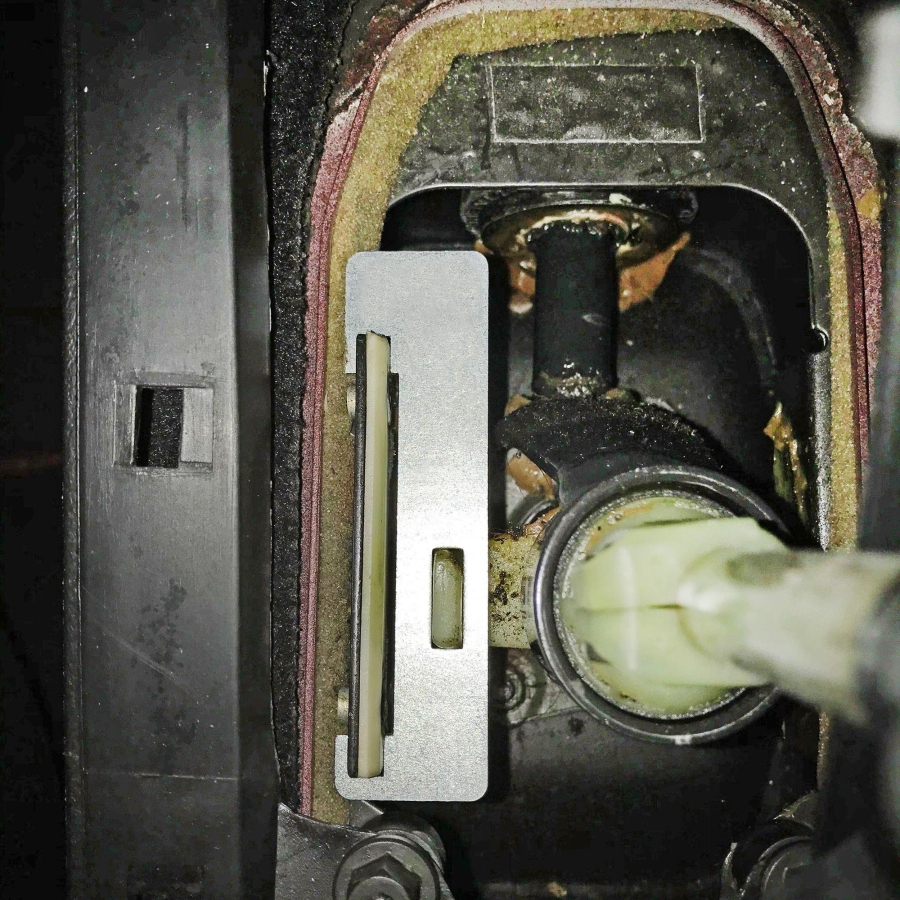

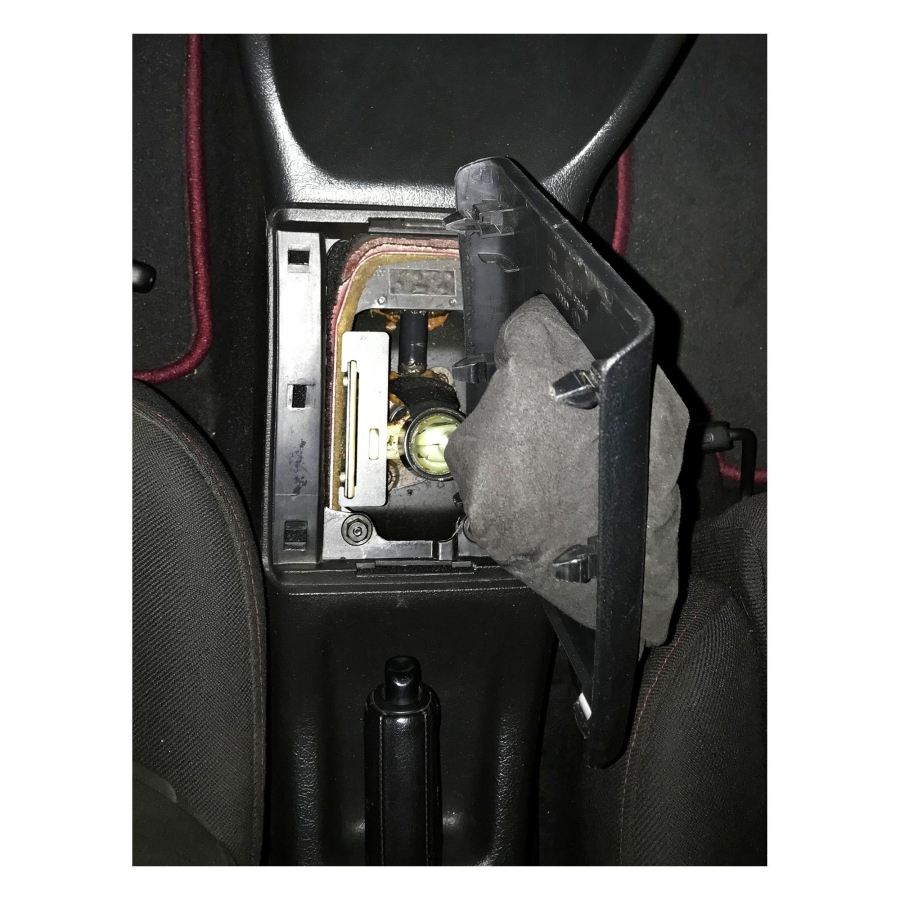

The alignment tool locks the gear lever in the correct adjustment position, allowing precise basic setup and calibration of the shift mechanism.

It is required during repairs to the shift relay bracket as well as during replacement and adjustment of gearbox shift cables.

Application

Suitable for 5-speed gear shift tower systems with shift cables.

Compatible with various VAG vehicles including:

VW Golf II
VW Golf III
VW Vento
VW Polo 6N1

Function

The tool secures the gear shift lever in the specified adjustment position during gearbox linkage and shift cable alignment procedures.

Ensures accurate basic adjustment of the shifting system and proper gear engagement.

For 4-speed and 5-speed manual transmissions with shift linkage rods, Item no. 122959 must be used instead.

Technical Information

Tool type: Gear shift lever alignment tool
Application: Shift cable and gear linkage adjustment
Suitable for: 5-speed shift tower systems
Used as: VAG 3285, U-40026
Suitable for vehicles with shift cable systems

OEM numbers are provided for comparison purposes only. This product is not an original OEM tool.

VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.0 (45 HP, 33 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.0 (50 HP, 37 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.3 (50 HP, 37 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.3 (55 HP, 40 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.3 (58 HP, 43 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.3 (65 HP, 48 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.3 Cat (55 HP, 40 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 (69 HP, 51 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 (70 HP, 51 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 (72 HP, 53 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 (75 HP, 55 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 D (50 HP, 37 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 D (54 HP, 40 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 TD (60 HP, 44 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 TD (70 HP, 51 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 TD (75 HP, 55 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.6 TD (80 HP, 59 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.7 (69 HP, 51 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 (102 HP, 75 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 (69 HP, 51 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 (84 HP, 62 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 (90 HP, 66 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 16V (125 HP, 92 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 G60 Limited (211 HP, 155 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI (105 HP, 77 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI (107 HP, 79 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI (112 HP, 82 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI 16V (129 HP, 95 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI 16V (136 HP, 100 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI 16V (139 hp, 102 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI Cat (107 HP, 79 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI G60 (160 HP, 118 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 GTI G60 Syncro (160 HP, 118 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 Syncro (84 HP, 62 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 Syncro (90 HP, 66 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 Syncro (98 HP, 72 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 i Cat (90 HP, 66 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 1.8 i Cat Syncro (90 HP, 66 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 2.0 (78 HP, 57 kW) VW GOLF II (19E, 1G1) (08.1983 - 12.1992) 2.0 GTI (136 HP, 100 kW) VW GOLF II Van (19E, 1G1) (08.1983 - 07.1991) 1.3 (54 HP, 40 kW) VW GOLF II Van (19E, 1G1) (08.1983 - 07.1991) 1.6 (60 HP, 44 kW) VW GOLF II Van (19E, 1G1) (08.1983 - 07.1991) 1.6 D (54 HP, 40 kW) VW GOLF II Van (19E, 1G1) (08.1983 - 07.1991) 1.8 i (90 1.0 (50 hp, 37 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.3 (54 hp, 40 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.4 (55 hp, 40 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.4 (60 hp, 44 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.6 (101 hp, 74 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.6 (75 HP, 55 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.8 (69 HP, 51 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.8 (75 HP, 55 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.8 (90 HP, 66 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.8 (99 HP, 73 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.8 Syncro (1HX1) (90 HP, 66 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.9 D (64 HP, 47 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.9 SDI (64 HP, 47 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.9 TD,GTD (75 HP, 55 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.9 TDI (110 HP, 81 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.9 TDI (90 HP, 66 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 1.9 TDI Syncro (1HX1) (90 HP, 66 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 2.0 (115 HP, 85 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 2.0 (84 HP, 62 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 2.0 GL (107 HP, 79 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 2.0 GTI 16V (150 HP, 110 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 2.0 Syncro (1HX1) (115 HP, 85 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 2.8 VR6 (163 HP, 120 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 2.8 VR6 (174 HP, 128 kW) VW GOLF III (1H1) (10.1989 - 07.1998) 2.9 VR6 Syncro (1HX1) (190 HP, 140 kW) VW GOLF III (1H1) (10.1989 - 07.1998) Citystromer (27 HP, 20 kW) VW GOLF III Cabriolet (1E7) (07.1993 - 05.1998) 1.6 (101 HP, 74 kW) VW GOLF III Cabriolet (1E7) (07.1993 - 05.1998) 1.8 (75 HP, 55 kW) VW GOLF III Cabriolet (1E7) (07.1993 - 05.1998) 1.8 (90 HP, 66 kW) VW GOLF III Cabriolet (1E7) (07.1993 - 05.1998) 1.9 TDI (110 HP, 81 kW) VW GOLF III Cabriolet (1E7) (07.1993 - 05.1998) 1.9 TDI (90 hp, 66 kW) VW Golf III Cabriolet (1E7) (07.1993 - 05.1998) 2.0 (115 hp, 85 kW) VW Golf III Van (1H1) (08.1991 - 12.1997) 1.4 (60 hp, 44 kW) VW Golf III Van (1H1) (08.1991 - 12.1997) 1.6 (75 hp, 55 kW) VW Golf III Van (1H1) (08.1991 - 12.1997) 1.8 (75 hp, 55 kW) VW Golf III Van (1H1) (08.1991 - 12.1997) 1.8 (90 hp, 66 kW) VW GOLF III Van (1H1) (08.1991 - 12.1997) 1.9 D (75 HP, 55 kW) VW GOLF III Van (1H1) (08.1991 - 12.1997) 1.9 SDI (64 HP, 47 kW) VW GOLF III Van (1H1) (08.1991 - 12.1997) 1.9 TDI (90 HP, 66 kW) VW GOLF III Van (1H1) (08.1991 - 12.1997) 2.0 (116 HP, 85 kW) VW GOLF III Van (1H1) (08.1991 - 12.1997) 2.0 GTI (150 HP, 110 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.4 (55 HP, 40 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.4 (60 HP, 44 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.6 (101 HP, 74 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.8 (75 HP, 55 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.8 (90 HP, 66 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.8 Syncro (90 hp, 66 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 D (64 HP, 47 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 SDI (64 HP, 47 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 TD (75 HP, 55 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 TDI (110 HP, 81 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 TDI (90 HP, 66 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 TDI Syncro (90 HP, 66 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 2.0 (107 HP, 79 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 2.0 (115 HP, 85 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 2.0 Syncro (115 HP, 85 kW) VW GOLF III Variant (1H5) (07.1993 - 04.1999) 2.9 VR6 Syncro (190 HP, 140 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.4 (55 HP, 40 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.4 (60 HP, 44 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.6 (101 HP, 74 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.6 (75 HP, 55 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.8 (75 HP, 55 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.8 (87 HP, 64 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.8 (90 HP, 66 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.8 (91 HP, 67 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.9 D (65 HP, 48 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.9 SDI (64 HP, 47 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.9 TD (75 HP, 55 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.9 TDI (110 HP, 81 kW) VW VENTO (1H2) (11.1991 - 09.1998) 1.9 TDI (90 HP, 66 kW) VW VENTO (1H2) (11.1991 - 09.1998) 2.0 (112 HP, 82 kW) VW VENTO (1H2) (11.1991 - 09.1998) 2.0 (115 HP, 85 kW) VW VENTO (1H2) (11.1991 - 09.1998) 2.0 GL (107 HP, 79 kW) VW VENTO (1H2) (11.1991 - 09.1998) 2.0 GL (84 HP, 62 kW) VW VENTO (1H2) (11.1991 - 09.1998) 2.8 VR6 (163 HP, 120 kW) VW VENTO (1H2) (11.1991 - 09.1998) 2.8 VR6 (174 HP, 128 kW) VW VENTO (1H2) (11.1991 - 09.1998) 2.8 VR6 (203 HP, 149 kW)
