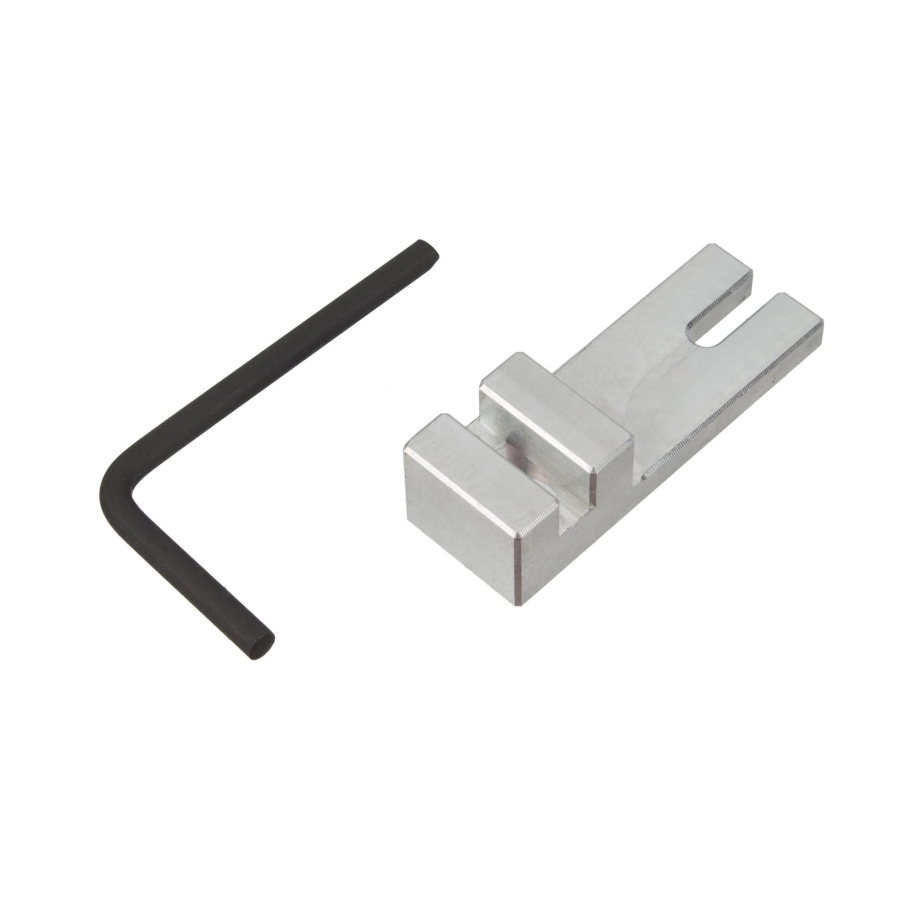

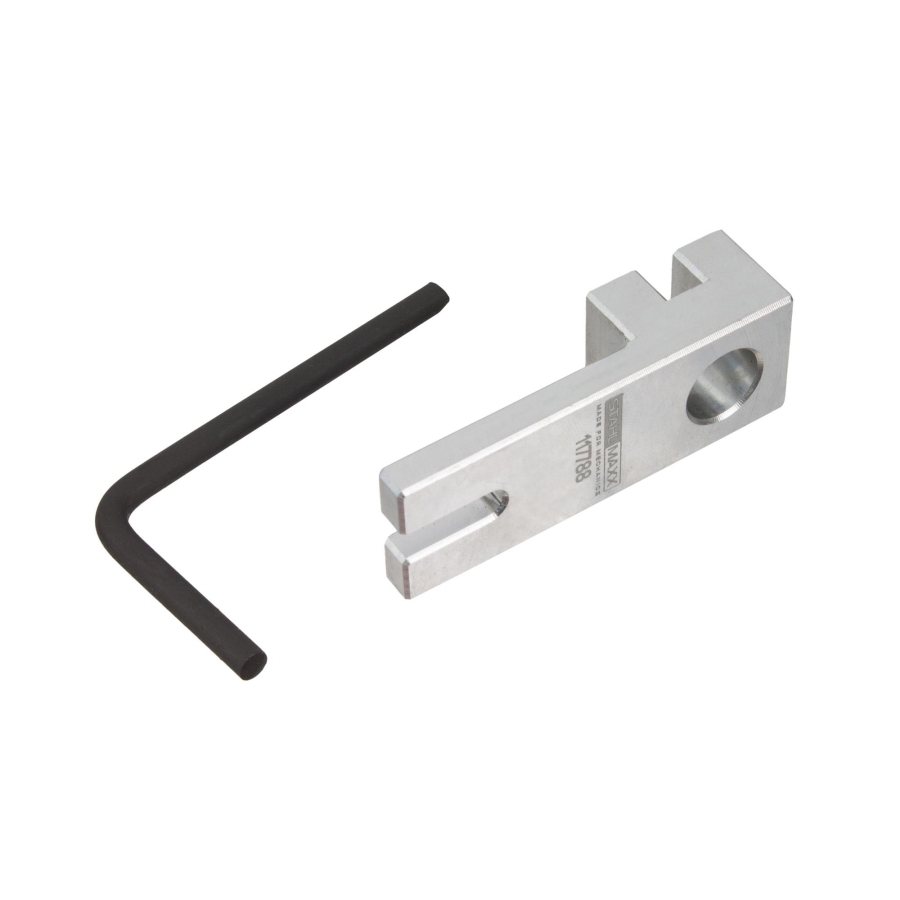

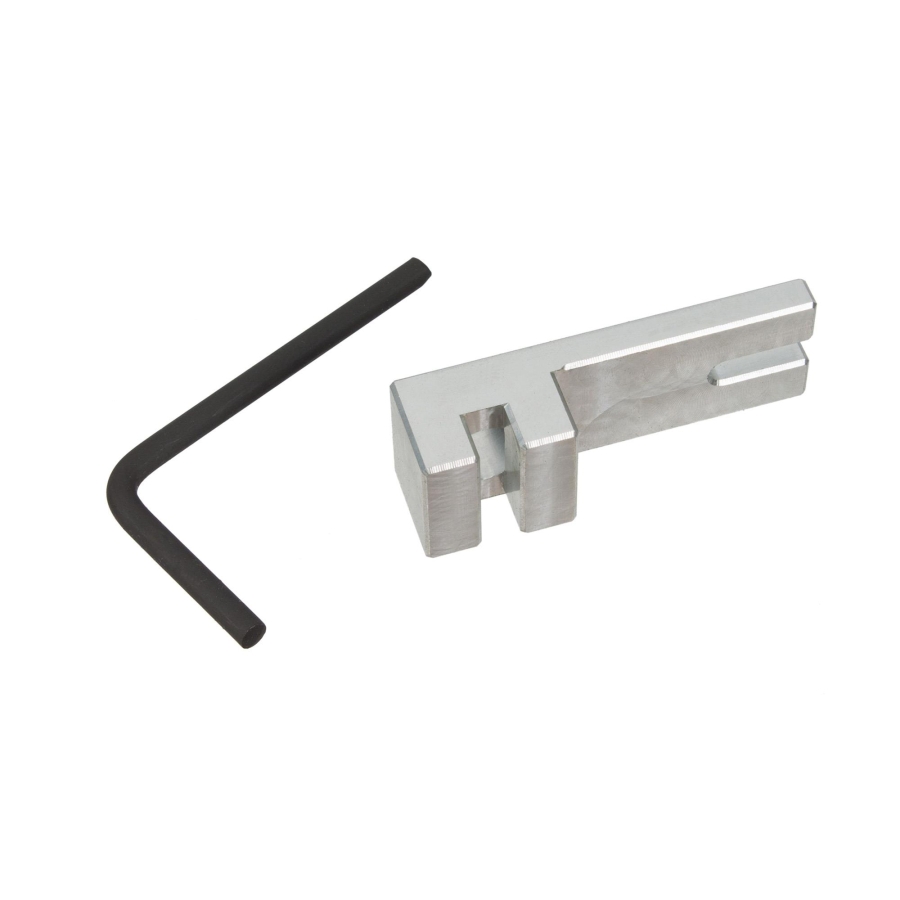

Gear Shift Lever Alignment Tool for Land Rover ZF4 Automatic Gearboxes as 307-498 LRT-44-011
-
Code:117788
-
Weight:0.060 Kgs
Overview:
✔ Professional alignment tool for Land Rover and Range Rover automatic transmissions
✔ Designed for precise positioning of the gear selector mechanism
✔ Used for correct adjustment of the selector lever neutral position
✔ Ensures proper operation of the starter interlock system
✔ Compatible with ZF4HP automatic transmissions
✔ Suitable for Defender, Discovery and Range Rover models
✔ Used as Land Rover 307-498 and LRT-44-011
✔ Ideal for transmission service and selector adjustment procedures
This special alignment tool is designed for correct positioning and adjustment of the gear selector mechanism and selector lever on Land Rover and Range Rover vehicles equipped with ZF4 automatic transmissions.
The tool is used to accurately determine and lock the neutral position of the selector lever during transmission adjustment procedures.
It also ensures proper adjustment of the starter interlock system and smooth engagement of all gear positions.
Designed for professional automatic transmission servicing and selector mechanism adjustment.
Application
Suitable for Land Rover and Range Rover vehicles equipped with ZF4HP automatic transmissions including:
- ZF4HP22
- ZF4HP24
- ZF4HP44
Compatible with:
- Land Rover Defender V8
- Land Rover Discovery 1
- Land Rover Discovery 2
- Range Rover Classic
- Range Rover P38
Function
The alignment tool fixes the gear selector mechanism in the correct neutral position during adjustment procedures.
Helps ensure correct gear selection, smooth shifting operation and proper function of the starter lock system.
Suitable for professional transmission repair and maintenance procedures.
Application Procedure
The correct selector position is determined in neutral position:
- Rotate the selector lever at the transmission clockwise into park position
- Move the selector lever two positions counterclockwise into neutral position
- Remove the selector lever nut and detach the selector lever
- Remove the two screws from the selector housing
- Install the alignment tool onto the shaft and rotate the shaft until the locking pin engages into the bore of the selector housing
- Reinstall and tighten the two screws
- Remove the alignment tool and reinstall the selector lever
Technical Information
- Tool type: Gear selector alignment tool
- Application: Automatic transmission selector adjustment
- Suitable for: ZF4HP automatic transmissions
- Compatible transmission types: ZF4HP22, ZF4HP24, ZF4HP44
- Used as: Land Rover 307-498, LRT-44-011
OEM numbers are provided for comparison purposes only. This product is not an original OEM tool.
