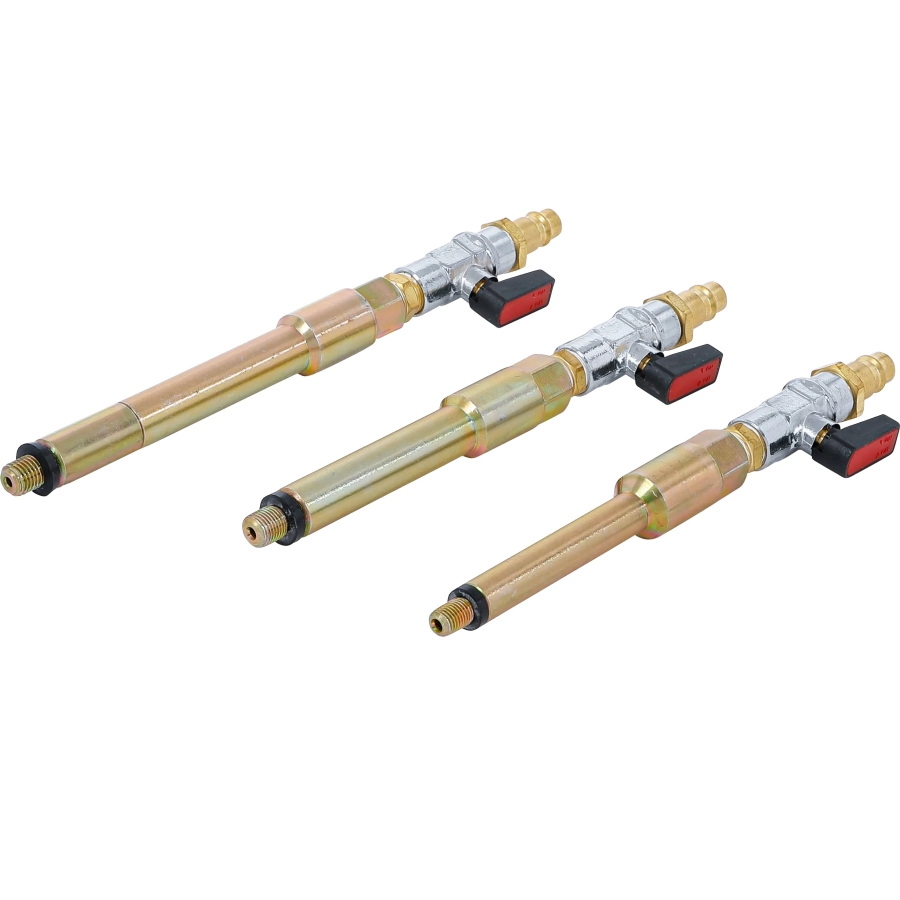

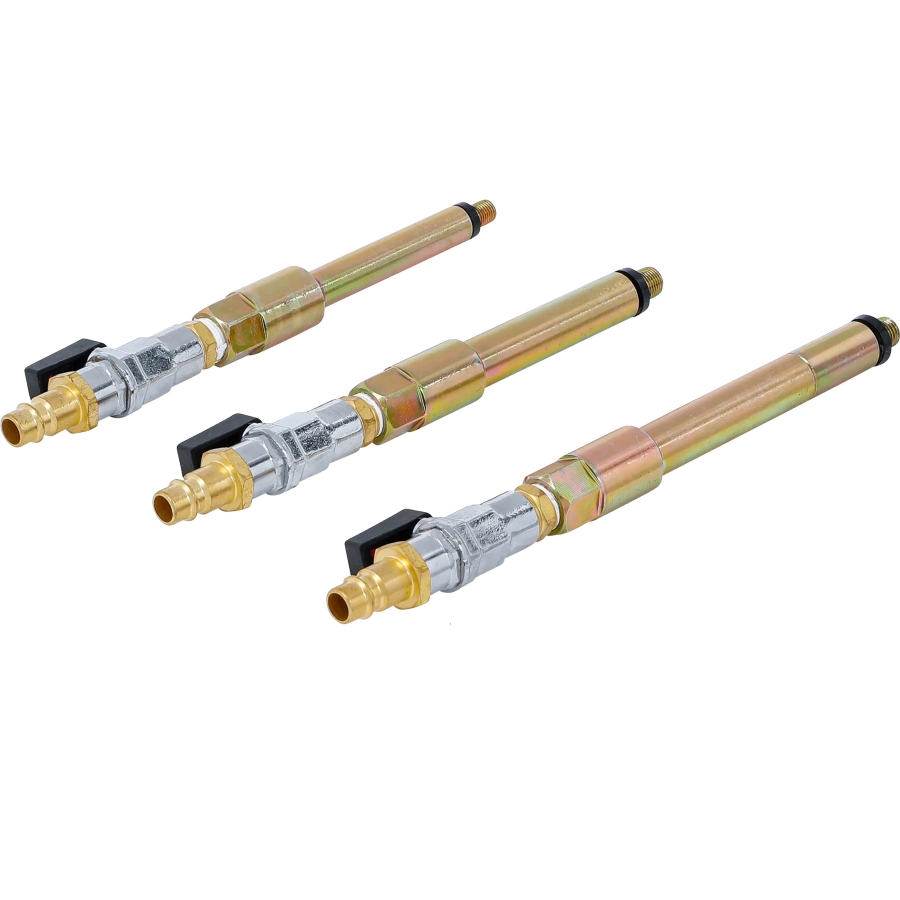

3-Piece Compressed-Air Adapter Set for Glow Plug Holes, M8 and M10
-
Code:9519
-
Weight:0.709 Kgs
Overview:
✔ Supplies compressed air to the combustion chamber through the glow plug hole
✔ Supports valve spring removal and installation with the cylinder head fitted
✔ Suitable for diagnosing cylinder pressure loss

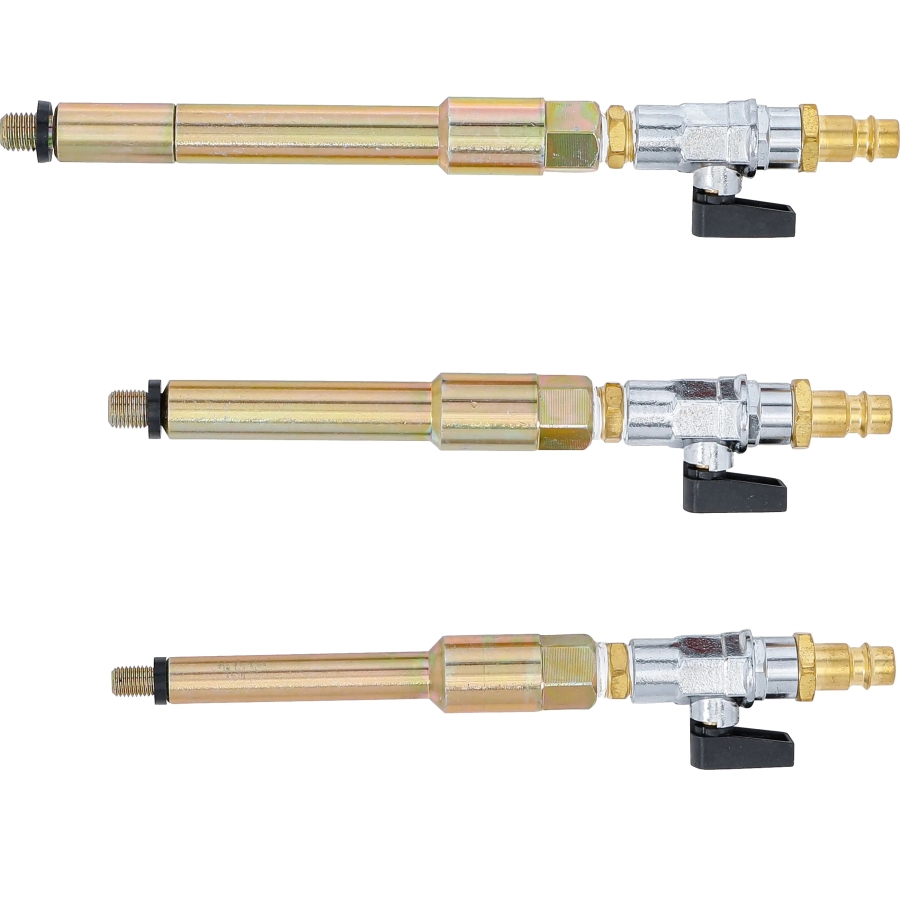

✔ Includes M8 x 1.0, M10 x 1.0 and M10 x 1.25 adapters
✔ Covers applications from Citroën, Fiat, Ford, BMW, Mercedes-Benz, Renault, Toyota and other brands
✔ Set of 3 compressed-air adapters

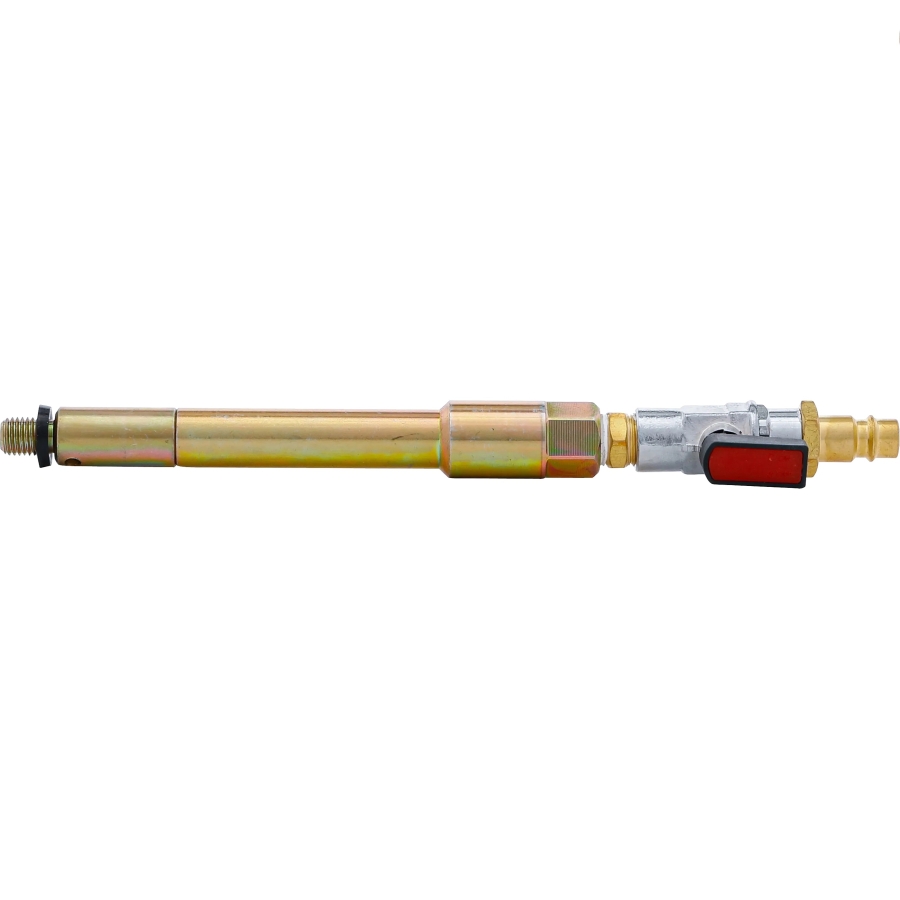

The adapters are screwed into the glow plug holes to supply compressed air directly to the combustion chamber.
The compressed air holds the valves in their closed position during valve spring removal or installation without removing the cylinder head. The adapters can also be used when diagnosing pressure loss from the combustion chamber.
Instructions for Use
- Remove all glow plugs.
- Turn the piston of the relevant cylinder to top dead centre on the compression stroke.
- Lock the crankshaft in the top dead centre position using a suitable tool.
- Install the correct glow plug hole adapter and close the valve on the adapter.
- Connect the adapter to the compressed-air system and slowly open its valve.
Thread and Vehicle Compatibility
- M8 x 1.0: Citroën, Fiat, Ford, Lancia, Opel, Mercedes-Benz, Suzuki, Volvo
- M10 x 1.0: BMW, Chrysler, Opel, Mercedes-Benz, Nissan, Renault
- M10 x 1.25: Toyota, Lexus
Compatibility depends on the engine and glow plug thread used.
Technical Specifications
- Application: supplying compressed air to the combustion chamber
- Installation point: glow plug hole
- Thread sizes: M8 x 1.0, M10 x 1.0, M10 x 1.25
- Number of adapters: 3
- Suitable for: valve spring service and pressure-loss diagnosis
Scope of Delivery
- 1 compressed-air adapter for M8 x 1.0 glow plug holes
- 1 compressed-air adapter for M10 x 1.0 glow plug holes
- 1 compressed-air adapter for M10 x 1.25 glow plug holes
