Glow Plug Removal and Thread Repair Kit, M8 and M10, 17-Piece
-
Code:8297
-
Weight:1.660 Kgs
Overview:
✔ For installing and removing glow plugs
✔ Enables professional repair of M8×1.0 and M10×1.0 threads
✔ Puller for removing seized glow plugs
✔ Two step drills for drilling out broken glow plugs
✔ Includes 1/4"×28 UNF tap for preparing extraction threads
✔ Ratcheting tap holder and E10 socket included
This 17-piece tool kit is designed for installing and removing glow plugs and for professionally repairing damaged glow plug threads.
The included puller enables seized glow plugs to be extracted, while the step drills allow broken glow plug bodies to be drilled out in preparation for removal.
Thread Repair
The included taps allow M8×1.0 and M10×1.0 glow plug threads to be recut and cleaned.
A 6.3 mm (1/4")×28 UNF tap is also included for creating the thread required during the extraction procedure. The ratcheting tap holder facilitates controlled operation, especially in confined engine compartments.

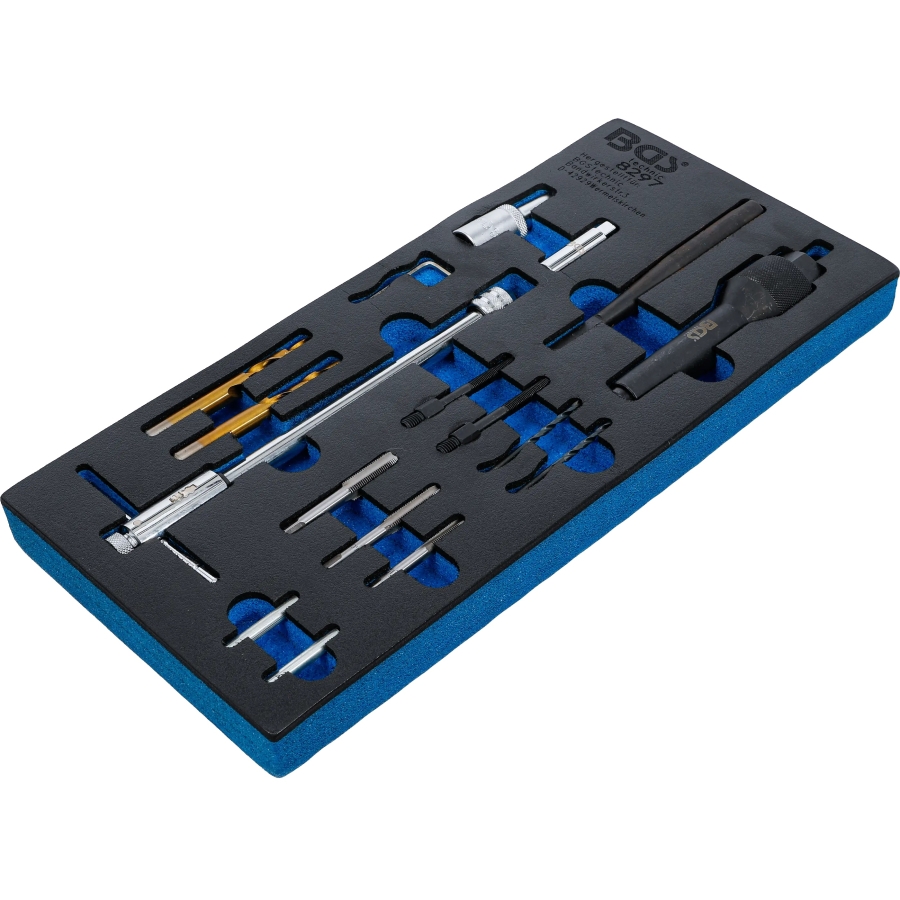

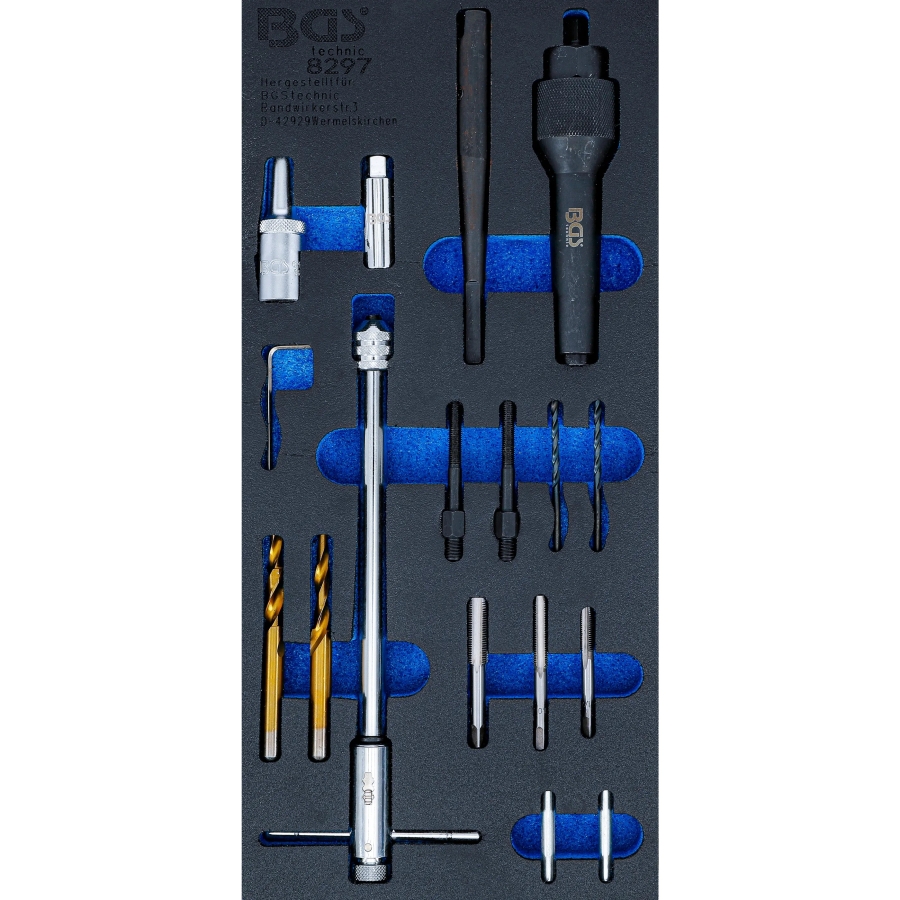

Set Components and Technical Data
- Puller for seized glow plugs
- Step drills for drilling out broken glow plugs: 7×5.5 and 9×5.5 mm
- Tap for glow plug threads: M8×1.0
- Tap for glow plug threads: M10×1.0
- Tap: 6.3 mm (1/4")×28 UNF
- Tap holder with ratchet function
- E10 external Torx socket
- Set: 17-piece
