Glow Plug Removal and Thread Repair Kit, M10×1, for Mercedes-Benz CDI
-
Code:8699
-
Weight:3.820 Kgs
Overview:
✔ Removes seized, corroded and broken glow plugs
✔ Repairs the glow plug thread without removing the cylinder head
✔ Restores damaged M10×1 threads using M12×1 repair inserts
✔ Includes puller and slide hammer for seized glow plugs
✔ Suitable for selected Mercedes-Benz CDI engines
✔ Includes 12 thread repair inserts and a compressed-air adapter
This tool kit is designed for the professional removal of seized, corroded or broken glow plugs without removing the cylinder head.
The included puller and slide hammer allow firmly seized glow plugs or remaining glow plug components to be extracted from the cylinder head.
Repair of Damaged M10×1 Threads
The kit enables damaged original M10×1 glow plug threads to be drilled and recut to M12×1. An M12×1 external/M10×1 internal threaded insert is then installed, allowing a standard M10×1 glow plug to be fitted securely.
Guide bushes ensure accurate alignment of the reamers, drills and taps during removal and thread repair.
Compatible Mercedes-Benz Engines
Suitable for Mercedes-Benz CDI engines from the following series:
OM 611, OM 612, OM 613, OM 628, OM 646 (excluding EVO), OM 647, OM 648

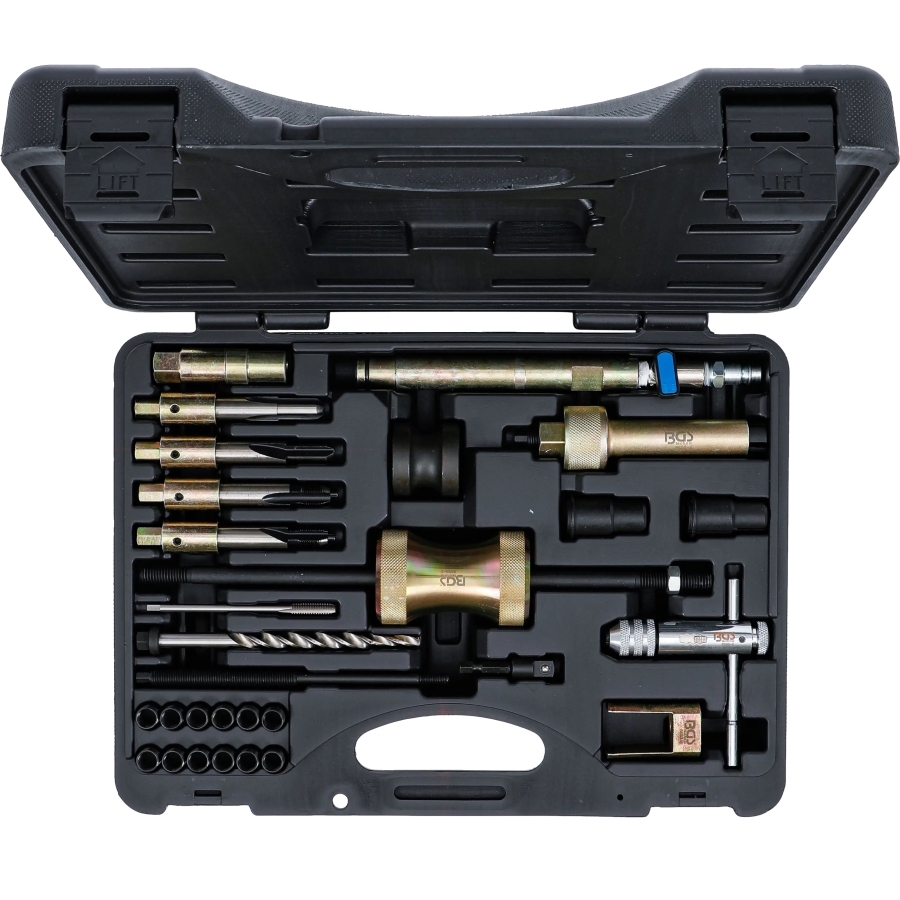

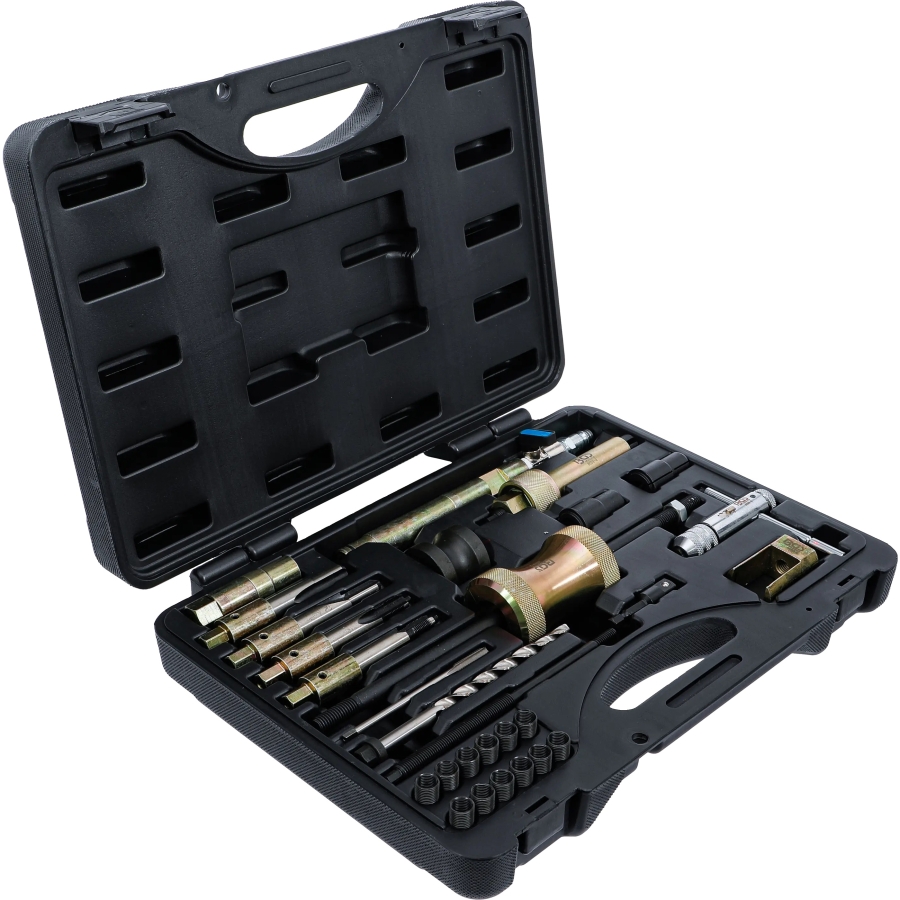

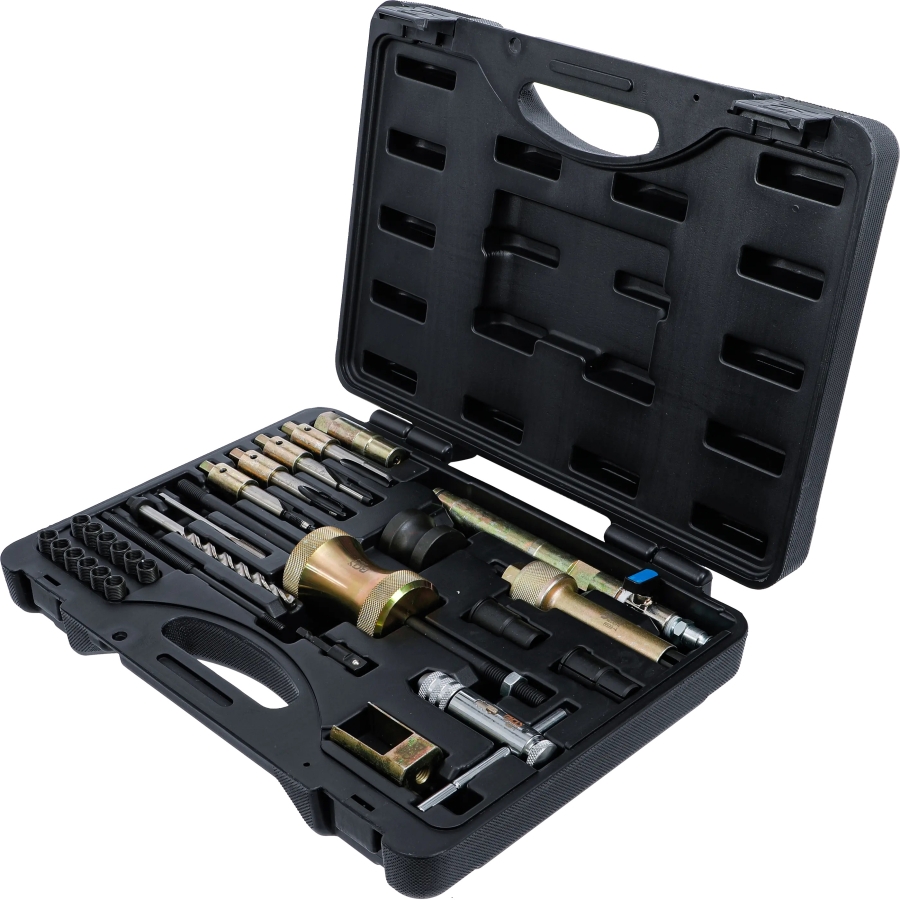

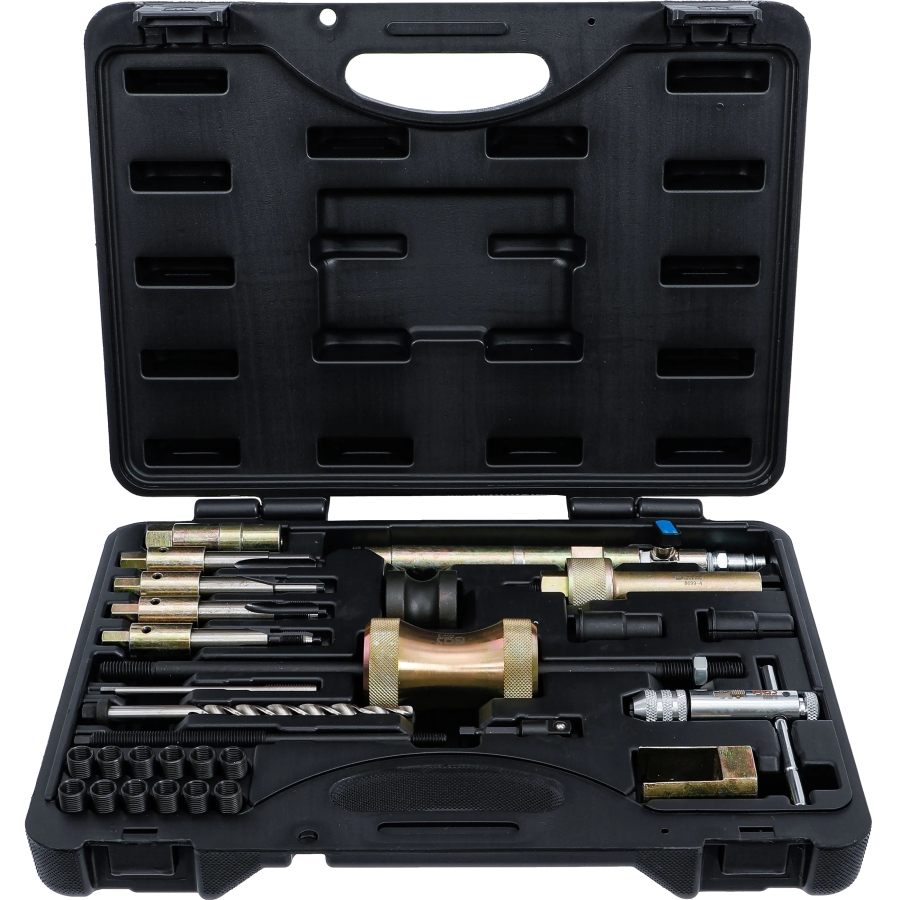

Scope of Delivery
- 1 × puller and slide hammer for removing seized or broken glow plugs
- Reamers for enlarging damaged threads
- 1 × tap, M10×1
- 1 × tap, M12×1
- Guide bushes for reamers and taps
- Special stepped drill and tap for drilling out broken glow plugs
- 12 × thread repair inserts, external thread M12×1 and internal thread M10×1
- 1 × compressed-air adapter
