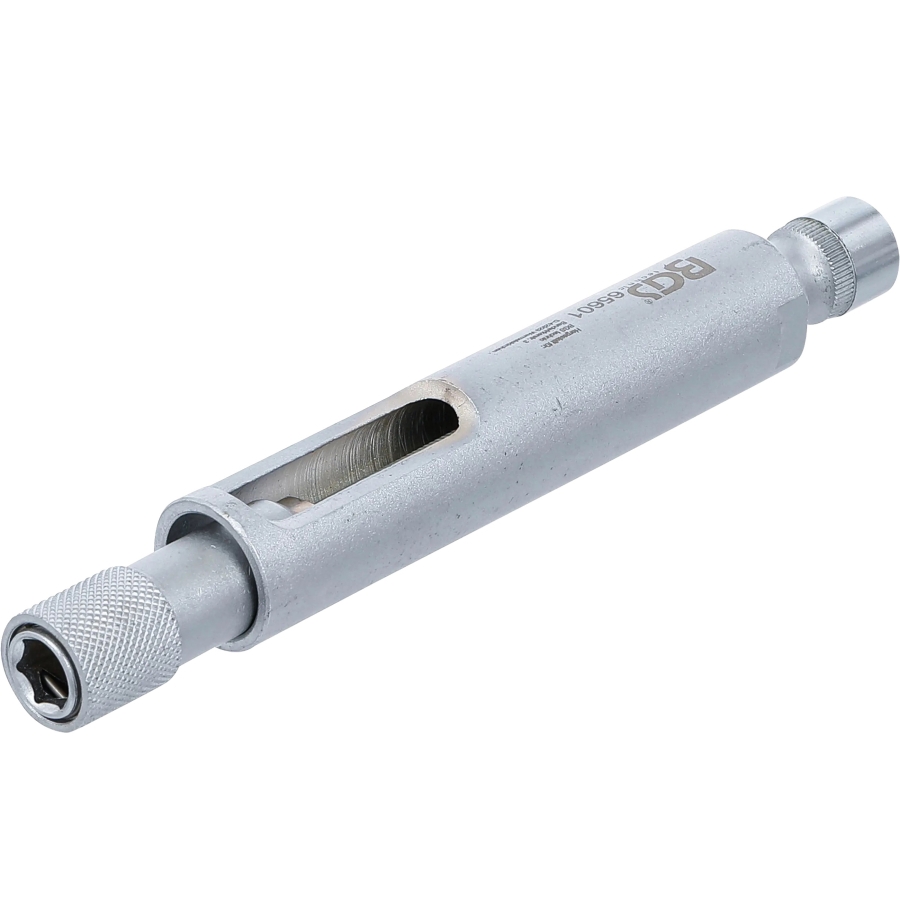

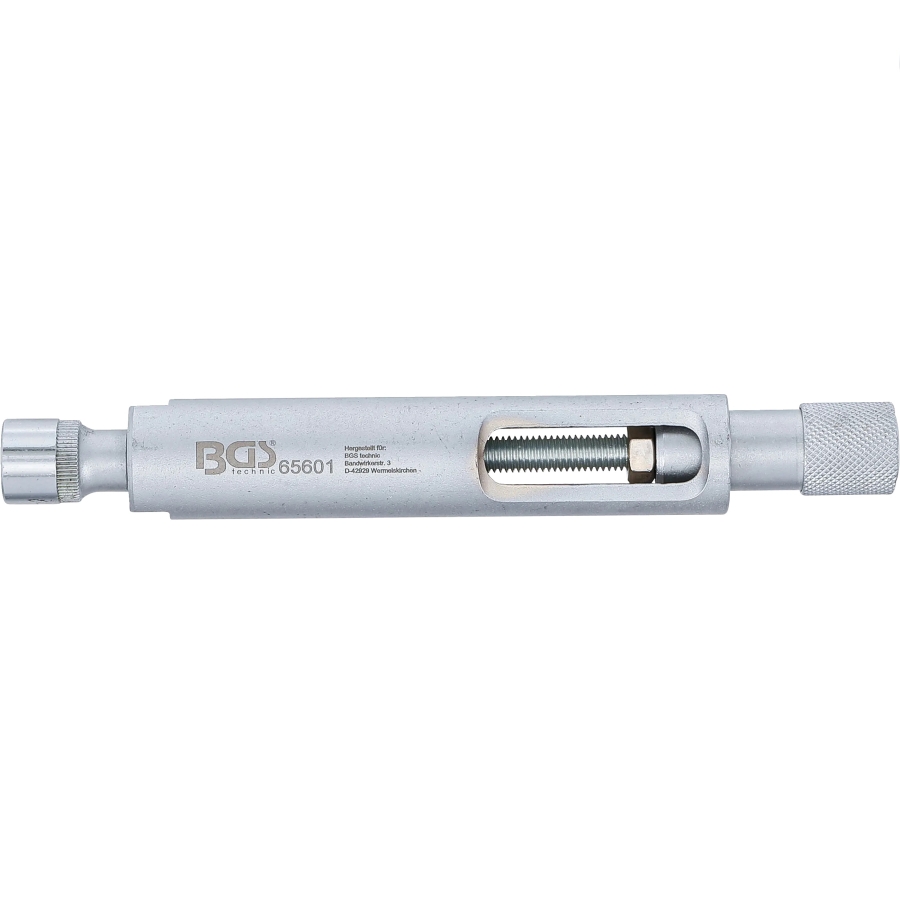

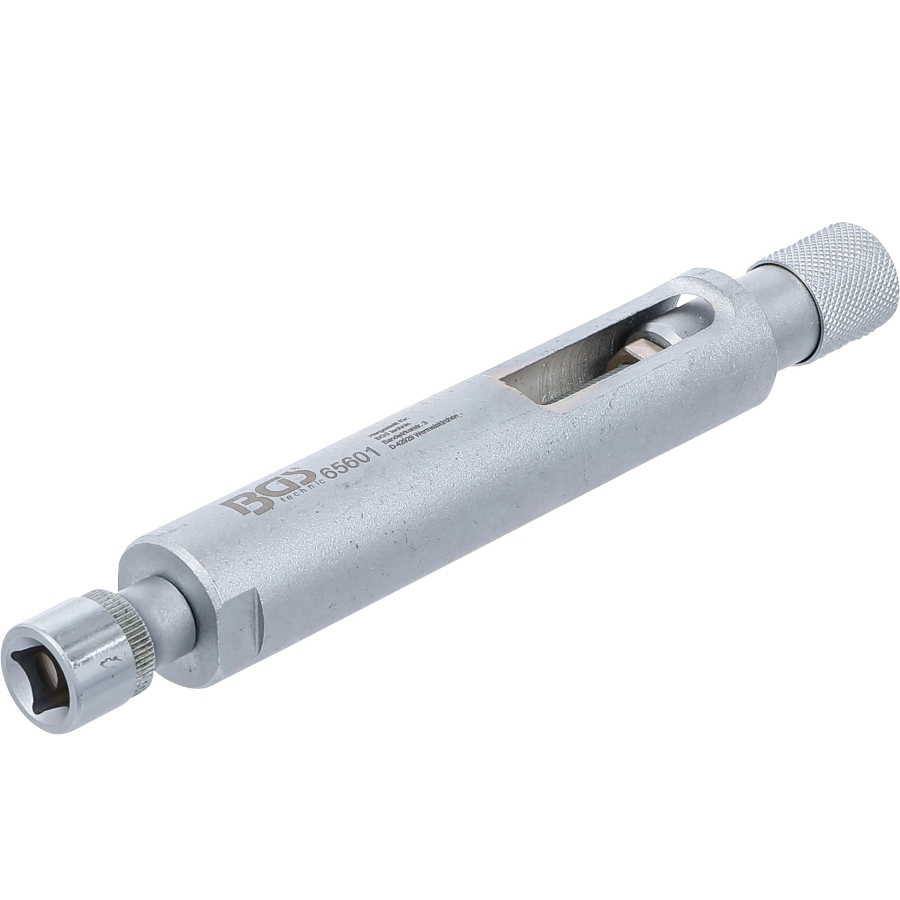

Glow Plug Removal Tool for Mercedes CDI, 10 mm
-
Code:65601
-
Weight:0.340 Kgs
Overview:
✔ For loosening and extracting seized glow plugs
✔ Suitable for Mercedes glow plugs with a 10 mm hex
✔ For CDI engines, including engine series 611, 612 and 613
✔ 3/8" drive for use with a ratchet, sliding handle or torque wrench
✔ Usually allows removal without dismantling the cylinder head
This tool is designed for loosening and extracting glow plugs from the cylinder head. It is particularly suitable for glow plugs that are extremely tight or seized.
In most cases, the glow plug can be removed without dismantling the cylinder head.
The tool is suitable for Mercedes glow plugs with a 10 mm hex, as used in engine series 611, 612 and 613, among others. It is especially suitable for CDI engines.
Instructions for Use
- Use a glow plug socket to loosen and unscrew the glow plug to the end of its thread.
- Press the tool onto the glow plug until it noticeably engages with the hex.
- Connect a suitable 3/8" drive tool, such as a ratchet, sliding handle or preferably a torque wrench.
- Carefully turn the spindle in the loosening direction. The glow plug will be pulled out of the cylinder head.
- To remove the glow plug from the tool, pull back the knurled ring and take out the glow plug.
Important Warning
The breaking torque of CDI glow plugs is extremely low—approximately 35 Nm.
We strongly recommend using a torque wrench when working on glow plugs. This allows the applied torque to be controlled and helps prevent the glow plug from breaking.
