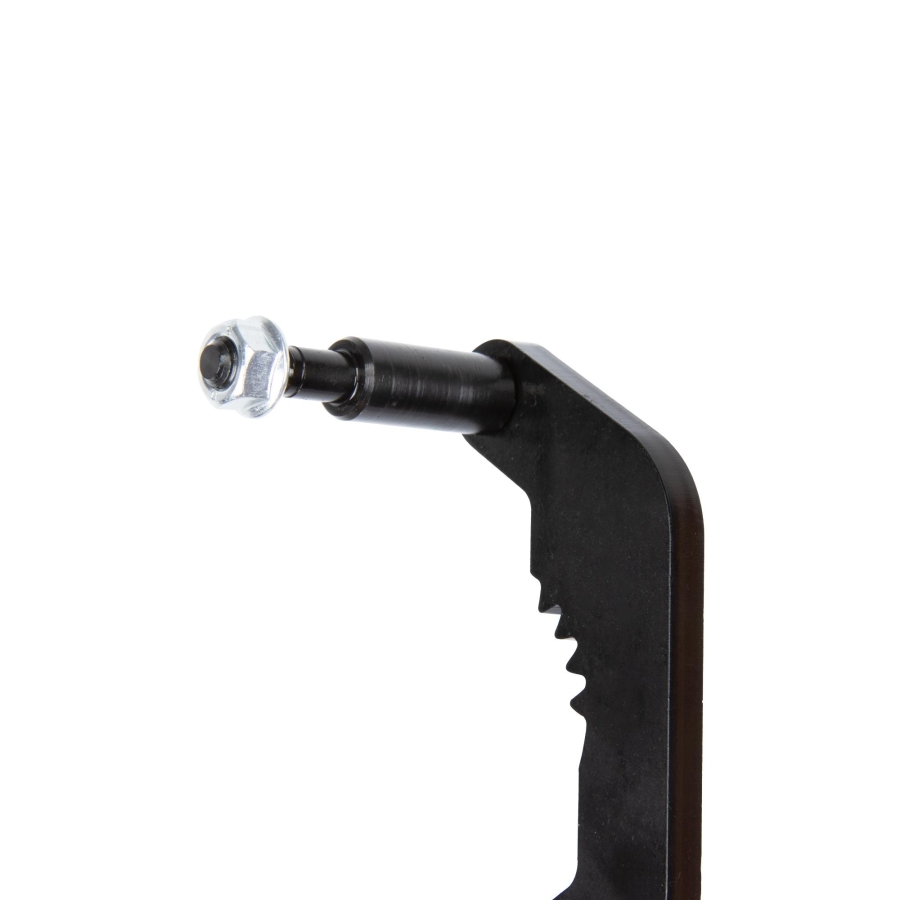

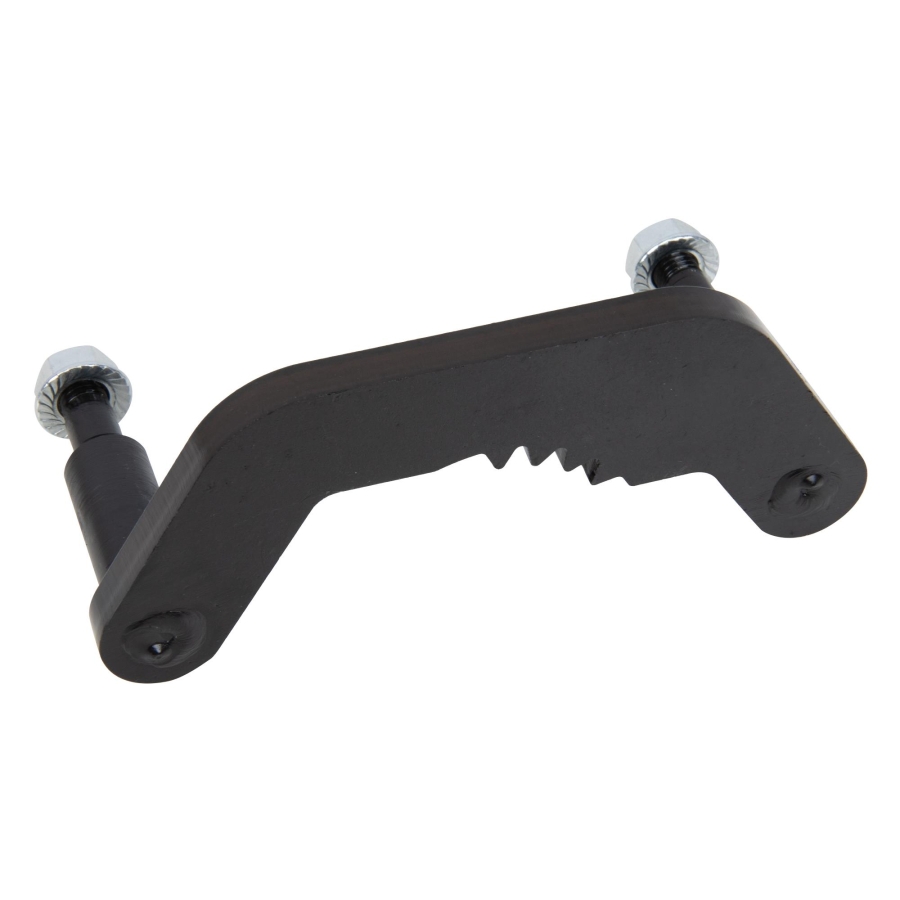

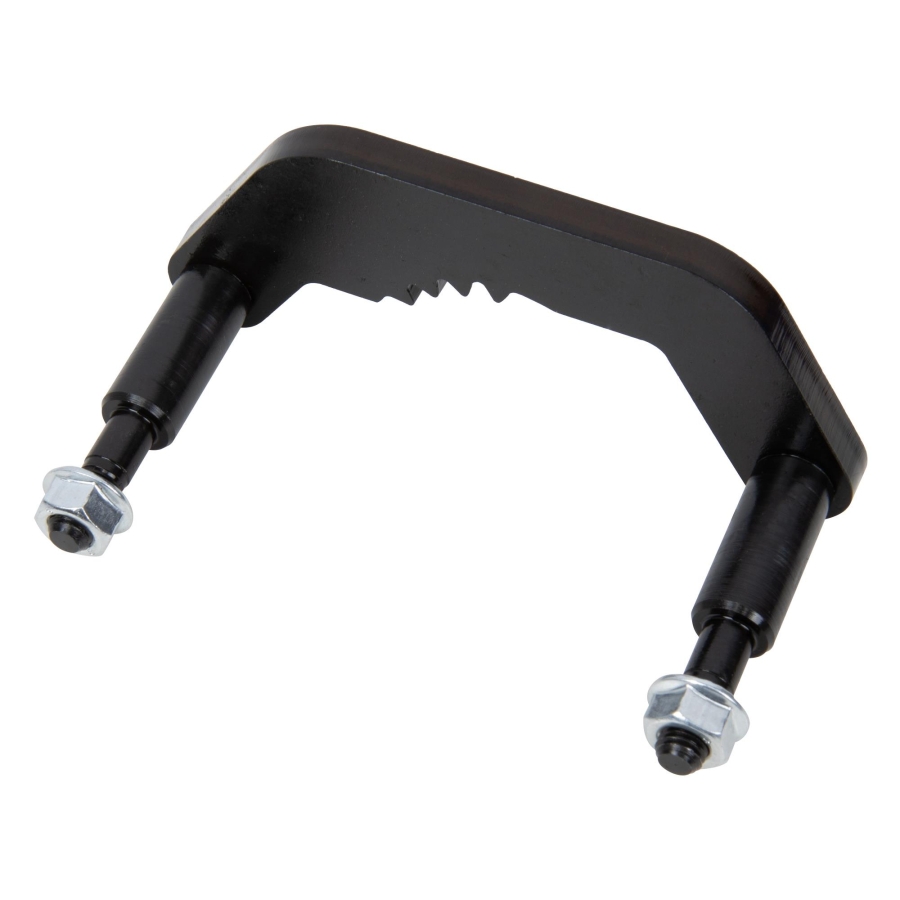

High Pressure Pump Sprocket Holding Tool for M9R / OM699 Engines
-
Code:124960
-
Weight:0.314 Kgs
Overview:
✔ Professional-grade holding tool for high pressure pump sprockets
✔ Compatible with Renault M9R (2.0 dCi / CDTi / EcoJet) and Mercedes OM699 engines
✔ Prevents sprocket rotation during tightening and loosening operations
✔ Ensures safe transfer of sprocket without damage to timing components
✔ Required for correct installation and torque application
✔ Suitable for workshop and engine service applications
This high pressure pump sprocket holding tool is designed to securely fix and counterhold the drive sprocket during removal and installation of the high pressure fuel pump.
It prevents unwanted rotation of the sprocket on the pump shaft, ensuring controlled loosening and tightening of the fastening bolt without stressing or damaging surrounding engine components.
Engine Compatibility
Suitable for the following engine codes:
- Renault: M9R (2.0 dCi / CDTi / EcoJet)
- Mercedes-Benz: OM699
Widely used in diesel engine service and fuel system maintenance procedures.
Technical Purpose
The tool ensures:
- Secure counterholding of the sprocket
- Protection of gear teeth and timing chain components
- Prevention of load transfer to pump internals and bearings
- Accurate torque application during assembly
Important Installation Note
New high pressure fuel pumps are supplied without the drive sprocket.
When transferring the sprocket from the old pump, the use of this holding tool is mandatory to avoid damage and ensure correct installation.
Torque Specifications
- Renault: 50 Nm + 50°
- Mercedes-Benz: 90 Nm
OEM Reference
(Mot.2219/6)
(W699589034000)
(2075500090)
Reference numbers are provided for identification purposes only. This tool is not an OEM product.
FIAT TALENTO Bus (296_) (06.2016 - ) 2.0 EcoJet (120 HP, 88 kW)
FIAT TALENTO Bus (296_) (06.2016 - ) 2.0 EcoJet (145 HP, 107 kW)
FIAT TALENTO Box (296_) (06.2016 - ) 2.0 EcoJet (120 HP, 88 kW)
FIAT TALENTO Box (296_) (06.2016 - ) 2.0 EcoJet (145 HP, 107 kW)
FIAT TALENTO Box (296_) (06.2016 - ) 2.0 EcoJet (170 HP, 125 kW)
FIAT TALENTO Platform/Chassis (296_) (06.2016 - ) 2.0 EcoJet (145 hp, 107 kW)
FIAT TALENTO Flatbed/Chassis (296_) (06.2016 - ) 2.0 EcoJet (170 hp, 125 kW)
MERCEDES-BENZ X-CLASS (470) (09.2017 - ) X 220 d (470.210) (163 hp, 120 kW)
MERCEDES-BENZ X-CLASS (470) (09.2017 - ) X 220 d 4-matic (470.211) (163 hp, 120 kW)
MERCEDES-BENZ X-CLASS (470) (09.2017 - ) X 250 d (470.230) (190 hp, 140 kW)
MERCEDES-BENZ X-CLASS (470) (09.2017 - ) X 250 d 4-matic (470.231) (190 hp, 140 kW)
MERCEDES-BENZ X-CLASS Flatbed/Chassis (470) (09.2017 - ) X 220 d (470.210) (163 hp, 120 kW)
MERCEDES-BENZ X-CLASS Flatbed/Chassis (470) (09.2017 - ) X 250 d 4-matic (470.231) (190 hp, 140 kW)
NISSAN NV300 Van (X82) (09.2016 - ) 2.0 dCi 120 (120 hp, 88 kW)
NISSAN NV300 Panel Van (X82) (09.2016 - ) 2.0 dCi 145 (145 hp, 107 kW)
NISSAN NV300 Panel Van (X82) (09.2016 - ) 2.0 dCi 170 (170 hp, 125 kW)
NISSAN NV300 Combi (X82) (09.2016 - ) 2.0 dCi 120 (120 hp, 88 kW)
NISSAN NV300 Combi (X82) (09.2016 - ) 2.0 dCi 145 (145 hp, 107 kW)
NISSAN NV300 Combi (X82) (09.2016 - ) 2.0 dCi 170 (170 hp, 125 kW)
NISSAN NV300 Flatbed/Chassis (X82) (09.2016 - ) 2.0 dCi 145 (145 hp, 107 kW)
NISSAN NV300 Flatbed/Chassis (X82) (09.2016 - ) 2.0 dCi 170 (170 hp, 125 kW)
RENAULT TRAFIC III Bus (JG_) (05.2014 - ) 2.0 dCi 120 (JGMN) (120 hp, 88 kW)
RENAULT TRAFIC III Bus (JG_) (05.2014 - ) 2.0 dCi 145 (JGML) (145 hp, 107 kW)
RENAULT TRAFIC III Bus (JG_) (05.2014 - ) 2.0 dCi 170 (JGMM) (170 HP, 125 kW)
RENAULT TRAFIC III Box (FG_) (05.2014 - ) 2.0 dCi 120 (FGMN) (120 HP, 88 kW)
RENAULT TRAFIC III Box (FG_) (05.2014 - ) 2.0 dCi 145 (FGML) (145 HP, 107 kW)
RENAULT TRAFIC III Box (FG_) (05.2014 - ) 2.0 dCi 170 (FGMM) (170 HP, 125 kW)
RENAULT TRAFIC III Platform/Chassis (EG_) (05.2014 - ) 2.0 dCi 145 (EGML) (145 HP, 107 kW)
RENAULT TRAFIC III Flatbed/Chassis (EC_) (05.2014 - ) 2.0 dCi 170 (ECMM) (170 hp, 125 kW)
