Hydraulic Drive Shaft Removal Kit 98–125 mm

This special tool kit is designed for pressing drive shafts out of wheel hubs, particularly when dealing with bonded, seized, or heavily corroded components.

Suitable for a wide range of vehicles including Volkswagen, Audi, Seat, Škoda, Opel, Volvo, Fiat, Renault, Peugeot, Citroën, and many other manufacturers.

Hydraulic Drive Shaft Removal

The included hydraulic spindle delivers up to 10 tons of pressing force, providing an efficient solution for removing stubborn drive shafts from wheel hubs.

The system is particularly effective when working on drive shafts affected by corrosion or bonding between the shaft and wheel hub.

Wheel Hub Compatibility

Suitable for:

• 4-bolt wheel hubs
• 5-bolt wheel hubs

Specifications:

• Bolt circle diameter: 98–125 mm
• Maximum wheel stud size: M14

Tool Components

The kit includes a complete drive shaft removal system consisting of a puller foot, hydraulic spindle, manual spindle, and thread reducing adapter.

This combination allows flexible use depending on the application and available workspace.

Technical Specifications

Puller Foot

• Internal thread: 1-1/2" x 16 UN

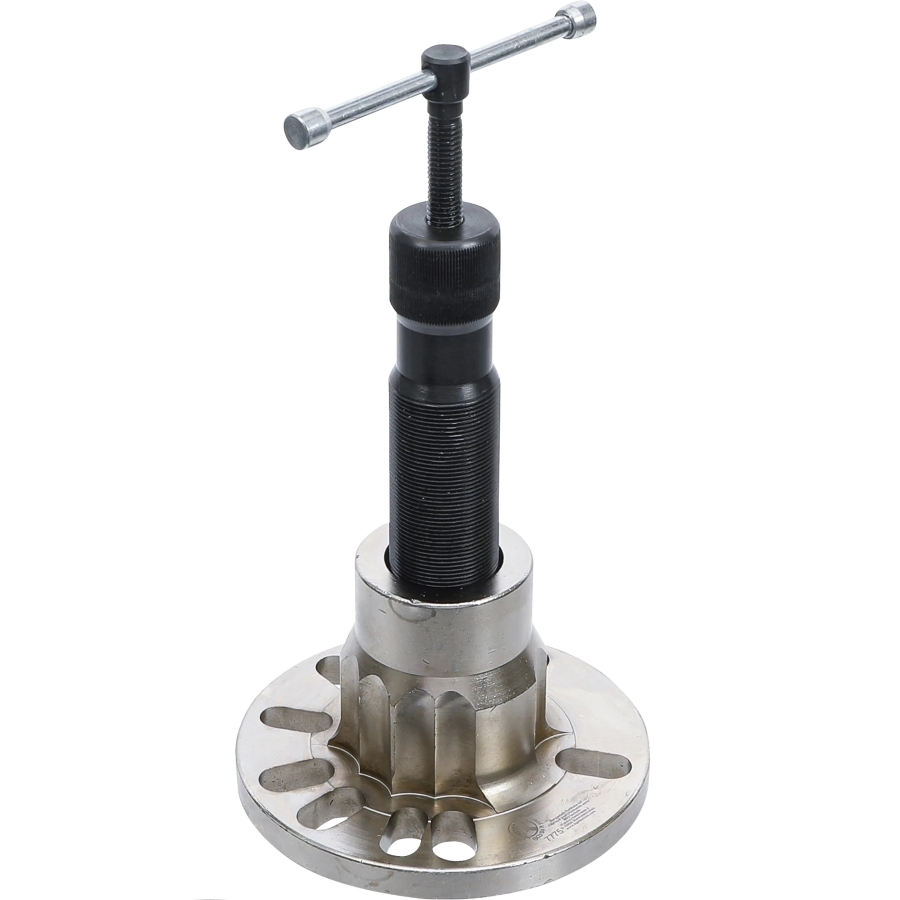

Hydraulic Spindle

• Capacity: 10 t
• Internal thread: 1-1/2" x 16 UN

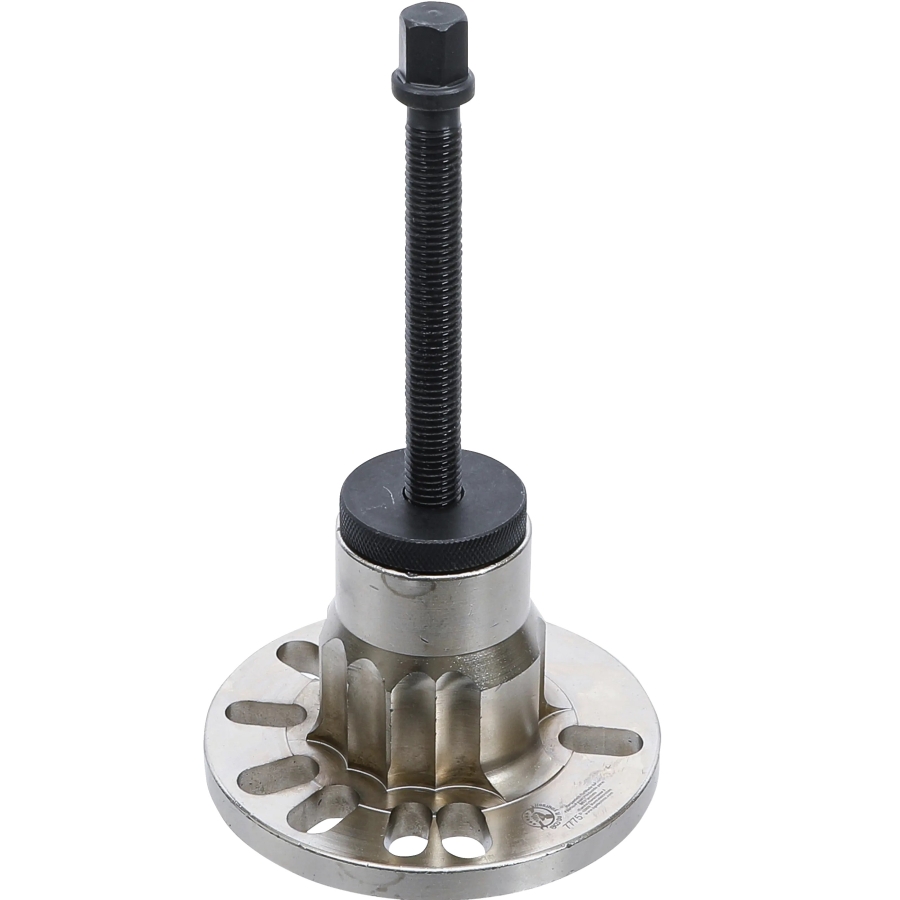

Manual Spindle

• Drive: External hexagon SW 19 mm
• Internal thread: 11/16" x 10 UN

Thread Reducing Adapter Ring

• Internal thread: 1-1/2" x 16 UN
• Reduction to: 11/16" x 10 UN

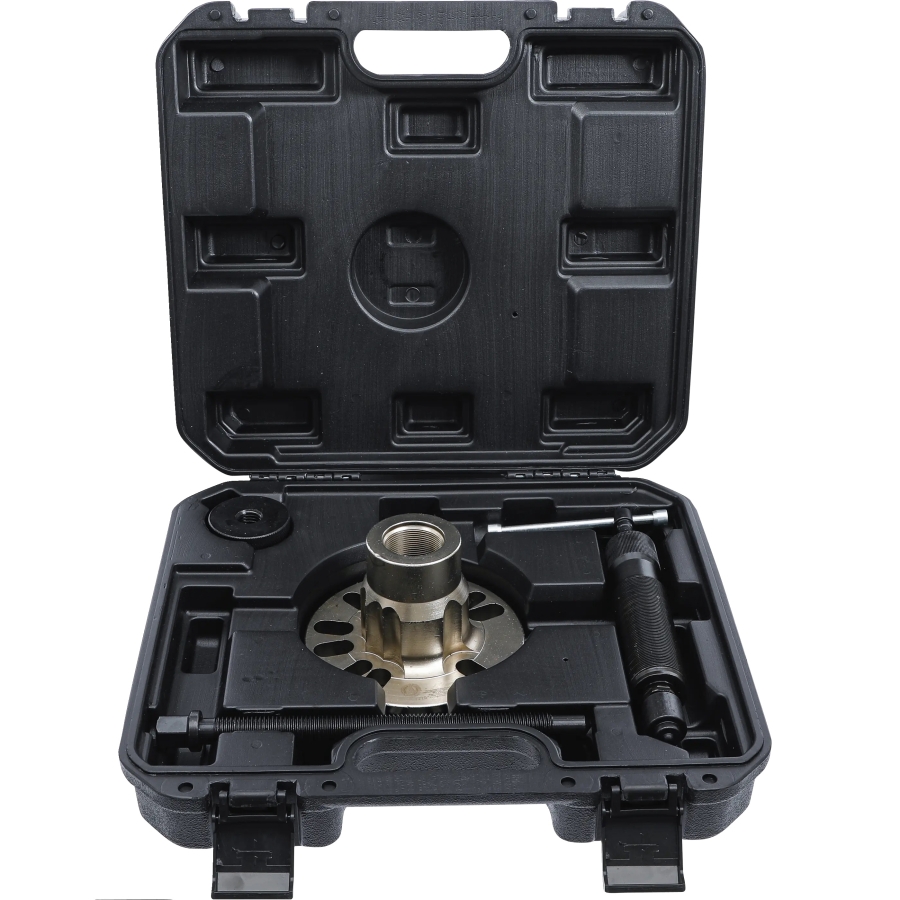

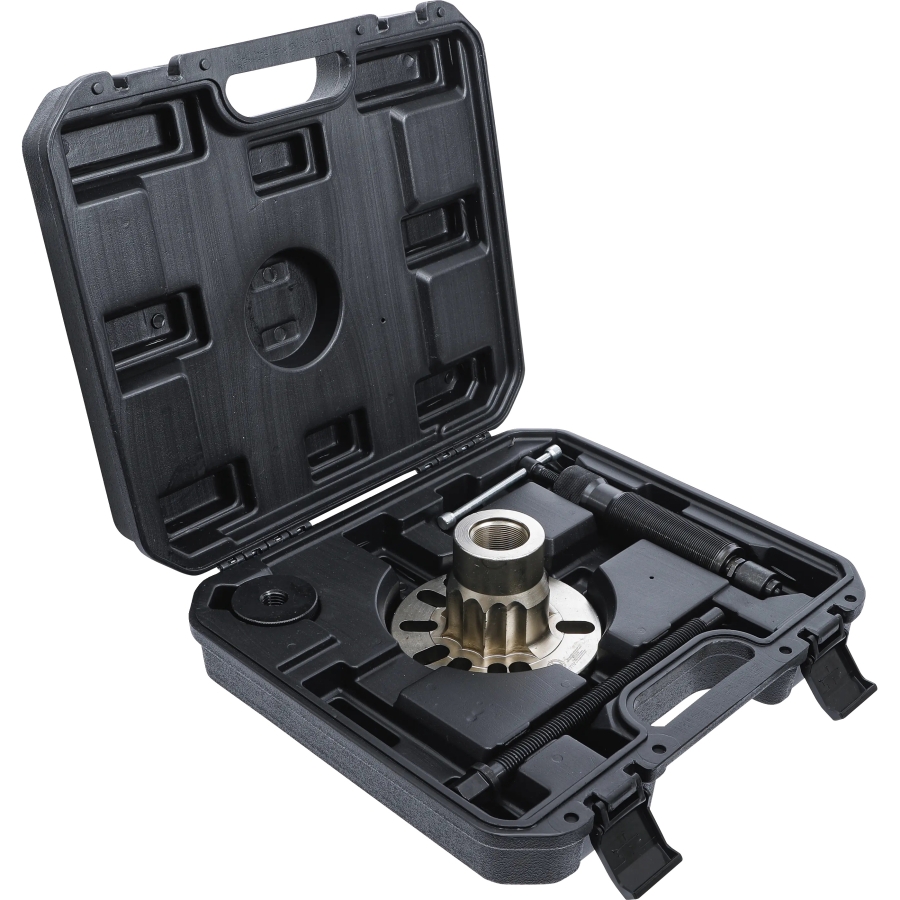

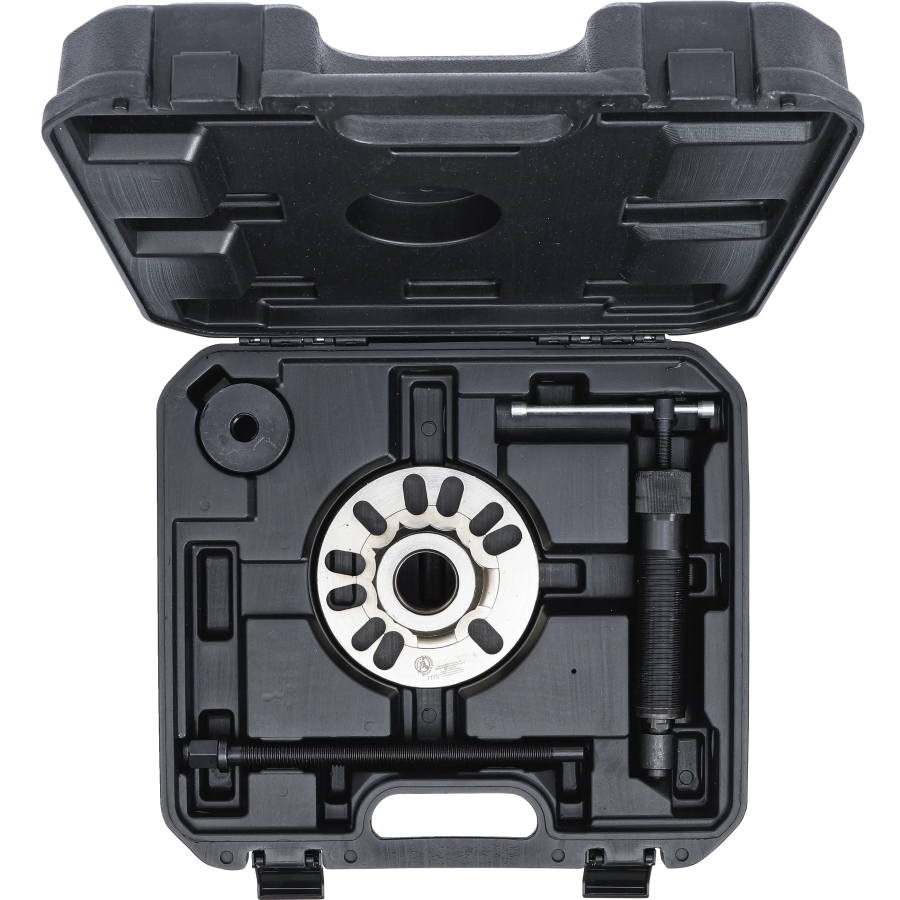

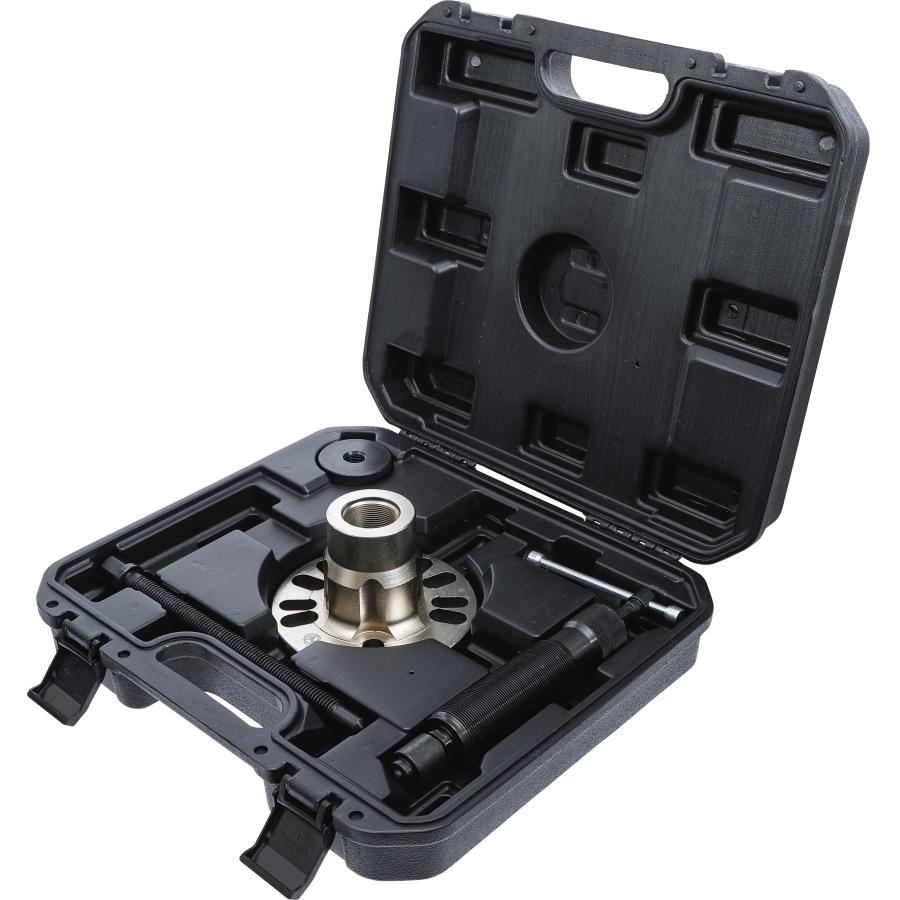

Contents

• Puller foot
• Hydraulic spindle, 10 t
• Manual spindle
• Thread reducing adapter ring
