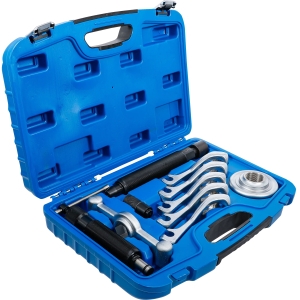

Hydraulic Drive Shaft and Wheel Hub Puller Set 125–215 mm

This professional tool set is designed for removing drive shafts and extracting wheel hubs on passenger cars, vans, and light commercial vehicles.

The system is particularly suitable for removing bonded, seized, or heavily corroded drive shafts where conventional removal methods are ineffective.

Hydraulic and Mechanical Removal System

The included hydraulic spindle delivers up to 10 tons of pressing force, providing efficient removal of stubborn drive shafts and wheel hubs.

For applications requiring impact force, the hydraulic spindle can be replaced with the supplied impact spindle, allowing high mechanical release force to be applied.

This combination offers flexibility for a wide range of repair situations.

Adjustable Puller Design

The puller system allows quick and easy adjustment of both the puller arms and working diameter.

This makes the tool suitable for a wide variety of wheel hub configurations and vehicle types.

Compatibility

Suitable for wheel hubs with:

• 3 bolt holes
• 4 bolt holes
• 5 bolt holes
• 6 bolt holes

Specifications:

• Bolt circle diameter: 125–215 mm

Suitable for:

• Passenger cars
• Vans
• Light commercial vehicles

Technical Specifications

Hydraulic Spindle

• Capacity: 10 t
• Thread: 1-1/2"
• Includes pressure ball
• External hex drive: 22 mm
• Length: 250 mm

Impact Spindle

• Movable impact pin
• External hex drive: 30 mm
• Length: 285 mm

Impact Wrench

• Hex size: 30 mm
• Length: 200 mm

Pressure Extension

• Length: 35 mm
• For hydraulic spindle

Centering Tip

• Suitable for hydraulic spindle

Disc Adapter

• Diameter: 101 mm
• For puller arms and hydraulic spindle

Puller Arms

• Quantity: 5

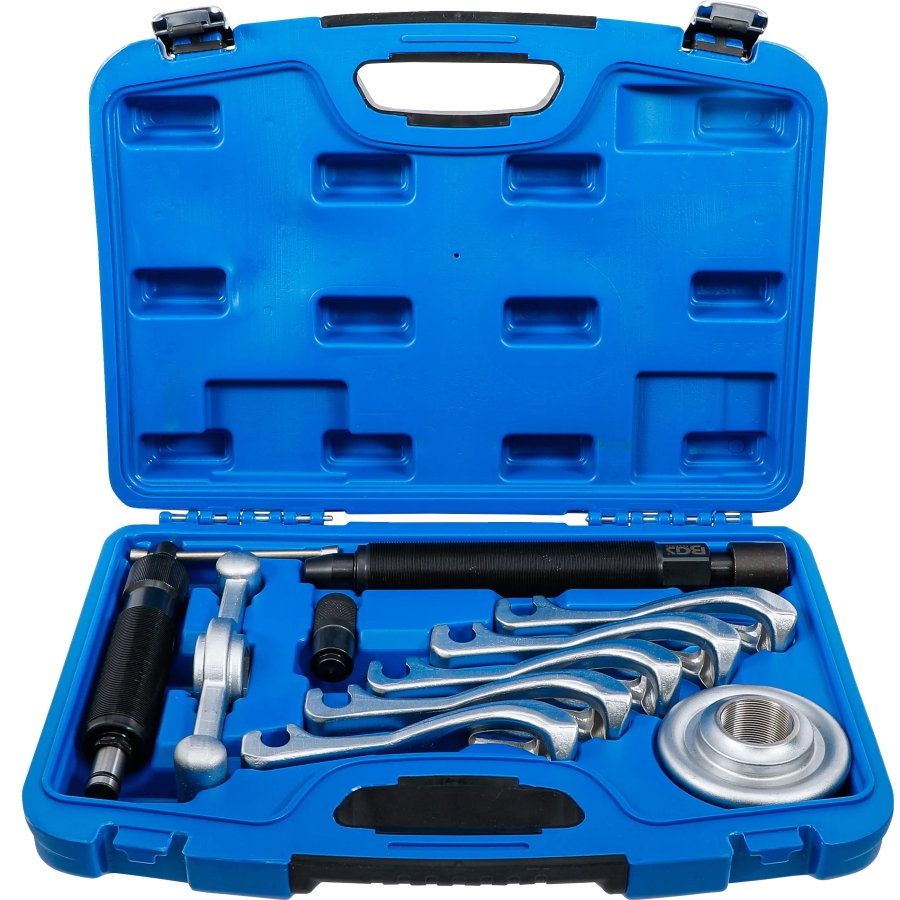

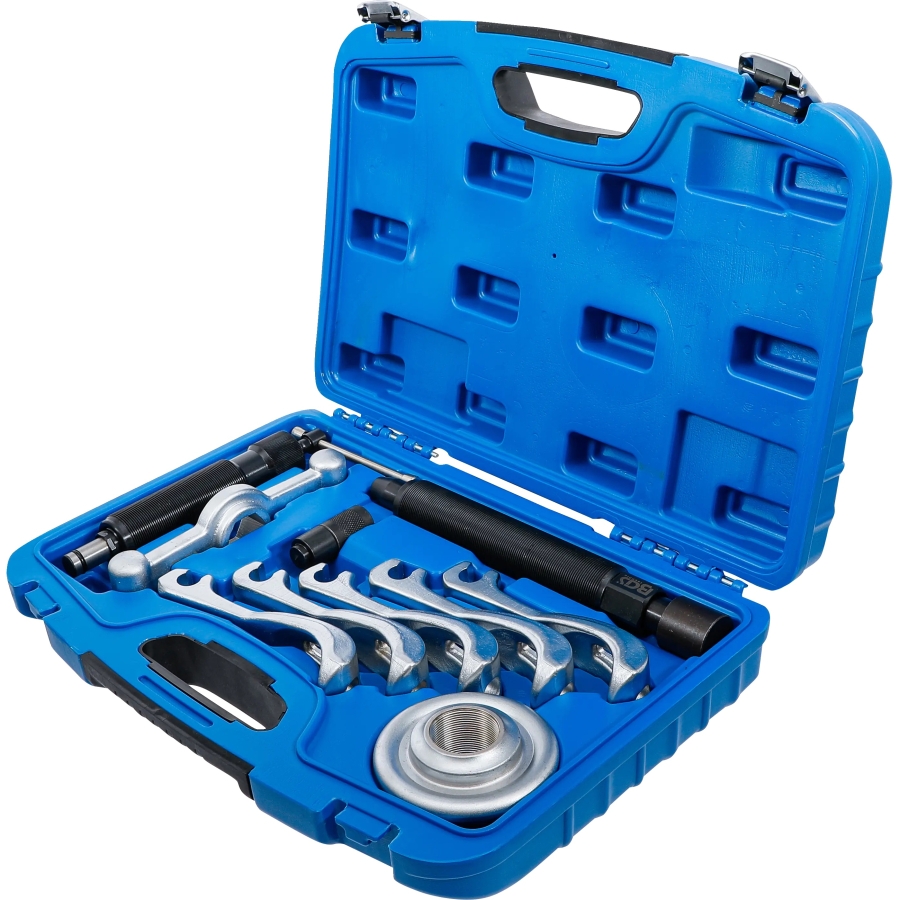

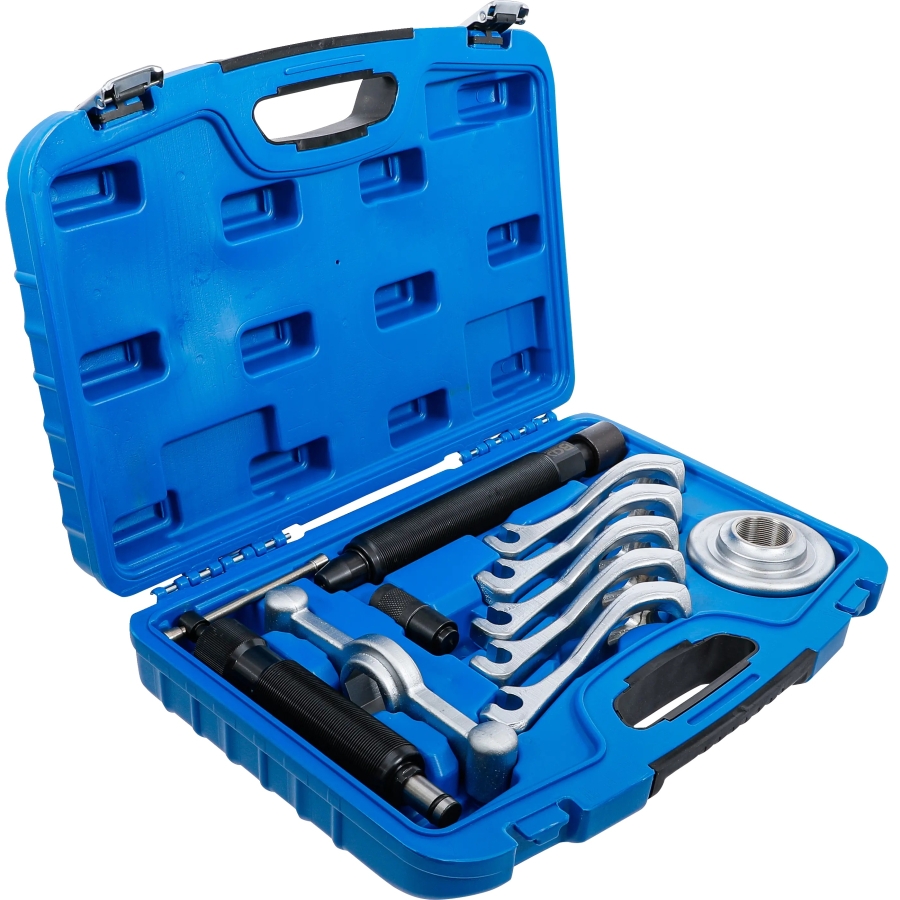

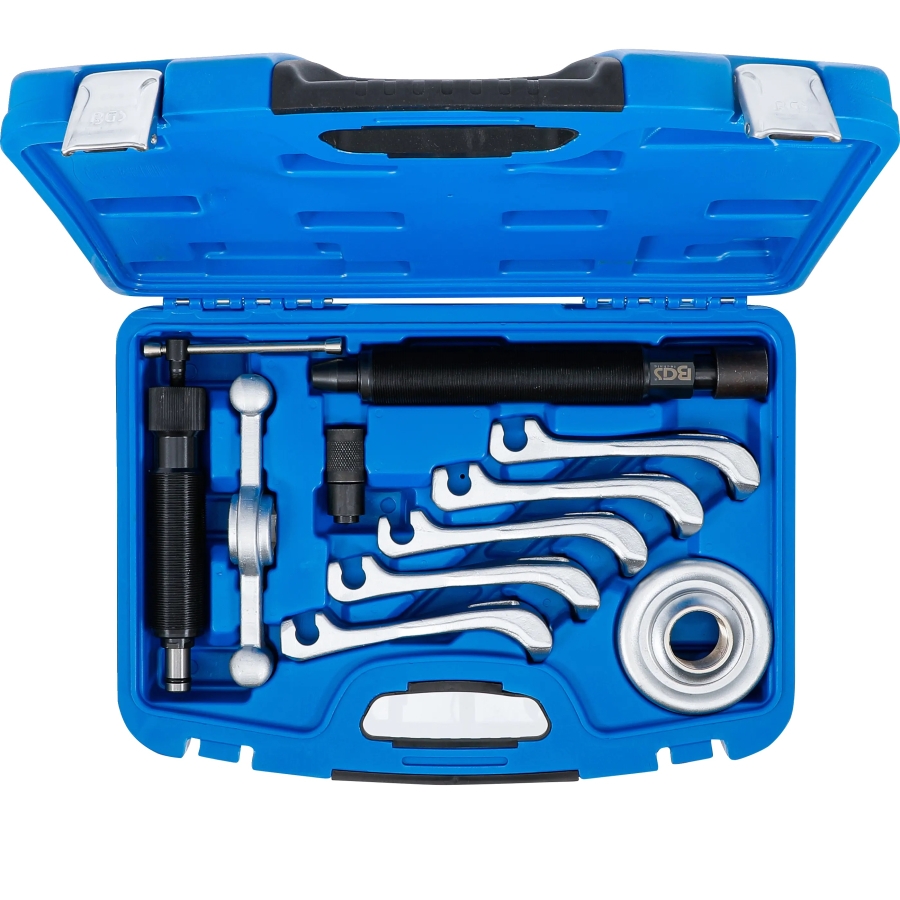

Contents

• Hydraulic spindle, 10 t
• Impact spindle with movable impact pin
• 30 mm impact wrench
• 35 mm pressure extension
• Centering tip
• 101 mm disc adapter
• 5 puller arms
