Ignition Spark Tester for Classic Cars
-
Code:3030
-
Weight:0.110 Kgs
Overview:
✔ Professional ignition spark tester for classic and vintage vehicles
✔ Adjustable spark gap for ignition performance evaluation
✔ Checks ignition voltage presence and spark strength
✔ Helps diagnose ignition system faults quickly
✔ Enables testing of ignition reserve capacity
✔ Adjustable spark gap through threaded adjustment screw
✔ Suitable for workshop diagnostics and restoration work
✔ Compact and easy-to-use design

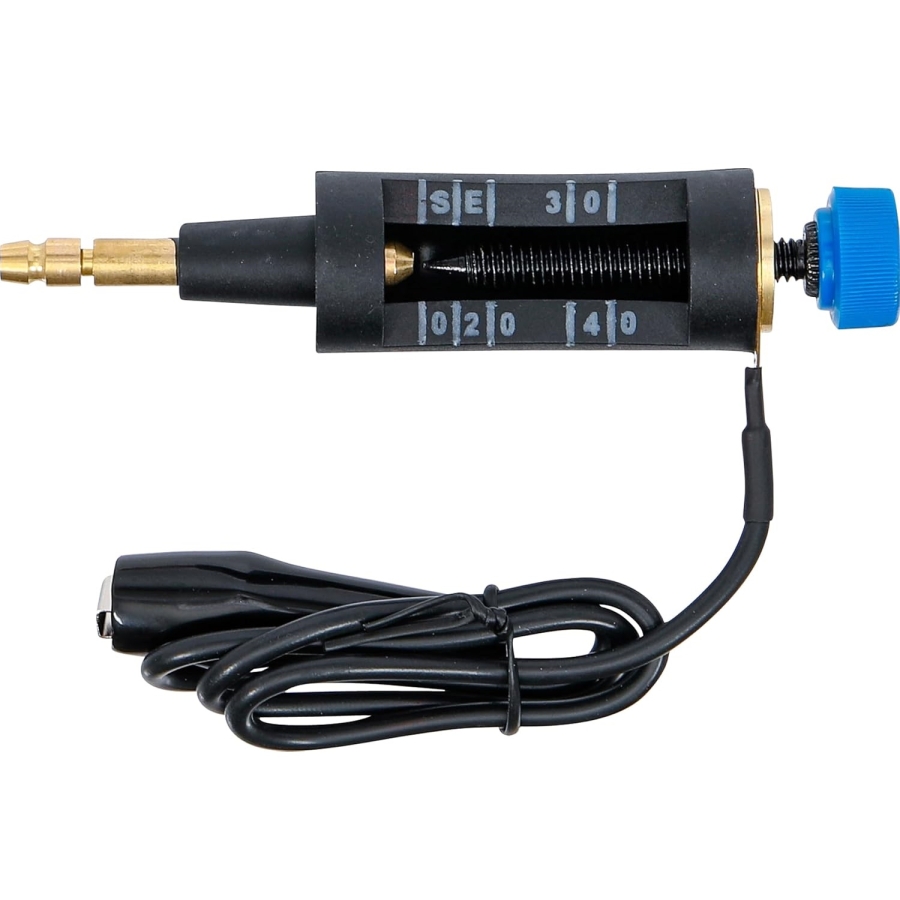

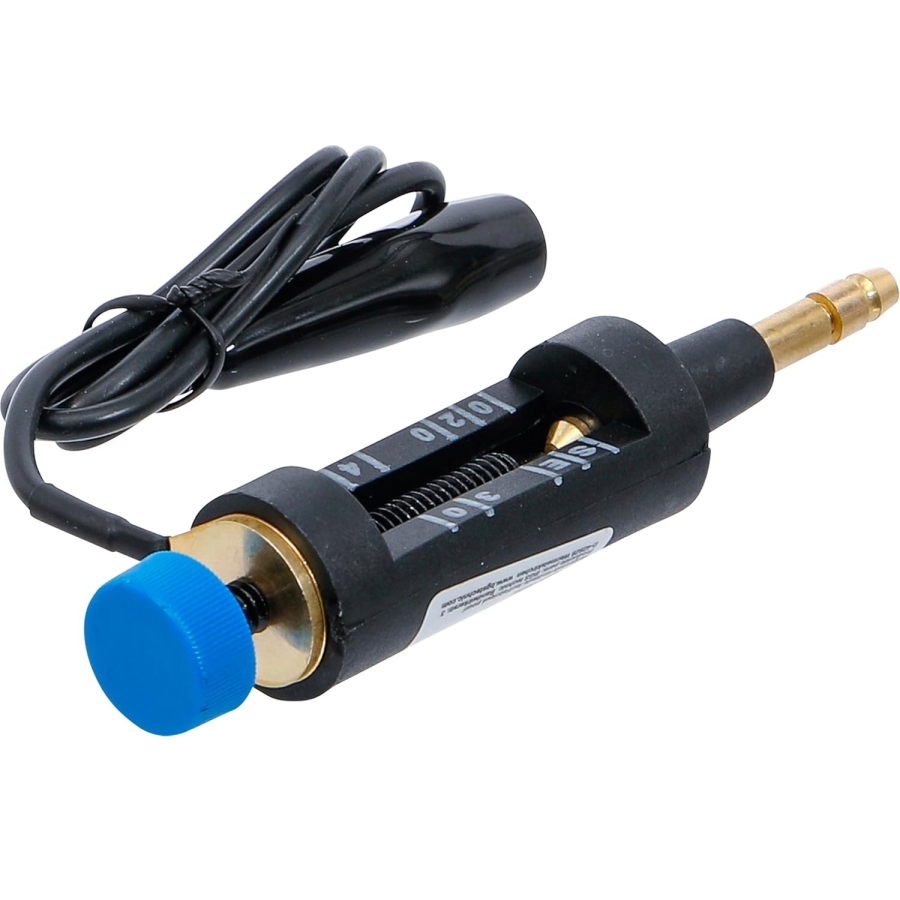

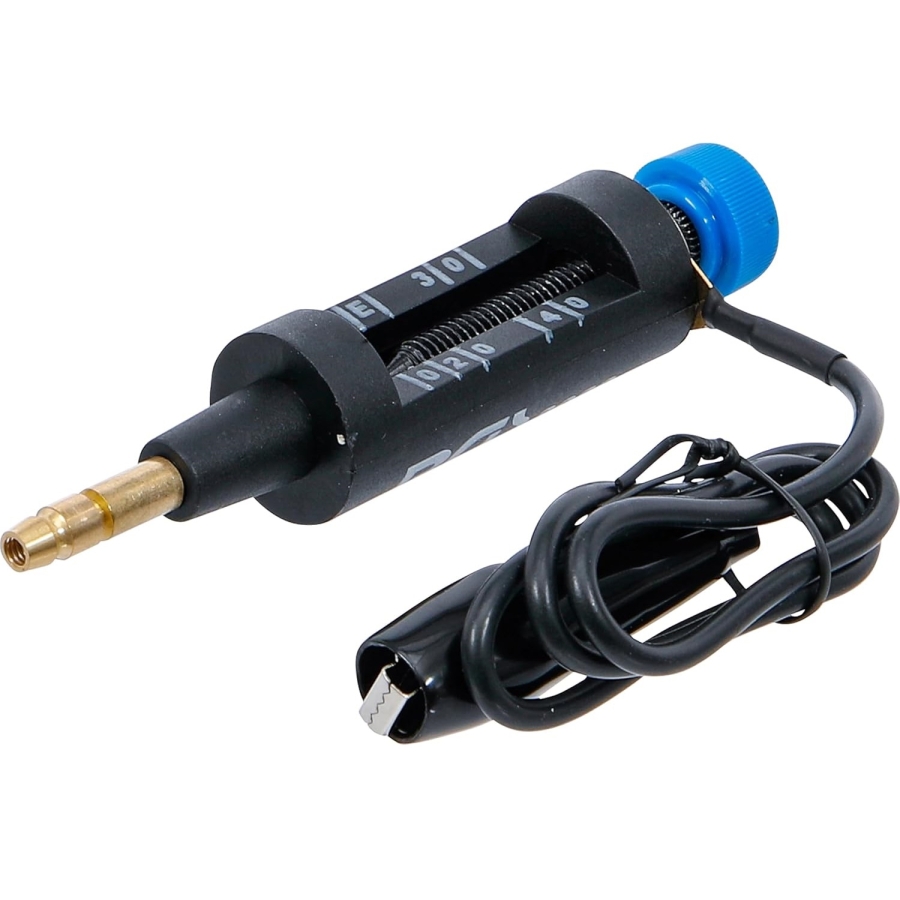

The Ignition Spark Tester for Classic Cars is designed to determine whether ignition voltage is present and to evaluate ignition system performance in classic and vintage vehicles.
Unlike a conventional spark plug, the tester features an adjustable spark gap that allows users to increase or decrease the distance required for spark generation. This makes it possible to evaluate the ignition system's reserve performance and determine its operating condition more accurately.
By adjusting the spark distance, the tester can reveal weak ignition systems that may still generate a spark under low-load conditions but fail under higher ignition demands.
A properly functioning ignition system should be capable of producing a spark across an air gap of at least 15 mm.
Suitable for workshops, vehicle restoration and maintenance applications.
Features
✔ Verifies ignition voltage availability
✔ Evaluates ignition system performance
✔ Adjustable spark gap for reserve capacity testing
✔ Adjustable threaded mechanism for spark distance control
✔ Suitable for classic and vintage vehicles
✔ Supports ignition fault diagnostics
✔ Compact and durable construction
✔ Suitable for repeated workshop use
Technical Specifications
- Product type: Ignition spark tester
- Measurement type: Ignition spark testing
- Spark gap adjustment: Adjustable
- Recommended test gap:
- Approx. 10 mm
- Minimum recommended ignition system performance:
- Spark jump ≥15 mm air gap
Instructions for Use
- Disconnect the spark plug connector from the spark plug.
- Connect the spark plug connector to the tester input.
- Connect the crocodile clip of the tester to engine ground (GND).
- Adjust the spark gap on the tester to approximately 10 mm.
- Position the tester at least 5 cm away from vehicle components. Secure the tester if necessary.
- Keep a safe distance from the vehicle battery.
- Crank or start the engine and observe the spark gap.
Important Safety Information
Warning — Risk of damage to ignition system
⚠ On multi-cylinder engines, remaining spark plug connectors must be connected to ground.
⚠ Failure to ground unused ignition leads may damage ignition modules or related components.
⚠ If spark plugs are removed from the engine, ensure no combustible air/fuel mixture can escape.
⚠ The spark gap on the tester acts as an open ignition source and may create an explosion risk.
Warning — Danger to life
⚠ Electronic ignition systems may generate voltages exceeding 30,000V.
⚠ Never touch ignition system components or the tester during operation.
⚠ Adjust the spark gap only with the ignition switched OFF.
