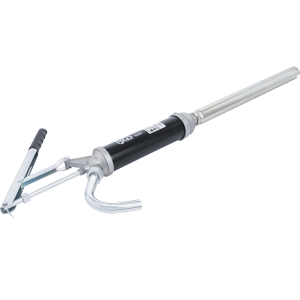

Lever-Operated Oil Drum Pump, 300 mL per Stroke
-
Code:8343
-
Weight:2.384 Kgs
Overview:
✔ For transferring oil and antifreeze from steel drums
✔ Suitable for approximately 50–55 L and 205 L drums
✔ Delivers up to 300 mL per lever stroke
✔ Self-adjusting telescopic suction tube and curved metal spout
✔ Threaded adapters for 1½″ and 2″ drum openings
✔ Powder-coated steel body with an aluminium pump head

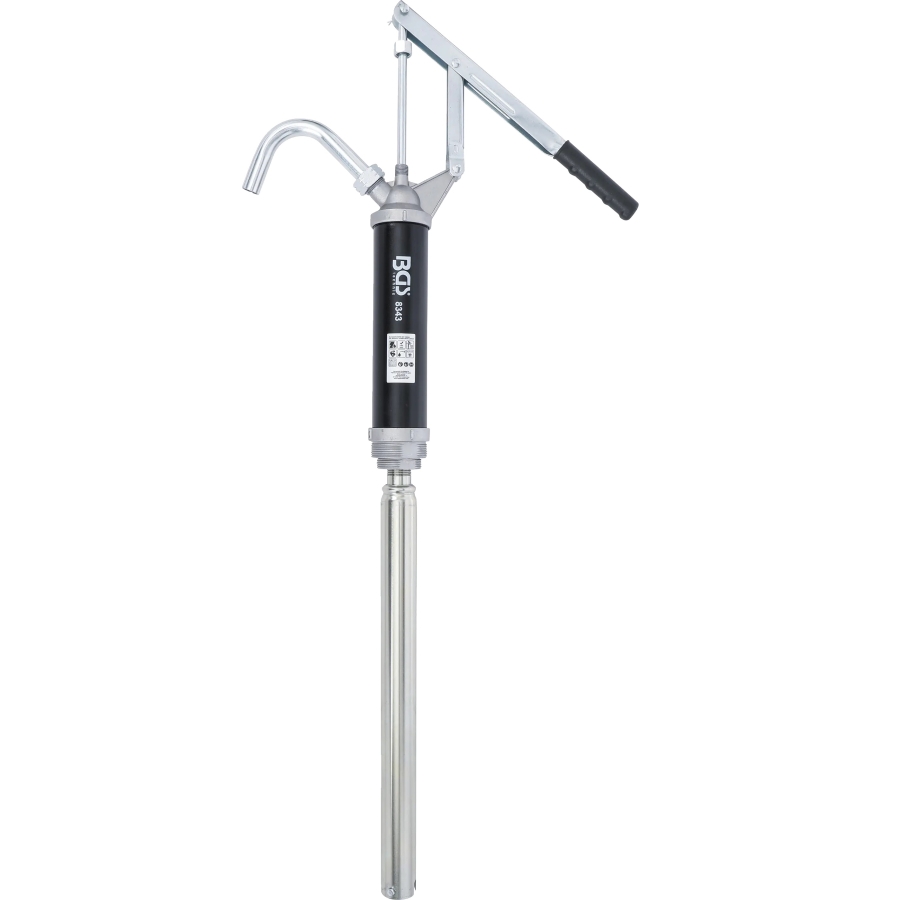

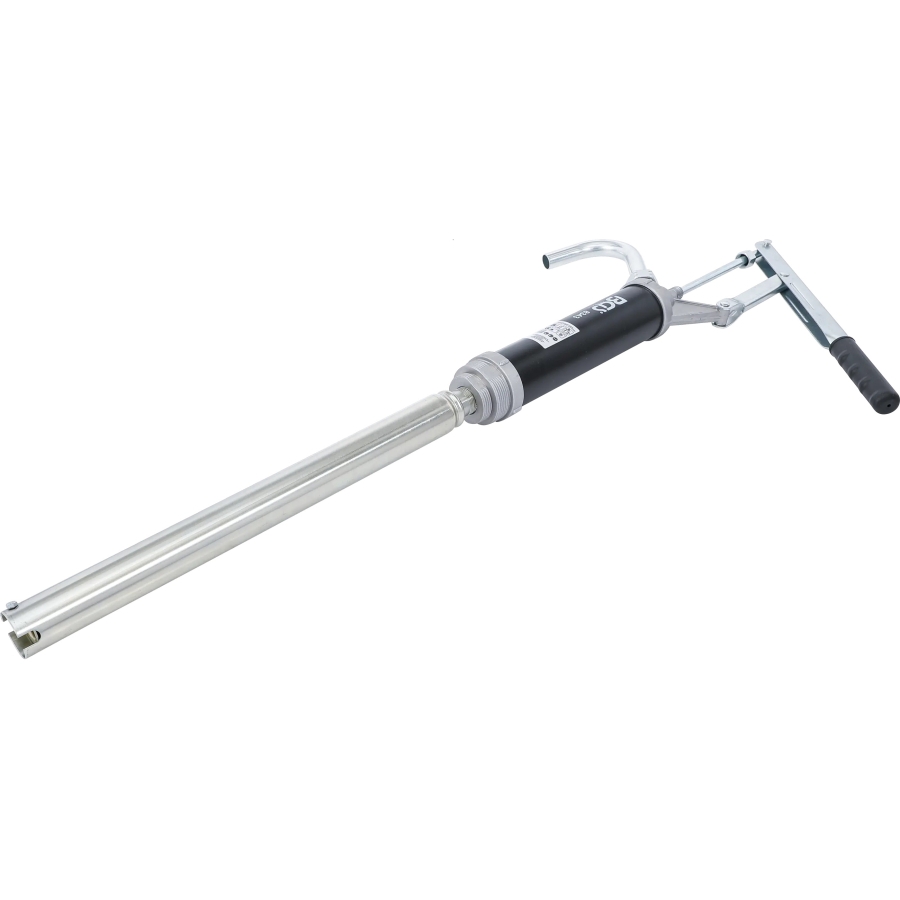

The lever pump is designed for transferring liquids from steel drums in workshops, industry and agriculture. It has a telescopic suction tube that adjusts to the drum depth, a curved metal outlet and threaded adapters for different drum openings.
The steel lever has a rubber grip. The pump body is powder-coated steel with a ribbed section, and the head is made from die-cast aluminium.
Pump construction
The die-cast zinc piston has wear-resistant brass piston rings. The pump uses an NBR rubber seal and delivers up to 300 mL with each lever stroke.
Technical specifications
- Delivery volume: Up to 300 mL per stroke
- Drum sizes stated: Approximately 50–55 L and 205 L
- Pump connection: 2″ NPT
- Drum opening adapters: 1½″ and 2″
- Suction tube: Self-adjusting telescopic design
- Materials: Steel, aluminium, zinc, brass and NBR rubber
