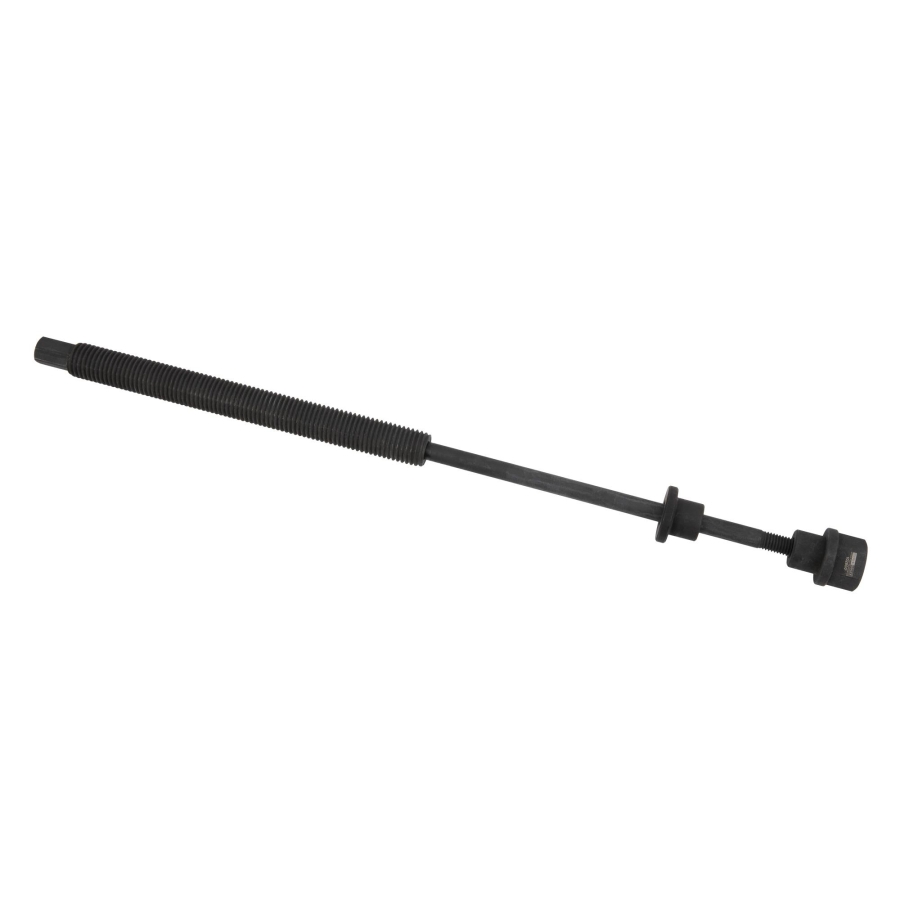

Pull Spindle M10 × 1.5 for Hollow Hydraulic Cylinders

This professional pull spindle is designed for use with hollow hydraulic cylinder systems and intended for demanding extraction and pulling operations in automotive workshop environments.

The spindle enables controlled force transfer during installation and removal procedures and can be used with a wide range of hydraulic tool systems.

Typical applications include:

• Bearing extraction
• Bushing removal
• Wheel hub servicing
• Suspension repairs
• Removal of press-fit components

Heavy-Duty Construction for High Loads

Manufactured for professional workshop environments, the spindle is designed to withstand high pulling forces and intensive usage.

Advantages:

• High resistance under heavy load conditions
• Stable force transmission
• Reliable operation during demanding repairs
• Suitable for repeated workshop use

Maximum load capacity:

• Up to 5 tons

Compatible with Hollow Hydraulic Cylinder Systems

The spindle is designed for use with hydraulic hollow cylinder systems using M20 × 2.5 connection threads.

Connection specifications:

• Hollow hydraulic cylinder thread: M20 × 2.5
• Pull spindle thread: M10 × 1.5

Technical Specifications

• Total length: 450 mm

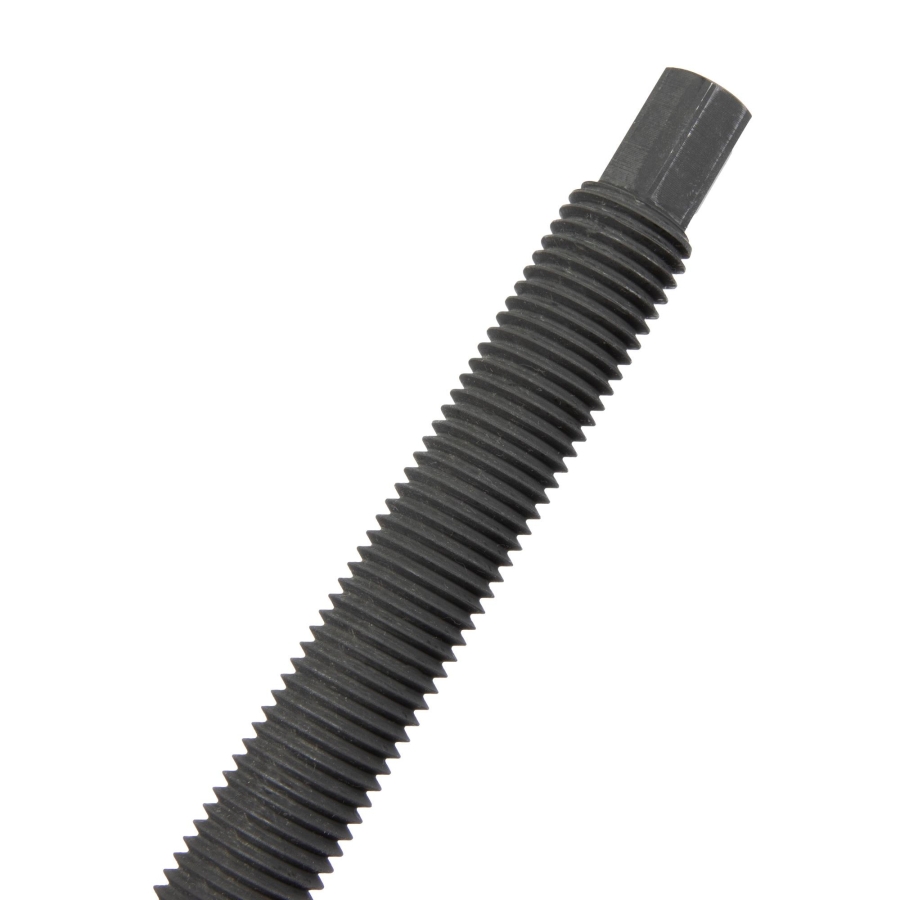

• Hollow hydraulic cylinder thread: M20 × 2.5
• Thread length for hydraulic cylinder: 200 mm

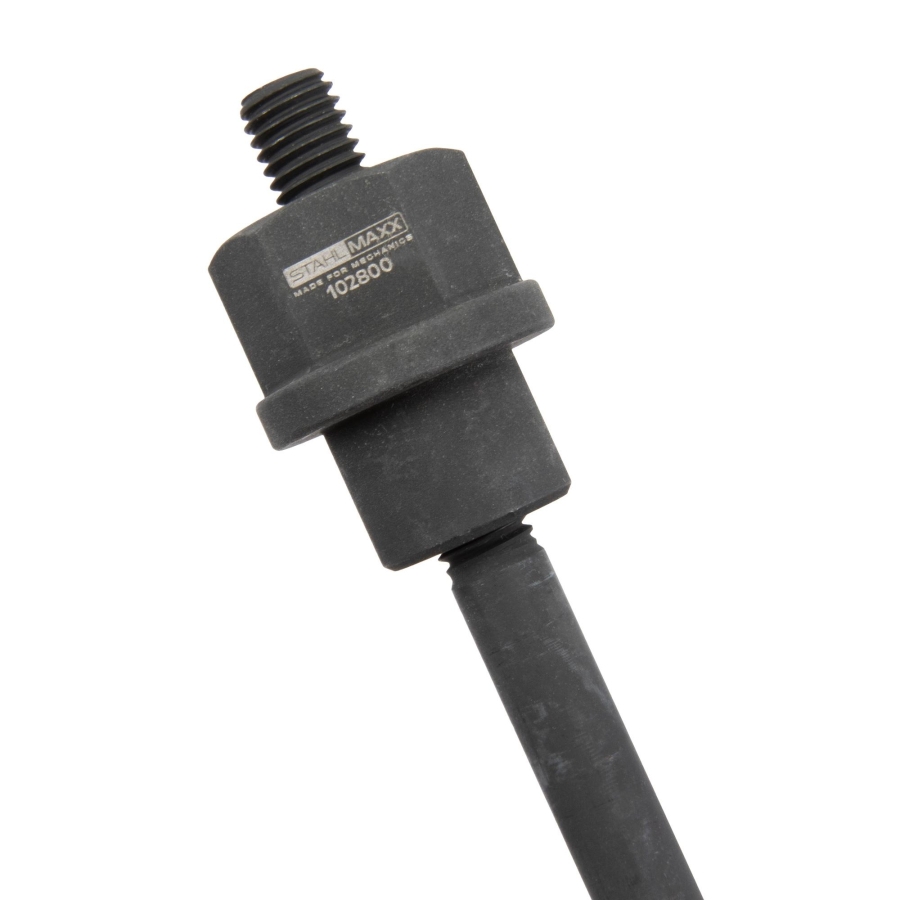

• Pull spindle thread: M10 × 1.5
• Pull spindle thread length: 50 mm
• Pull spindle wrench size: 14 mm
• Bearing nut wrench size: 24 mm
• Maximum load capacity: 5 tons

Package Contents

1 × Pull spindle

• Thread: M10 × 1.5
• Maximum load: 5 tons
