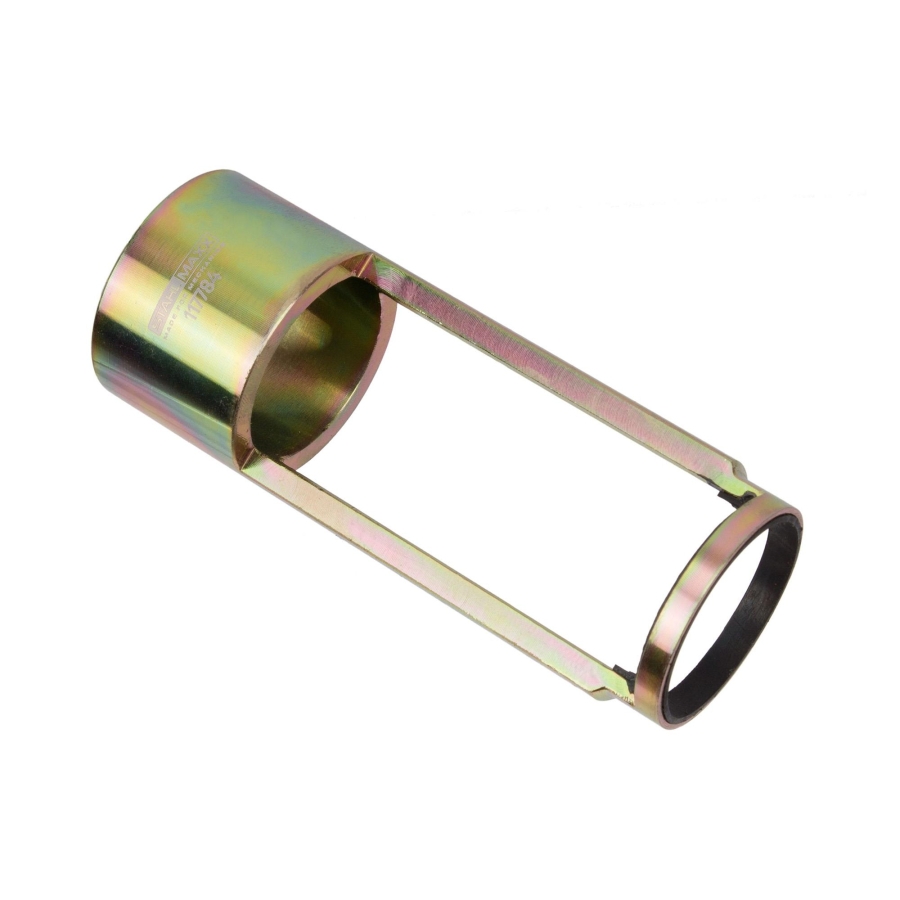

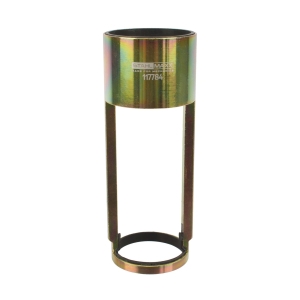

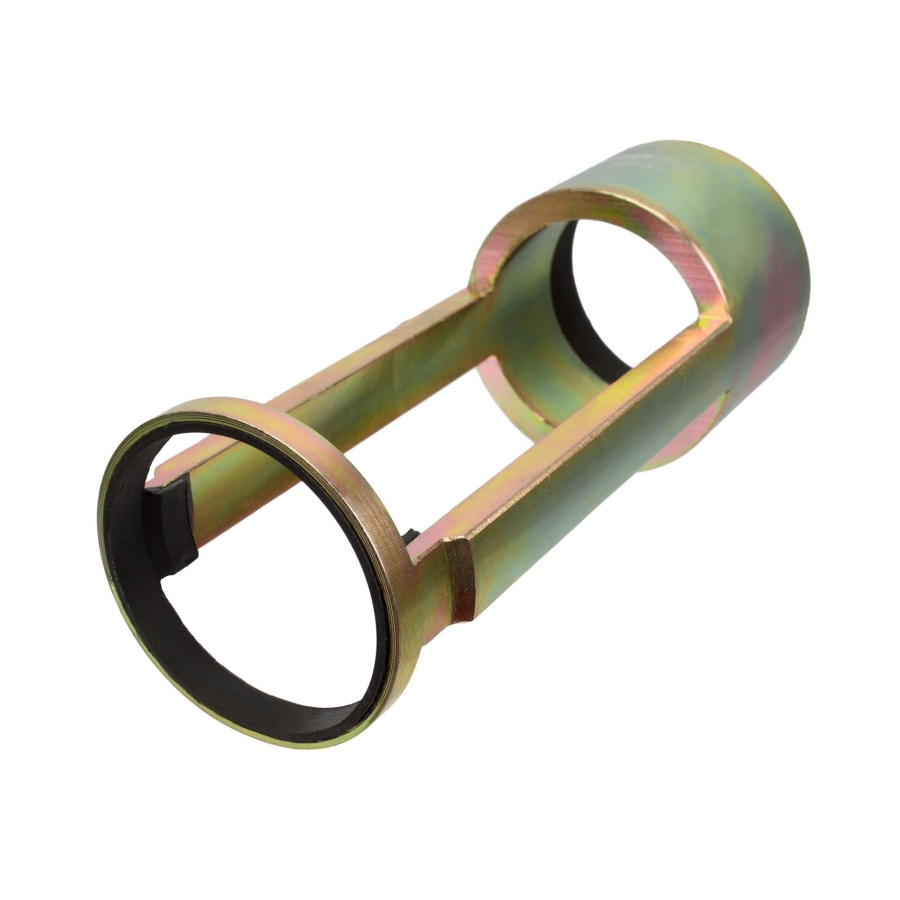

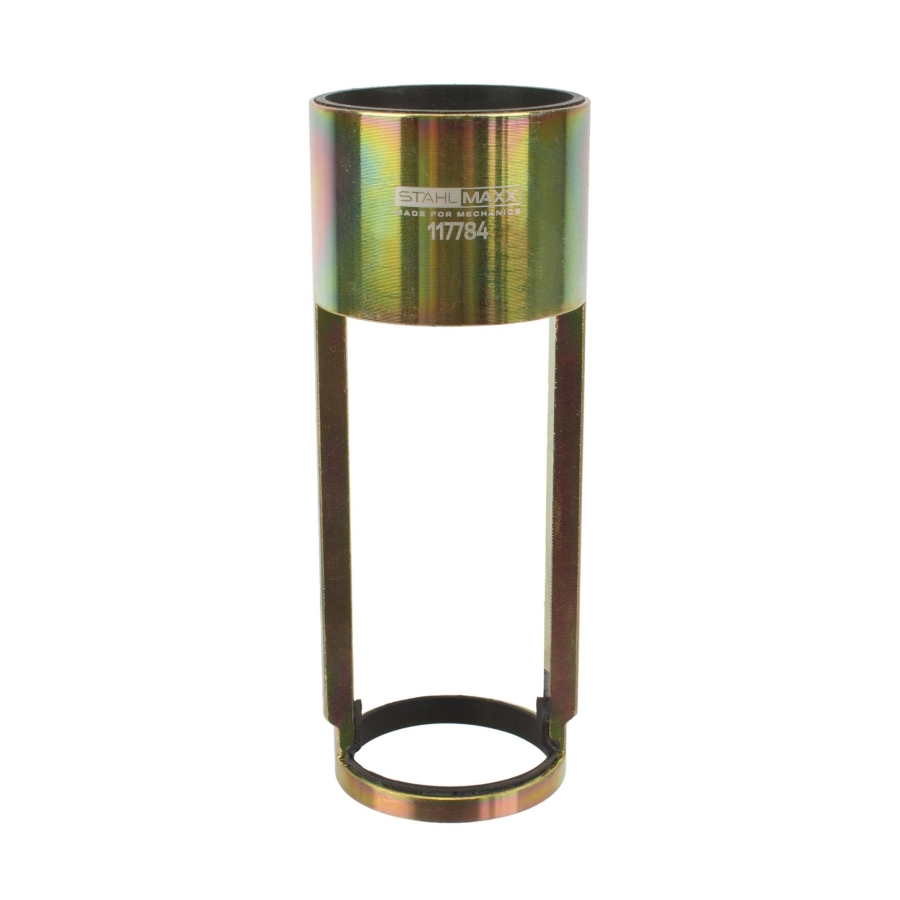

Ignition Lock Cylinder Removal Tool for Mercedes as W202589001400

Price: €67.50 132.02лв.

Code:

117784
Weight:

0.180 Kgs

Overview:
✔ Professional special tool for ignition lock cylinder removal and installation
✔ Designed for non-electronic Mercedes ignition lock systems
✔ Enables unlocking and securing of ignition lock retaining mechanisms
✔ Allows fast and controlled removal of lock cylinders
✔ Helps simplify installation and replacement procedures
✔ Suitable for workshop and professional repair applications

Ignition Lock Cylinder Removal Tool for Mercedes as W202589001400

Send to friend

Rate this product

This specialized tool is designed for loosening and tightening the locking mechanism of ignition locks used in many Mercedes-Benz vehicles.

The tool enables simple removal and installation of ignition lock cylinders in older Mercedes ignition systems that are not fully electronic.

Without this special tool, unlocking the retaining mechanism of the ignition cylinder can be difficult and may increase the risk of damage.

Important: Mark the position of the ignition lock and locking mechanism before removal to simplify reinstallation.

Important Information

Please note that this tool is specifically different from the claw wrench version used for ignition lock rosettes.

Application Instructions

Removal Procedure

Remove the rosette using a small screwdriver
Disconnect the key transponder coil
Slide the tool over the ignition lock with the narrow end facing forward together with the key
Turn the ignition key to position 1
Unlock the lock cylinder by rotating the cover cap 90° to the left
Remove the ignition lock cylinder

Installation Procedure

Apply lock cylinder grease before installation
Insert the cylinder into the cover cap and insert the key
Ensure that the locking elements at the inner end are fully pressed in
Insert the lock cylinder
Rotate the cover cap 90° to the right until it locks into place
Remove the key in position 0
Reinstall the rosette and transponder coil

Vehicle Compatibility

Suitable for:

Mercedes-Benz A-Class

W168
W414 / Vaneo

Mercedes-Benz C-Class

W202

Mercedes-Benz E-Class

W123
W124
W210

Mercedes-Benz M-Class

W163

Mercedes-Benz S-Class

W116
W126
W140

Mercedes-Benz SL Models

R129
R170

OEM Reference Numbers

To be used as:

Mercedes-Benz W202589001400

Original OEM numbers are provided for comparison purposes only. This product is not an original OEM tool.
