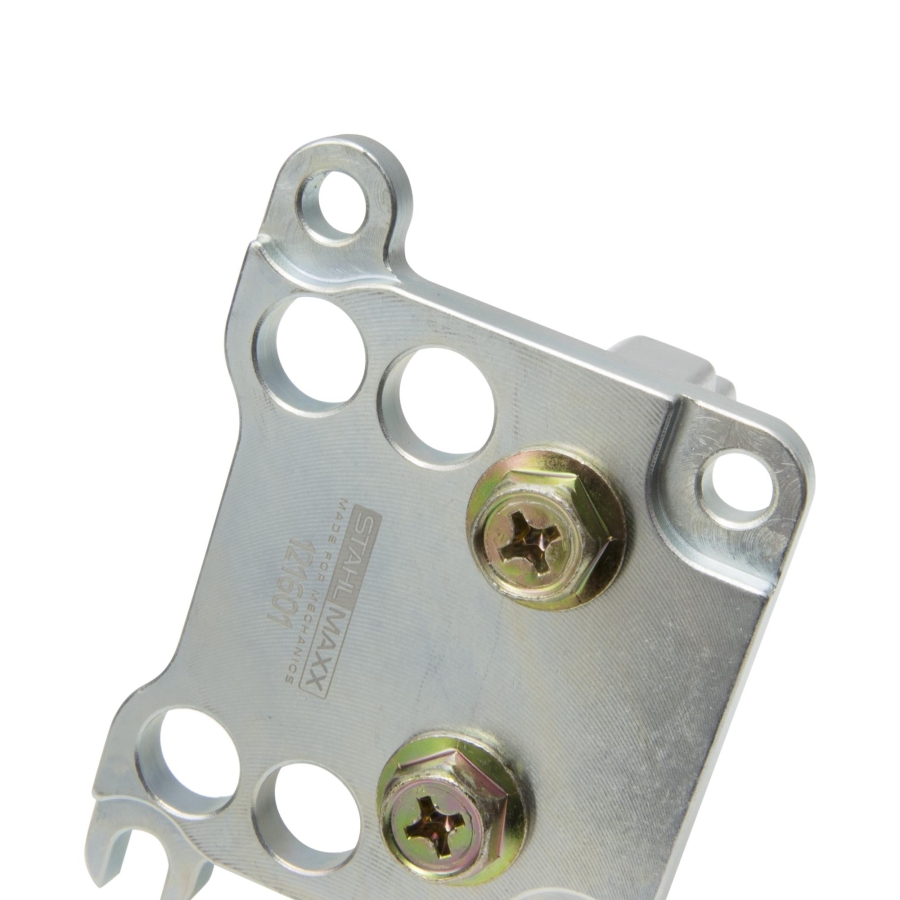

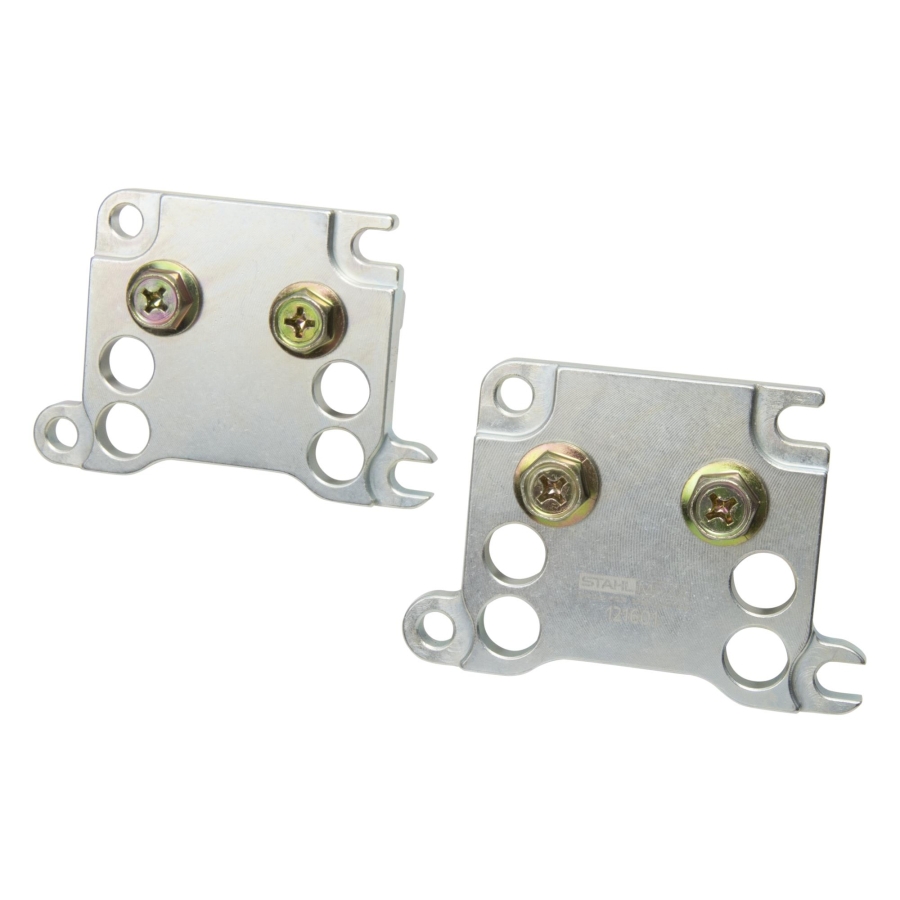

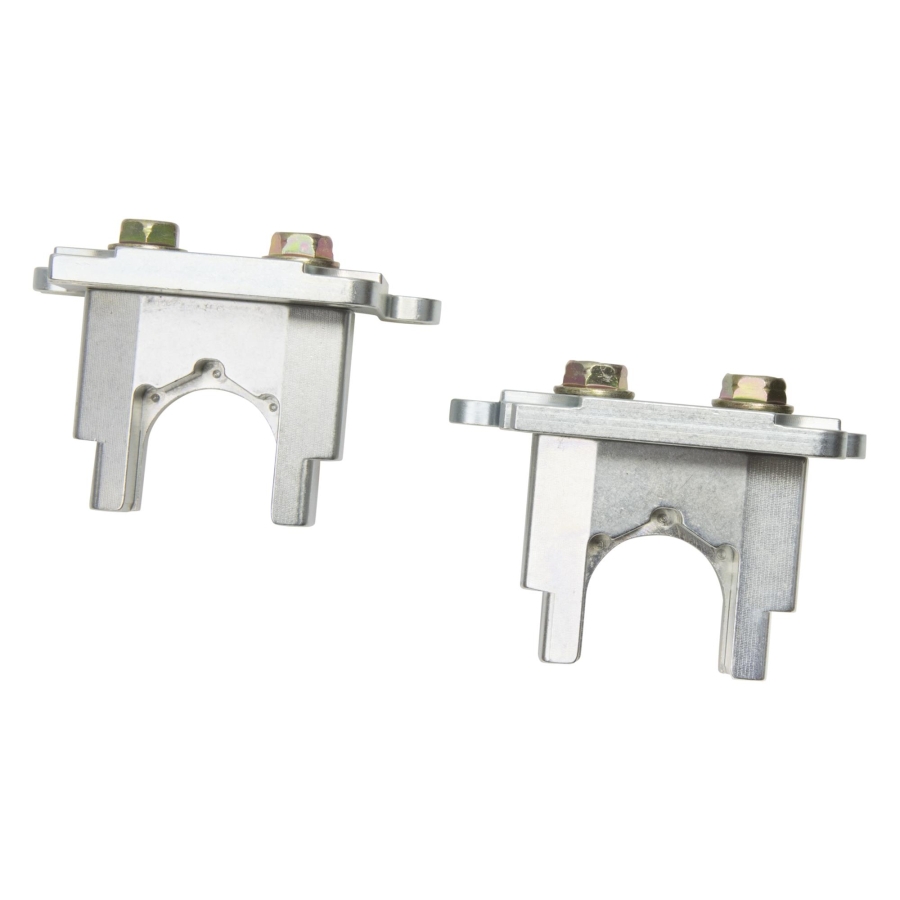

Camshaft Locking Tool for Mercedes-Benz M254, M256

This specialized camshaft tool is required when performing base timing adjustments on Mercedes-Benz M254 and M256 engine generations. It is used during engine service procedures where precise camshaft positioning is critical.

Functionality

The tool is designed to securely lock and counter-hold the camshafts during removal and installation of camshaft adjusters. This prevents unwanted movement and ensures accurate timing setup.

Compatibility

Suitable for Mercedes-Benz engines:

• M254
• M256

Engine codes:
M254.915, M254.920, M256.930

OEM Reference

To be used as:
W256589002300

OEM numbers are provided for identification purposes only. This product is not an original manufacturer tool.

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 43 EQ Boost (290.658) (367 HP, 270 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 43 EQ Boost 4-matic+ (290.659) (367 HP, 270 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 53 EQ Boost 4-matic+ (290.661) (435 HP, 320 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 180 (206.041) (170 HP, 125 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 200 (206.042) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 200 4-matic (206.043) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 300 (206.046) (258 HP, 190 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 300 4-matic (206.047) (258 HP, 190 kW)

MERCEDES-BENZ C-CLASS (W206) (05.22 -) C 300 e 4-matic (206,056) (313 hp, 230 kW)

MERCEDES-BENZ C-CLASS (W206) (05.22 -) C 400 e 4-matic (206.055) (381 HP, 280 kW)

MERCEDES-BENZ C-CLASS (W206) (12.21 -) C 300 e (206.054) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS (W206) (12.21 -) C 300 e (206.054) (313 HP, 230 kW)

MERCEDES-BENZ C-CLASS All-Terrain (S206) (12.21 -) C 200 4-matic (206.245) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (03.21 -) C 180 (206.241) (170 HP, 125 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (03.21 -) C 200 (206.242) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (10.21 -) C 200 4-matic (206.243) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (10.21 -) C 300 (206.246) (258 HP, 190 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (10.21 -) C 300 4-matic (206.247) (258 HP, 190 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (12.21 -) C 300 e (206.254) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (12.21 -) C 300 e (206.254) (313 HP, 230 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) AMG CLS 53 EQ Boost 4-matic+ (257.361) (435 HP, 320 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 450 EQ Boost (257.358) (367 HP, 270 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 450 EQ Boost 4-matic (257.359) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) AMG E 53 EQ Boost 4-matic+ (213.061) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 450 EQ Boost 4-matic (213.059) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 450 EQ Boost (213.260) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) AMG E53 EQ Boost 4-matic+ (238.461) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 450 (238.458) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 450 EQ Boost 4-matic (238.459) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) AMG E 53 EQ Boost 4-matic+ (238.361) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 450 (238.358) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 450 EQ Boost 4-matic (238.359) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) AMG E 53 EQ Boost 4-matic+ (213.261) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 450 EQ Boost (213.259) (367 HP, 270 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) AMG GLE 53 EQ Boost 4-matic+ (167.161) (435 HP, 320 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 450 EQ Boost 4-matic (167.159) (367 HP, 270 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) AMG GLE 53 EQ Boost 4-matic+ (167.361) (435 HP, 320 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 450 EQ Boost 4-matic (167.359) (367 HP, 270 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 450 EQ Boost 4-matic (167.959) (367 HP, 270 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) Maybach 480 EQ Boost 4-matic (167.967) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 L EQ Boost (222.156) (299 HP, 220 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 450 EQ Boost (222.158, 222.058) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) p 450 EQ Boost 4-matic (222.059, 222.159) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 450 Maybach EQ Boost 4-matic (222.959) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 EQ Boost (222.060, 222.160) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 L 4-matic (222.169) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 L EQ Boost 4-matic (222.169) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 450 EQ Boost 4-matic (223.061, 223.161) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 500 EQ Boost 4-matic (223.063, 223.163) (435 hp, 320 kW)
