Mini Grease Gun 85 cm³
-
Code:71037
-
Weight:0.270 Kgs
Overview:
✔ Compact one-hand grease gun for precise lubrication and maintenance work
✔ Suitable for impact mechanisms, spindles and other components with grease fittings
✔ Push-button operation with return spring for accurate grease dosing
✔ Easy filling with bulk grease
✔ Includes 3 interchangeable nozzles: 0.7 / 1.0 / 1.4 mm
✔ Maximum pressure: 69 bar (1000 PSI)
✔ Grease capacity: 85 cm³
✔ Low operating force for comfortable one-hand use

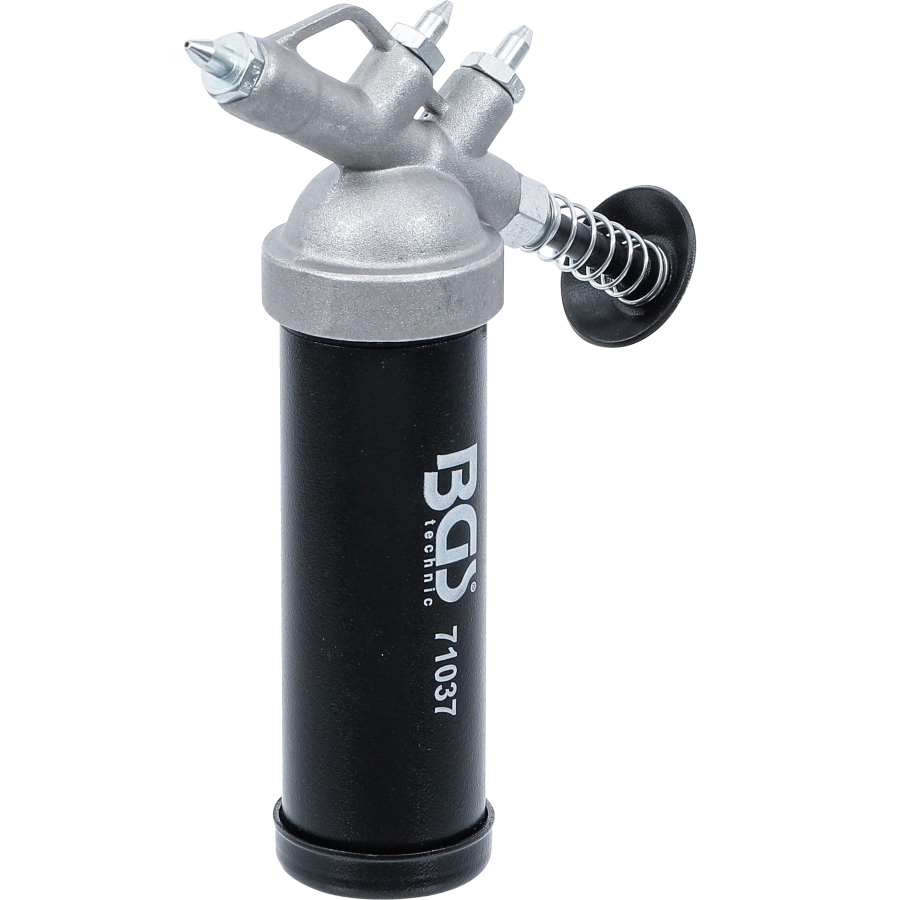

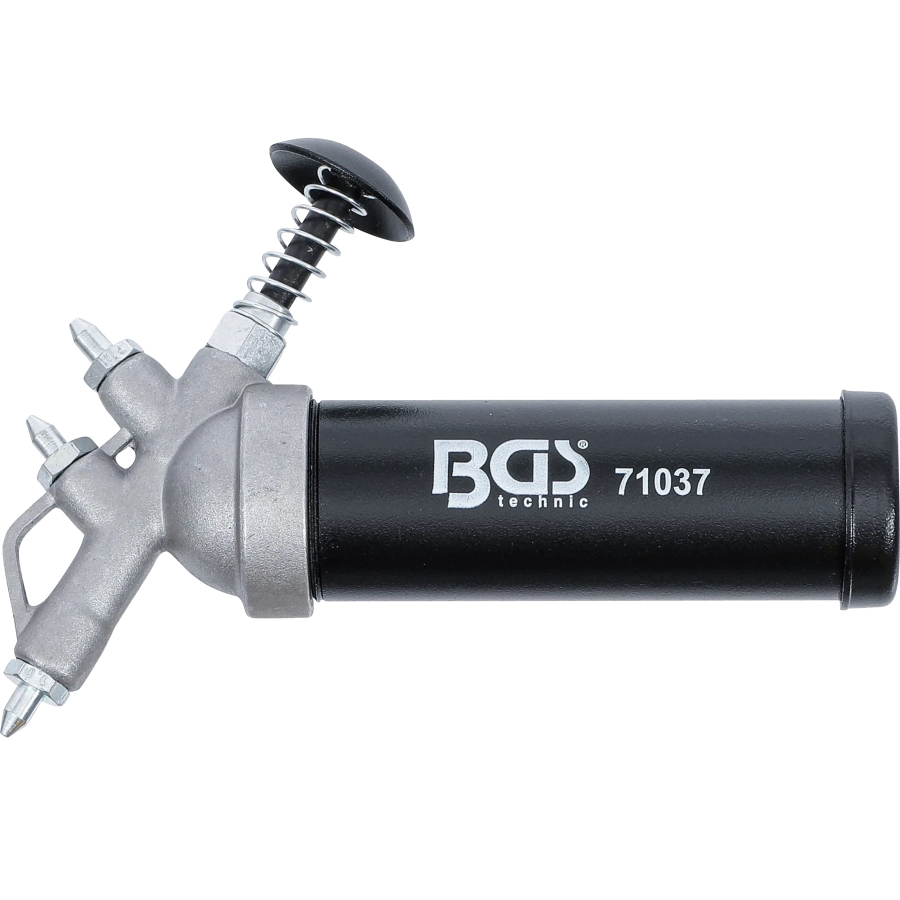

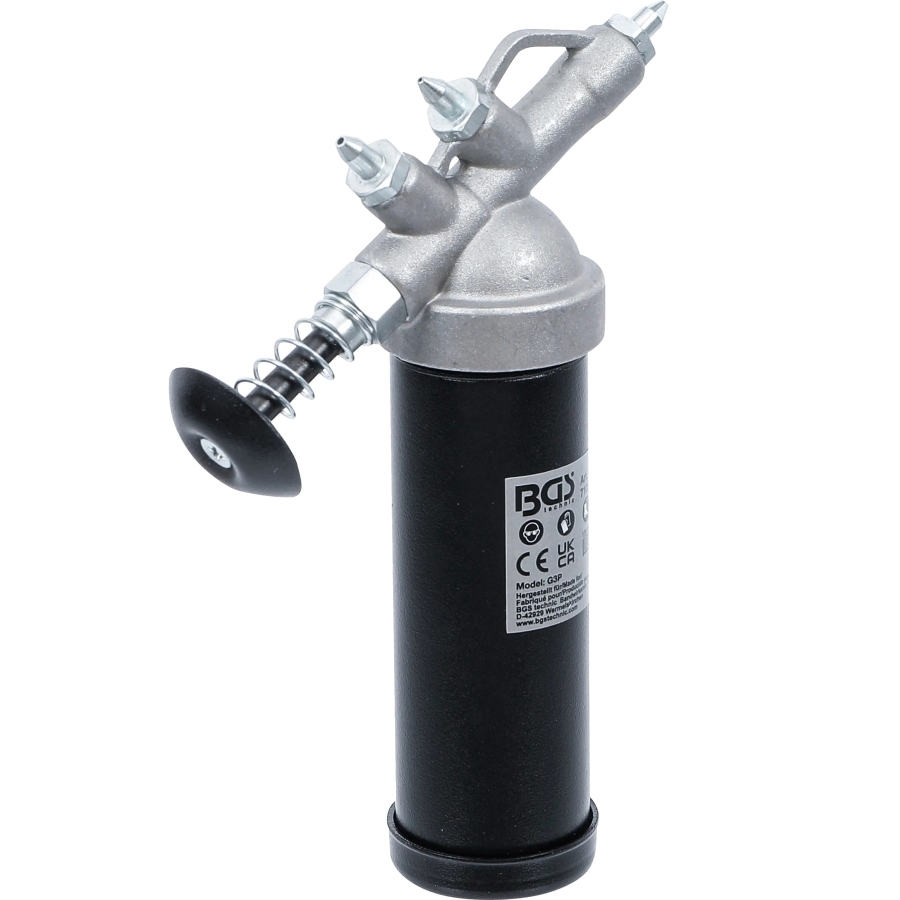

Compact mini grease gun with convenient one-hand operation, designed for precise lubrication and maintenance work on impact mechanisms, spindles and other components equipped with grease fittings.

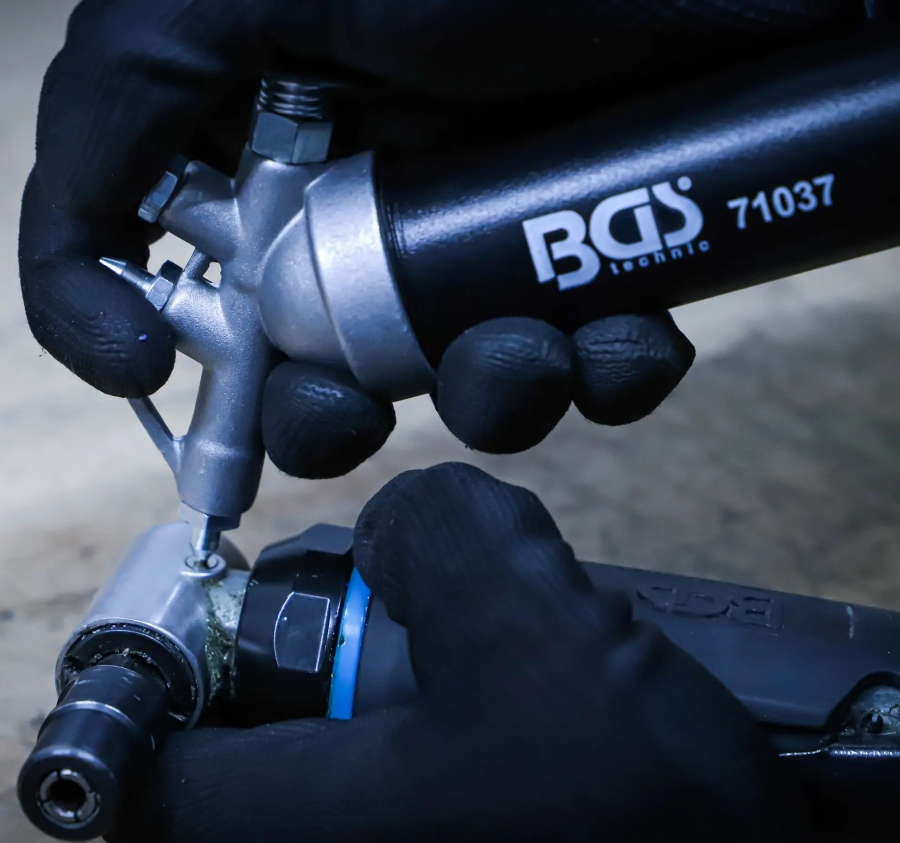

It is particularly suitable for lubricating hammer mechanisms in impact wrenches and for professional use with standard greases.
Precise Grease Dosing
Grease is dispensed using a push button with return spring, allowing fine and accurate dosing with low operating force.
The compact design makes the grease gun easy to handle during detailed lubrication and maintenance work.

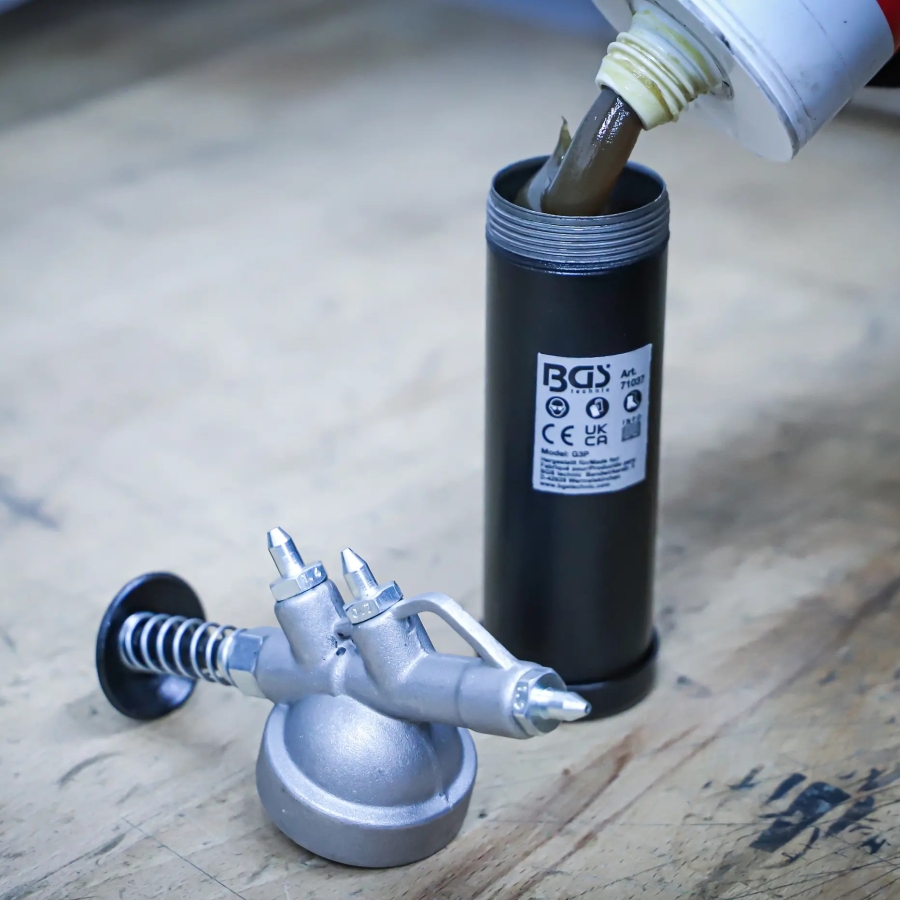

Filling
The grease gun is designed for use with bulk grease.

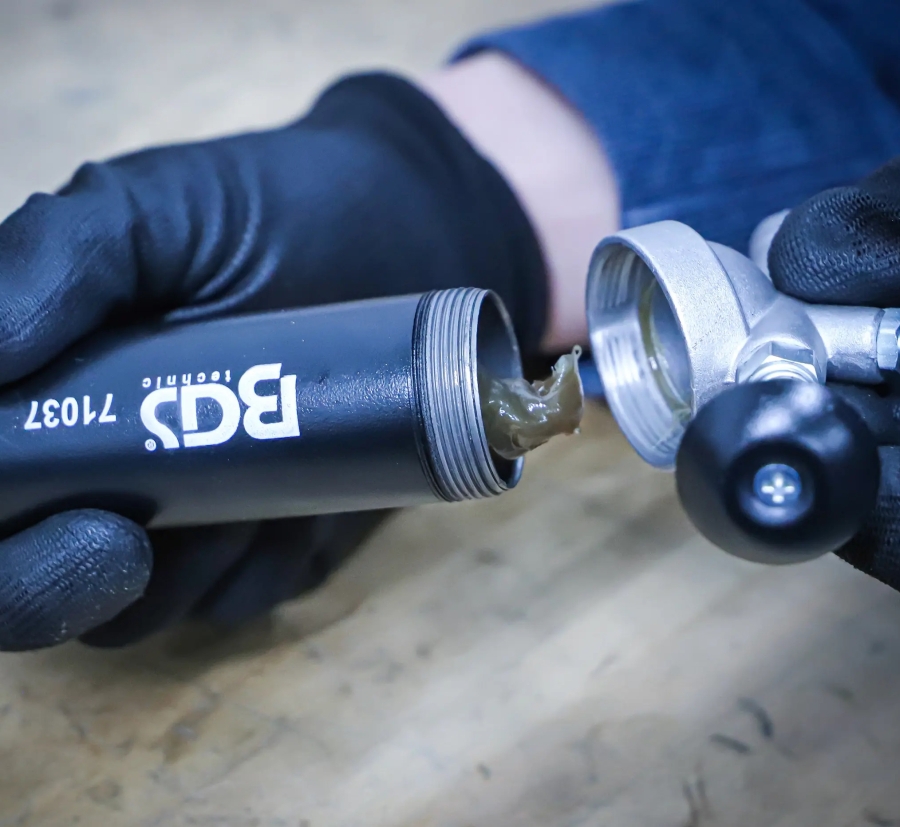

Filling is carried out by simply unscrewing the grease gun head and adding the grease directly to the body.
Interchangeable Nozzles
Three nozzle sizes are included and mounted directly on the grease gun for convenient storage and quick replacement according to the grease fitting being serviced.
- Nozzle: 0.7 mm (0.028")
- Nozzle: 1.0 mm (0.039")
- Nozzle: 1.4 mm (0.055")
Construction
- Powder-coated body
- Die-cast aluminium head
- One-hand operation
- Push-button with return spring
Technical Data
- Maximum pressure: 69 bar (1000 PSI)
- Grease capacity: 85 cm³
- Delivery rate: 28 g per 95 strokes
- Diameter: 36 mm
Scope of Delivery
- Mini grease gun
- 3 interchangeable nozzles: 0.7 / 1.0 / 1.4 mm
