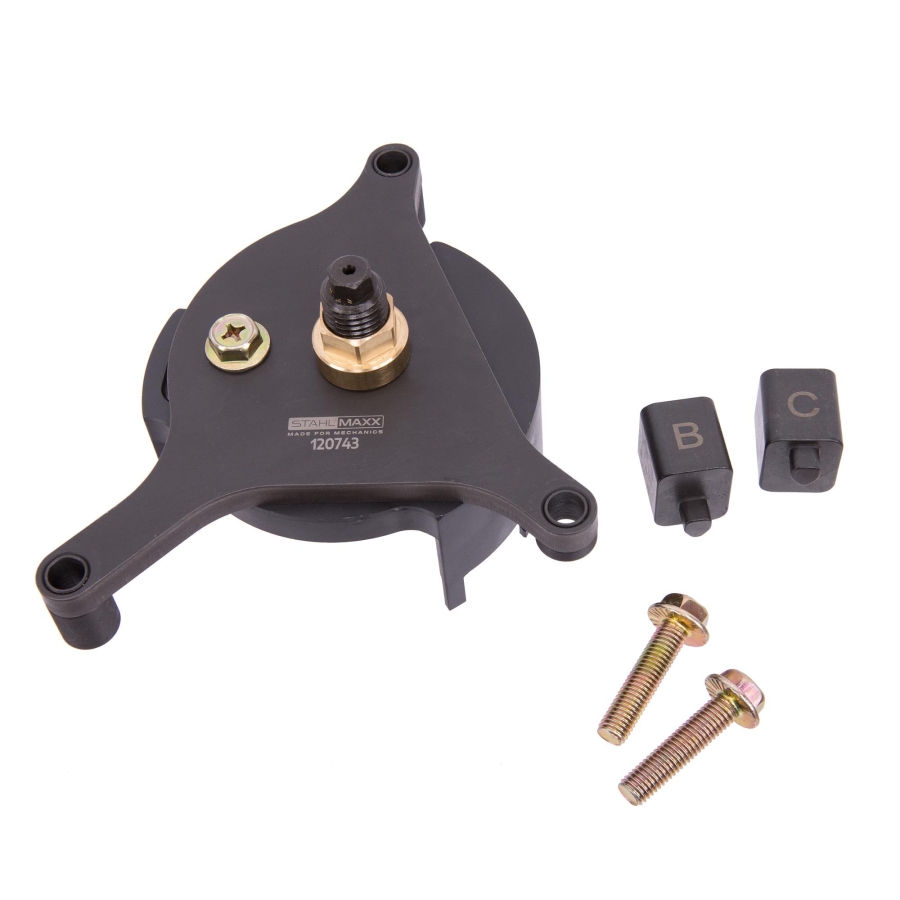

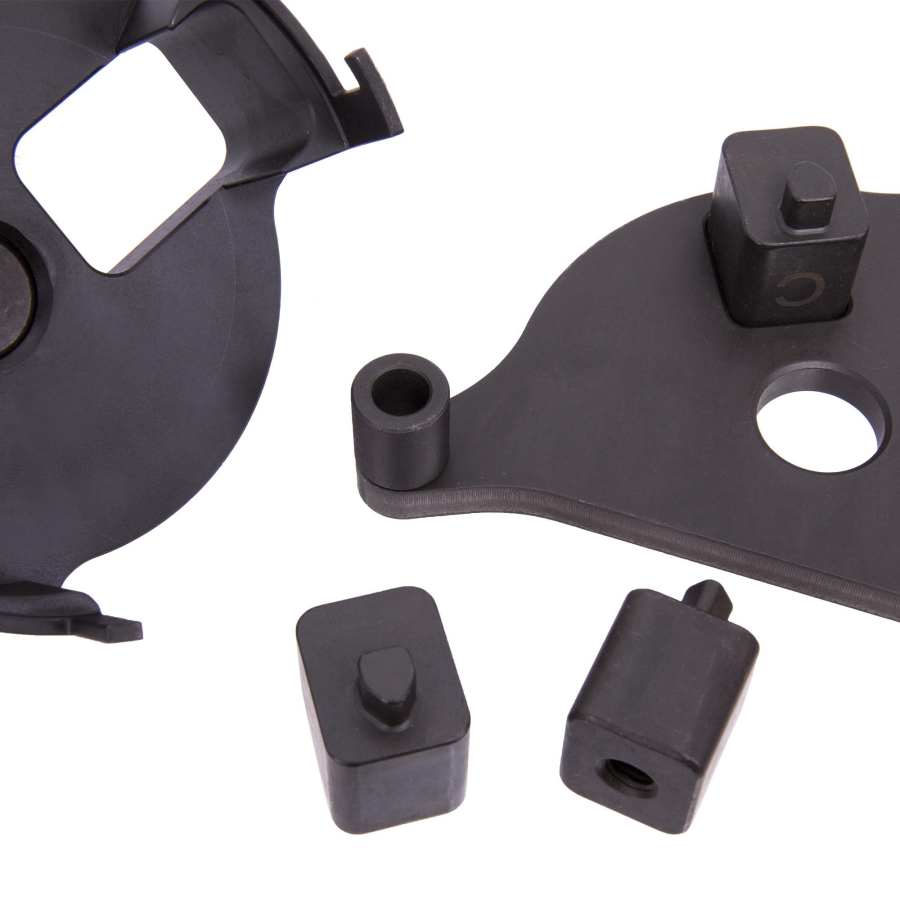

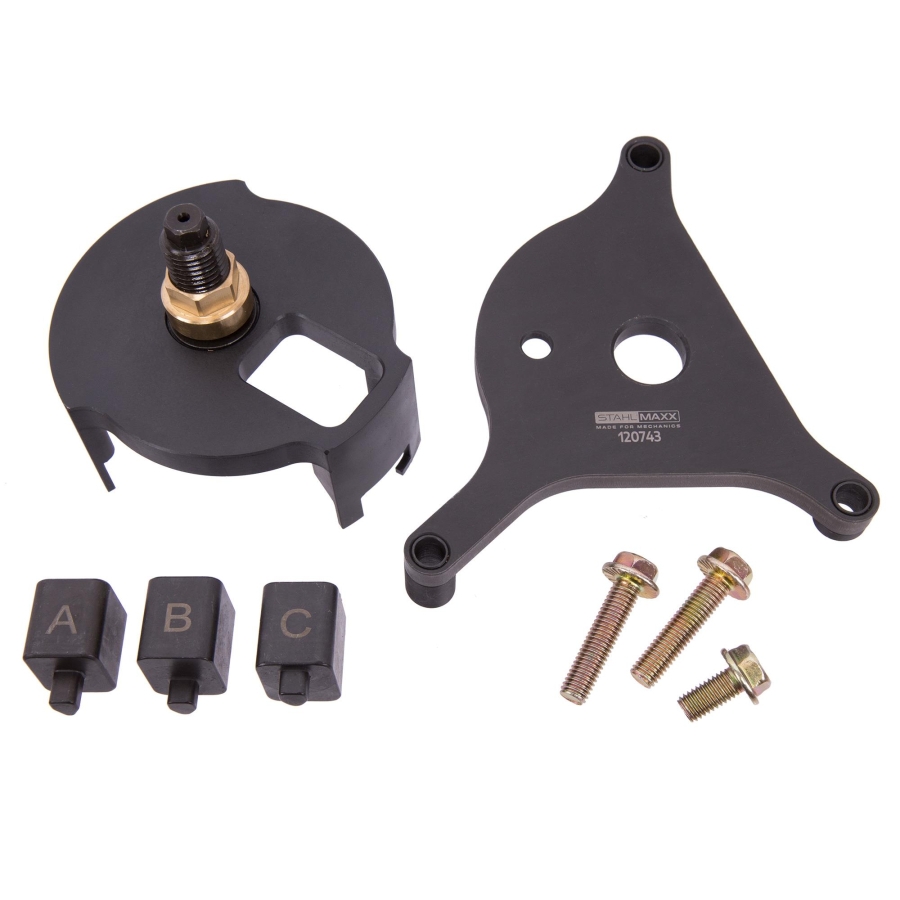

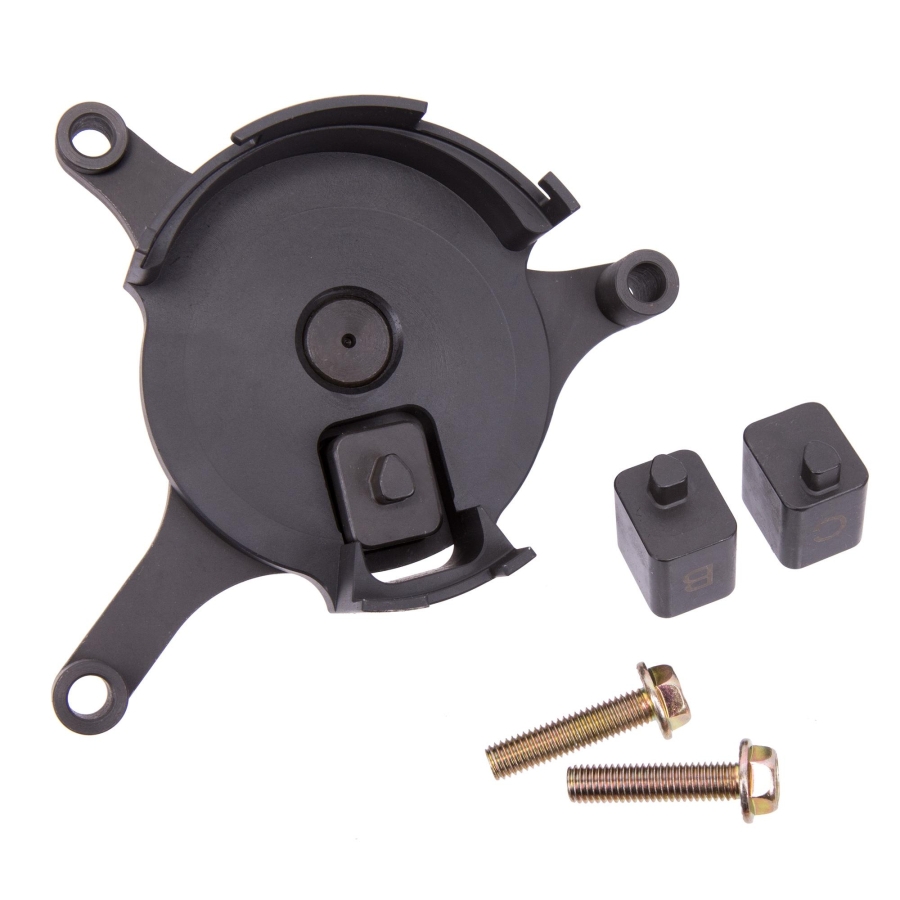

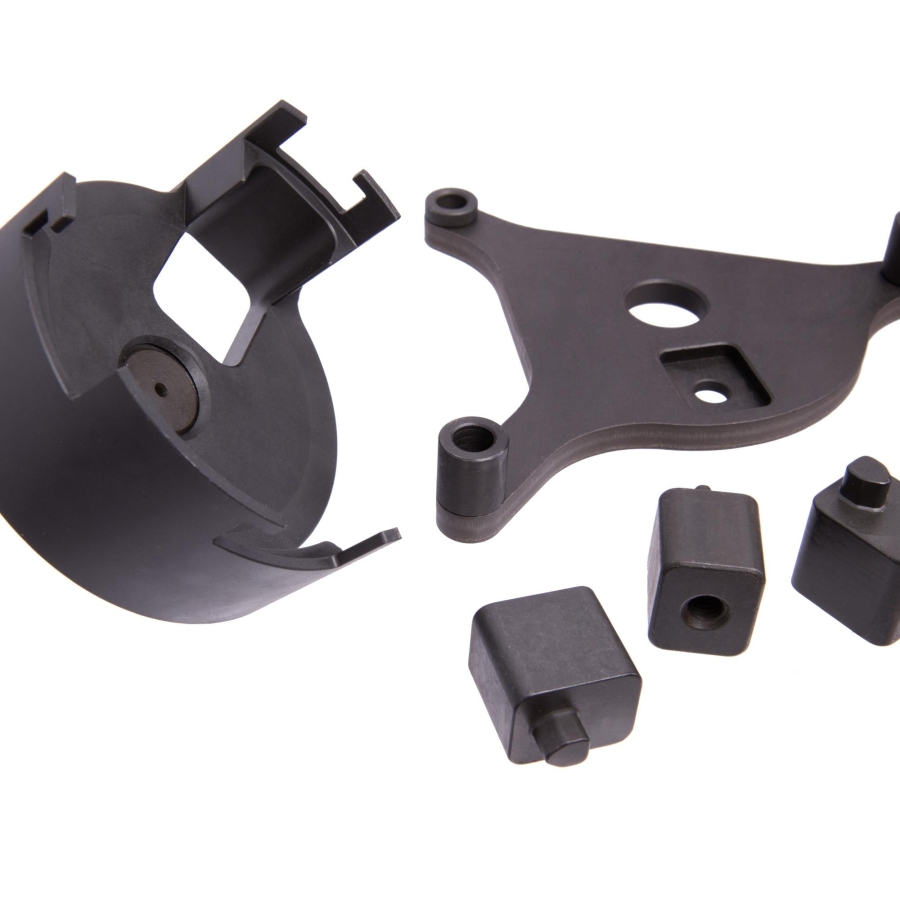

Oil Pump & Vacuum Pump Puller Tool for Mercedes M139, M256, OM654, OM656 (as W256589013300)

This specialized puller tool is required for the removal and installation of the tandem pump (oil pump and vacuum pump) on Mercedes-Benz engines M256 and OM654, as well as compatible M139 and OM656 engines.

It ensures safe and controlled extraction of the pump assembly according to manufacturer procedures.

---

Application Procedure

Before removal, the timing case cover and the guide rail together with the oil pump / high-pressure pump chain must be removed.

On OM654 engines, the high-pressure pump sprocket must also be removed (see item.no. 118775).

A 3-arm holding tool (support bracket), together with the appropriate locking fixture, is used to secure the oil pump sprocket. On OM654 engines, the tool is mounted using only the two lower bolts.

The central bolt of the sprocket can then be loosened.

---

Important Technical Notes

• The oil pump sprocket bolt has a left-hand thread (tightening torque: 62 Nm)
• The tandem pump drive gear also features left-hand thread

After loosening:

• Remove the holder, drive gear, and the three pump bolts (tightening sequence: 4 Nm → 8 Nm + 95°)

---

Puller Installation & Operation

Next, position the puller and install the pressure spindle.

Then mount the 3-arm support tool onto the puller and secure it (on OM654 again only with the two lower bolts).

By applying tension via the nut while holding the pressure spindle, the pump is released safely. After removing the tools, the pump can be extracted.

---

Important Notes

Different procedures may apply depending on engine code. Always follow engine-specific service instructions.

---

Compatibility

Suitable for Mercedes-Benz engines:

• OM654
• M256
• M139
• OM656

Installed in the following models:

• A-Class (177)
• AMG GT (290)
• B-Class (247)
• C-Class (205, 206)
• CLA (118)
• CLS (257)
• E-Class (213, 238)
• GLA (247)
• GLB (247)
• GLC (253)
• GLE (167)
• S-Class (222, 223)
• Sprinter (907, 910)
• V-Class (447)
• Vito (447)

---

Reference Numbers

Used as:

• W256589013300



OEM numbers are for reference purposes only. This product is not original OEM tool.

MERCEDES-BENZ A-CLASS (W177) (03.2018 - 10.2019) A 180 d (177.010) (116 HP, 85 kW)

MERCEDES-BENZ A-CLASS (W177) (03.2018 - 10.2019) A 200 d (177.012) (150 HP, 110 kW)

MERCEDES-BENZ A-CLASS (W177) (03.2018 - 10.2019) A 200 d 4-matic (177.013) (150 HP, 110 kW)

MERCEDES-BENZ A-CLASS (W177) (03.2018 - 10.2019) A 220 d (177,014) (190 hp, 140 kW)

MERCEDES-BENZ A-CLASS (W177) (03.2018 - 10.2019) A 220 d 4-matic (177.015) (190 HP, 140 kW)

MERCEDES-BENZ A-CLASS (W177) (03.2018 - 10.2019) AMG A 45 4-matic+ (177.053) (387 HP, 285 kW)

MERCEDES-BENZ A-CLASS (W177) (03.2018 - 10.2019) AMG A 45 S 4-matic+ (177.054) (421 HP, 310 kW)

MERCEDES-BENZ A-CLASS notchback (V177) (09.2018 - ) A 180 d (177.110) (116 HP, 85 kW)

MERCEDES-BENZ A-CLASS Saloon (V177) (09.2018 - ) A 200 d (177.112) (150 HP, 110 kW)

MERCEDES-BENZ A-CLASS Saloon (V177) (09.2018 - ) A 200 d 4-matic (177.113) (150 HP, 110 kW)

MERCEDES-BENZ A-CLASS Saloon (V177) (09.2018 - ) A 220 d (177.114) (190 HP, 140 kW)

MERCEDES-BENZ A-CLASS notchback (V177) (09.2018 - ) A 220 d 4-matic (177.115) (190 HP, 140 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 43 EQ Boost (290.658) (367 HP, 270 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 43 EQ Boost 4-matic+ (290.659) (367 HP, 270 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 53 EQ Boost 4-matic+ (290.661) (435 HP, 320 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W247) (12.2018 - ) B 180 d (247.010) (116 HP, 85 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W247) (12.2018 - ) B 200 d (247.012) (150 HP, 110 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W247) (12.2018 - ) B 200 d 4-matic (247.013) (150 HP, 110 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W247) (12.2018 - ) B 220 d (247.014) (190 HP, 140 kW)

MERCEDES-BENZ B-CLASS Sports Tourer (W247) (12.2018 - ) B 220 d 4-matic (247.015) (190 HP, 140 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 180 d (205.000) (122 HP, 90 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 200 d (205.001) (160 HP, 118 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 200 d (205.011) (150 HP, 110 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 220 d (205.014) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 220 d 4-matic (205.015) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 300 d (205.018) (245 HP, 180 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 300 d 4-matic (205.019) (245 hp, 180 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 300 de (205.013) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) C 300 de (205.013) (306 HP, 225 kW)

MERCEDES-BENZ C-CLASS Cabriolet (A205) (06.2016 - 12.2018) C 200 d (205.401) (160 HP, 118 kW)

MERCEDES-BENZ C-CLASS Cabriolet (A205) (06.2016 - 12.2018) C 220 d (205.414) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS Cabriolet (A205) (06.2016 - 12.2018) C 220 d 4-matic (205.415) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS Cabriolet (A205) (06.2016 - 12.2018) C 300 d (205.418) (245 HP, 180 kW)

MERCEDES-BENZ C-CLASS Coupe (C205) (10.2015 - 12.2018) C 200 d (205.301) (160 HP, 118 kW)

MERCEDES-BENZ C-CLASS Coupe (C205) (10.2015 - 12.2018) C 220 d (205.314) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS Coupe (C205) (10.2015 - 12.2018) C 220 d 4-matic (205.315) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS Coupe (C205) (10.2015 - 12.2018) C 300 d (205.318) (245 HP, 180 kW)

MERCEDES-BENZ C-CLASS Coupe (C205) (10.2015 - 12.2018) C 300 d 4-matic (205.319) (245 HP, 180 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 180 d (205.200) (122 HP, 90 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 200 d (205.201) (160 HP, 118 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 200 d (205.211) (150 HP, 110 kW)

MERCEDES BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 220 d (205.214) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 220 d 4-matic (205.215) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 300 d (205.218) (245 HP, 180 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 300 d 4-matic (205.219) (245 hp, 180 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 300 de (205.213) (194 HP, 143 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) C 300 de (205.213) (306 HP, 225 kW)

MERCEDES-BENZ CLA (C118) (03.2019 - ) AMG CLA 45 4-matic+ (118.353) (387 HP, 285 kW)

MERCEDES-BENZ CLA (C118) (03.2019 - ) AMG CLA 45 S 4-matic+ (118.354) (421 HP, 310 kW)

MERCEDES-BENZ CLA (C118) (03.2019 - ) CLA 180 d (118.310) (116 HP, 85 kW)

MERCEDES-BENZ CLA (C118) (03.2019 - ) CLA 200 d (118.312) (150 HP, 110 kW)

MERCEDES-BENZ CLA (C118) (03.2019 - ) CLA 200 d 4-matic (118.313) (150 HP, 110 kW)

MERCEDES-BENZ CLA (C118) (03.2019 - ) CLA 220 d (118.314) (190 HP, 140 kW)

MERCEDES-BENZ CLA (C118) (03.2019 - ) CLA 220 d 4-matic (118.315) (190 HP, 140 kW)

MERCEDES-BENZ CLA Shooting Brake (X118) (06.2019 - ) AMG CLA 45 4-matic+ (118.653) (387 HP, 285 kW)

MERCEDES-BENZ CLA Shooting Brake (X118) (06.2019 - ) AMG CLA 45 S 4-matic+ (118.654) (421 HP, 310 kW)

MERCEDES-BENZ CLA Shooting Brake (X118) (06.2019 - ) CLA 180 d (118.610) (116 HP, 85 kW)

MERCEDES-BENZ CLA Shooting Brake (X118) (06.2019 - ) CLA 200 d (118.612) (150 HP, 110 kW)

MERCEDES-BENZ CLA Shooting Brake (X118) (06.2019 - ) CLA 200 d 4-matic (118.613) (150 HP, 110 kW)

MERCEDES-BENZ CLA Shooting Brake (X118) (06.2019 - ) CLA 220 d (118.614) (190 HP, 140 kW)

MERCEDES-BENZ CLA Shooting Brake (X118) (06.2019 - ) CLA 220 d 4-matic (118.615) (190 HP, 140 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) AMG CLS 53 EQ Boost 4-matic+ (257.361) (435 HP, 320 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 220 d (257.314) (194 HP, 143 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 300 d (257.318) (245 HP, 180 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 350 d (257.320) (286 HP, 210 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 350 d 4-matic (257.321) (249 HP, 183 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 350 d 4-matic (257.321) (286 HP, 210 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 400 d 4-matic (257.323) (330 HP, 243 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 400 d 4-matic (257.323) (340 HP, 250 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 450 EQ Boost (257.358) (367 HP, 270 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 450 EQ Boost 4-matic (257.359) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) AMG E 53 EQ Boost 4-matic+ (213.061) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 200 d (213.012) (160 HP, 118 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 200 d (213.013) (150 HP, 110 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 220 d (213.004) (163 HP, 120 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 220 d (213.004) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 220 d 4-matic (213.005) (163 HP, 120 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 220 d 4-matic (213.005) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 300 d (213.008) (245 HP, 180 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 300 de (213.016) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 300 de (213.016) (306 HP, 225 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 300 de 4-matic (213.011) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 300 de 4-matic (213.011) (306 HP, 225 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 350 d (213,022) (286 hp, 210 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 400 d (213.020) (340 HP, 250 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 400 d 4-matic (213.023) (330 HP, 243 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 400 d 4-matic (213.023) (340 HP, 250 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 450 EQ Boost 4-matic (213.059) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 220 d 4-matic (213.217) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 400 d 4-matic (213.227) (330 HP, 243 kW)

MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 400 d 4-matic (213.227) (340 HP, 250 kW)

MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 450 EQ Boost (213.260) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) AMG E53 EQ Boost 4-matic+ (238.461) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 220 d (238.414) (163 HP, 120 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 220 d (238.414) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 220 d 4-matic (238.415) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 300 d (238.418) (245 hp, 180 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 350 d (238.420) (286 HP, 210 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 400 d 4-matic (238.423) (330 HP, 243 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 400 d 4-matic (238.423) (340 HP, 250 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 450 (238.458) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 450 EQ Boost 4-matic (238.459) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) AMG E 53 EQ Boost 4-matic+ (238.361) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 220 d (238,314) (194 hp, 143 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 220 d 4-matic (238.315) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 300 d (238.318) (245 HP, 180 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 350 d (238.320) (286 HP, 210 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 400 d 4-matic (238.323) (330 HP, 243 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 400 d 4-matic (238.323) (340 HP, 250 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 450 (238.358) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 450 EQ Boost 4-matic (238,359) (367 hp, 270 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) AMG E 53 EQ Boost 4-matic+ (213.261) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 200 d (213.212) (160 HP, 118 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 200 d (213.213) (150 HP, 110 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 220 d (213.204) (163 HP, 120 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 220 d (213.204) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 220 d (213.206) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 220 d 4-matic (213.205) (194 hp, 143 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 300 d (213.208) (245 HP, 180 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 300 de (213.216) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 300 de (213.216) (306 HP, 225 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 300 de 4-matic (213.211) (194 HP, 143 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 300 de 4-matic (213.211) (306 HP, 225 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 350 d (213.222) (286 HP, 210 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 400 d (213.220) (340 HP, 250 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 400 d 4-matic (213.223) (330 HP, 243 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 400 d 4-matic (213.223) (340 HP, 250 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 450 EQ Boost (213.259) (367 HP, 270 kW)

MERCEDES-BENZ G-CLASS (W463) (01.2018 - ) G 350 d 4-matic (463.349) (286 HP, 210 kW)

MERCEDES-BENZ G-CLASS (W463) (01.2018 - ) G 400 d 4-matic (463.350) (330 HP, 243 kW)

MERCEDES-BENZ GLA (H247) (02.2020 - ) AMG GLA 45 4-matic+ (247.753) (387 HP, 285 kW)

MERCEDES-BENZ GLA (H247) (02.2020 - ) AMG GLA 45 S 4-matic+ (247.754) (421 HP, 310 kW)

MERCEDES-BENZ GLA (H247) (02.2020 - ) GLA 180 d (247.710) (116 HP, 85 kW)

MERCEDES-BENZ GLA (H247) (02.2020 - ) GLA 200 d (247.712) (150 HP, 110 kW)

MERCEDES-BENZ GLA (H247) (02.2020 - ) GLA 200 d 4-matic (247.713) (150 HP, 110 kW)

MERCEDES-BENZ GLA (H247) (02.2020 - ) GLA 220 d (247.714) (190 HP, 140 kW)

MERCEDES-BENZ GLA (H247) (02.2020 - ) GLA 220 d 4-matic (247.715) (190 hp, 140 kW)

MERCEDES-BENZ GLB (X247) (08.2019 - ) GLB 180 d (247.610) (116 HP, 85 kW)

MERCEDES-BENZ GLB (X247) (08.2019 - ) GLB 200 d (247.612) (150 HP, 110 kW)

MERCEDES-BENZ GLB (X247) (08.2019 - ) GLB 200 d 4-matic (247.613) (150 HP, 110 kW)

MERCEDES-BENZ GLB (X247) (08.2019 - ) GLB 220 d (247.614) (190 HP, 140 kW)

MERCEDES-BENZ GLB (X247) (08.2019 - ) GLB 220 d 4-matic (247.615) (190 HP, 140 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 200 d (253.913) (163 HP, 120 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 200 d 4-matic (253.916) (163 HP, 120 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 220 d (253.914) (194 HP, 143 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 220 d 4-matic (253.915) (194 HP, 143 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 300 d 4-matic (253.919) (245 HP, 180 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 300 de 4-matic (253.911) (194 HP, 143 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 300 de 4-matic (253.911) (306 HP, 225 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) 400 d 4-matic (253.923) (330 HP, 243 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 200 d (253.313) (163 HP, 120 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 200 d 4-matic (253.316) (163 hp, 120 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 220 d 4-matic (253.315) (194 HP, 143 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 300 d 4-matic (253.319) (245 HP, 180 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 300 de 4-matic (253.311) (194 HP, 143 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 300 de 4-matic (253.311) (306 HP, 225 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) 400 d 4-matic (253.323) (330 HP, 243 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) AMG GLE 53 EQ Boost 4-matic+ (167.161) (435 HP, 320 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 300 d 4-matic (167.119) (245 HP, 180 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 350 d 4-matic (167.121) (272 HP, 200 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 350 de 4-matic (167.117) (194 HP, 143 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 350 de 4-matic (167.117) (306 HP, 225 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 350 de 4-matic (167.117) (320 HP, 235 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 400 d 4-matic (167.123) (330 HP, 243 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 450 EQ Boost 4-matic (167.159) (367 HP, 270 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) AMG GLE 53 EQ Boost 4-matic+ (167.361) (435 HP, 320 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 350 d 4-matic (167.321) (272 HP, 200 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 350 de 4-matic (167.317) (194 HP, 143 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 350 de 4-matic (167.317) (320 HP, 235 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 400 d 4-matic (167.323) (330 HP, 243 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 450 EQ Boost 4-matic (167,357) (367 hp, 270 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 450 EQ Boost 4-matic (167.359) (367 HP, 270 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 350 d 4-matic (167.921) (286 HP, 210 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 400 EQ Boost 4-matic (167.956) (313 HP, 230 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 400 d 4-matic (167,923) (330 hp, 243 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 450 EQ Boost 4-matic (167.959) (367 HP, 270 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) Maybach 480 EQ Boost 4-matic (167.967) (367 HP, 270 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 200 CDI (447.703, 447.813) (136 HP, 100 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 200 CDI 4-matic (447.703, 447.813) (136 HP, 100 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 220 CDI (447.703, 447.813) (163 HP, 120 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 220 CDI 4-matic (447.703, 447.813) (163 HP, 120 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 250 CDI (447.703, 447.813) (190 hp, 140 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 250 CDI 4-matic (447.703, 447.813) (190 HP, 140 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 300 CDI (447.813, 447.703) (239 HP, 176 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 300 CDI (447813, 447703) (237 HP, 174 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 300 CDI 4-matic (447.813, 447.703) (239 HP, 176 kW)

MERCEDES-BENZ MARCO POLO Camper (W447) (03.2015 - 12.2020) 300 CDI 4-matic (447813, 447703) (237 HP, 174 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 L EQ Boost (222.156) (299 HP, 220 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 d (222.020, 222.120) (286 HP, 210 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 d 4-matic (222.021, 222.121) (286 HP, 210 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 d 4-matic (222.121) (249 HP, 183 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 400 d (222.034, 222.134) (340 HP, 250 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 400 d 4-matic (222.035, 222.135) (340 PS, 250 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 450 EQ Boost (222.158, 222.058) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222,

MERCEDES BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 450 Maybach EQ Boost 4-matic (222.959) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 EQ Boost (222.060, 222.160) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 L 4-matic (222.169) (435 HP, 320 kW)

MERCEDES BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 L EQ Boost 4-matic (222.169) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 350 d (223.030, 223.130) (286 HP, 210 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 350 d 4-matic (223.031, 223.131) (286 HP, 210 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 400 d 4-matic (223.033, 223.133) (330 HP, 243 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 450 EQ Boost 4-matic (223.061, 223.161) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 500 EQ Boost 4-matic (223.063, 223.163) (435 HP, 320 kW)

MERCEDES-BENZ SPRINTER 3.5-t Box (907, 910) (02.2018 - ) 311 CDI RWD (907.631, 907.633, 907.635, 907.637) (114 hp, 84 kW)

MERCEDES-BENZ SPRINTER 3.5-t Van (907, 910) (02.2018 - ) 315 CDI RWD (907.631, 907.633, 907.635, 907.637) (150 hp, 110 kW)

MERCEDES-BENZ SPRINTER 3.5-t Van (907, 910) (02.2018 - ) 317 CDI RWD (907.631, 907.633, 907.635, 907.637) (170 hp, 125 kW)

MERCEDES-BENZ SPRINTER 3.5-t Flatbed/Chassis (907, 910) (02.2018 - ) 311 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... (114 hp, 84 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (907, 910) (02.2018 - ) 315 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... (150 hp, 110 kW)

MERCEDES-BENZ SPRINTER 3.5-t flatbed/chassis (907, 910) (02.2018 - ) 317 CDI RWD (907.131, 907.133, 907.135, 907.231, 907.233... (170 hp, 125 kW)

MERCEDES-BENZ SPRINTER 3-t flatbed/chassis (910, 907) (02.2018 - ) 211 CDI RWD (907.221, 907.223) (114 hp, 84 kW)

MERCEDES-BENZ SPRINTER 3-t flatbed/chassis (910, 907) (02.2018 - ) 215 CDI RWD (907.221, 907.223) (150 hp, 110 kW)

MERCEDES-BENZ SPRINTER 3-t flatbed/chassis (910, 907) (02.2018 - ) 217 ​​CDI RWD (907.221, 907.223) (170 HP, 125 kW)

MERCEDES-BENZ SPRINTER 4-t Box (907, 910) (02.2018 - ) 417 CDI RWD (907.641, 907.643, 907.645, 907.647) (170 HP, 125 kW)

MERCEDES-BENZ V-CLASS (W447) (03.2014 - 12.2020) V 220 CDI / d (447811, 447813, 447815) (163 HP, 120 kW)

MERCEDES-BENZ V-CLASS (W447) (03.2014 - 12.2020) V 220 CDI / d 4-matic (447811, 447813) (163 HP, 120 kW)

MERCEDES-BENZ V-CLASS (W447) (03.2014 - 12.2020) V 250 CDI / d (447811, 447813, 447815) (190 HP, 140 kW)

MERCEDES-BENZ V-CLASS (W447) (03.2014 - 12.2020) V 250 CDI / d 4-matic (447811, 447813) (190 HP, 140 kW)

MERCEDES-BENZ V-CLASS (W447) (03.2014 - 12.2020) V 300 CDI / d (447.811, 447.813, 447.815) (237 HP, 174 kW)

MERCEDES-BENZ V-CLASS (W447) (03.2014 - 12.2020) V 300 CDI / d (447811, 447813, 447815) (239 HP, 176 kW)

MERCEDES-BENZ V-CLASS (W447) (03.2014 - 12.2020) V 300 CDI / d 4-matic (447.811, 447.813) (237 HP, 174 kW)

MERCEDES-BENZ V-CLASS (W447) (03.2014 - 12.2020) V 300 CDI / d 4-matic (447811, 447813) (239 HP, 176 kW)

MERCEDES-BENZ VITO Box (W447) (10.2014 - ) 114 CDI (447.601, 447.603, 447.605) (136 HP, 100 kW)

MERCEDES-BENZ VITO Box (W447) (10.2014 - ) 114 CDI 4x4 (447.701, 447.703, 447.705) (136 HP, 100 kW)

MERCEDES-BENZ VITO Box (W447) (10.2014 - ) 116 CDI (447.601, 447.603, 447.605) (163 HP, 120 kW)

MERCEDES-BENZ VITO Box (W447) (10.2014 - ) 116 CDI 4x4 (447.601, 447.603, 447.605) (163 HP, 120 kW)

MERCEDES-BENZ VITO Box (W447) (10.2014 - ) 119 CDI (447.601, 447.603, 447.605) (190 HP, 140 kW)

MERCEDES-BENZ VITO Box (W447) (10.2014 - ) 119 CDI 4x4 (447.601, 447.603, 447.605) (190 HP, 140 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 114 CDI (447.701, 447.703, 447.705) (136 HP, 100 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 114 CDI 4-matic (447.701, 447.703, 447.705) (136 HP, 100 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 116 CDI (447.701, 447.703, 447.705) (163 HP, 120 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 116 CDI 4-matic (447.701, 447.703, 447.705) (163 HP, 120 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 119 CDI (447.701, 447.703, 447.705) (190 HP, 140 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 119 CDI 4-matic (447.701, 447.703, 447.705) (190 HP, 140 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 124 CDI (447.701, 447.703, 447.705) (237 HP, 174 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 124 CDI (447.701, 447.703, 447.705) (239 HP, 176 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 124 CDI 4-matic (447.701, 447.703, 447.705) (237 HP, 174 kW)

MERCEDES-BENZ VITO Mixto (Double Cabin) (W447) (10.2014 - 12.2020) 124 CDI 4-matic (447.701, 447.703, 447.705) (239 HP, 176 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 114 CDI (447.701, 447.703, 447.705) (136 HP, 100 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 114 CDI 4-matic (447.701, 447.703, 447.705) (136 HP, 100 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 116 CDI (447.701, 447.703, 447.705) (163 HP, 120 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 116 CDI 4-matic (447.701, 447.703, 447.705) (163 HP, 120 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 119 CDI (447.701, 447.703, 447.705) (190 HP, 140 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 119 CDI 4-matic (447.701, 447.703, 447.705) (190 HP, 140 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 124 CDI (447.701, 447.703, 447.705) (237 HP, 174 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 124 CDI (447.701, 447.703, 447.705) (239 HP, 176 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 124 CDI 4-matic (447.701, 447.703, 447,705) (237 hp, 174 kW)

MERCEDES-BENZ VITO Tourer (W447) (10.2014 - 12.2020) 124 CDI 4-matic (447.701, 447.703, 447.705) (239 HP, 176 kW)
