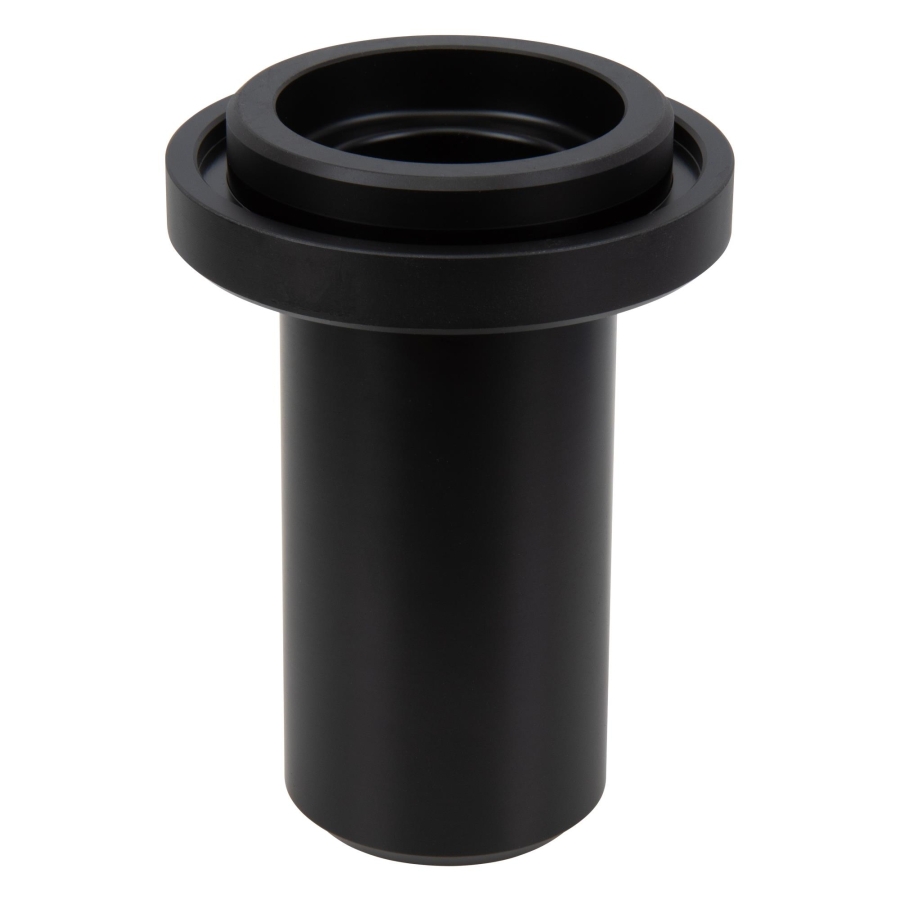

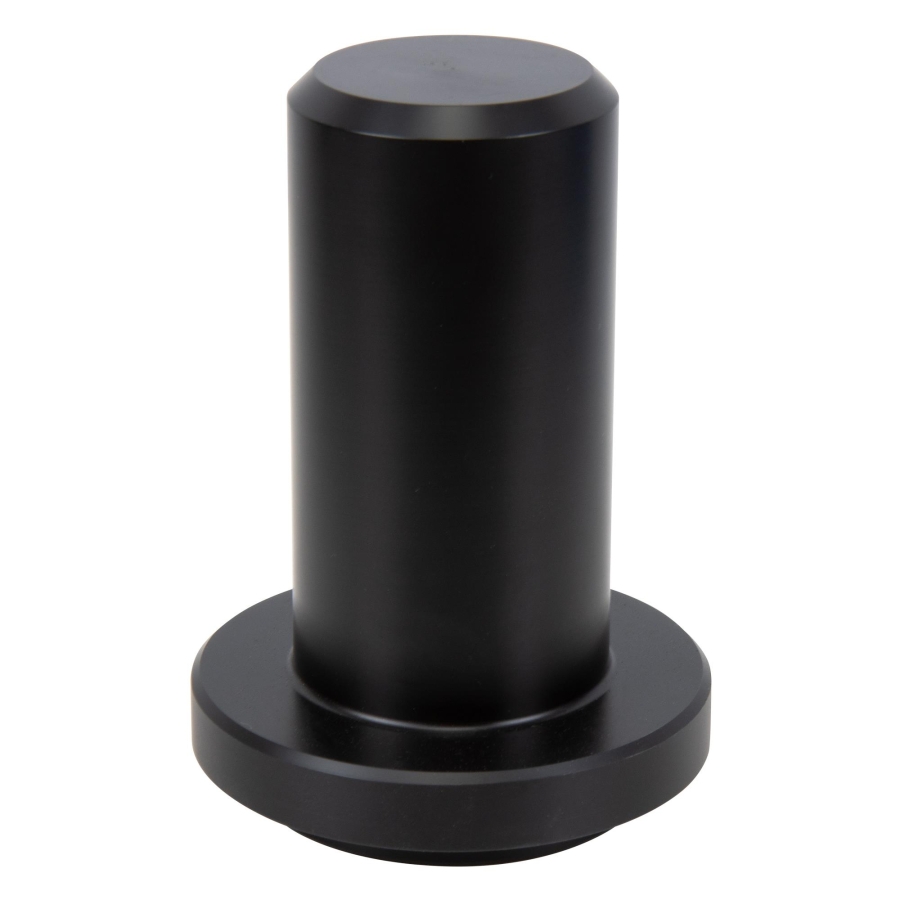

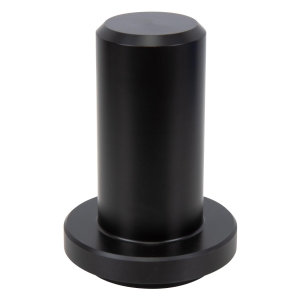

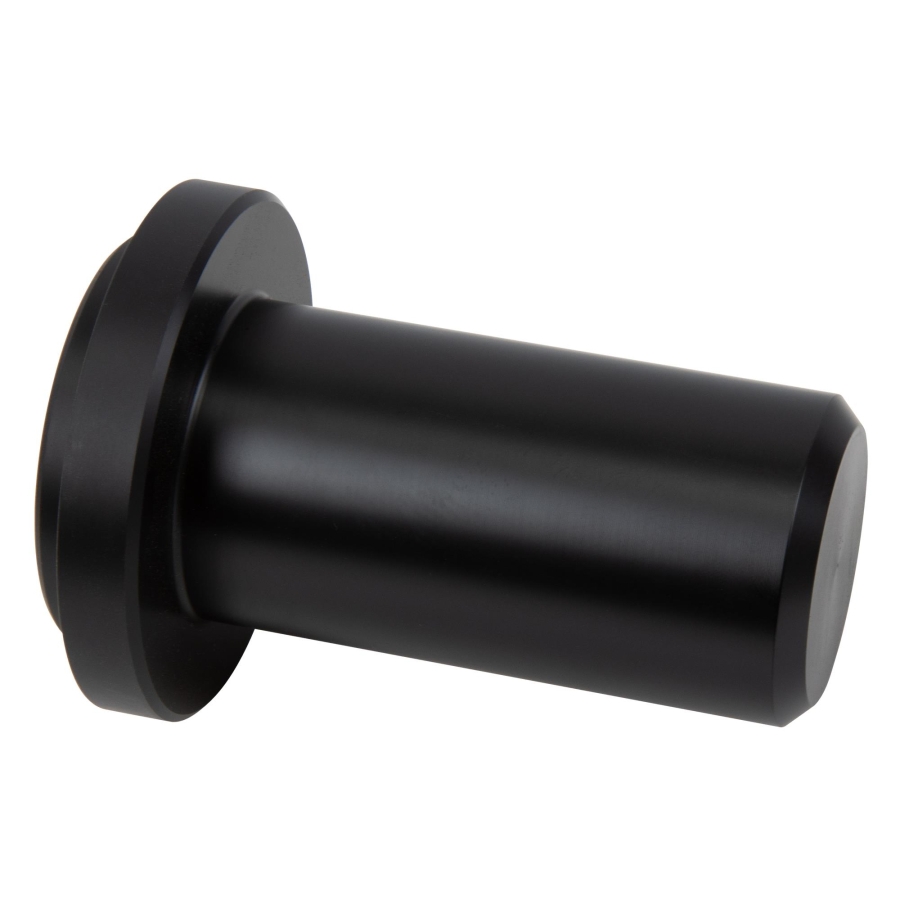

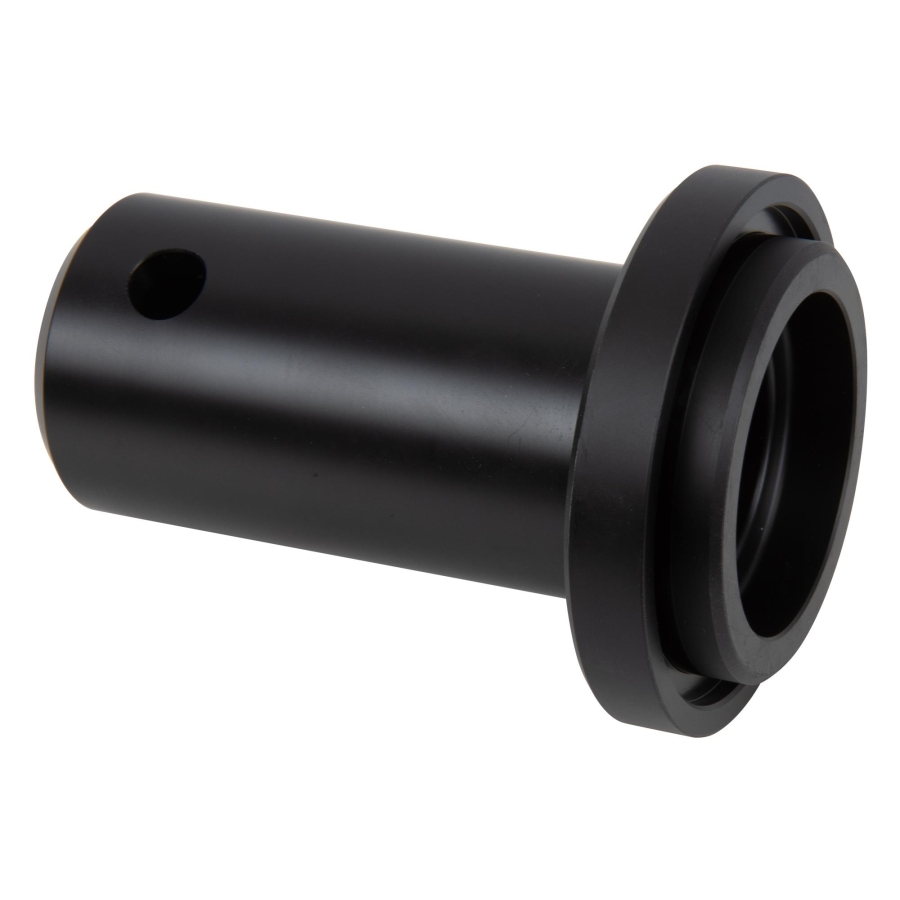

Oil Seal Installation Tool / Press Piece for Differential and Transfer Case, as VW T10049
-
Code:124969
-
Weight:0.266 Kgs
Overview:
✔ For professional installation of drivetrain oil seals
✔ Suitable for differentials, transfer cases and bevel gearboxes
✔ For front-axle and propshaft-output applications
✔ Compatible with selected manual, DSG and automatic transmissions
✔ Suitable for selected rear differentials and Haldex systems
This special press piece is designed for the simple and professional installation of oil seals in differentials, front-axle bevel gearboxes and propshaft outputs leading to the rear differential or Haldex system.
It is suitable for numerous manual transmissions, DSG transmissions, torque-converter automatic transmissions, bevel gearboxes, transfer cases and rear differentials.
The tool supports the seal evenly during installation, helping to prevent deformation and damage.
Suitable Vehicles
VW:
Caddy III–IV, Eos, Golf IV–VII including Bora and Vento, Jetta V–VI, Passat B6–B7, Scirocco III, Sharan II, Tiguan I, Touran I, Transporter T5–T6, up!
Audi:
A3 8P, Q3 8U, TT 8J
SEAT / CUPRA:
Leon II–III, Altea, Toledo III, Alhambra II, CUPRA Formentor
Škoda:
Fabia, Octavia II–IV, Superb II–III, Yeti 4x4, Kodiaq
Compatible Transmission and Drivetrain Codes
6-speed manual transmissions:
02M, 02Q, 02S, 02Y, 0A5, 0A6, 0BB
6-speed dual-clutch transmission (DSG):
02E
7-speed dual-clutch transmission (DSG):
0BH
Torque-converter automatic transmission:
09M
Rear-axle, propshaft and AWD drivetrains, including transfer cases, rear differentials and Haldex systems:
02D, 0AV, 0BR, 0BS, 0BY
To Be Used as VAG
T10049
Original numbers are provided for comparison purposes only. This is not an original tool.
