Timing Tool Set for Opel 2.0L Turbo A20NFT, A20NHT, B20NFT, B20NHT, D20NFT and LTG Timing Chain Engines
-
Code:124742
-
Weight:0.325 Kgs
Overview:
✔ For replacing the timing chain, camshafts and camshaft adjusters
✔ Suitable for selected Opel/GM LTG-generation 2.0L turbo engines
✔ Holds the intake and exhaust camshaft components in position
✔ Enables accurate timing adjustment using the chain and sprocket markings
✔ Includes a locking pin for the timing chain tensioner
✔ Used as Opel/GM EN-50656, EN-50793 and EN-50837
This special tool set is designed for replacing the timing chain, camshafts or camshaft adjusters on LTG-generation 2.0L turbo engines.
The tools hold the camshaft components and timing chain securely in position, allowing the engine timing to be set correctly during engine and cylinder head repairs.
Procedure
To hold the camshafts in position, first install and secure the exhaust camshaft adjuster holding tool.
The intake-side timing chain holding tool then keeps the components in position and allows the timing to be adjusted using the alignment markings on the timing chain and drive sprockets.
Always follow the engine-specific repair instructions when positioning and tightening the components.
Reference Tightening Torques
The following values refer to an A20NHT engine with 184 kW / 250 hp fitted to a 2015 Opel Insignia:
- Camshaft adjuster central bolt: 30 Nm + 100°
- Crankshaft central bolt: 150 Nm + 140°
- Timing chain tensioner: 25 Nm
- Guide rail and tensioning rail: 25 Nm
- Oil pump secondary chain guide and tensioning rail: 10 Nm
These values are provided only as a reference. Always verify the correct tightening specifications in the repair documentation for the specific engine and vehicle.
Suitable for the Following Engine Codes
A20NFT, A20NHT, B20NFT, B20NHT, D20NFT, LTG
Compatibility Note
Suitable only for the following power outputs:
- 184 kW / 250 hp
- 191 kW / 260 hp
- 202 kW / 275 hp
For A20NHT engines with 220 hp, use the timing tool set with item no. 999070. Always consult the applicable repair manual.
To Be Used as
Opel/GM EN-50656, EN-50793, EN-50837

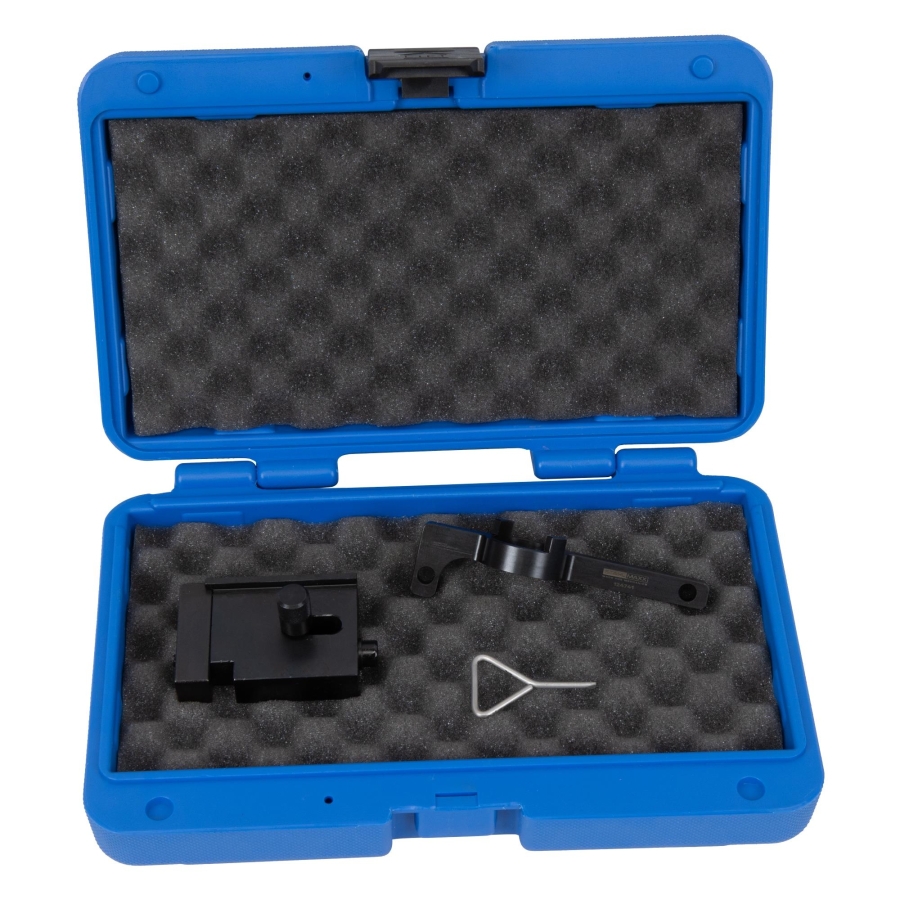

Scope of Delivery
1 × Intake camshaft timing chain holding tool, item no. 124740, as Opel/GM EN-50656
1 × Exhaust camshaft adjuster holding tool, item no. 124741, as Opel/GM EN-50793
1 × Timing chain tensioner locking pin, item no. 112907, as EN-50837
1 × Robust storage case, item no. 66009
Original numbers are provided for comparison purposes only. This is not an original tool.
