Pinion Nut Holding Tool for VW Porsche 091 094 Gearboxes as VW 2052-1 2052-2

This special tool is designed for holding the gearbox shaft and loosening or tightening the pinion nut on VW and Porsche 091 and 094 transmissions.

The tool is essential for professional gearbox repair and transmission overhaul procedures on various classic Volkswagen and Porsche drivetrain systems.

Designed for controlled and secure transmission service operations during gearbox disassembly and assembly.

Application

Suitable for the following transmission types:

• 4-speed gearbox 091
• 5-speed gearbox 094

Compatible with air-cooled and water-cooled vehicle applications.

Suitable for:

• VW Karmann Ghia
• VW Beetle
• VW Type 2 1976–1979
• VW T2 1980–1984
• VW T3 from 1984 onwards

Function

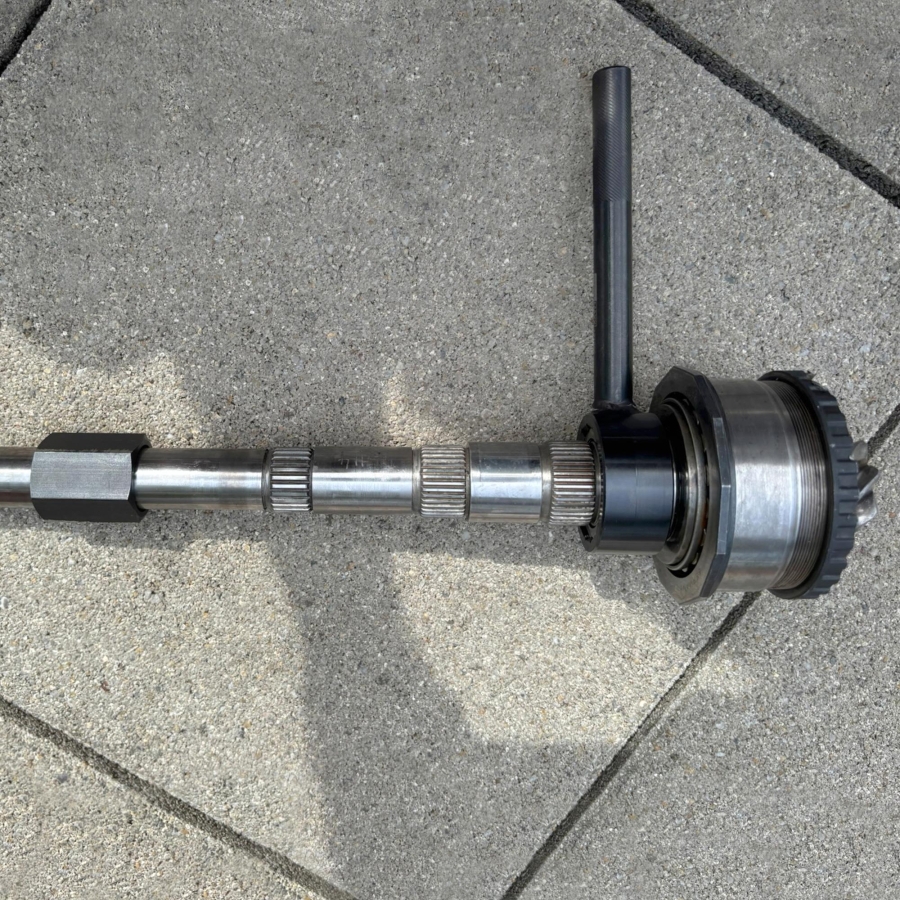

The tool holds and rotates the gearbox shaft while allowing safe loosening and tightening of the pinion nut.

Recommended tightening torque for the pinion nut is 210 Nm. Manufacturer torque specifications must always be observed.

For accurate gearbox rebuilding procedures, measuring the installation depth using a dial gauge and dial gauge holder is recommended.

A 32 mm crowfoot wrench may additionally be required to transfer torque during gearbox shaft operation.

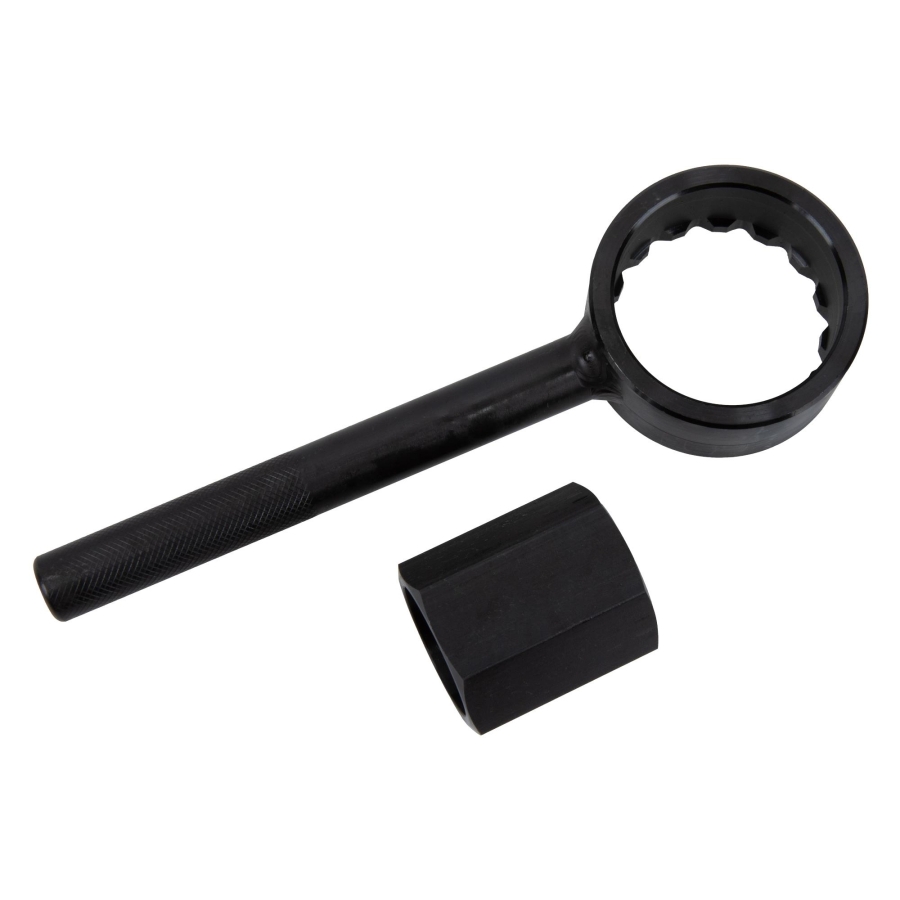

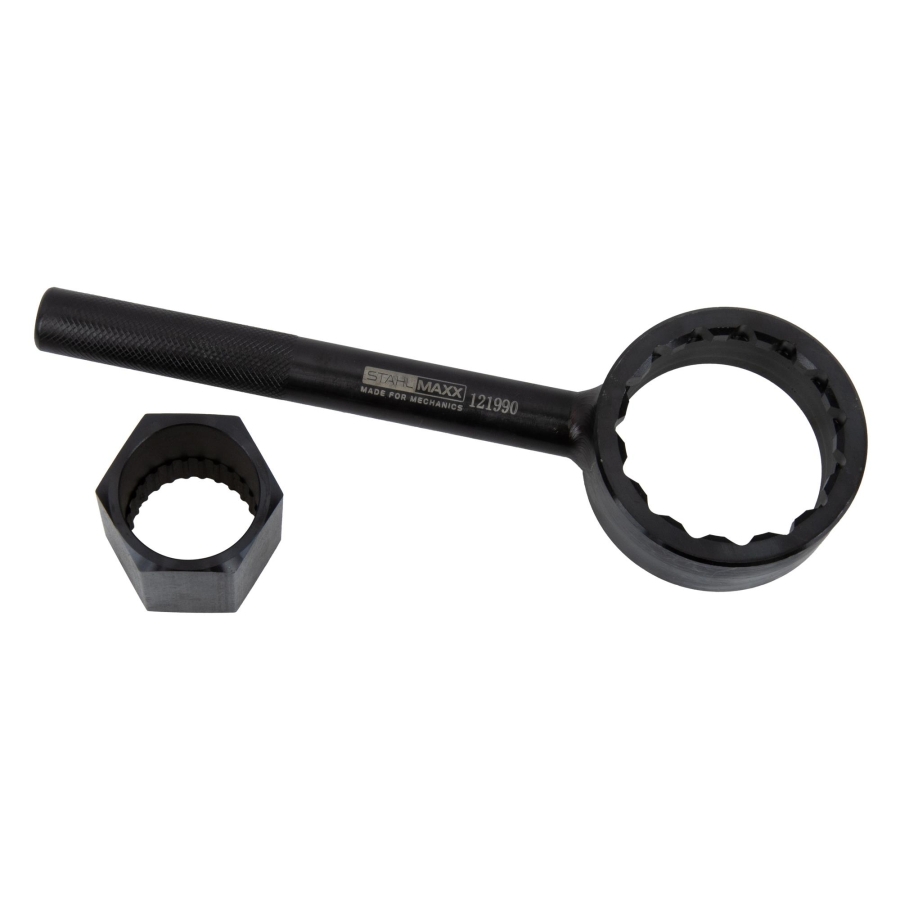

Package Contents

• Multi-spline nut for holding and rotating the gearbox shaft with 32 mm hex drive

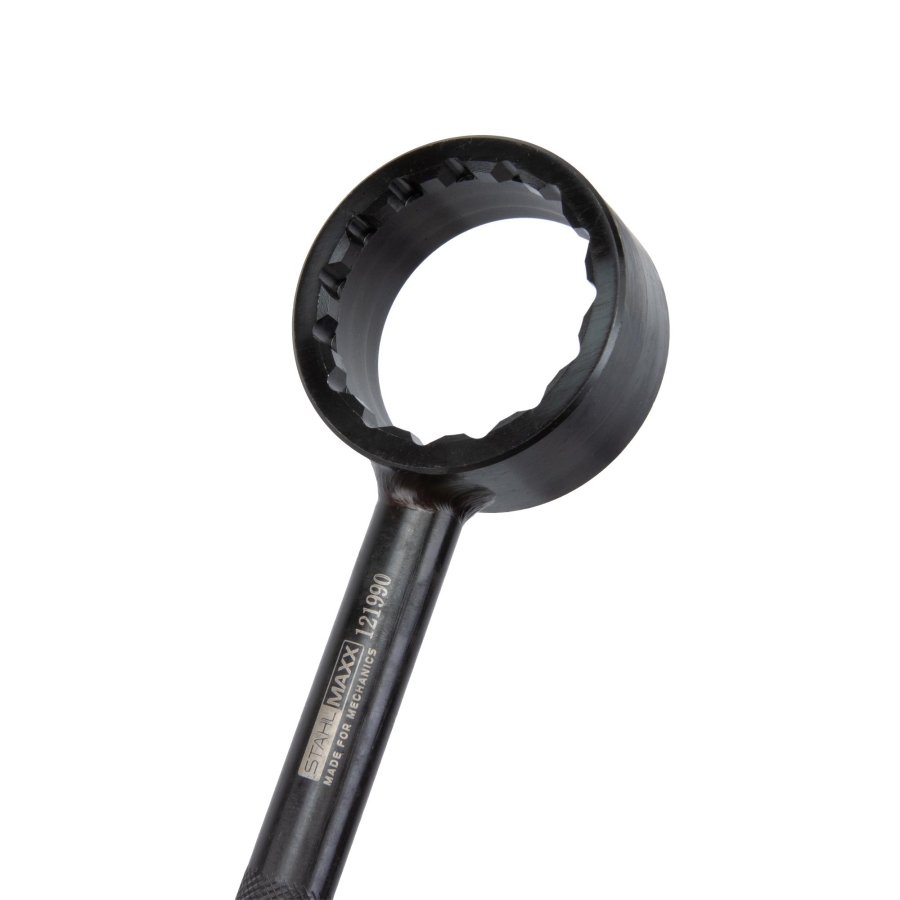

• Holder with 15-tooth profile for mounting onto the pinion nut

Technical Information

• Tool type: Pinion nut holding tool
• Application: Gearbox repair and transmission overhaul
• Suitable for: 091 and 094 gearboxes
• Transmission types: 4-speed and 5-speed
• Used as: VW2052, VW2052-1, VW2052-2
• Recommended torque: 210 Nm

OEM numbers are provided for comparison purposes only. This product is not an original OEM tool.
