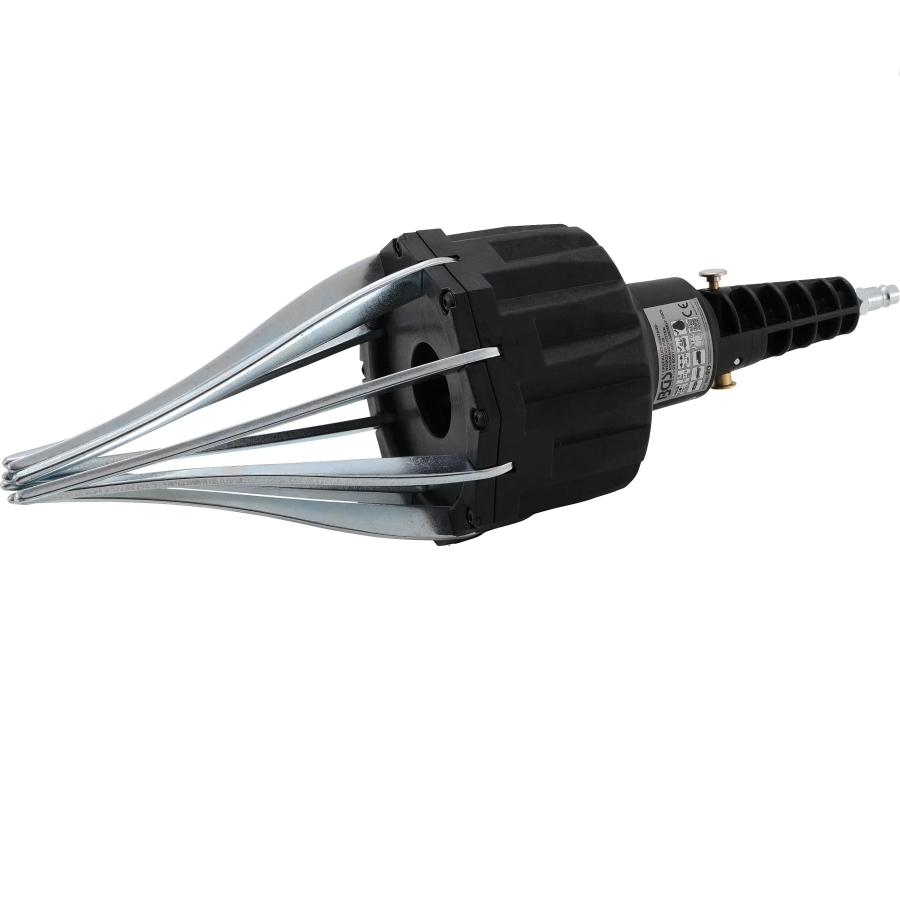

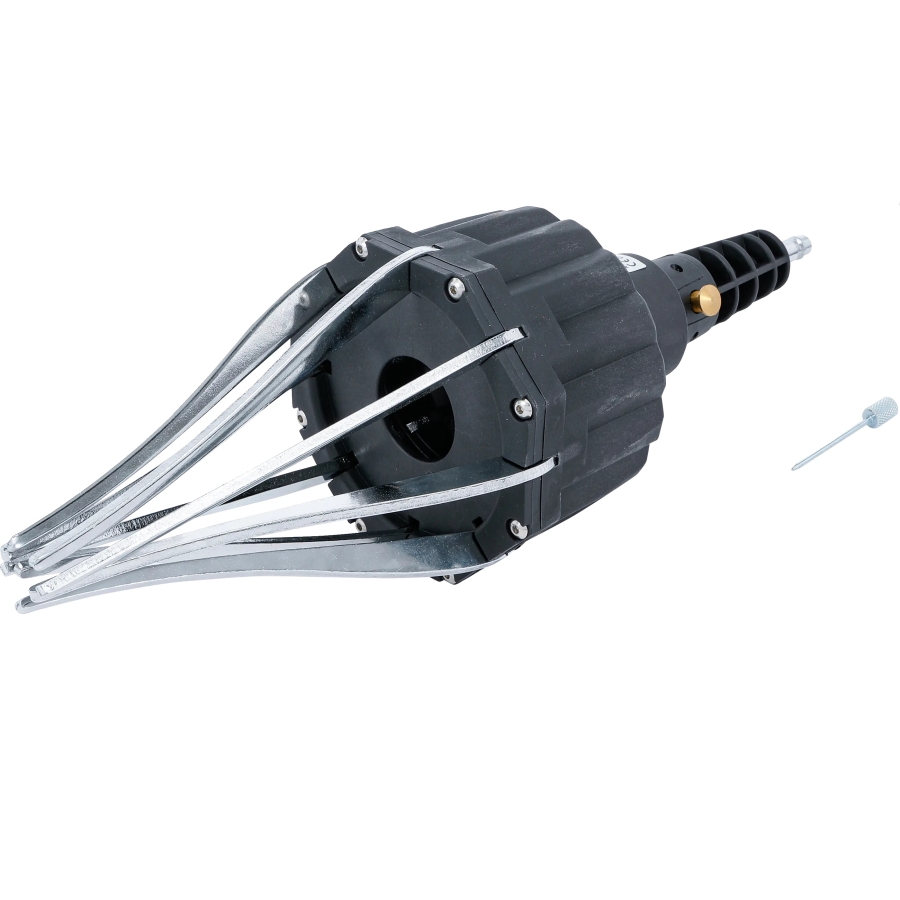

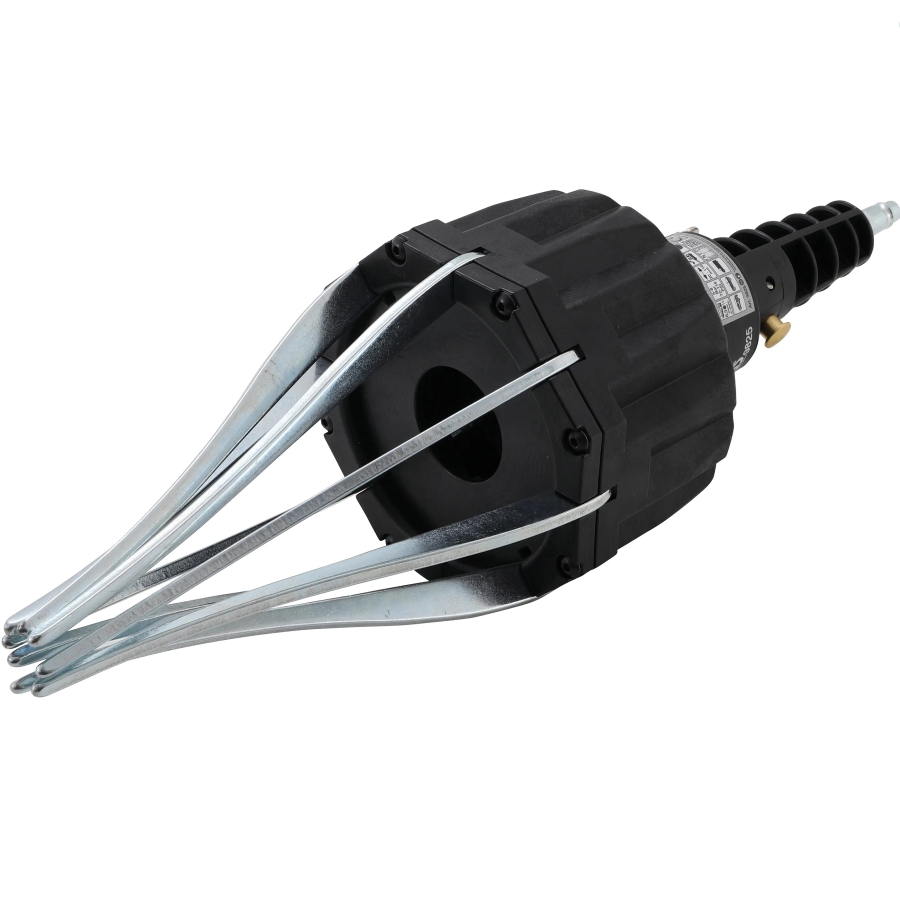

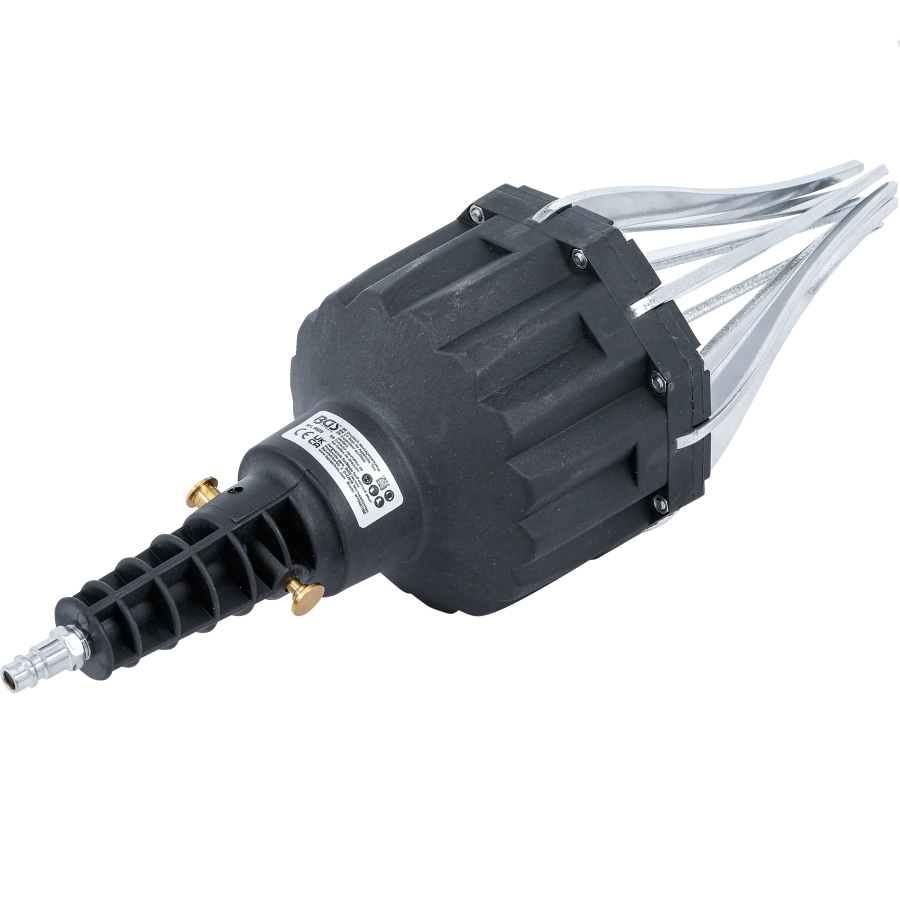

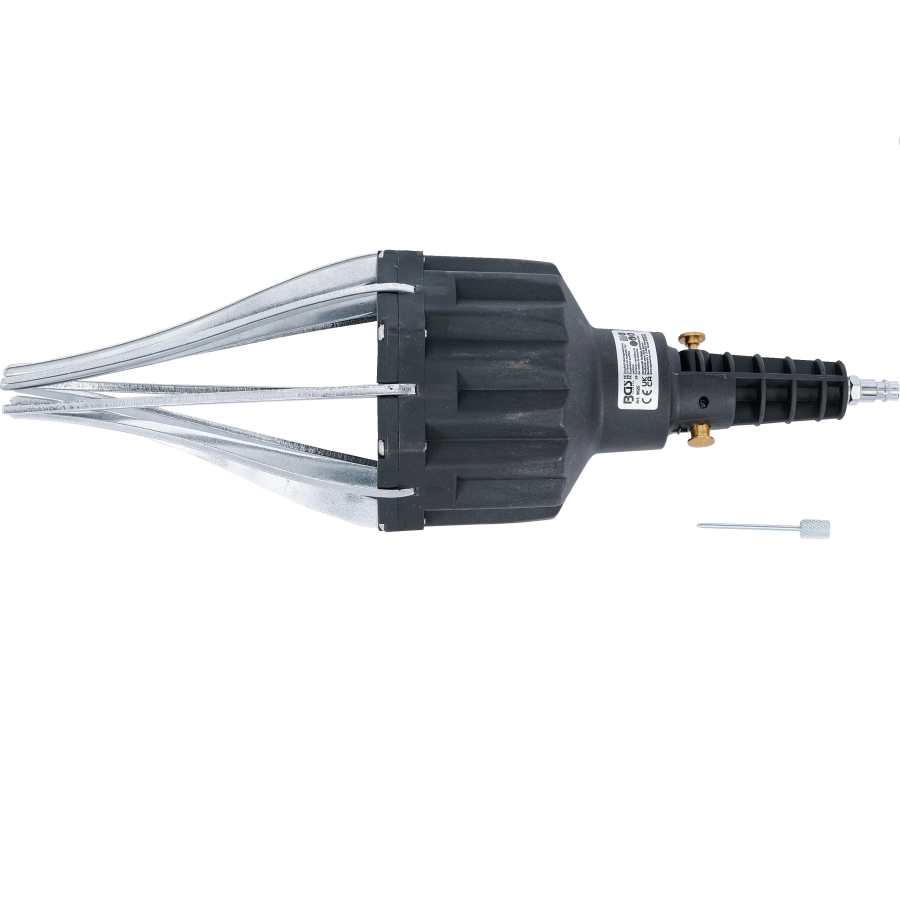

Pneumatic CV Boot Installation Tool 20–110 mm
-
Code:9825
-
Weight:2.448 Kgs
Overview:
✔ Pneumatic installation tool for universal and OEM CV boots
✔ Suitable for CV boots with clamping range from 20 mm to 110 mm
✔ Equipped with 8 durable expanding arms
✔ Expansion operated by compressed air for quick installation
✔ Operating pressure 5–8 bar (72–116 PSI)
✔ Maximum pressure 8 bar (116 PSI)
✔ Manufactured from reinforced PA 6 GF30 material
✔ 1/4" compressed air connection
✔ Suitable for professional workshop use
This pneumatic CV boot installation tool is designed for the efficient installation of both universal and original automotive CV boots. The compressed-air-operated expansion mechanism allows the boot to be stretched quickly for easy installation over CV joints and driveshaft components.
8 Robust Expanding Arms
The tool features eight heavy-duty expanding arms that distribute expansion force evenly around the boot, helping to minimize the risk of damage during installation.
Technical specifications:
- Minimum expansion range: 20 mm
- Maximum expansion range: 110 mm
- Number of expanding arms: 8
Compressed Air Operation
The expanding arms are operated using compressed air, providing controlled and consistent expansion for fast and efficient installation.
Technical data:
- Operating pressure: 5–8 bar
- Maximum pressure: 8 bar (116 PSI)
- Air connection: 1/4"
Reinforced Composite Construction
Manufactured from Polyamide 6 reinforced with 30% glass fiber (PA 6 GF30), the tool combines high strength with low weight, making it suitable for frequent professional use.
- Material: PA 6 GF30 (30% glass fiber reinforced polyamide)
- Weight: 2.2 kg
Suitable for Professional Workshops
Ideal for automotive workshops, transmission specialists and service centers performing regular CV boot replacements. The pneumatic design improves efficiency and reduces installation time compared to conventional methods.
