Press Frame with M18 Spindle

The press frame is designed for professional pulling and pressing operations on bearings, bushings, silent blocks, sleeves, and other press-fitted components. Its robust construction allows high pressing forces while providing excellent accessibility in workshop environments.

The integrated M18 spindle is suitable for use with impact wrenches, enabling faster and more efficient operation compared to conventional manual systems.

Compatibility

The press frame can be used with:

• Hydraulic Spindle – Item no. 7721-X
• Puller and Press Sleeve Sets – Item no. 1514

This compatibility provides flexibility for a wide range of pressing and extraction tasks.

Technical Specifications

• Spindle thread: M18
• Suitable for impact wrench operation
• Maximum pressing width: 220 mm
• Frame dimensions: 340 × 185 mm
• Clearance from frame to spindle: 80 mm

Applications

Suitable for:

• Bearing installation and removal
• Bushing installation and removal
• Silent block replacement

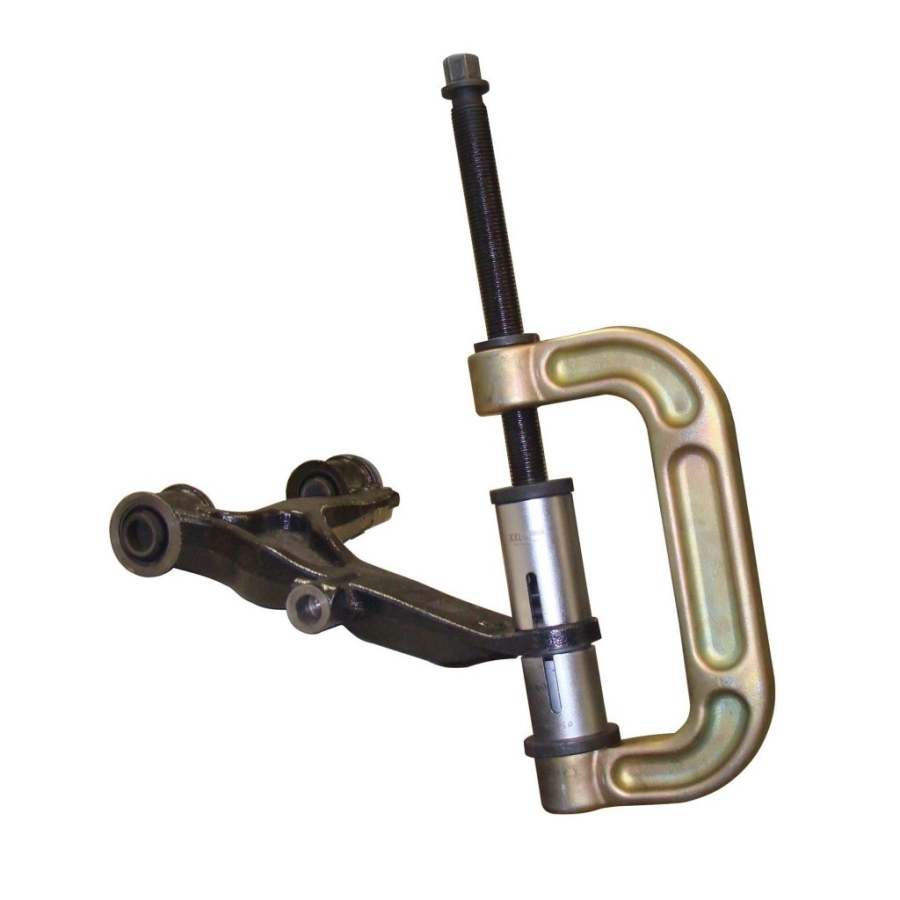

• Suspension component servicing
• Press-fitted component extraction
• Automotive workshop repairs
• Mechanical maintenance operations

Key Benefits

• Robust professional-grade construction
• M18 spindle suitable for impact wrench use
• Compatible with hydraulic spindle systems
• Large pressing capacity up to 220 mm
• Suitable for multiple pressing and pulling applications
• Ideal for workshop and industrial use

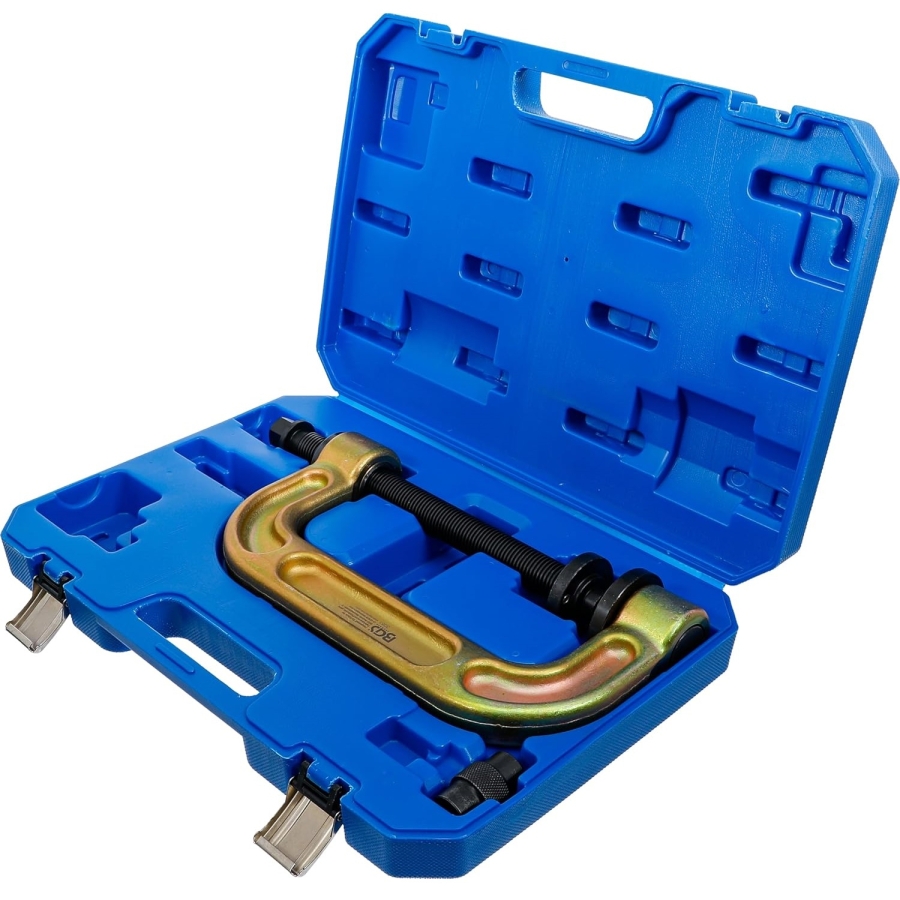

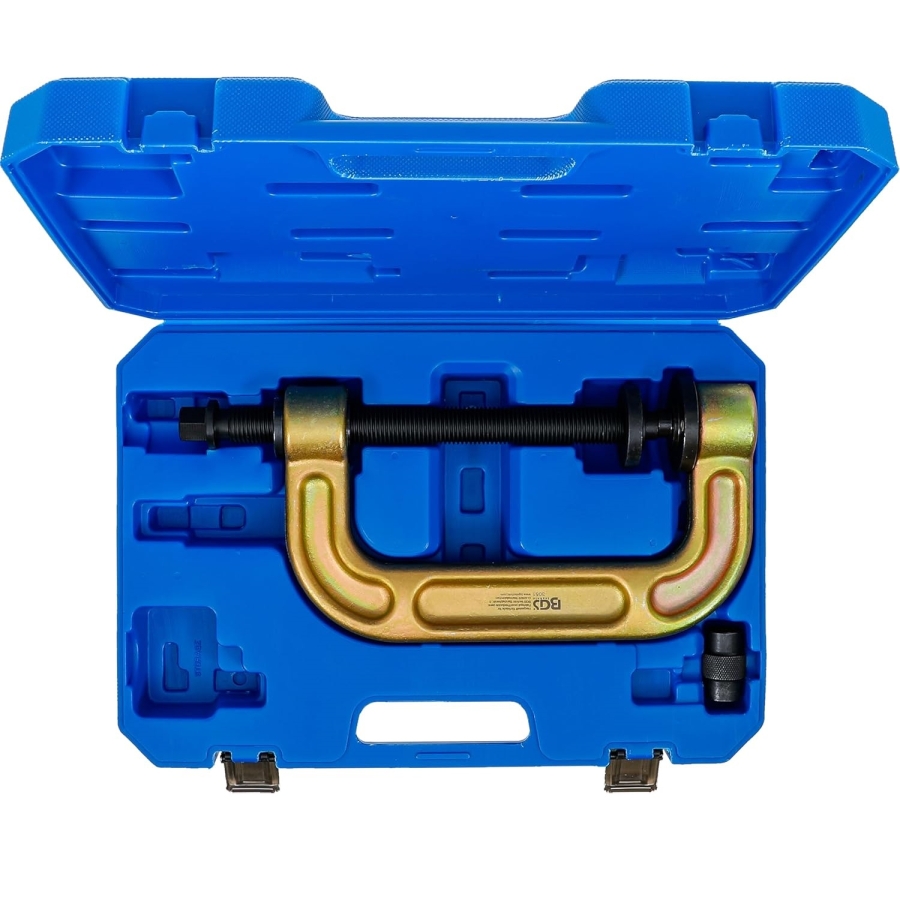

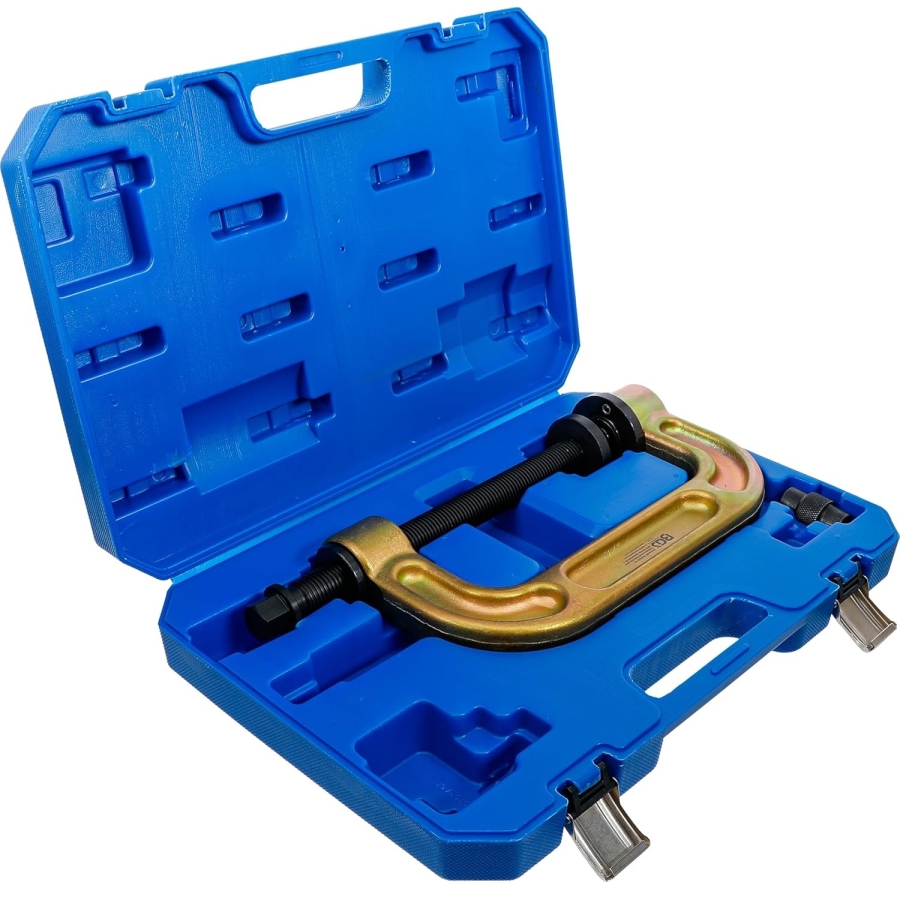

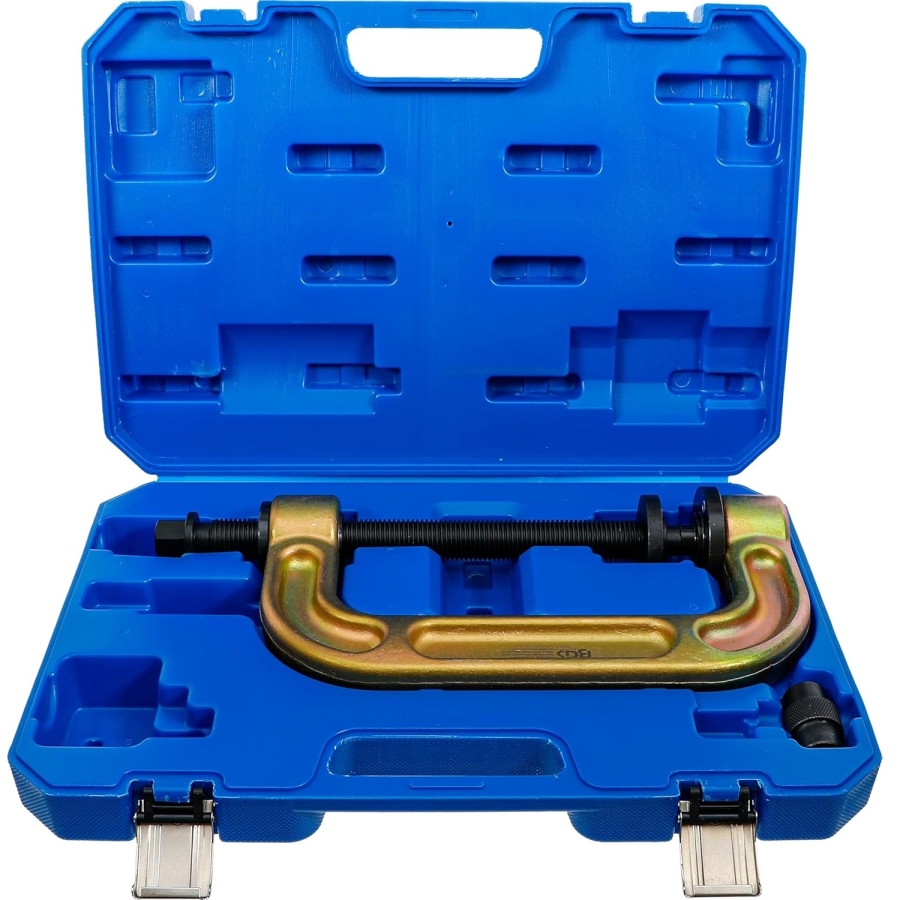

Package Contents

• Press frame
• M18 spindle

Compatible accessories sold separately:

• Hydraulic Spindle – Item no. 7721-X
• Puller and Press Sleeve Set – Item no. 1514
