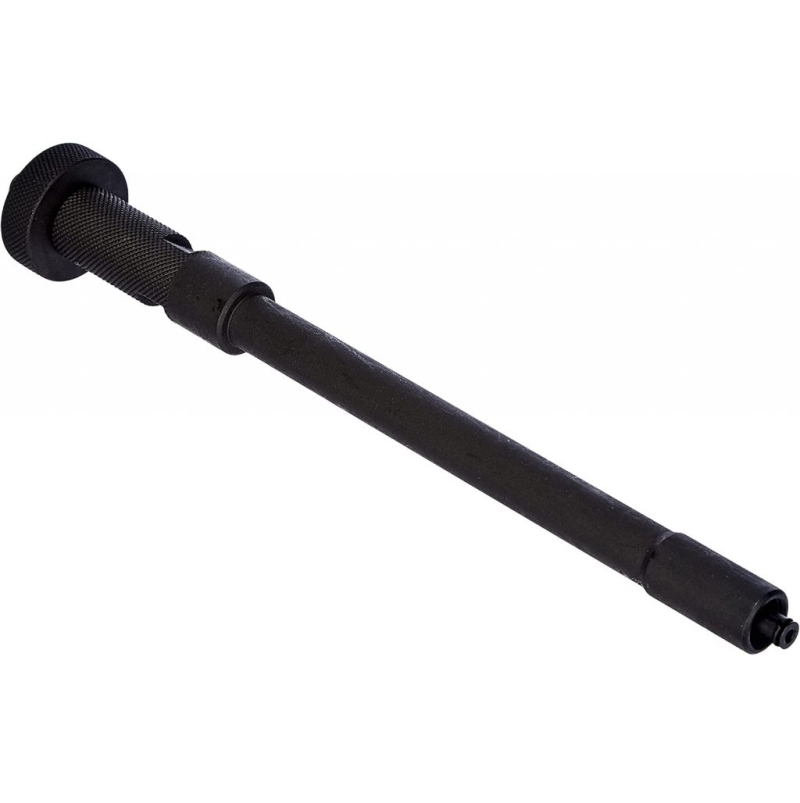

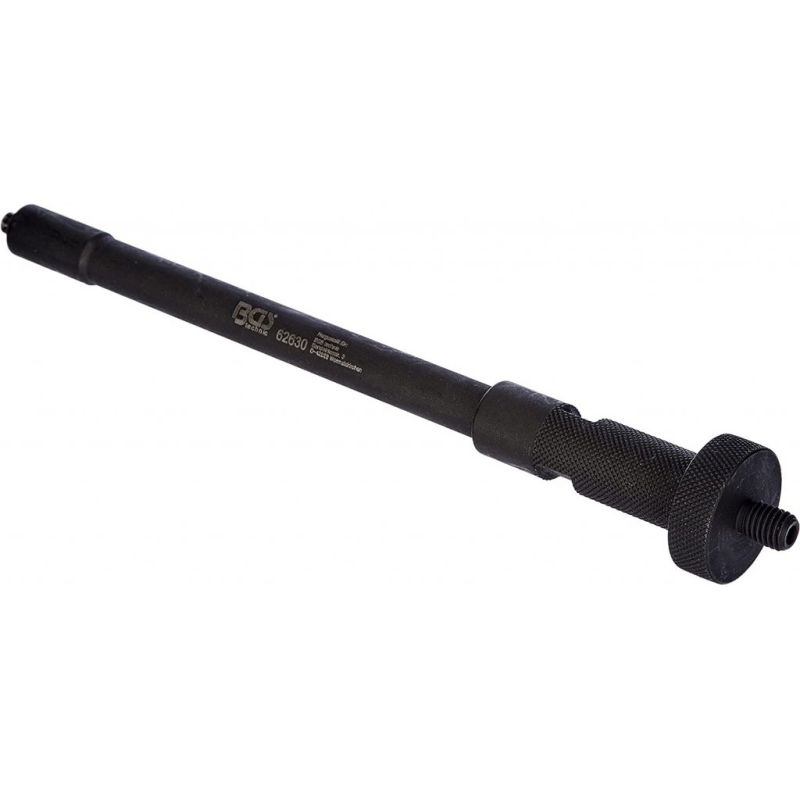

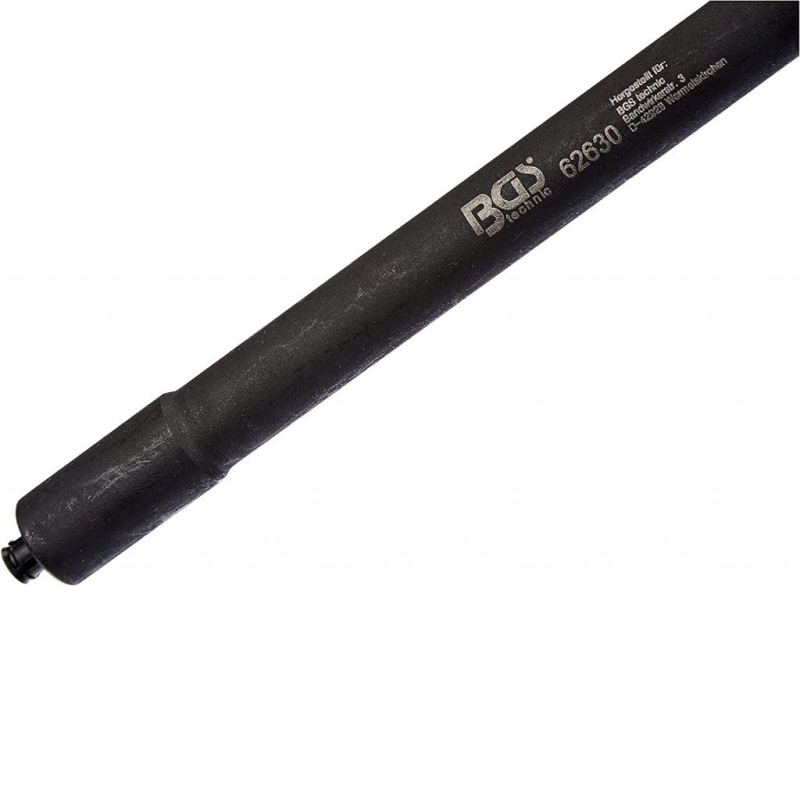

Injector Seal Puller 6.6–8 mm

This specialized injector seal puller is designed for copper seals that are often deep in the injector bore and difficult to remove with conventional tools. Its slim body and adjustable gripper make removal easier and safer, even for tightly stuck seals.

The puller can be used with a sliding hammer via the M10x1.5 thread to provide additional leverage when necessary. Perfect for professional workshops and precise engine maintenance.

Key Features

• Length: 230 mm

• Suitable for inner diameters: 6.6–8.0 mm

• Slim design for tight spaces

• Adjustable gripper for precise engagement

• Can be used with a sliding hammer via M10x1.5 thread

• Safe for diesel injector copper seals

Usage Instructions

Tool Adjustment:

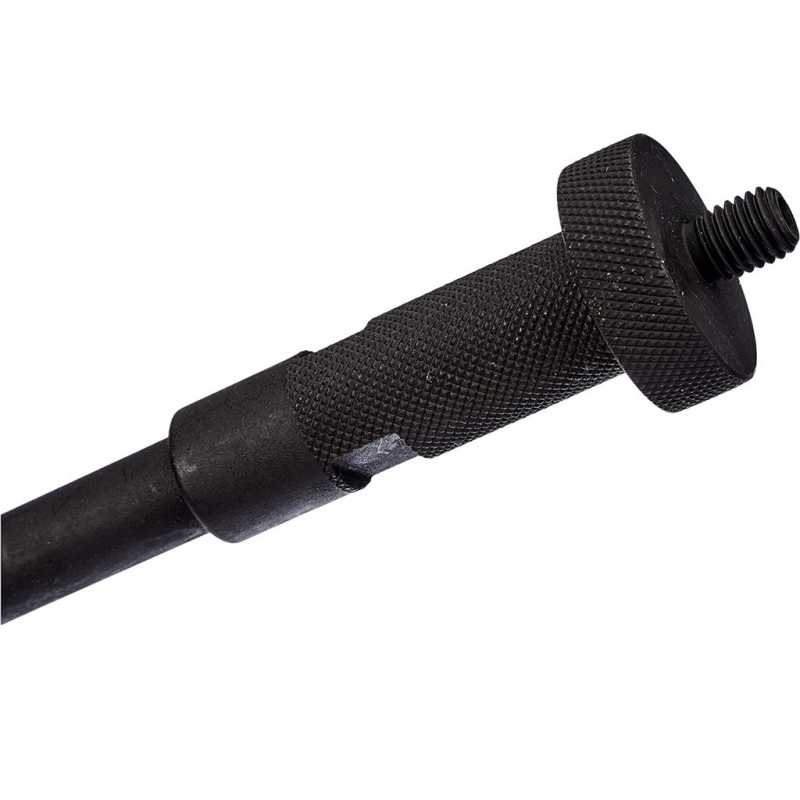

1. Remove the knurled nut.

2. Adjust the gripper depth by turning clockwise or counterclockwise.

3. Depth should match the seal thickness or allow the gripper to catch behind the seal.

4. Screw the knurled nut back onto the thread.

Tool Operation:

1. Remove the injector and clean the injector shaft thoroughly.

2. Insert the puller into the injector bore.

3. Turn the knurled nut clockwise until the gripper secures behind the seal.

4. Pull the tool to remove the seal.

5. If needed, attach a sliding hammer to the tool’s M10x1.5 thread for extra force.
