Piezo Injector Return Pressure Gauge

Precise Return Pressure Measurement for Piezo Injectors

This return pressure gauge is designed for professional diesel workshops to measure return pressure on piezo injectors quickly and accurately. Compatible with Bosch, VDO/Siemens, and Delphi systems, it helps identify faulty injectors early and ensures proper engine performance.

It is also suitable for checking the suction side of fuel pumps, making it a versatile diagnostic tool.

Features and Benefits

• Accurate measurement of return pressure on piezo injectors

• Plexiglass housing with drain valve for visual monitoring of air bubbles

• Two pressure gauges with different ranges:

  • Delphi: –1 to +3 bar

  • Bosch & VDO/Siemens: –1 to +15 bar

• Quick couplings and complete connection kits for easy installation

• Robust construction suitable for professional workshop use

Step-by-Step Usage

Preparation:

1. Select and install the correct pressure gauge on the plexiglass body according to injector type.

2. Connect the appropriate hoses.

3. Disconnect the injector return line and attach the test tool.

4. Close the drain valve before measurement.

Testing Procedure:

• Engine running: Allow idle until the plexiglass chamber fills and read pressure.

• Engine not starting: Use starter and read pressure/vacuum.

Evaluation:
Compare measured values with manufacturer specifications. Deviations indicate injector faults.

Disassembly:

1. Ensure the system is depressurized.

2. Open the drain valve and collect fuel.

3. Disconnect the test tool and reconnect the injector return line.

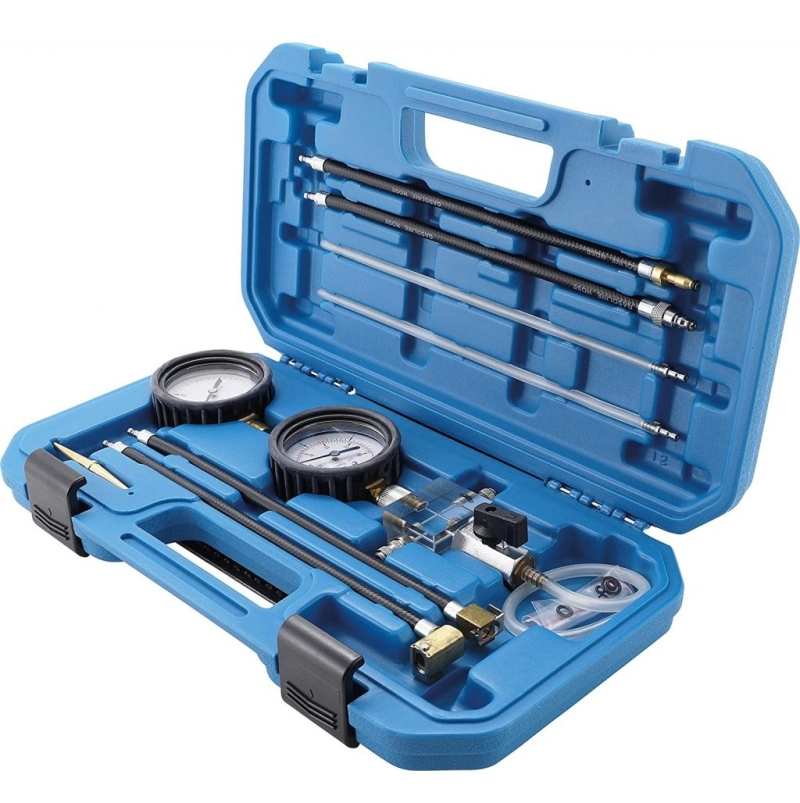

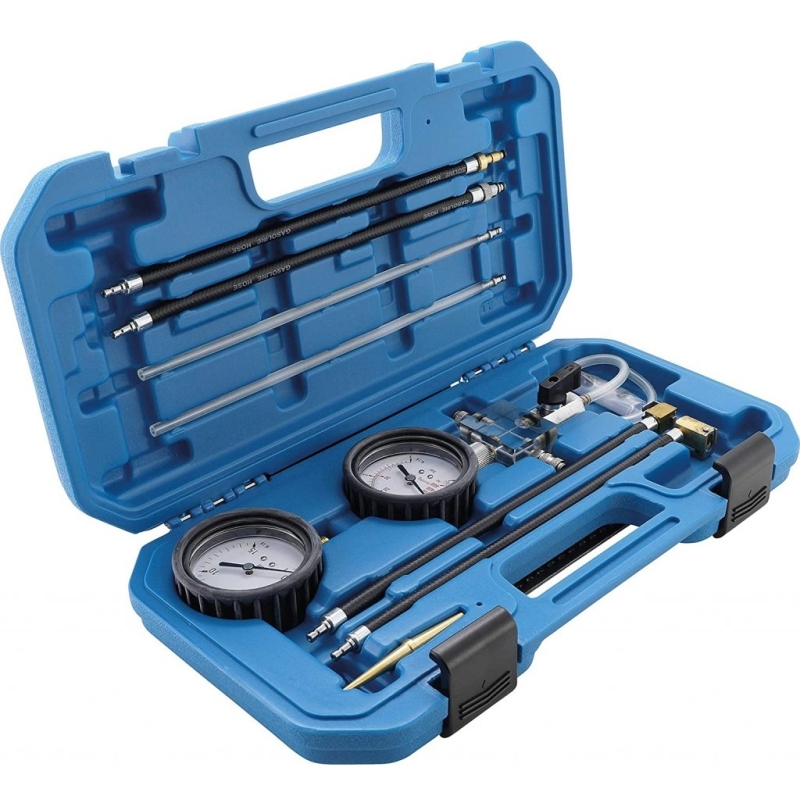

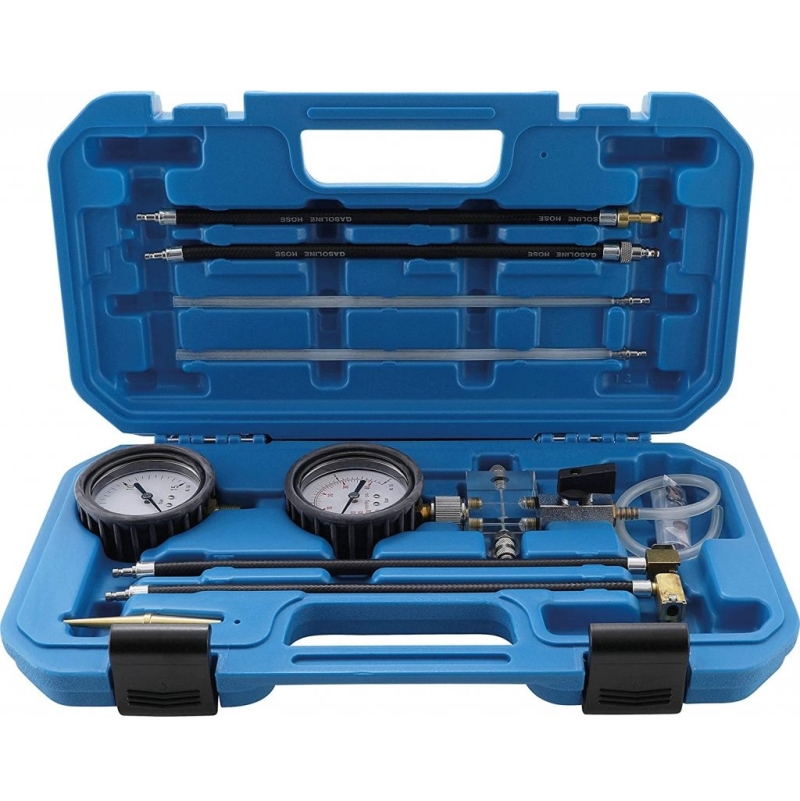

Set Contents

• 2 × pressure gauges: –1 to +3 bar (Delphi) & –1 to +15 bar (Bosch, VDO/Siemens)

• Plexiglass housing with drain valve

• Quick couplings and drain hose

• Connection kits for Bosch, VDO/Siemens, and Delphi piezo injectors

• Brass double cone
