Common Rail Injector Return Flow Tester

This Common Rail tester allows workshops and mechanics to measure the return flow volume of injectors quickly and accurately. It is ideal for troubleshooting and comparative analysis of injector performance.

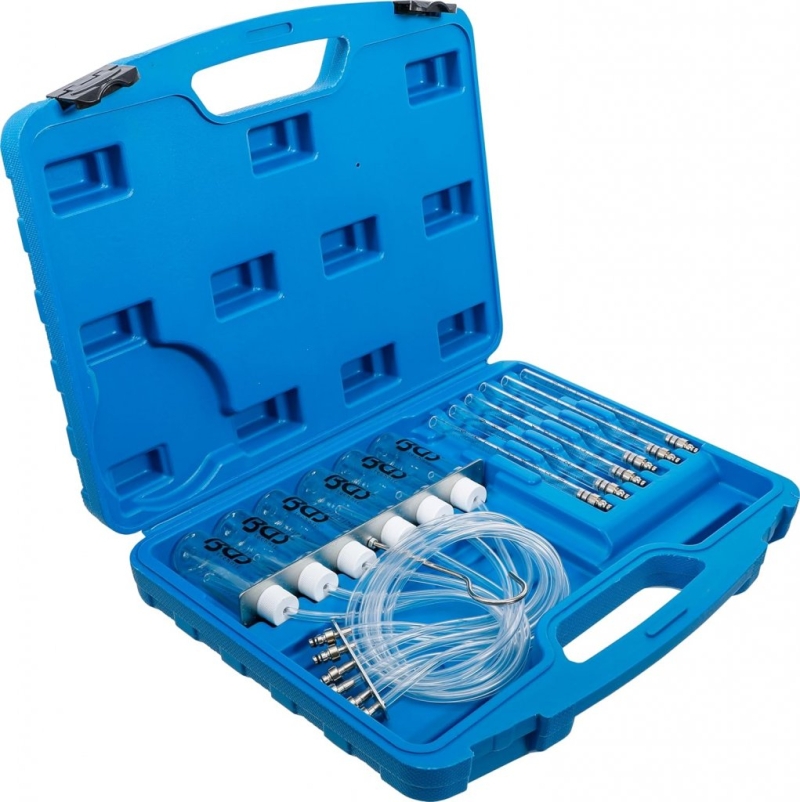

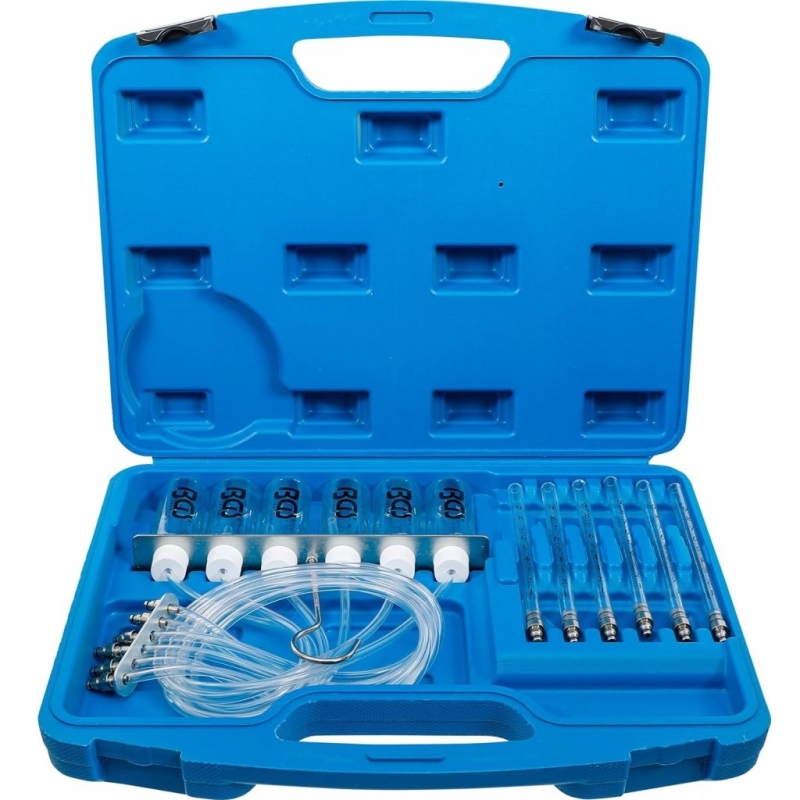

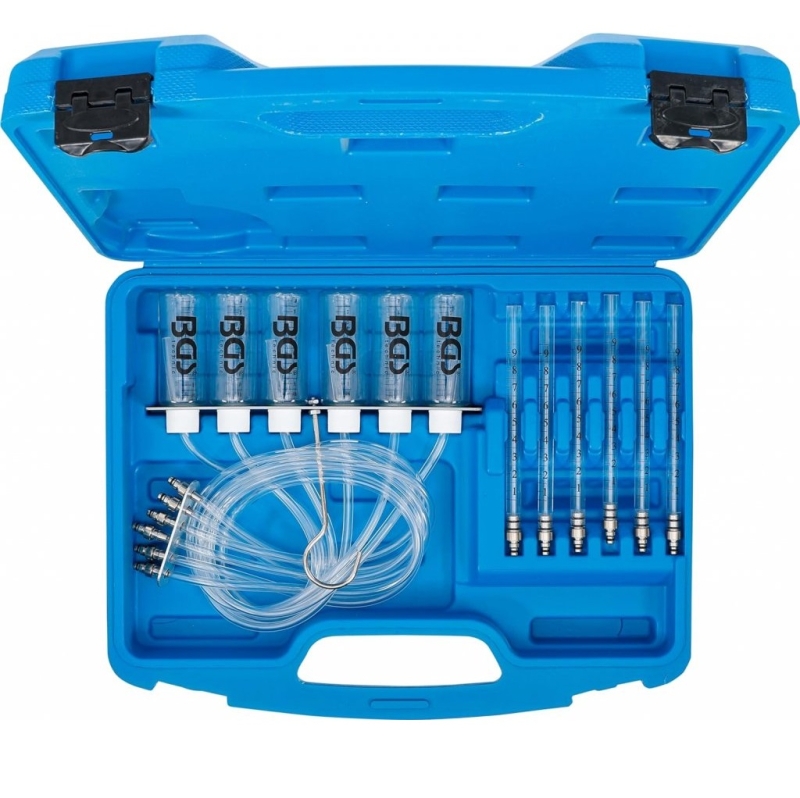

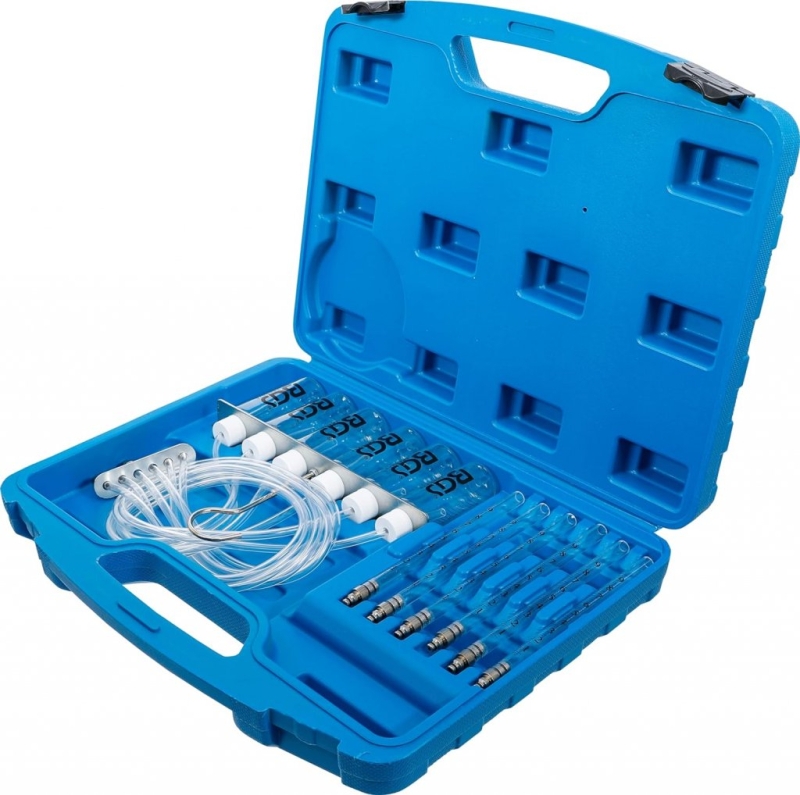

Set Contents

• 6 × transparent plastic cylinders

• 6 × measuring containers with scale

• 6 × flexible connection hoses (~70 cm each)

• Mounted on a robust aluminum bar with hooks for easy hanging

• Compatible with injectors from Bosch, Siemens, Delphi, and Denso

Usage – Step by Step

1. Remove the return line clamp from each injector.

2. Carefully disconnect the return line, including the plastic adapter.

3. Hang the aluminum bar with hooks, e.g., on the hood latch.

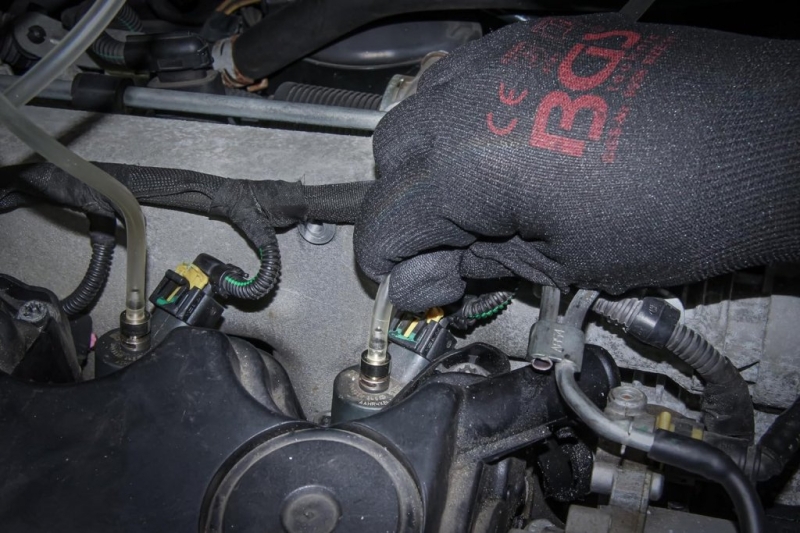

4. Connect a measuring cylinder or container to each injector using original mounts.

5. Start the engine and let it idle.

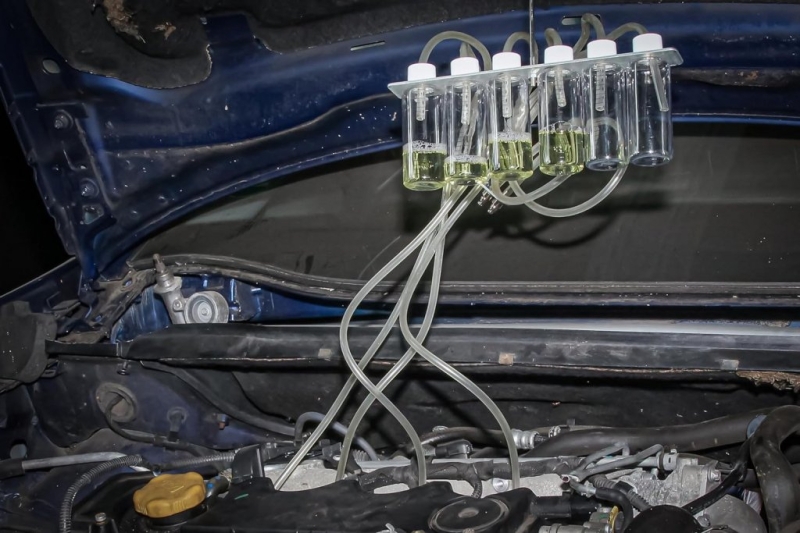

6. Fuel will fill each measuring vessel according to the injector return flow.

7. Turn off the engine if any container reaches max volume or noticeable differences in levels occur.

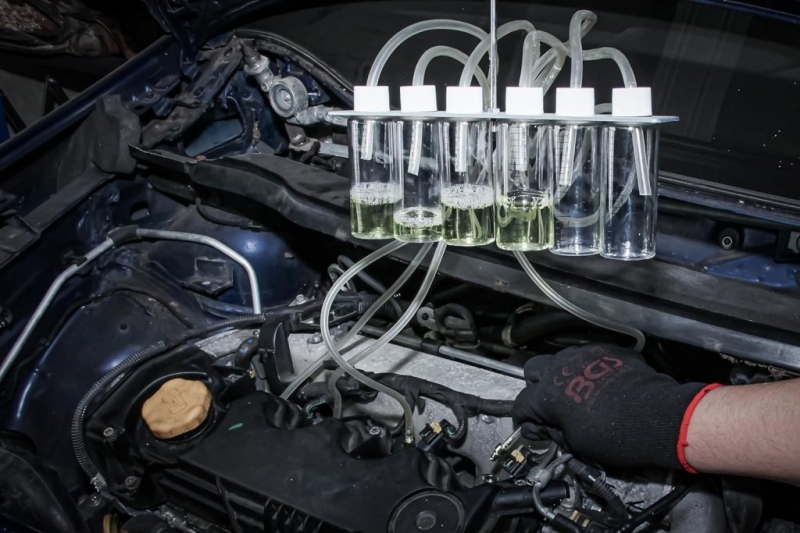

8. Compare fluid levels – a higher level in any container indicates a defective injector.

9. Minor deviations should be assessed against manufacturer specifications.

Benefits

• Rapid identification of defective injectors

• Visual comparison between cylinders

• Easy to install and use directly in the engine bay

• Reusable components suitable for workshop use
