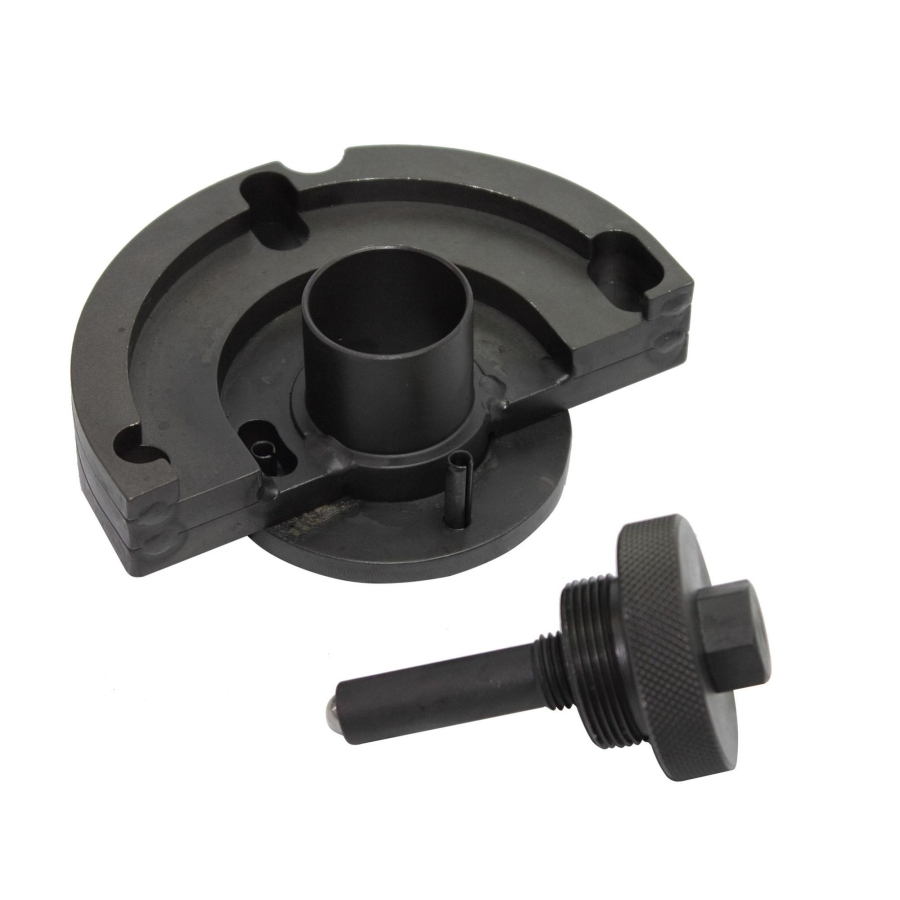

High Pressure Pump Sprocket Puller for Hyundai & Kia

Special Tool for High Pressure Pump Sprocket Removal

This specialized puller is designed for safely removing the high pressure fuel pump sprocket from Hyundai and Kia diesel engines. The tool allows controlled removal without damaging the sprocket, pump shaft, or surrounding engine components.

It is required when performing repairs such as high pressure fuel pump replacement or other service work involving the timing drive system.

Vehicle Compatibility

Compatible with the following vehicles:

Hyundai

• H1

• H350

• Porter

• Starex

Kia

• K2500

• Sorento

Engine Compatibility

Suitable for engines with the following codes:

• D4CB

• VGT

• WGT

• TCI-A

• TCI-B

OEM Reference

• 09331-4A000 / 093314A000

The OEM number is provided for reference purposes only. This tool is not an original manufacturer tool.

DODGE H100 Box (01.2007 - 12.2011) 2.5 (140 HP, 103 kW)
DODGE H100 Platform/Chassis (01.2007 - 12.2011) 2.5 (140 HP, 103 kW)
HYUNDAI H-1 / STAREX Bus (A1) (06.1997 - 12.2007) 2.5 CRDi (110 HP, 81 kW)
HYUNDAI H-1 / STAREX Bus (A1) (06.1997 - 12.2007) 2.5 CRDi (116 HP, 85 kW)
HYUNDAI H-1 / STAREX Bus (A1) (06.1997 - 12.2007) 2.5 CRDi (140 HP, 103 kW)
HYUNDAI H-1 / STAREX Bus (A1) (06.1997 - 12.2007) 2.5 CRDi (163 HP, 120 kW)
HYUNDAI H-1 / STAREX Bus (A1) (06.1997 - 12.2007) 2.5 CRDi 4WD (140 HP, 103 kW)
HYUNDAI H-1 Cargo (TQ) (09.2007 - ) 2.5 CRDI (128 HP, 94 kW)
HYUNDAI H-1 Cargo (TQ) (09.2007 - ) 2.5 CRDi (110 HP, 81 kW)
HYUNDAI H-1 Cargo (TQ) (09.2007 - ) 2.5 CRDi (116 HP, 85 kW)
HYUNDAI H-1 Cargo (TQ) (09.2007 - ) 2.5 CRDi (136 HP, 100 kW)
HYUNDAI H-1 Cargo (TQ) (09.2007 - ) 2.5 CRDi (163 HP, 120 kW)
HYUNDAI H-1 Cargo (TQ) (09.2007 - ) 2.5 CRDi (170 HP, 125 kW)
HYUNDAI H-1 Box (A1) (10.1997 - 04.2008) 2.5 CRDi (110 HP, 81 kW)
HYUNDAI H-1 Box (A1) (10.1997 - 04.2008) 2.5 CRDi (140 HP, 103 kW)
HYUNDAI H-1 Platform/Chassis (06.2000 - 10.2006) 2.5 CRDi (140 HP, 103 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDI (125 HP, 92 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDI (128 HP, 94 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDI (136 HP, 100 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDi (110 HP, 81 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDi (116 HP, 85 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDi (140 HP, 103 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDi (163 HP, 120 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDi (170 HP, 125 kW)
HYUNDAI H-1 Travel (TQ) (09.2007 - ) 2.5 CRDi (175 HP, 129 kW)
HYUNDAI H100 Platform/Chassis (HR) (01.2004 - 12.2012) 2.5 CRDI (130 HP, 96 kW)
HYUNDAI H350 Bus (04.2015 - ) 2.5 CRDI (150 HP, 110 kW)
HYUNDAI H350 Bus (04.2015 - ) 2.5 CRDI (170 hp, 125 kW)
HYUNDAI H350 Van (04.2015 - ) 2.5 CRDI (150 hp, 110 kW)
HYUNDAI H350 Van (04.2015 - ) 2.5 CRDI (170 hp, 125 kW)
HYUNDAI H350 Pickup/Chassis (04.2015 - ) 2.5 CRDI (150 hp, 110 kW)
HYUNDAI H350 Pickup/Chassis (04.2015 - ) 2.5 CRDI (170 hp, 125 kW)
HYUNDAI PORTER Bus (07.1994 - 04.2004) 2.5 CRDi (140 hp, 103 kW)
HYUNDAI PORTER Van (05.2004 - 12.2012) 2.5 CRDi (140 hp, 103 kW)
HYUNDAI PORTER Van (07.1994 - 04.2004) 2.5 CRDi (140 hp, 103 kW)
HYUNDAI PORTER Pickup/Chassis (04.2007 - ) 2.5 CRDi (130 hp, 96 kW)
HYUNDAI PORTER Pickup/Chassis (04.2007 - ) 2.5 D (135 hp, 99 kW)
HYUNDAI PORTER Pickup/Chassis (07.1994 - 12.2004) 2.5 CRDi (140 hp, 103 kW)
KIA BONGO Van (10.2003 - 12.2006) 2.5 CRDi (133 hp, 98 kW)
KIA BONGO Pickup/Chassis (10.2003 - 12.2015) 2.5 CRDi (133 hp, 98 kW)
KIA BONGO Flatbed/Chassis (10.2003 - 12.2015) 2.5 CRDi 4WD (133 hp, 98 kW)
KIA K2500 Pickup (01.2010 - ) 2.5 CRDi (129 hp, 95 kW)
KIA K2500 Flatbed/Chassis (SD) (01.2003 - 12.2011) 2.5 CRDi (129 hp, 95 kW)
KIA K2500 Flatbed/Chassis (SD) (01.2003 - 12.2011) 2.5 CRDi (131 hp, 96 kW)
KIA K2500 Flatbed/Chassis (SD) (01.2003 - 12.2011) 2.5 CRDi (133 HP, 98 kW)
KIA SORENTO I (JC) (08.2002 - 12.2011) 2.5 CRDi (140 HP, 103 kW)
KIA SORENTO I (JC) (08.2002 - 12.2011) 2.5 CRDi (163 HP, 120 kW)
KIA SORENTO I (JC) (08.2002 - 12.2011) 2.5 CRDi (170 HP, 125 kW)
KIA SORENTO I (JC) (08.2002 - 12.2011) 2.5 CRDi (178 HP, 131 kW)
KIA SORENTO I (JC) (08.2002 - 12.2011) 2.5 CRDi 4WD (178 HP, 131 kW)
KIA SORENTO I VAN (JC) (08.2005 - 10.2006) 2.5 CRDi 4WD (140 HP, 103 kW)
