Universal Injection Pump Timing Adjustment Kit

Price: €99.50 194.61лв.
  • Code:
    999088-2
  • Weight:
    0.970 Kgs

Universal tool kit for mechanically setting diesel injection pump timing and start of delivery. Includes threaded adapters and dial gauge holders for accurate TDC and injection timing adjustment.

Estimated Shipping

outside Varna starts at €4.13 to Varna starts at €4.13
Variant:

We have 7 in stock

Add to wishlist
Universal Injection Pump Timing Adjustment Kit
Universal Injection Pump Timing Adjustment Kit Universal Injection Pump Timing Adjustment Kit Universal Injection Pump Timing Adjustment Kit Universal Injection Pump Timing Adjustment Kit Universal Injection Pump Timing Adjustment Kit Universal Injection Pump Timing Adjustment Kit
Send to friend
Rate this product

Universal Kit for Injection Pump Timing Adjustment

This universal injection pump timing tool kit is designed for precise mechanical adjustment of the start of fuel delivery and Top Dead Center (TDC) position on diesel engines equipped with mechanical injection pumps.

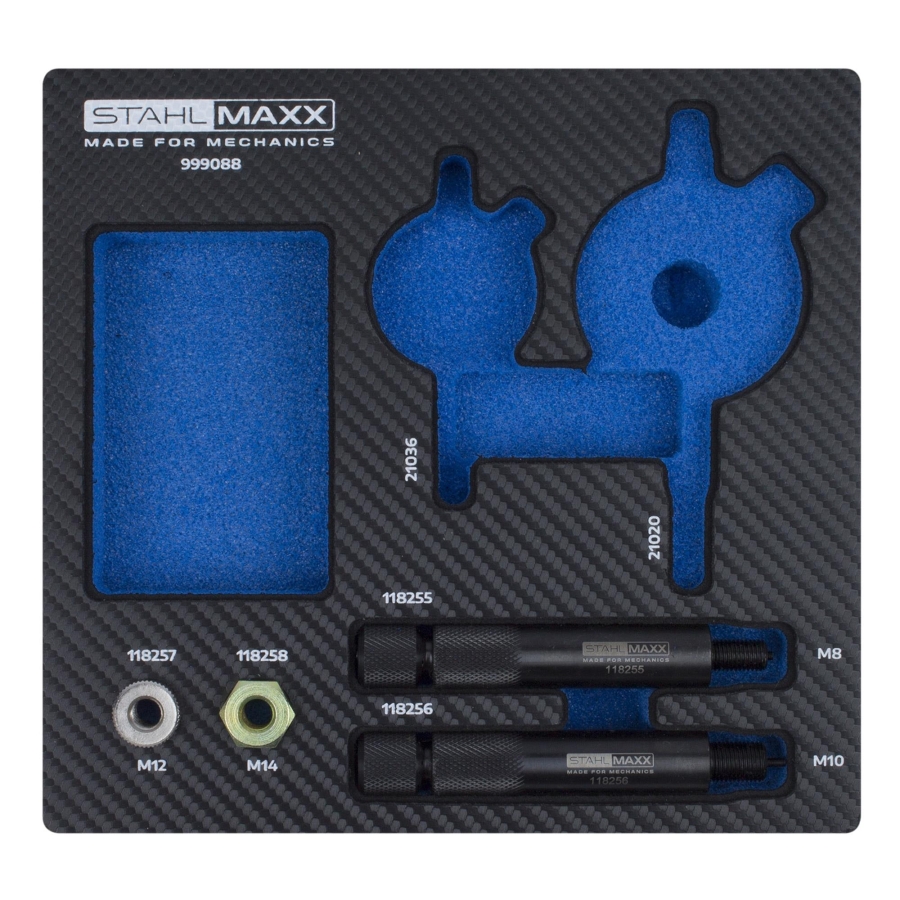

The kit includes a range of threaded adapters and dial gauge holders, allowing accurate measurement and adjustment of injection pump timing across many diesel engine types.

Professional Workshop Solution

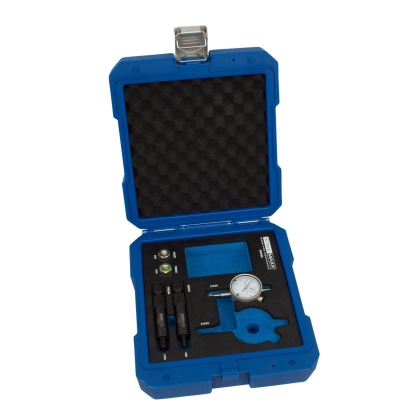

The tool set is supplied in a durable storage case with a high-quality carbon-look foam insert, ensuring safe storage and quick identification of each component. The insert is also designed to fit neatly into standard workshop tool trolleys.

This makes the kit ideal for professional workshops, diesel specialists, and automotive technicians performing injection timing adjustments.

Configuration Options

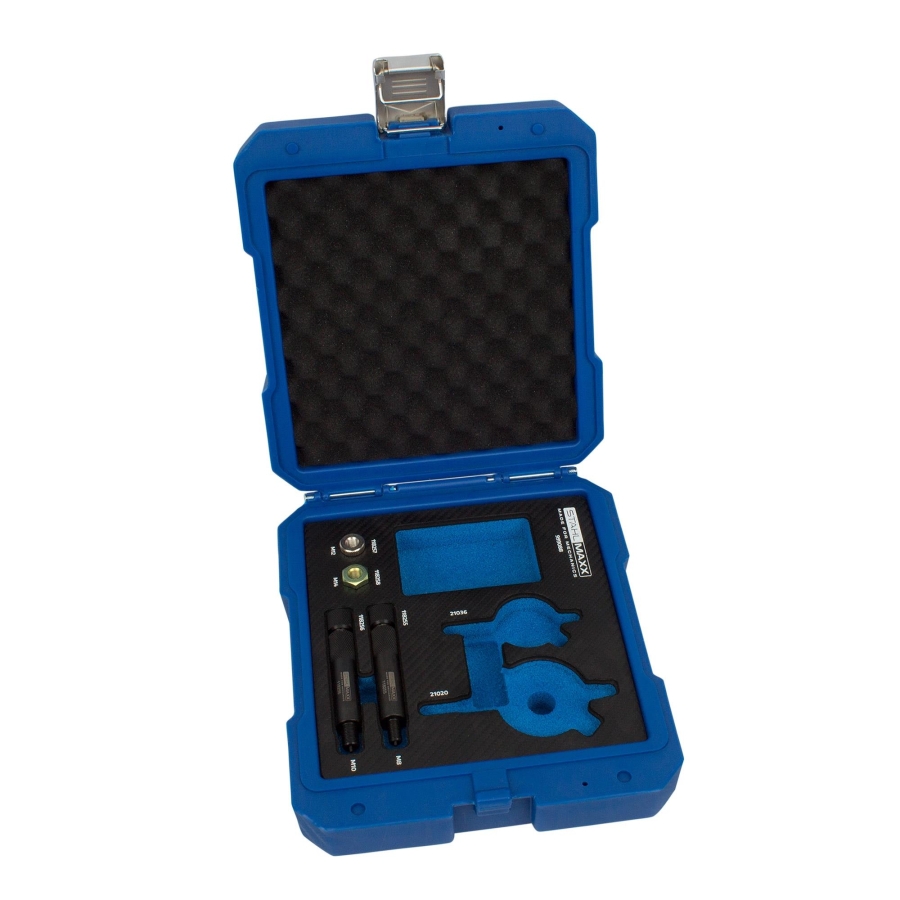

The base kit (999088) offered here does not include a dial gauge.

A compatible dial gauge Article 21036 is available:

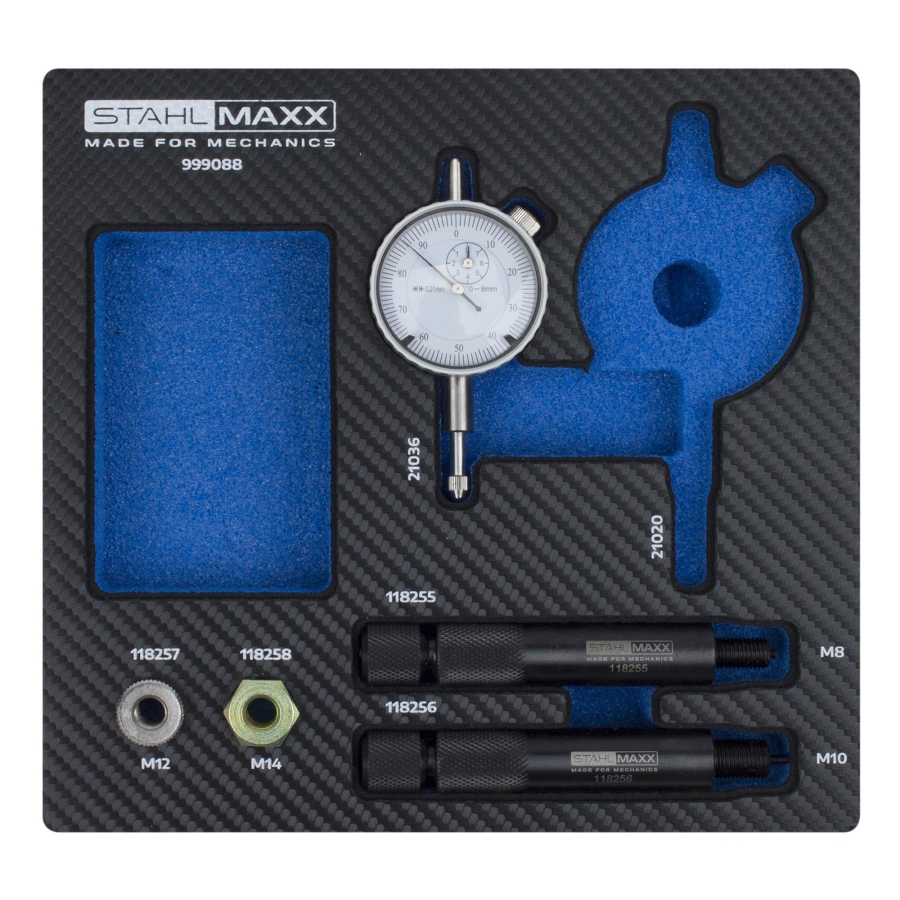

  • Included in Version 2 (999088-2)

  • Available separately as an individual item

If a dial gauge is required, please select it in the product options.

General Instructions – Mechanical Start of Delivery Adjustment

  1. Set the crankshaft to TDC on cylinder 1.

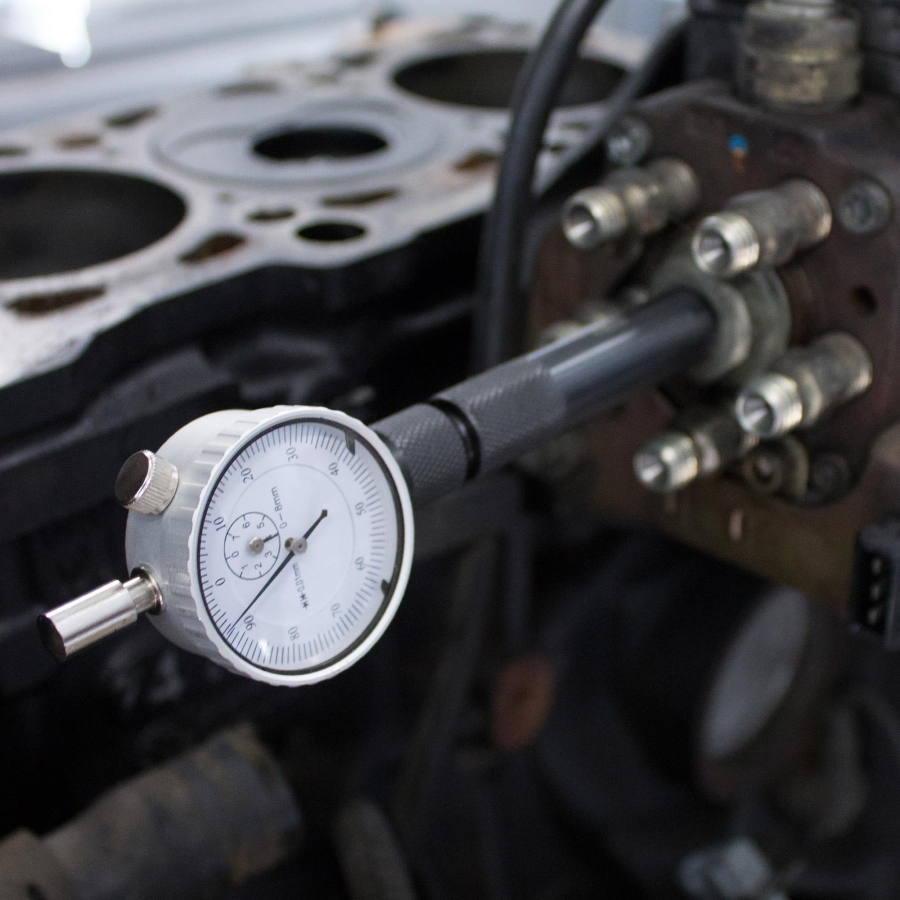

  2. Remove the screw plug and install the dial gauge with adapter into the injection pump (preload approx. 2–3 mm).

  3. Rotate the injection pump drive gear opposite the engine rotation until the dial gauge pointer stops moving.

  4. Set the dial gauge to 0.

  5. Rotate the injection pump drive gear in the engine’s rotation direction until the value specified by the manufacturer is reached.

  6. This adjustment is normally sufficient to allow the engine to start.

  7. The final precise adjustment should be performed dynamically with the engine running and the start of delivery measured using suitable equipment such as a diesel tester.

Important Note

The cold start accelerator must not be activated during the adjustment process, as this will alter the start of delivery timing and lead to incorrect measurement results.

AUDI 80 B3 Saloon (893, 894, 8A2) (06.1986 - 10.1991) 1.9 D (68 HP, 50 kW)

AUDI 80 B4 Avant (8C5) (09.1991 - 01.1996) 1.9 TDI (90 HP, 66 kW)

AUDI 80 B4 Saloon (8C2) (09.1991 - 07.1995) 1.9 TDI (90 HP, 66 kW)

AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI (110 HP, 81 kW)

AUDI A3 (8L1) (09.1996 - 09.2006) 1.9 TDI (90 HP, 66 kW)

AUDI A4 B5 (8D2) (11.1994 - 12.2001) 1.9 TDI (110 HP, 81 kW)

AUDI A4 B5 (8D2) (11.1994 - 12.2001) 1.9 TDI (90 HP, 66 kW)

AUDI A4 B5 (8D2) (11.1994 - 12.2001) 1.9 TDI quattro (110 HP, 81 kW)

AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 1.9 Hybrid (90 HP, 66 kW)

AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 1.9 TDI (110 HP, 81 kW)

AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 1.9 TDI (90 HP, 66 kW)

AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 1.9 TDI quattro (110 HP, 81 kW)

AUDI A6 C4 (4A2) (06.1994 - 10.1997) 1.9 TDI (90 HP, 66 kW)

AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 1.9 TDI (90 HP, 66 kW)

AUDI A6 C5 (4B2) (01.1997 - 12.2005) 1.9 TDI (110 HP, 81 kW)

AUDI A6 C5 Avant (4B5) (11.1997 - 01.2005) 1.9 TDI (110 HP, 81 kW)

AUDI CABRIOLET B4 (8G7) (05.1991 - 08.2000) 1.9 TDI (90 HP, 66 kW)

FORD GALAXY (WGR) (03.1995 - 05.2006) 1.9 TDI (110 HP, 81 kW)

FORD GALAXY (WGR) (03.1995 - 05.2006) 1.9 TDI (90 HP, 66 kW)

FORD GALAXY MK I VAN (WGR) (11.1995 - 03.2006) 1.9 TDi (90 HP, 66 kW)

SEAT ALHAMBRA (7V8, 7V9) (04.1996 - 03.2010) 1.9 TDI (110 HP, 81 kW)

SEAT ALHAMBRA (7V8, 7V9) (04.1996 - 03.2010) 1.9 TDI (90 HP, 66 kW)

SEAT ALHAMBRA VAN (7V8, 7V9) (03.1996 - 03.2010) TDI (110 HP, 81 kW)

SEAT ALHAMBRA VAN (7V8, 7V9) (03.1996 - 03.2010) TDI (90 HP, 66 kW)

SEAT AROSA (6H1) (05.1997 - 06.2004) 1.7 SDI (60 HP, 44 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 D (64 HP, 47 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 D (68 HP, 50 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 SDI (64 HP, 47 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 SDI (68 HP, 50 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA (6K1, 6K2) (02.1993 - 12.2002) 1.9 TDI (90 HP, 66 kW)

SEAT CORDOBA (6K2) (06.1999 - 10.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA (6K2) (06.1999 - 10.2002) 1.9 TDI (90 HP, 66 kW)

SEAT CORDOBA (6L2) (09.2002 - 11.2009) 1.9 SDI (64 HP, 47 kW)

SEAT CORDOBA VARIO Box Body/Estate (6K5) (08.2000 - 12.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA Vario (6K5) (06.1999 - 12.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA Vario (6K5) (06.1999 - 12.2002) 1.9 TDI (90 HP, 66 kW)

SEAT CORDOBA Vario (6K5) (07.1996 - 12.2002) 1.9 SDI (64 HP, 47 kW)

SEAT CORDOBA Vario (6K5) (07.1996 - 12.2002) 1.9 SDI (68 HP, 50 kW)

SEAT CORDOBA Vario (6K5) (07.1996 - 12.2002) 1.9 TDI (110 HP, 81 kW)

SEAT CORDOBA Vario (6K5) (07.1996 - 12.2002) 1.9 TDI (90 HP, 66 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 D (64 HP, 47 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 D (68 HP, 50 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 SDI (64 HP, 47 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 SDI (68 HP, 50 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 TDI (110 HP, 81 kW)

SEAT IBIZA II (6K1) (03.1993 - 05.2002) 1.9 TDI (90 HP, 66 kW)

SEAT IBIZA III (6K1) (08.1999 - 02.2002) 1.9 TDI (110 HP, 81 kW)

SEAT IBIZA III (6K1) (08.1999 - 02.2002) 1.9 TDI (90 HP, 66 kW)

SEAT IBIZA III (6L1) (02.2002 - 11.2009) 1.9 SDI (64 HP, 47 kW)

SEAT INCA (6K9) (11.1995 - 11.2003) 1.9 D (64 HP, 47 kW)

SEAT INCA (6K9) (11.1995 - 11.2003) 1.9 SDI (64 HP, 47 kW)

SEAT INCA (6K9) (11.1995 - 11.2003) 1.9 TDI (90 HP, 66 kW)

SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW)

SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW)

SEAT LEON (1M1) (11.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW)

SEAT LEON (1P1) (05.2005 - 12.2013) 1.9 TDi (110 hp, 81 kW)

SEAT TOLEDO I (1L2) (02.1991 - 10.1999) 1.9 D (64 HP, 47 kW)

SEAT TOLEDO I (1L2) (02.1991 - 10.1999) 1.9 D (68 HP, 50 kW)

SEAT TOLEDO I (1L2) (02.1991 - 10.1999) 1.9 TDI (110 HP, 81 kW)

SEAT TOLEDO I (1L2) (02.1991 - 10.1999) 1.9 TDI (90 HP, 66 kW)

SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 SDI (68 HP, 50 kW)

SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (110 HP, 81 kW)

SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 1.9 TDI (90 HP, 66 kW)

SKODA FABIA I (6Y2) (08.1999 - 03.2008) 1.9 SDI (64 HP, 47 kW)

SKODA FABIA I Combi (6Y5) (04.2000 - 12.2007) 1.9 SDI (64 HP, 47 kW)

SKODA FABIA I Praktik (6Y5) (01.2000 - 12.2007) 1.9 SDI (64 HP, 47 kW)

SKODA FABIA I Saloon (6Y3) (10.1999 - 12.2007) 1.9 SDI (64 HP, 47 kW)

SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 SDI (68 HP, 50 kW)

SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 TDI (110 HP, 81 kW)

SKODA OCTAVIA II (1U2) (09.1996 - 12.2010) 1.9 TDI (90 HP, 66 kW)

SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 SDI (68 HP, 50 kW)

SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI (110 HP, 81 kW)

SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI (90 HP, 66 kW)

SKODA OCTAVIA II Combi (1U5) (07.1998 - 12.2010) 1.9 TDI 4x4 (90 HP, 66 kW)

SKODA OCTAVIA II Box Body/Estate (1U5) (08.2000 - 03.2010) 1.9 D (68 HP, 50 kW)

SKODA OCTAVIA II Box Body/Estate (1U5) (08.2000 - 03.2010) 1.9 TDI (90 HP, 66 kW)

TOYOTA HILUX IV Pick-up (_N5_, _N6_) (11.1982 - 12.1989) 1.6 (YN5_) (75 HP, 55 kW)

VW BORA (1J2) (10.1998 - 12.2013) 1.9 SDI (68 HP, 50 kW)

VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (110 HP, 81 kW)

VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI (90 HP, 66 kW)

VW BORA (1J2) (10.1998 - 12.2013) 1.9 TDI 4motion (90 HP, 66 kW)

VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (110 hp, 81 kW)

VW BORA Variant (1J6) (05.1999 - 05.2005) 1.9 TDI (90 hp, 66 kW)

VW CADDY MPV (6K9, 9E7, 9E9) (09.2002 - 12.2009) 1.9 D (64 hp, 47 kW)

VW CADDY II MPV (9K9B) (11.1995 - 12.2004) 1.9 D (64 hp, 47 kW)

VW CADDY II MPV (9K9B) (11.1995 - 12.2004) 1.9 SDI (64 hp, 47 kW) kW)

VW CADDY II MPV (9K9B) (11.1995 - 12.2004) 1.9 TDI (90 hp, 66 kW)

VW CADDY II Panel Van/MPV (9K9A) (11.1995 - 01.2004) 1.9 D (64 hp, 47 kW)

VW CADDY II Panel Van/MPV (9K9A) (11.1995 - 01.2004) 1.9 SDI (64 hp, 47 kW)

VW CADDY II Panel Van/MPV (9K9A) (11.1995 - 01.2004) 1.9 TDI (90 hp, 66 kW)

VW CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) (03.2004 - 05.2015) 1.9 D (65 HP, 48 kW)

VW CADDY van/MPV (6K9, 9E7, 9E9) (09.2002 - 12.2009) 1.9 D (64 HP, 47 kW)

VW CRAFTER 30-35 Bus (2E_) (04.2006 - 12.2016) 2.5 TDI (109 HP, 80 kW)

VW CRAFTER 30-35 Bus (2E_) (04.2006 - 12.2016) 2.5 TDI (136 HP, 100 kW)

VW CRAFTER 30-35 Bus (2E_) (04.2006 - 12.2016) 2.5 TDI (163 HP, 120 kW)

VW CRAFTER 30-35 Bus (2E_) (04.2006 - 12.2016) 2.5 TDI (88 HP, 65 kW)

VW CRAFTER 30-50 Box (2E_) (04.2006 - 12.2016) 2.5 TDI (109 HP, 80 kW)

VW CRAFTER 30-50 Box (2E_) (04.2006 - 12.2016) 2.5 TDI (136 HP, 100 kW)

VW CRAFTER 30-50 Box (2E_) (04.2006 - 12.2016) 2.5 TDI (163 HP, 120 kW)

VW CRAFTER 30-50 Box (2E_) (04.2006 - 12.2016) 2.5 TDI (88 hp, 65 kW)

VW CRAFTER 30-50 Flatbed/Chassis (2F_) (04.2006 - 12.2016) 2.5 TDI (109 hp, 80 kW)

VW CRAFTER 30-50 Flatbed/Chassis (2F_) (04.2006 - 12.2016) 2.5 TDI (136 hp, 100 kW)

VW CRAFTER 30-50 Flatbed/Chassis (2F_) (04.2006 - 12.2016) 2.5 TDI (163 hp, 120 kW)

VW CRAFTER 30-50 Flatbed/Chassis (2F_) (04.2006 - 12.2016) 2.5 TDI (88 hp, 65 kW)

VW Fox Hatchback (5Z1, 5Z3, 5Z4) (08.2003 - 10.2014) 1.9 D (64 hp, 47 kW)

VW Golf III (09.1998 - 09.2006) 1.9 D (64 hp, 47 kW)

VW Golf III (1H1) (10.1989 - 07.1998) 1.9 D (64 hp, 47 kW)

VW Golf III (1H1) (10.1989 - 07.1998) 1.9 SDI (64 hp, 47 kW)

VW Golf III (1H1) (10.1989 - 07.1998) 1.9 TDI (110 HP, 81 kW)

VW GOLF III (1H1) (10.1989 - 07.1998) 1.9 TDI (90 HP, 66 kW)

VW GOLF III (1H1) (10.1989 - 07.1998) 1.9 TDI Syncro (1HX1) (90 HP, 66 kW)

VW GOLF III Cabriolet (1E7) (07.1993 - 05.1998) 1.9 TDI (110 HP, 81 kW)

VW GOLF III Cabriolet (1E7) (07.1993 - 05.1998) 1.9 TDI (90 HP, 66 kW)

VW GOLF III Van (1H1) (08.1991 - 12.1997) 1.9 SDI (64 HP, 47 kW)

VW GOLF III Van (1H1) (08.1991 - 12.1997) 1.9 TDI (90 HP, 66 kW)

VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 D (64 HP, 47 kW)

VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 SDI (64 HP, 47 kW)

VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 TDI (110 HP, 81 kW)

VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 TDI (90 HP, 66 kW)

VW GOLF III Variant (1H5) (07.1993 - 04.1999) 1.9 TDI Syncro (90 HP, 66 kW)

VW GOLF IV (1J1) (08.1997 - 12.2007) 1.9 SDI (68 HP, 50 kW)

VW GOLF IV (1J1) (08.1997 - 12.2007) 1.9 TDI (110 HP, 81 kW)

VW GOLF IV (1J1) (08.1997 - 12.2007) 1.9 TDI (90 HP, 66 kW)

VW GOLF IV (1J1) (08.1997 - 12.2007) 1.9 TDI 4motion (90 HP, 66 kW)

VW GOLF IV Cabriolet (1E7) (06.1998 - 12.2002) 1.9 TDI (110 HP, 81 kW)

VW GOLF IV Cabriolet (1E7) (06.1998 - 12.2002) 1.9 TDI (90 HP, 66 kW)

VW GOLF IV Van (1J1) (10.1997 - 05.2004) 1.9 SDI (68 HP, 50 kW)

VW GOLF IV Van (1J1) (10.1997 - 05.2004) 1.9 TDI (110 HP, 81 kW)

VW GOLF IV Van (1J1) (10.1997 - 05.2004) 1.9 TDI (90 HP, 66 kW)

VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW)

VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW)

VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW)

VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI 4motion (90 HP, 66 kW)

VW GOLF VAN IV Variant (1J5) (05.1999 - 06.2006) 1.9 SDI (68 HP, 50 kW)

VW GOLF VAN IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (110 HP, 81 kW)

VW GOLF VAN IV Variant (1J5) (05.1999 - 06.2006) 1.9 TDI (90 HP, 66 kW)

VW GOLF Van III Variant (1H5) (05.1993 - 12.1999) 1.9 (64 HP, 47 kW)

VW GOLF Van III Variant (1H5) (05.1993 - 12.1999) 1.9 SDI (64 HP, 47 kW)

VW GOLF Van III Variant (1H5) (05.1993 - 12.1999) 1.9 TDI (110 hp, 81 kW)

VW Golf Van III Variant (1H5) (05.1993 - 12.1999) 1.9 TDI (90 hp, 66 kW)

VW LT 28-35 II Bus (2DB, 2DE, 2DK) (05.1996 - 07.2006) 2.5 SDI (75 hp, 55 kW)

VW LT 28-35 II Bus (2DB, 2DE, 2DK) (05.1996 - 07.2006) 2.5 TDI (102 hp, 75 kW)

VW LT 28-35 II Bus (2DB, 2DE, 2DK) (05.1996 - 07.2006) 2.5 TDI (109 hp, 80 kW)

VW LT VW LT 28-35 II Bus (2DB, 2DE, 2DK) (05.1996 - 07.2006) 2.5 TDI (90 hp, 66 kW)

VW LT 28-35 II Bus (2DB, 2DE, 2DK) (05.1996 - 07.2006) 2.5 TDI (95 hp, 70 kW)

VW LT 28-46 II Panel Van (2DA, 2DD, 2DH) (05.1996 - 07.2006) 2.5 SDI (75 hp, 55 kW)

VW LT 28-46 II Panel Van (2DA, 2DD, 2DH) (05.1996 - 07.2006) 2.5 TDI (102 hp, 75 kW)

VW LT 28-46 II Panel Van (2DA, 2DD, 2DH) (05.1996 - 07.2006) 2.5 TDI (109 hp, 80 kW)

VW LT 28-46 II Panel Van (2DA, 2DD, 2DH) (05.1996 - 07.2006) 2.5 TDI (90 hp, 66 kW)

VW LT 28-46 II Panel Van (2DA, 2DD, 2DH) (05.1996 - 07.2006) 2.5 TDI (95 hp, 70 kW)

VW LT 28-46 II Chassis Cab (2DC, 2DF, 2DG, 2DL, 2DM) (06.1996 - 07.2006) 2.5 SDI (75 hp, 55 kW)

VW LT VW LT 28-46 II Flatbed/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) (06.1996 - 07.2006) 2.5 TDI (102 hp, 75 kW)

VW LT 28-46 II Flatbed/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) (06.1996 - 07.2006) 2.5 TDI (109 hp, 80 kW)

VW LT 28-46 II Flatbed/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) (06.1996 - 07.2006) 2.5 TDI (90 hp, 66 kW)

VW LT 28-46 II Flatbed/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) (06.1996 - 07.2006) 2.5 TDI (95 HP, 70 kW)

VW LUPO (6X1, 6E1) (09.1998 - 07.2005) 1.7 SDI (60 HP, 44 kW)

VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 1.9 TDI (90 HP, 66 kW)

VW NEW BEETLE Cabriolet (1Y7) (09.2002 - 12.2011) 1.9 TDI (90 HP, 66 kW)

VW PARATI III Variant (5X5) (05.1999 - 12.2008) 1.9 D (64 HP, 47 kW)

VW PASSAT B3/B4 (3A2, 35I) (02.1988 - 12.1997) 1.9 D (68 HP, 50 kW)

VW PASSAT B3/B4 (3A2, 35I) (02.1988 - 12.1997) 1.9 TDI (110 HP, 81 kW)

VW PASSAT B3/B4 (3A2, 35I) (02.1988 - 12.1997) 1.9 TDI (90 HP, 66 kW)

VW PASSAT B3/B4 Variant (3A5, 35I) (02.1988 - 06.1997) 1.9 D (68 HP, 50 kW)

VW PASSAT B3/B4 Variant (3A5, 35I) (02.1988 - 06.1997) 1.9 TDI (110 HP, 81 kW)

VW PASSAT B3/B4 Variant (3A5, 35I) (02.1988 - 06.1997) 1.9 TDI (90 HP, 66 kW)

VW PASSAT B5 (3B2) (08.1996 - 12.2001) 1.9 TDI (110 HP, 81 kW)

VW PASSAT B5 (3B2) (08.1996 - 12.2001) 1.9 TDI (90 HP, 66 kW)

VW PASSAT B5 (3B2) (08.1996 - 12.2001) 1.9 TDI Syncro/4motion (110 HP, 81 kW)

VW PASSAT B5 Variant (3B5) (05.1997 - 12.2001) 1.9 TDI (110 HP, 81 kW)

VW PASSAT B5 Variant (3B5) (05.1997 - 12.2001) 1.9 TDI (90 HP, 66 kW)

VW PASSAT B5 Variant (3B5) (05.1997 - 12.2001) 1.9 TDI Syncro/4motion (110 HP, 81 kW)

VW POLO (6N1) (10.1994 - 10.1999) 60 1.7 SDI (60 HP, 44 kW)

VW POLO (6N2) (10.1999 - 09.2001) 1.7 SDI (60 HP, 44 kW)

VW POLO (9N_) (10.2001 - 10.2014) 1.9 SDI (64 HP, 47 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 1.9 SDI (65 HP, 48 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 1.9 TDI (91 HP, 67 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 110 1.9 TDI (110 HP, 81 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 64 1.9 D (64 HP, 47 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 64 1.9 SDI (64 HP, 47 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 68 1.9 SDI (68 HP, 50 kW)

VW POLO III CLASSIC (6V2) (01.1995 - 11.2009) 90 1.9 TDI (90 HP, 66 kW)

VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) (08.1996 - 12.2014) 1.9 SDI (64 HP, 47 kW)

VW POLO Van Box Body/Estate (6V5) (05.1996 - 09.2001) 1.7 SDI (60 HP, 44 kW)

VW POLO Van Box Body/Estate (6V5) (05.1996 - 09.2001) 1.9 SDI (64 HP, 47 kW)

VW POLO Van Box Body/Estate (6V5) (05.1996 - 09.2001) 1.9 SDI (68 HP, 50 kW)

VW POLO Van Box Body/Hatchback (6N1) (09.1994 - 12.1999) 1.7 SDI (60 HP, 44 kW)

VW POLO Variant (6V5) (05.1997 - 09.2001) 1.9 SDI (64 HP, 47 kW)

VW POLO Variant (6V5) (05.1997 - 09.2001) 1.9 SDI (68 HP, 50 kW)

VW POLO Variant (6V5) (05.1997 - 09.2001) 1.9 TDI (110 HP, 81 kW)

VW POLO Variant (6V5) (05.1997 - 09.2001) 1.9 TDI (90 HP, 66 kW)

VW SAVEIRO II (01.1996 - 09.2003) 1.9 D (64 HP, 47 kW)

VW SHARAN (7M8, 7M9, 7M6) (09.1995 - 03.2010) 1.9 TDI (110 HP, 81 kW)

VW SHARAN (7M8, 7M9, 7M6) (09.1995 - 03.2010) 1.9 TDI (90 HP, 66 kW)

VW SHARAN VAN (7M_) (09.1996 - 03.2010) 1.9 TDI (7M8) (110 HP, 81 kW)

VW SHARAN VAN (7M_) (09.1996 - 03.2010) 1.9 TDI (7M8, 7M9) (90 HP, 66 kW)

VW SPACEFOX / SPACE CROSS (5Z6, 5Z7, 5Z9) (03.2006 - 12.2018) 1.9 SDI (64 HP, 47 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 1.9 D (60 HP, 44 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 1.9 D (61 HP, 45 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 1.9 TD (68 HP, 50 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 D (75 HP, 55 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 D (78 HP, 57 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 D Syncro (78 HP, 57 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI (102 HP, 75 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI (88 HP, 65 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI Syncro (102 HP, 75 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 1.9 D (60 HP, 44 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 1.9 D (61 HP, 45 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 1.9 TD (68 HP, 50 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.4 D (75 HP, 55 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.4 D (78 HP, 57 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.4 D Syncro (78 HP, 57 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI (102 HP, 75 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI (88 hp, 65 kW)

VW TRANSPORTER IV Panel Van (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI Syncro (102 hp, 75 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 1.9 D (60 hp, 44 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 1.9 D (61 hp, 45 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 1.9 TD (68 hp, 50 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.4 D (75 hp, 55 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.4 D (78 hp, 57 kW)

VW Transporter IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.4 D Syncro (78 hp, 57 kW)

VW Transporter IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 TDI (102 hp, 75 kW)

VW Transporter IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 TDI (88 hp, 65 kW)

VW Transporter IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL) (07.1990 - 04.2003) 2.5 TDI Syncro (102 HP, 75 kW)

VW TRANSPORTER Passenger VAN (09.1992 - 12.1994) 2.4 TDI (77 HP, 57 kW)

VW VENTO (1H2) (11.1991 - 09.1998) 1.9 D (65 HP, 48 kW)

VW VENTO (1H2) (11.1991 - 09.1998) 1.9 SDI (64 HP, 47 kW)

VW VENTO (1H2) (11.1991 - 09.1998) 1.9 TDI (110 HP, 81 kW)

VW VENTO (1H2) (11.1991 - 09.1998) 1.9 TDI (90 HP, 66 kW)

VW VOYAGE (5X1) (10.1994 - 07.2002) 1.9 D (65 HP, 48 kW)

VW VOYAGE (5X1) (10.1994 - 07.2002) 1.9 TDI (90 HP, 66 kW

Article Quantity Product Name
118255 1 pc Adapter for dial gauge M8x1 (like VAG 2066)
118256 1 pc Adapter for dial gauge M10x1 (like VAG 3313)
118469 1 pc Adapter for dial gauge M12x1.25 and M14x1.25 (like VAG T10170 and Fiat / Alfa 1860895000 / 1895879000 / 1825013000)
21036 1 pc Small dial gauge 41mm (optional)

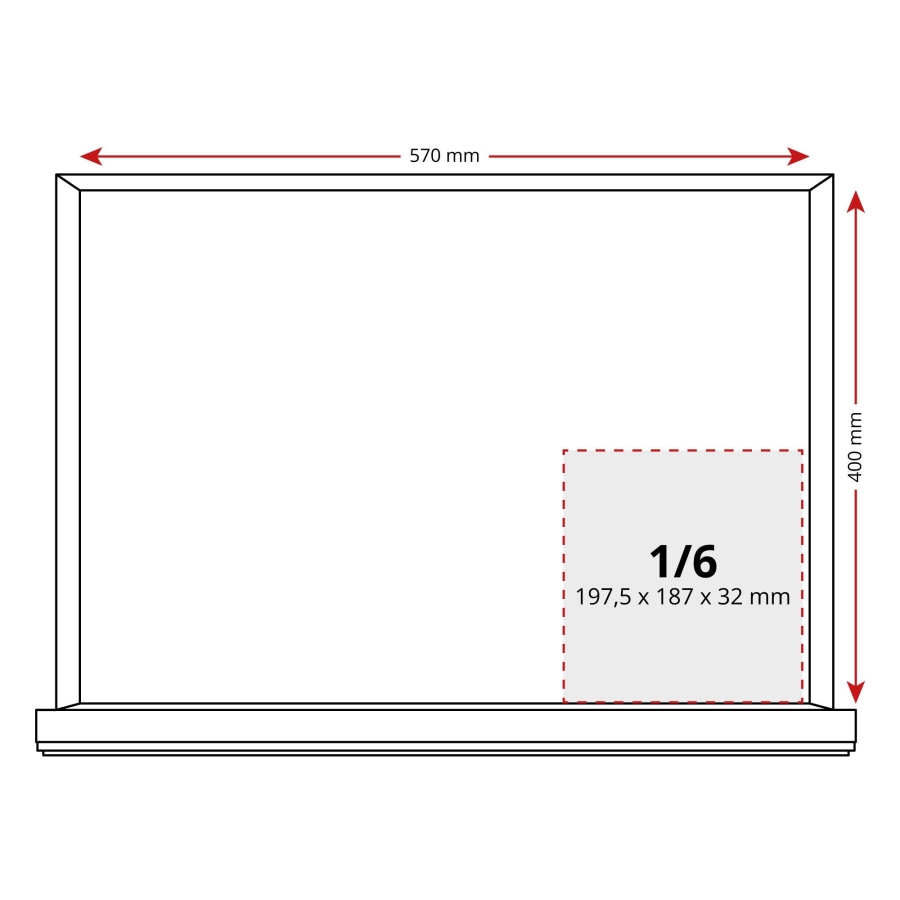

999088S 1 pc Custom foam insert 1/6 [197.5 x 187 x 32 mm (L x W x H)]
115268 1 pc Storage case 1/6

 Original reference numbers are for comparison only; this is not an OEM tool!

News

Brands
STAHLMAXX
BGS Technic
RepTools
Laser Tools
Rotake
Scroll To Top
