Fiat & Jeep 1.6L E-TorQ Engine Timing Tool Set

This professional set contains all special tools required to replace the timing chain on the E6 E-TorQ engine series. First installed in Fiat 500X, Tipo, Egea, and Jeep Renegade, the chain must be removed with the camshaft sprocket and crankshaft. The camshaft is positioned on the gearbox side, and the crankshaft is secured with a front locking tool.

Compatible Engine Codes

55263842, 334AXE1A, 55268036, 356SXE11

Workshop Instructions

Disassembly:

• Remove intake manifold and valve cover

• Remove accessory belt with tensioner

• Remove AC compressor and starter motor

• Lock flywheel and loosen central crankshaft bolt

• Remove water pump pulley and front cover

• Remove chain tensioner, engine mount, and front cover plug

• Lock camshaft, remove camshaft sprocket with chain

• Remove camshaft bearing cap, chain guide, and tension rail

• Remove crankshaft sprocket using a puller (recommend Art-Nr. 106651A)

Installation: Reverse the steps above. Align marked chain links with markings on sprockets when replacing the timing chain.

Recommended Torque Values

• Ignition coil: 8–10 Nm

• Valve cover: 10–14 Nm

• Starter motor: 36–44 Nm

• Crankshaft pulley: 40 Nm + 55° (replace bolt)

• Camshaft sprocket: 115 Nm

• Camshaft bearing cap: 9–11 Nm

• AC compressor: 23–27 Nm

• Accessory belt tensioner: 8–10 Nm

• Idler pulley: 31–38 Nm

• Clock (M6): 30 Nm

• Steering cover (Torx M6/M8): 12 Nm / 30 Nm

• Timing chain tensioner: 57–69 Nm

• Guide and tension rails: 23 Nm

• Alternator: 22–28 Nm

• Water pump: 25–31 Nm

OE Comparison Numbers

2000033600, 2000040946, 2000041300, 2028500090, 2028600090

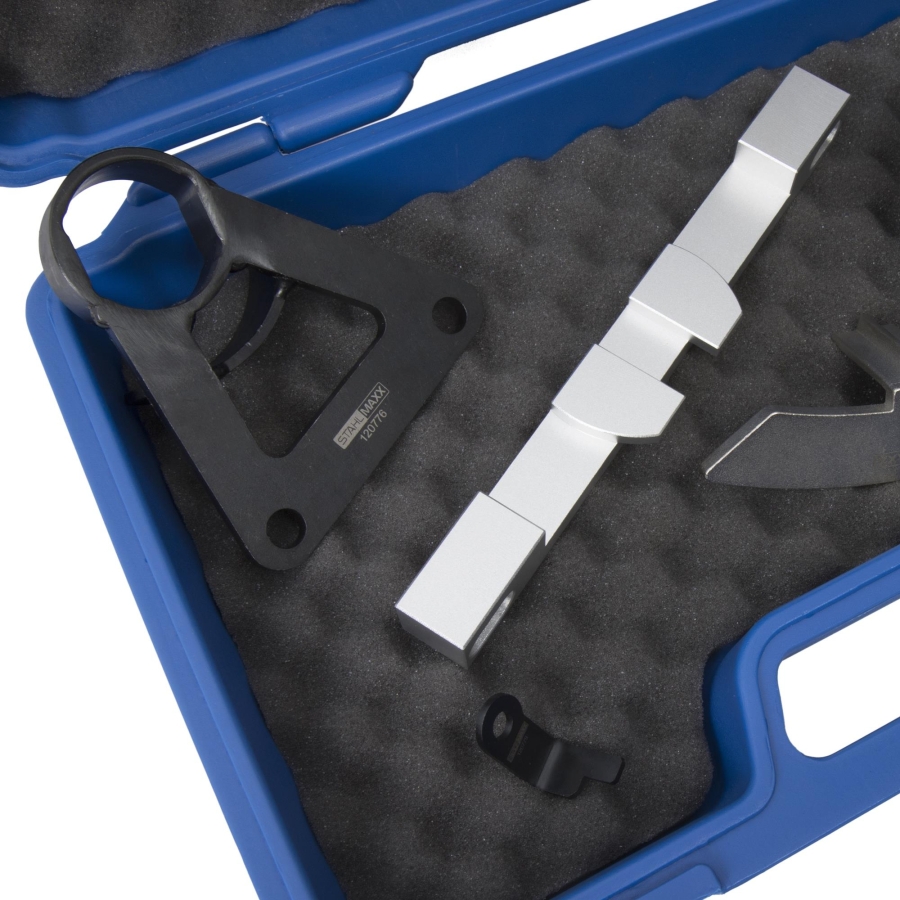

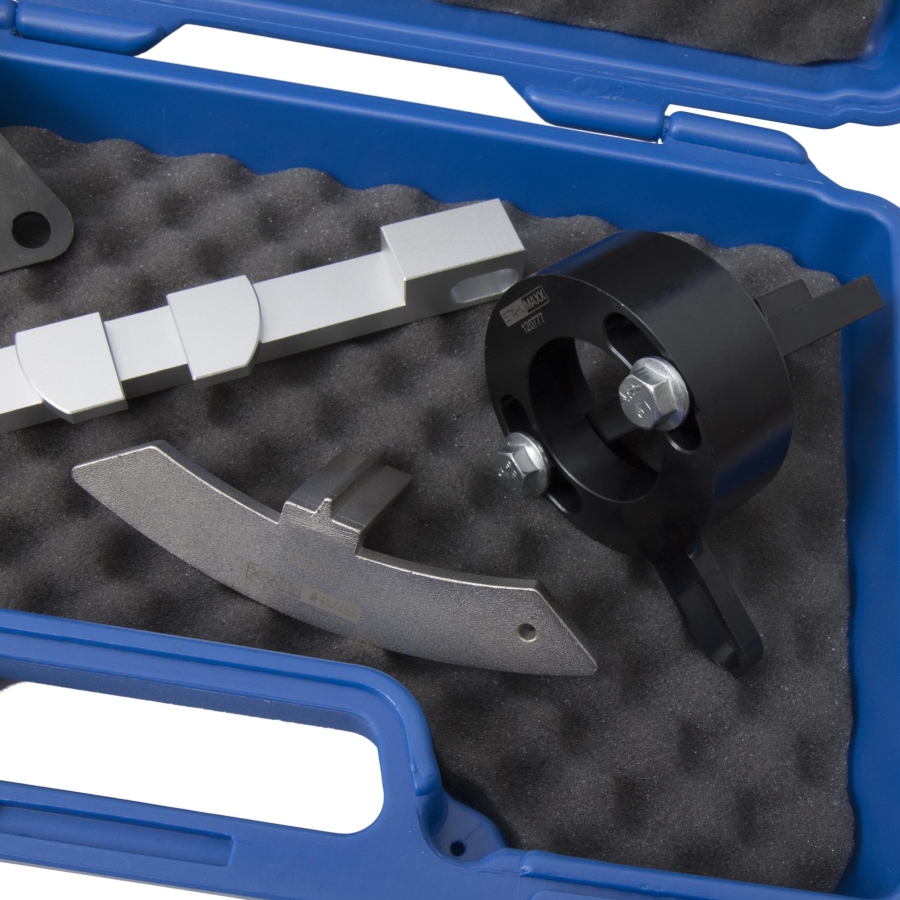

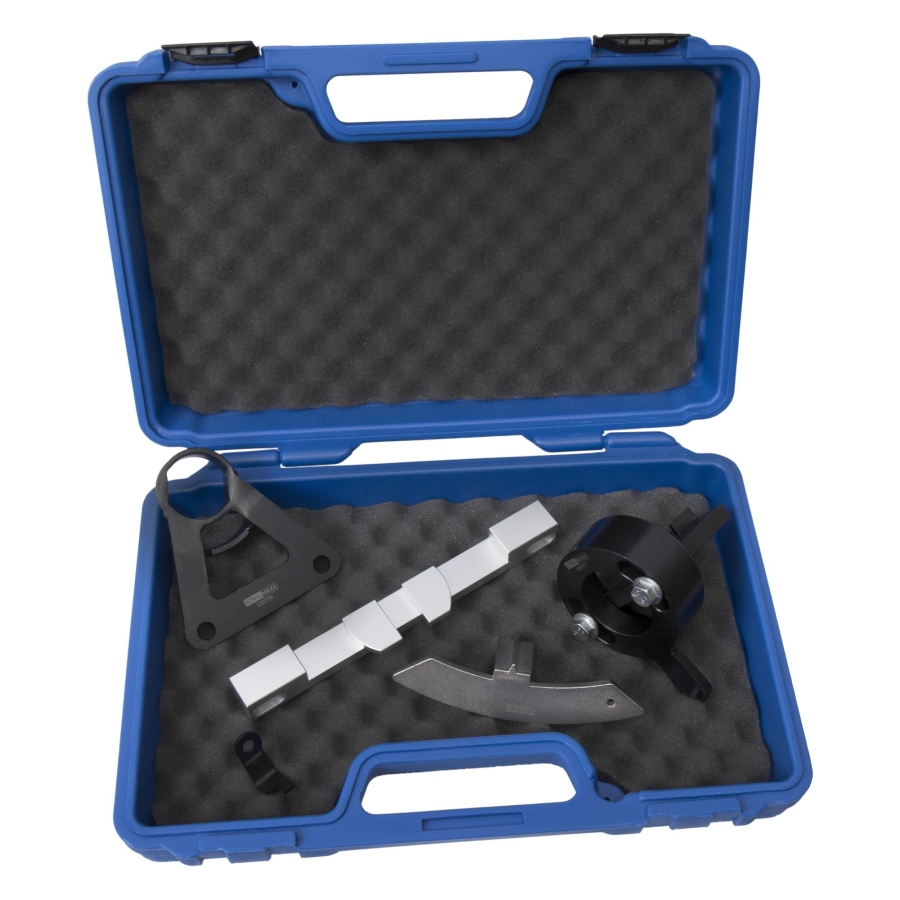

Set Includes

• 120778 Camshaft Locking Tool 1.6L Fiat / Jeep (OE: 2028600090 / 2.028.600.090)

• 120776 Crankshaft Positioning Tool for Fiat / Jeep 1.6L (OE: 2028500090)

• 120777 Flywheel Lock 1.6L Fiat / Jeep (OE: 2000041300 / 2.000.041.300)

• 120779 Accessory Belt Tensioner Tool (OE: 2000040946 / 2.000.041.200)

• 21004 Flywheel Lock (OE: 2000033600 / 2.000.033.600)

Original numbers are for comparison purposes only. These are not original manufacturer tools.

FIAT 500X (334_) (09.2014 - ) 1.6 (112 HP, 82 kW)

FIAT 500X (334_) (09.2014 - ) 1.6 (334AXE1A) (110 HP, 81 kW)

FIAT TIPO Estate (356_) (03.2016 - ) 1.6 (356WXE11) (110 HP, 81 kW)

FIAT TIPO Hatchback (356_) (03.2016 - ) 1.6 (356HXE11) (110 HP, 81 kW)

FIAT TIPO Saloon (356_) (10.2015 - ) 1.6 (356SXE11) (110 HP, 81 kW)

JEEP RENEGADE VAN (BU, B1) (07.2014 - ) 1.6 E-torQ (110 HP, 81 kW)
