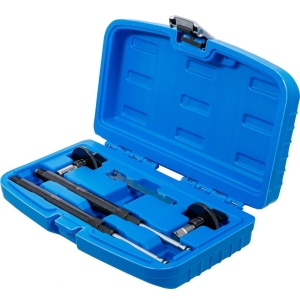

Engine Timing Tool Set – Fiat 1.2 16V

Engine timing tool set designed to lock the camshafts in the correct top dead center (TDC) position during engine repair and timing service. This allows work on the timing system without losing the camshaft timing position.

Vehicle Compatibility

Suitable for Fiat 1.2 16V engines, including:

Fiat

• 500 1.2 (2007–)

• Brava 1.2

• Bravo 1.2 16V (1995–2002)

• Grande Punto 1.2

• Idea 1.2 / 1.2 16V

• Marea 1.2 / Marea Weekend / Marengo 1.2

• Palio Weekend 1.2 16V (1993–1999)

• Punto 1.2 (1993–1999)

• Punto Classic 1.2 16V (1999–)

• Stilo 1.2

Lancia

• Ypsilon 1.2 16V (1996–2003)

Engine Codes

176B9.000
169A4.000
182B2.000
188A5.000

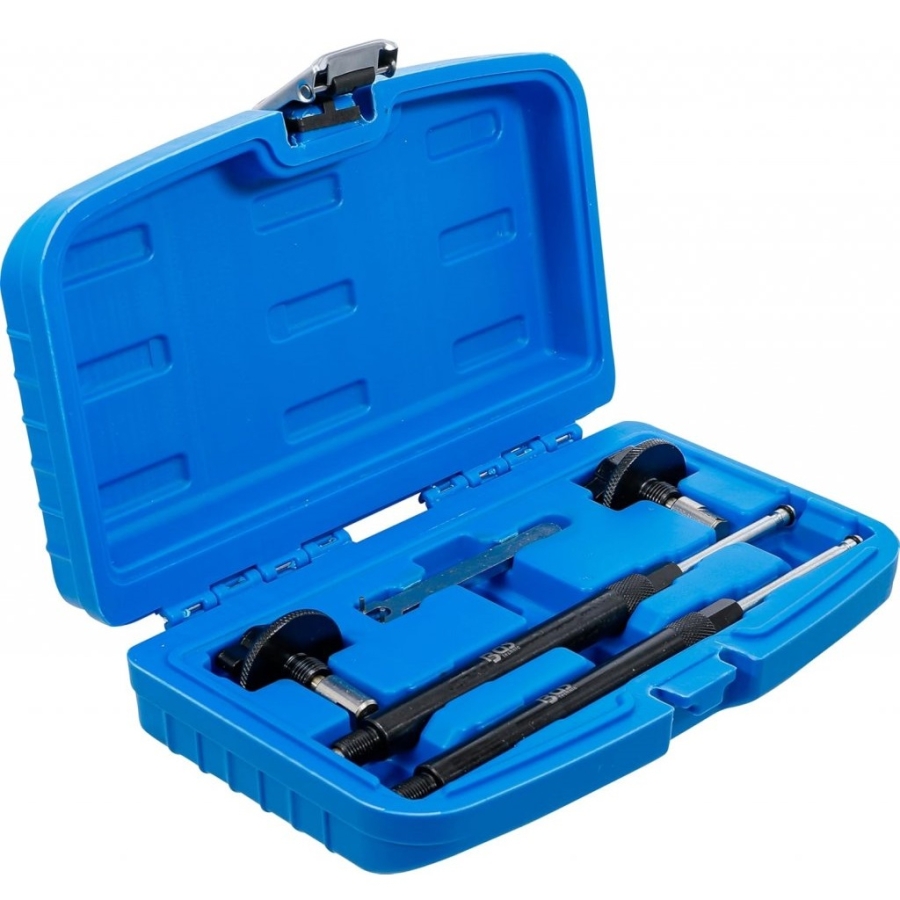

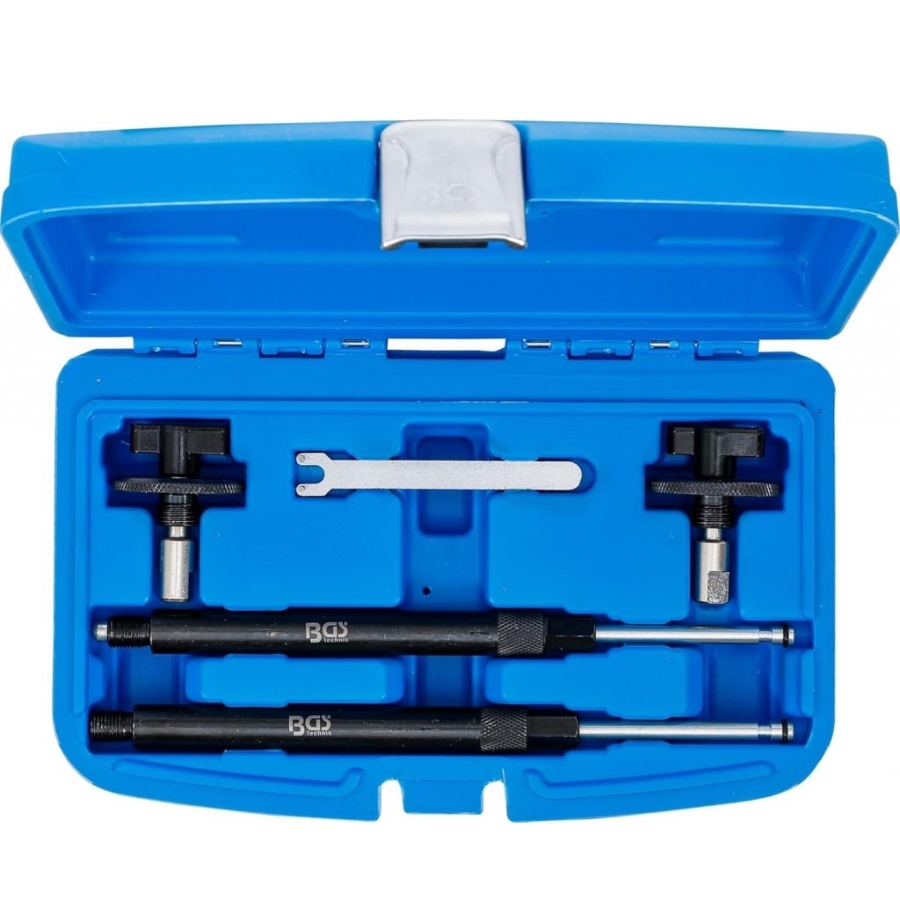

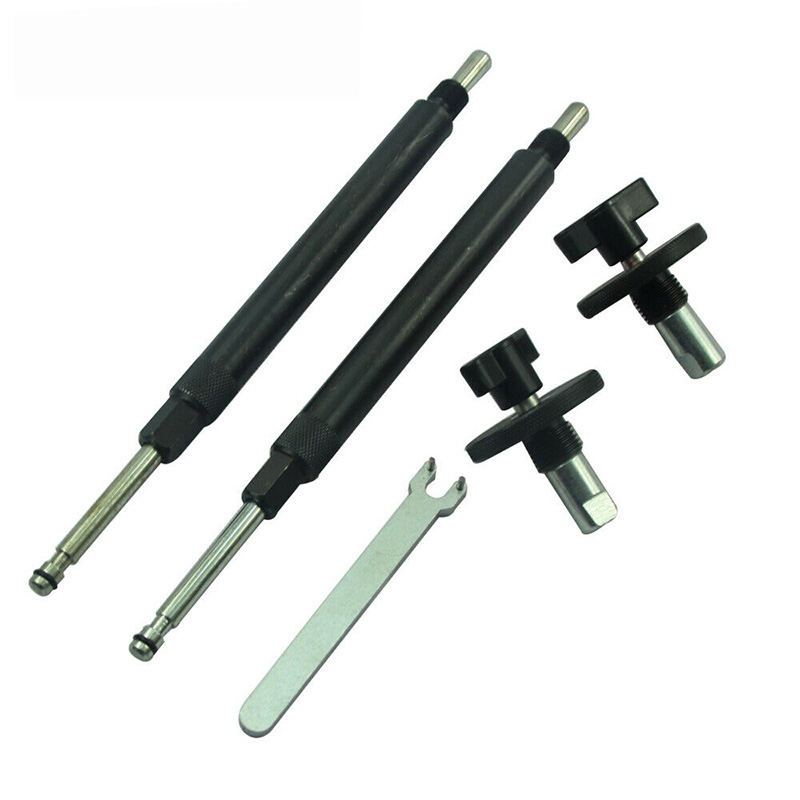

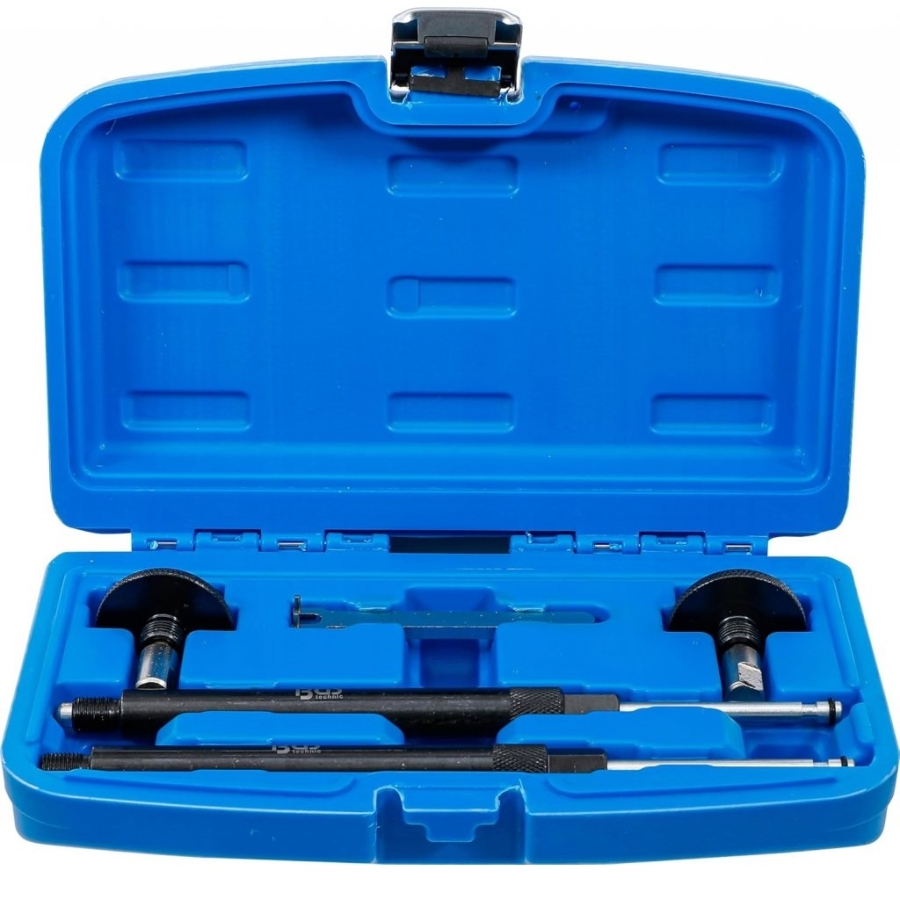

Kit Contents

• 2 × Camshaft locking tools – equivalent to 1860985000

• 1 × Camshaft chain bracket – equivalent to 2000015800

• 1 × Tensioner pulley wrench – equivalent to 1860987000

• 2 × Piston adjustment tools – equivalent to 1860992000

• 1 × Storage case

OEM numbers are provided for comparison purposes only and do not imply that the tool is an original manufacturer product.

1. Remove the spark plugs and install the piston height measuring adapters into the spark plug threads of cylinders 1 and 2.

2. Slowly rotate the crankshaft until the marks on the measuring adapters align.

3. Warning: The mark on the crankshaft must remain aligned with the crankshaft position sensor.

4. If necessary, adjust the crankshaft to the correct position.

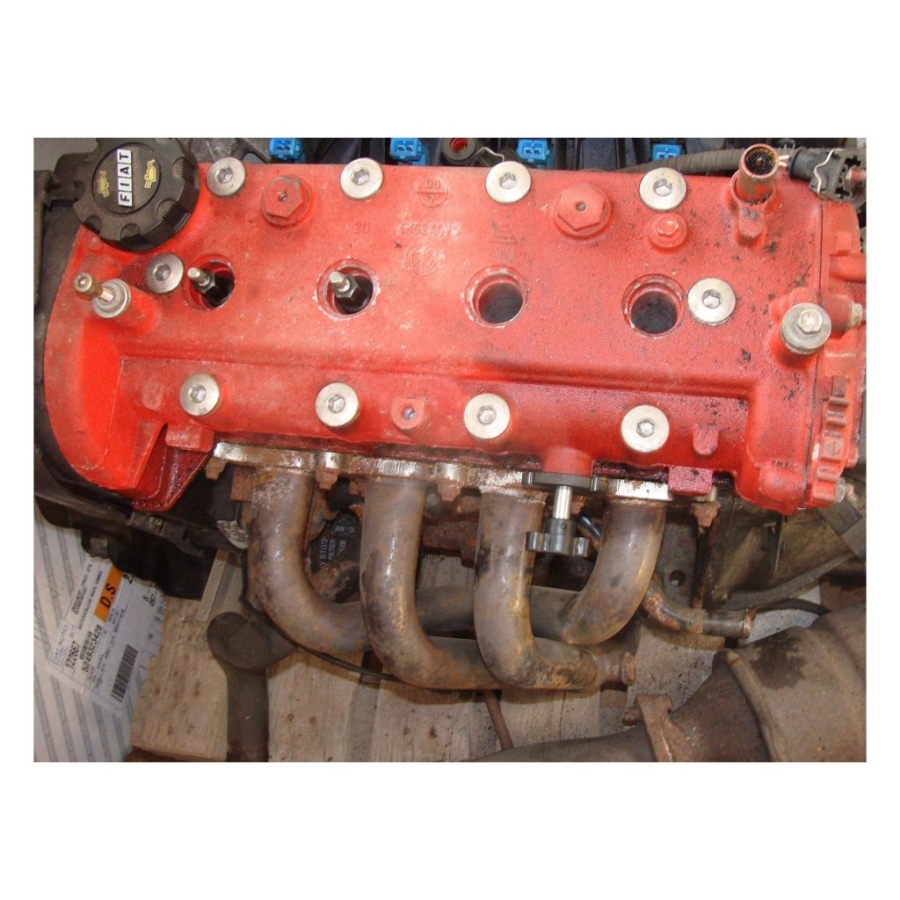

5. Remove the two blanking caps on the camshaft housing.

6. Position the camshaft alignment tool so that it fits into the slots of the camshaft.

7. Secure the tool in this position using the hand wheel.

8. It may be necessary to rotate the crankshaft one full turn further to correctly position all tools.

9. After installing the new timing belt, adjust the tensioner pulley using the tensioner wrench.
