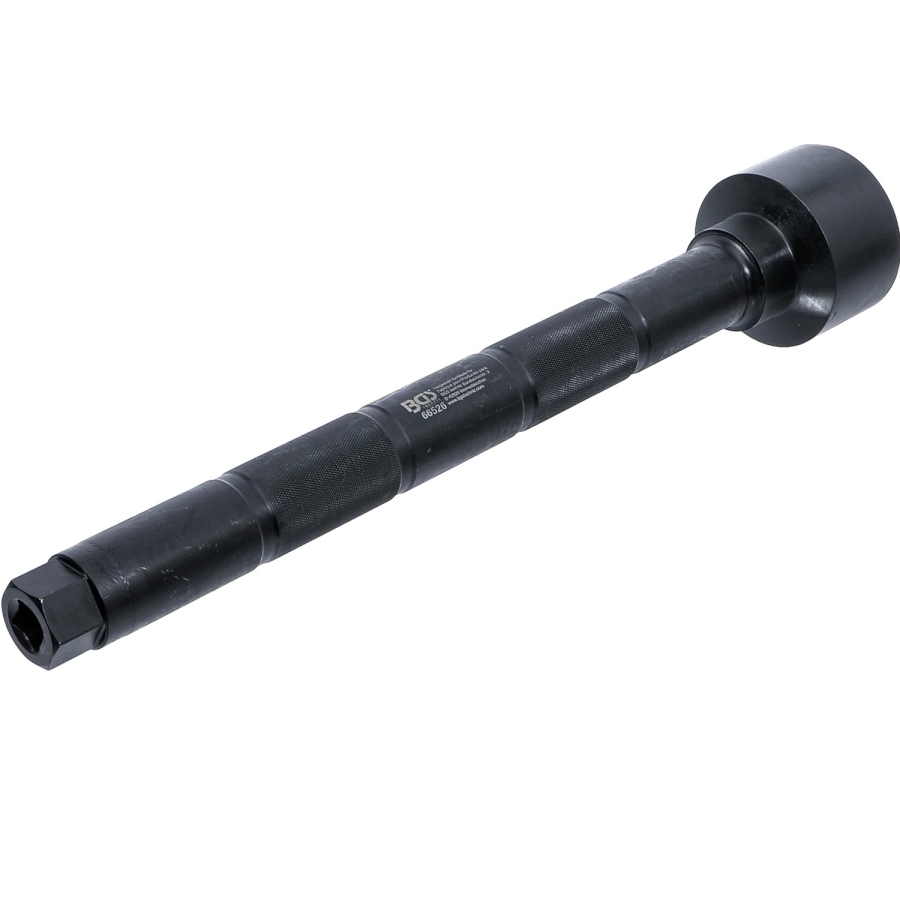

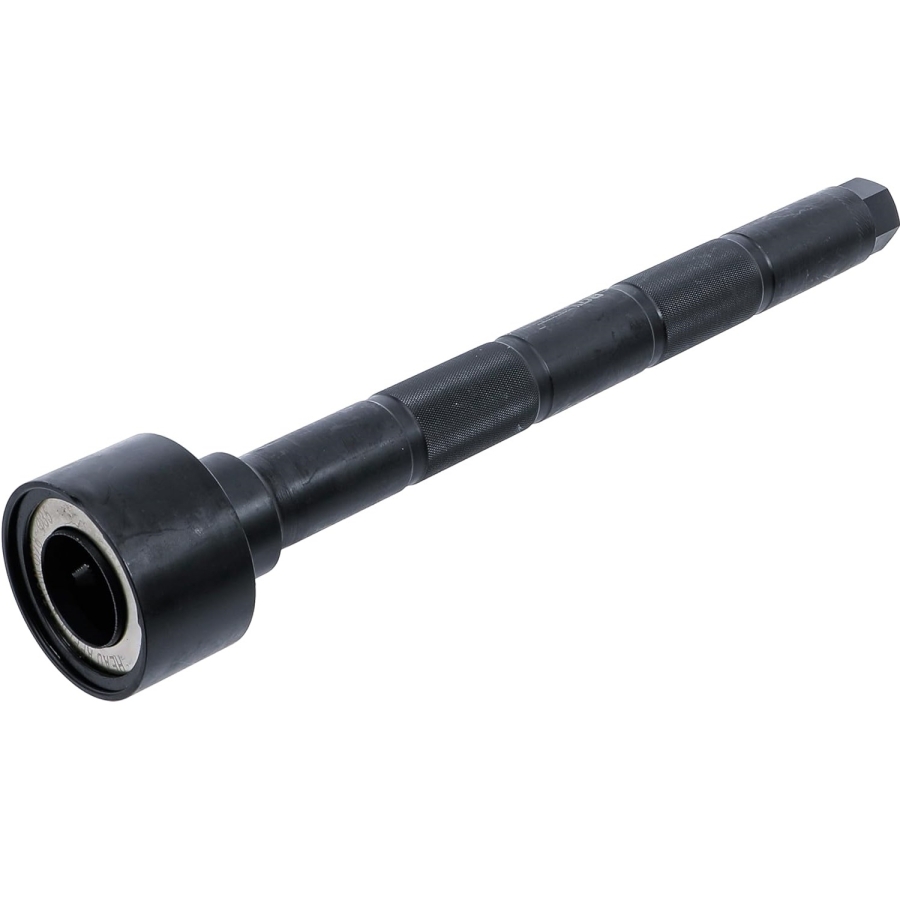

Inner Tie Rod Tool 28–35 mm

This inner tie rod tool is designed for the professional removal and installation of axial tie rods on passenger cars and vans.

Its special design enables efficient servicing of steering components while reducing repair time and simplifying access to inner tie rod joints.

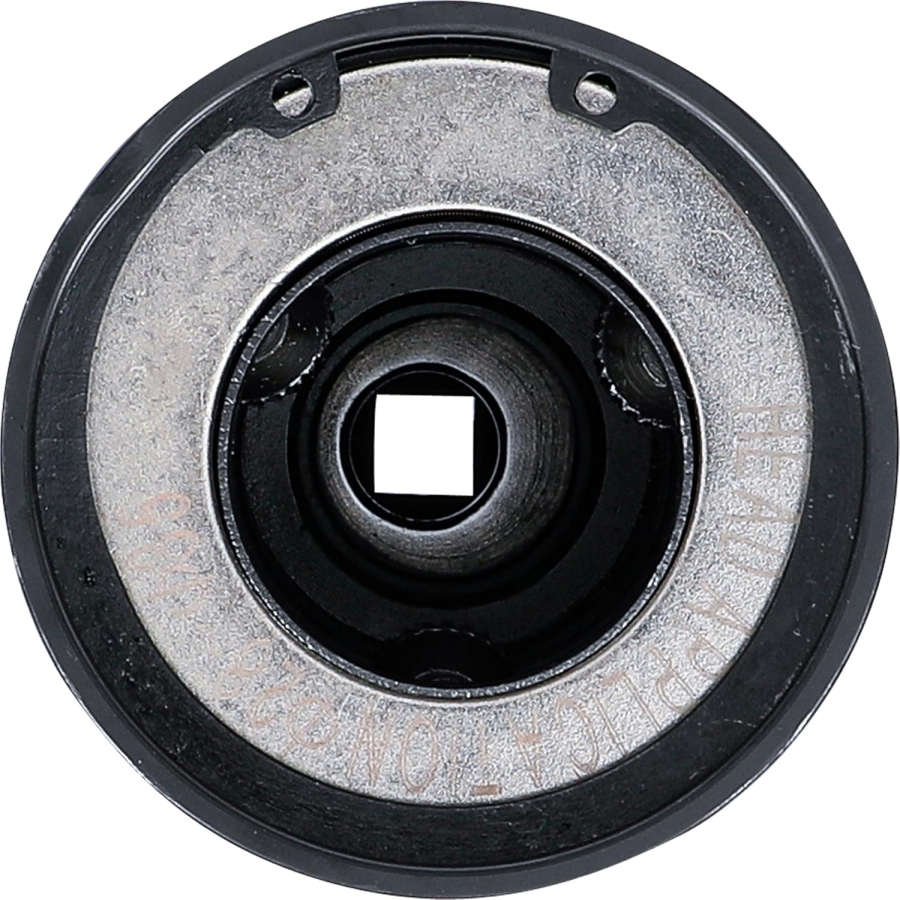

Automatic Clamping Mechanism

The integrated automatic clamping system securely grips the tie rod joint housing during operation.

This provides reliable force transmission and simplifies both removal and installation procedures.

Benefits include:

• Automatic locking action
• Secure grip on the joint housing
• Reduced risk of slipping
• Faster servicing

Open Design for Longer Tie Rods

The open-body construction allows longer tie rods to pass through the tool without restriction.

This design improves accessibility and makes the tool suitable for a wide range of steering systems used in passenger cars and vans.

Time-Saving Design

The combination of automatic clamping and open construction significantly reduces the time required to replace inner tie rods.

Under suitable working conditions, the tool can help save up to:

• 3 hours of labor time

Multiple Drive Options

The tool can be operated using either:

• 12.5 mm (1/2") square drive tools
• 27 mm wrench

This flexibility allows technicians to choose the most suitable drive method for the available workspace.

Instructions for Use

Insert the tie rod through the hollow body of the tool until the head attachment rests on the axial joint housing.

Using either a 27 mm wrench or a 1/2" drive tool, engage the drive located at the end of the tool body.

To remove the axial joint, rotate the tool counterclockwise.

Installation is performed in the reverse order.

Important: After installing a new tie rod, a wheel alignment must be performed.

Technical Specifications

• Tool type: Inner tie rod tool
• Application: Removal and installation of axial tie rods
• Compatible tie rod diameters: 28–35 mm
• Clamping system: Automatic clamping
• Drive options:
  • 12.5 mm (1/2") square drive
  • 27 mm wrench
• Design: Open-body construction
• Length: 400 mm
• Material: Chrome molybdenum steel
