Front Crankshaft Oil Seal Installation Adapter for PSA EB2 Engines, as 0109-3A and EN-52133

Price: €22.50 44.01лв.

Code:

124200
Weight:

0.320 Kgs

Overview:
✔ For installing the front crankshaft oil seal
✔ Suitable for PSA EB2 engines in Peugeot, Citroën and Opel vehicles
✔ Used with seals supplied with a protective installation sleeve
✔ Ensures quick, even positioning at the correct installation depth
✔ Simple application and precise fit
✔ For use as PSA 0109-3A and Opel EN-52133

Front Crankshaft Oil Seal Installation Adapter for PSA EB2 Engines, as 0109-3A and EN-52133

Send to friend

Rate this product

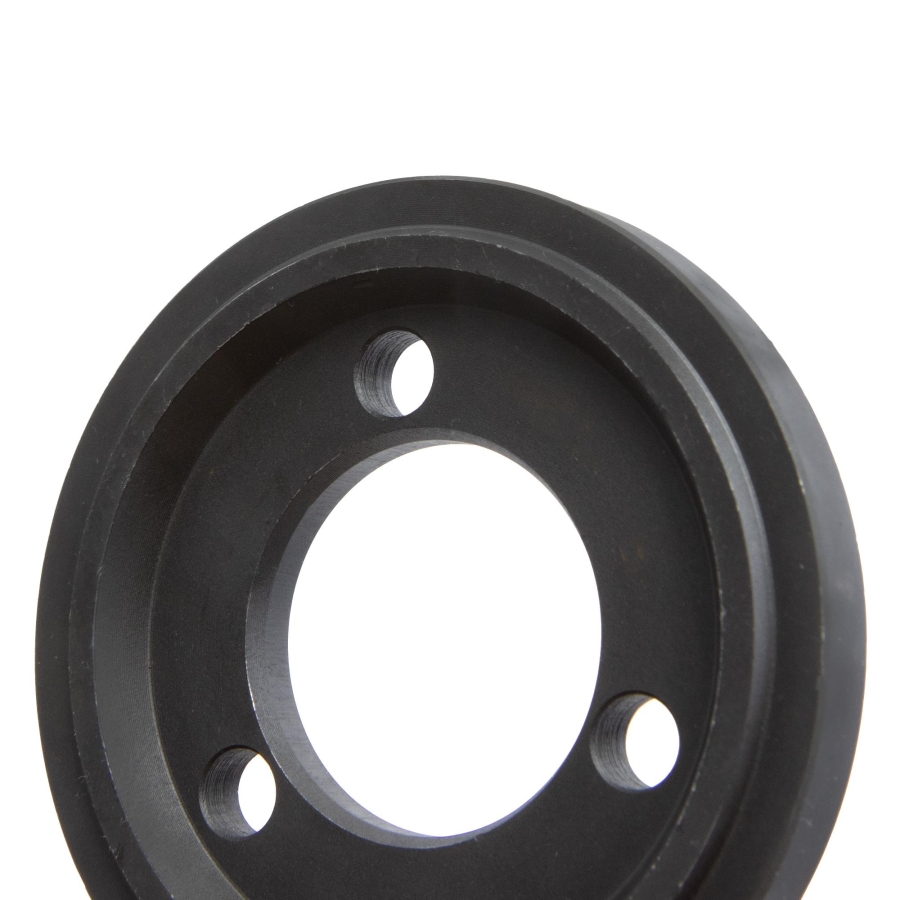

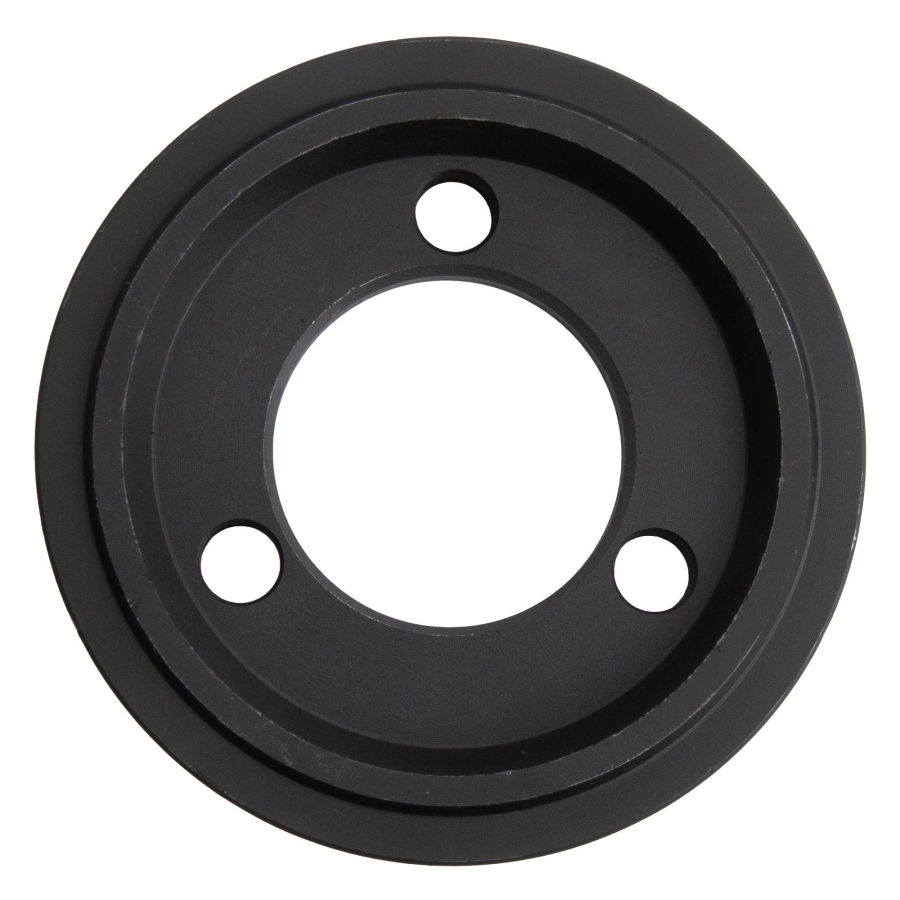

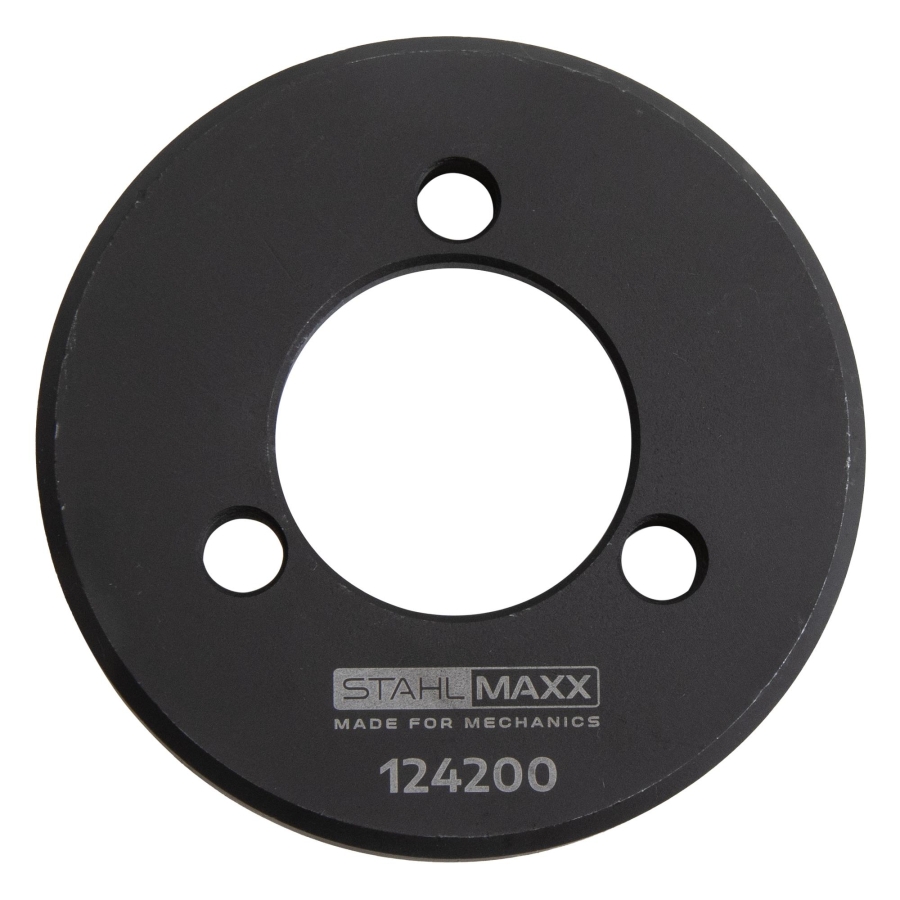

Special adapter ring for the quick and straightforward installation of the front crankshaft oil seal on PSA EB2 engines installed in Peugeot, Citroën and Opel vehicles.

The application-specific design allows the oil seal to be positioned evenly and brought to the correct installation depth without complicated additional equipment.

Application

The corresponding crankshaft oil seals are supplied with a protective installation sleeve. This sleeve allows the new oil seal to be pushed onto the crankshaft stub by hand without damaging the sealing lip.

After removing the installation sleeve, fit the adapter ring and use the three original fastening bolts to draw the oil seal in evenly until it is correctly seated against the crankshaft and front cover.

Suitable Engine Codes

1PP, B12 XE, B12 XHL, B12 XHT, D12 XE, D12 XHL, D12 XHT, EB0, EB2, EB2ADTD, EB2ADTS, EB2ADTX, EB2D, EB2DT, EB2DTM, EB2DTS, EB2DTSM, EB2F, EB2M, F12 XE, F12 XEL, F12 XHL, F12 XHT, HM01, HMV, HMZ, HNK, HNN, HNP, HNS, HMT, HNV, HMY, HNW, HNY, HNZ, ZMZ

For Use As

PSA: 0109-3A, P-0109-3, P01903-3
Opel: EN-52133, EN52133

Original numbers are for comparison purposes only; this is not an original tool!
