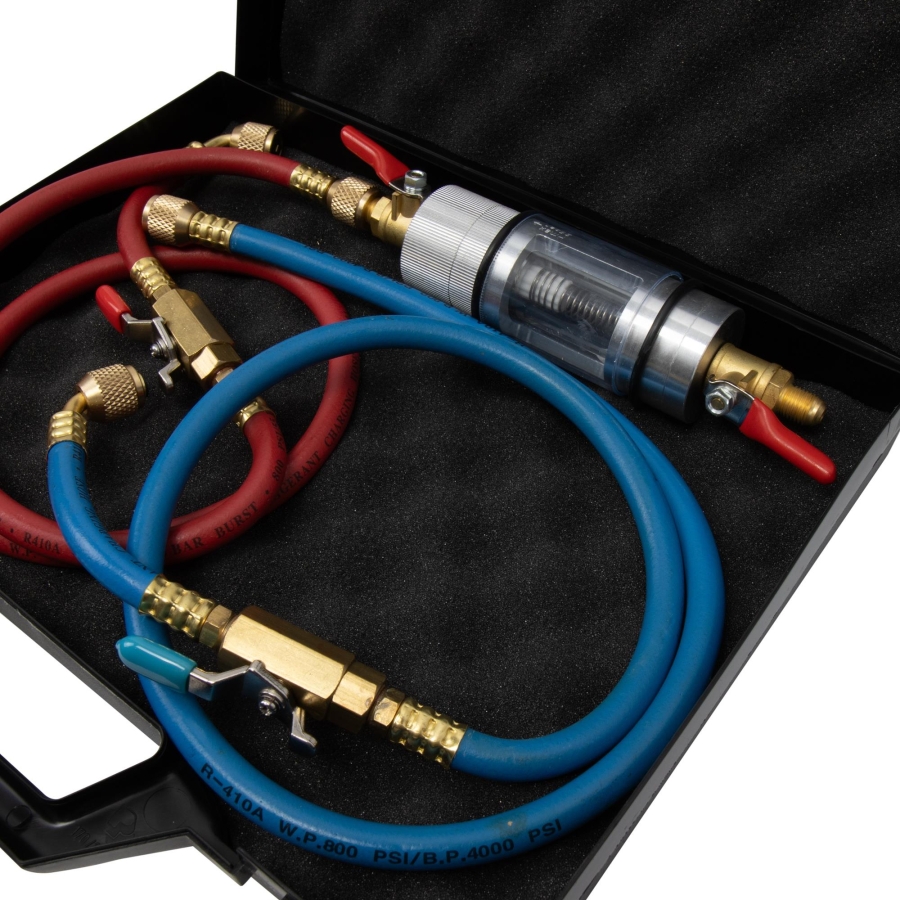

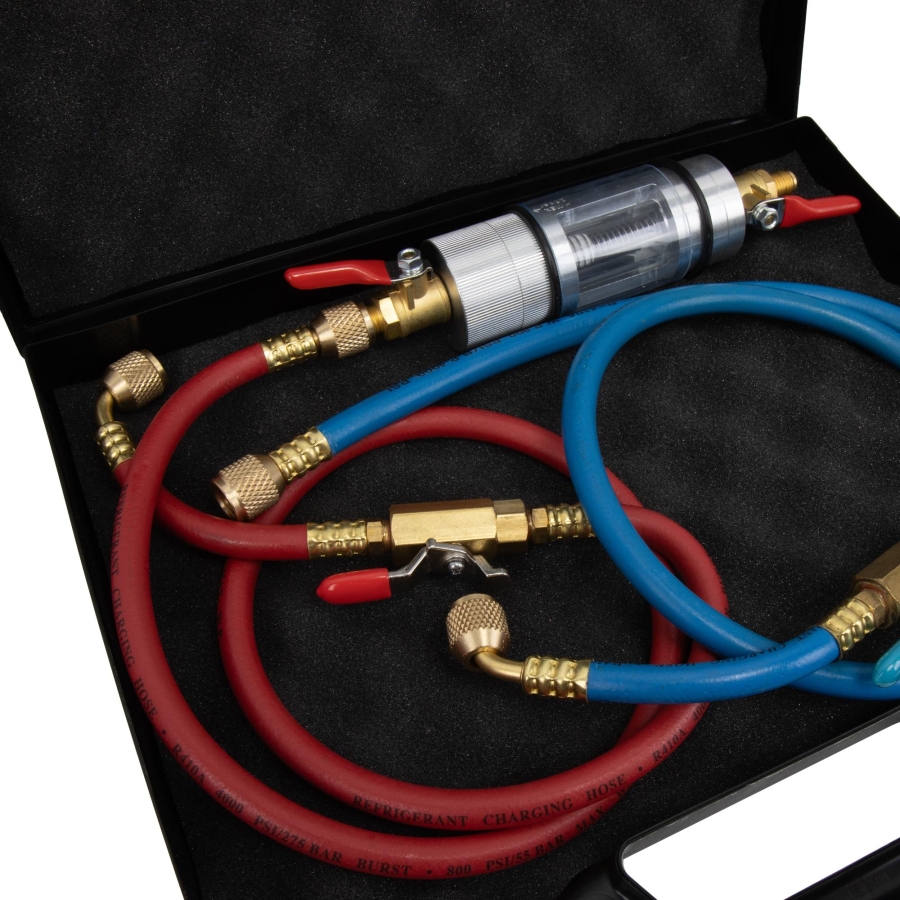

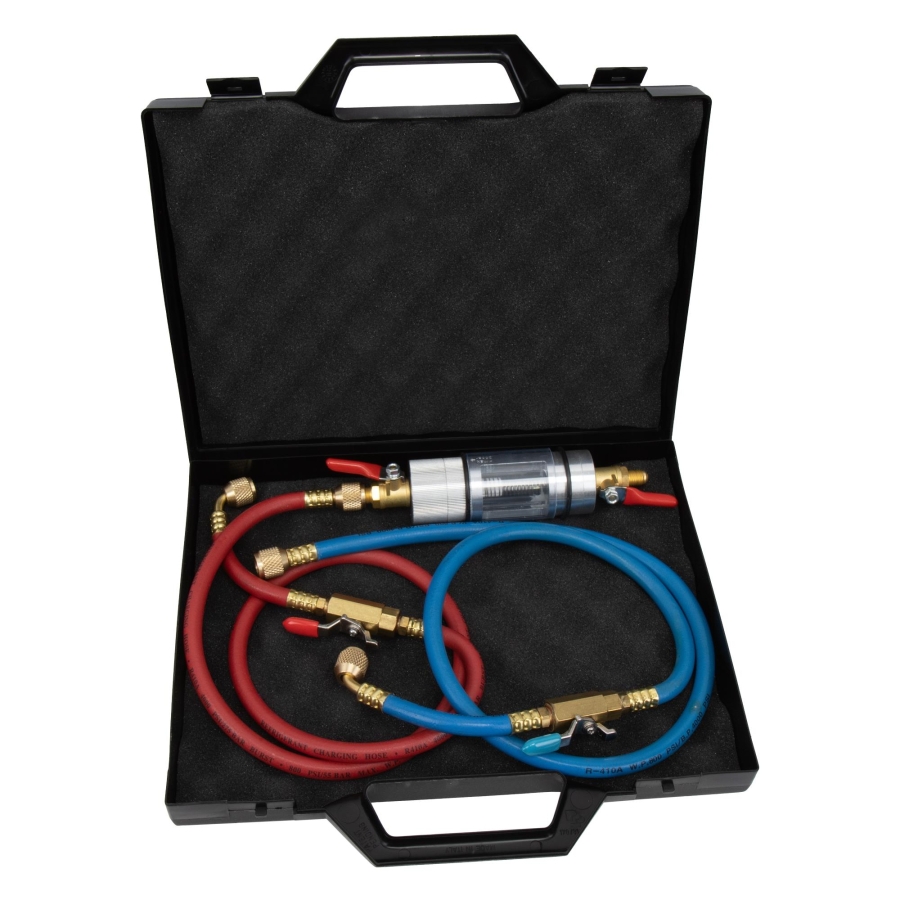

R134a / R1234yf Sight Glass with Pre-Filter for Refrigerant Oil and A/C Sealant Inspection

Price: €245.00 479.18лв.

Code:

122974
Weight:

3.500 Kgs

Overview:
✔ Diagnostic sight glass set with pre-filter for checking refrigerant oil and sealant contamination in A/C systems
✔ Suitable for quick inspection of refrigerant condition, contamination, metal particles and UV leak detection additives
✔ Helps protect A/C service stations from damage caused by sealants, debris or compressor wear particles
✔ Allows immediate visual diagnosis of contamination after compressor failure or before service work
✔ Replacement components can be reordered individually

R134a / R1234yf Sight Glass with Pre-Filter for Refrigerant Oil and A/C Sealant Inspection

Send to friend

Rate this product

This A/C diagnostic set with protective pre-filter is designed for quick visual inspection of refrigerant and oil condition in R134a and R1234yf air conditioning systems. Through the sight glass, it is possible to identify contamination or unwanted substances in the refrigerant circuit, such as foreign particles, metal shavings, UV leak detection additives and A/C sealants.

Contamination, debris and sealant residues can cause immediate damage to an A/C service station. For this reason, the sight glass with pre-filter can be used as a protective diagnostic tool before connecting service equipment, helping to reduce the risk of damage to the A/C machine.

In the event of compressor damage, the condition of the refrigerant circuit can be assessed immediately and directly in front of the customer, making it easier to determine the likely repair scope. It is also useful for checking the refrigerant after flushing the system to confirm whether contamination is still present. This may help prevent warranty rejection by compressor manufacturers if contamination remains in the system.

All components of the set can be reordered individually as replacement parts when required.

Technical Data

Low-pressure and high-pressure hoses with standard 1/4" female thread
Sight glass size: 40 x 30 mm
Filter insert size: 11 x 27 mm

Applications

Quick check of refrigerant oil quality
Inspection for A/C sealant contamination
Detection of dirt, foreign matter and metal particles in the refrigerant circuit
Checking oil / refrigerant mixing behaviour
Inspection for UV contrast dye contamination

Additional tools not included

Item no. 122970 – Quick coupler with valve for R1234yf, M12 female thread, plus adapter M12 to SAE 1/4" male
Item no. 122971 – R1234yf low-pressure quick coupler plus adapter M12 to SAE 1/4" male
Item no. 122972 – Quick coupler with shut-off valve, high-pressure, FM14 mm, R134a
Item no. 122973 – Quick coupler with shut-off valve, low-pressure, FM14 mm, R134a
Item no. 122975 – Replacement filter for Item no. 122974 R134a / R1234yf sight glass
