Rear Differential Mount Bush Removal & Installation Tool for BMW F-Series as 83300496464 / 330020

Price: €149.00 291.42лв.

Code:

74268
Weight:

4.044 Kgs

Overview:
✔ Professional tool for removing and installing rear differential mount bushes
✔ Suitable for BMW F-Series 5 Series, 6 Series and 7 Series models
✔ Allows bush replacement with the rear axle remaining installed in the vehicle

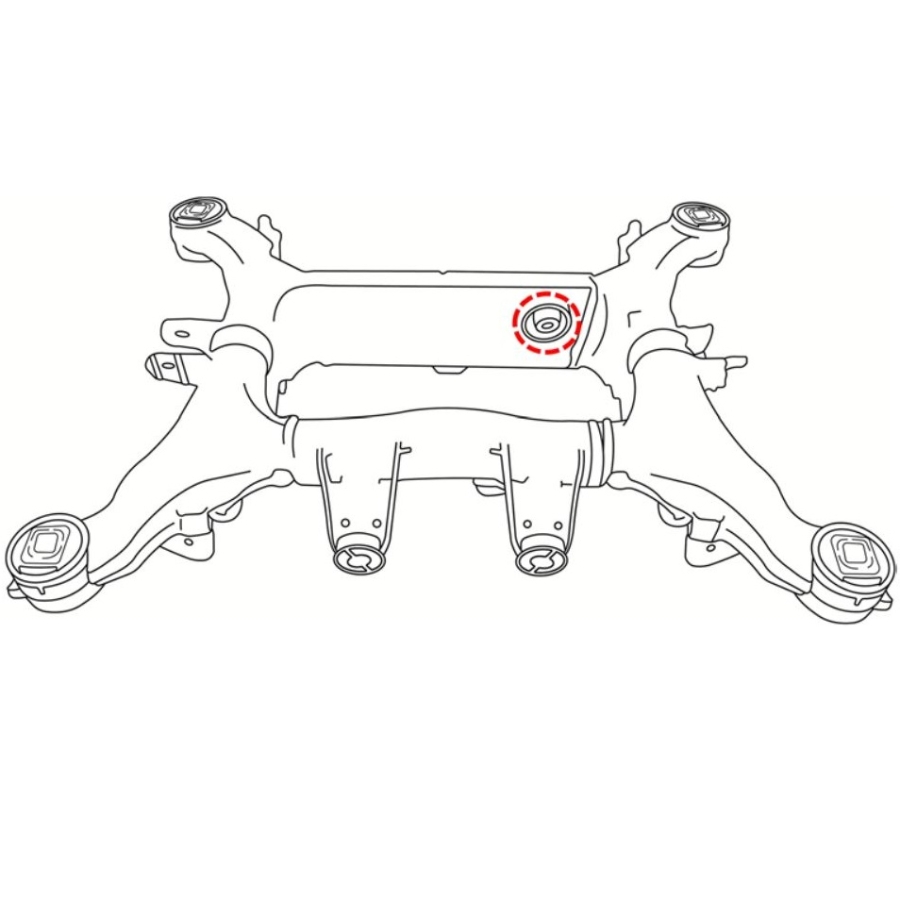

✔ Designed for servicing differential carrier bushes in the rear axle subframe
✔ Includes removal sleeve, extraction plate, installation plates and spindle with bearing nut
✔ Used as BMW 83300496464 and BMW 330020
✔ Suitable for professional workshop repairs

Rear Differential Mount Bush Removal & Installation Tool for BMW F-Series as 83300496464 / 330020

Send to friend

Rate this product

This specialist tool is designed for the removal and installation of rear differential mount bushes fitted to the rear axle carrier on various BMW F-Series vehicles.

The differential mount supports the rear differential assembly and, when worn or damaged, can cause knocking, vibration and impact noises under different load conditions. This tool enables professional servicing of the bush without removing the complete rear axle assembly from the vehicle.

Service Directly on the Vehicle

The tool allows the differential mount bush to be removed and installed while the rear axle remains fitted to the vehicle, significantly reducing repair time and simplifying maintenance procedures.

For best results, the mounting surface in the rear axle carrier should be cleaned before pressing out the bush. Threads should be kept clean and lubricated with MoS₂ grease during operation.

Vehicle Compatibility

Suitable for:

BMW 5 Series: F07, F10, F11, F18
BMW 6 Series: F06, F12, F13
BMW 7 Series: F01, F02, F04

OEM Reference

Used as:

BMW 330020 / 330 020
BMW 83300496464 / 8330 0496464

Included components correspond to:

BMW 83300496501
BMW 83300496500
BMW 83300496502
BMW 83300496503
BMW 83300496505
BMW 83300496506

Reference Tightening Torques

Reference values (BMW 5 Series F10 530d):

Front differential mount to rear axle carrier:

100 Nm + 90°

Rear differential mount to rear axle carrier:

175 Nm

Always consult the manufacturer's repair documentation for the exact torque specifications applicable to the vehicle being serviced.

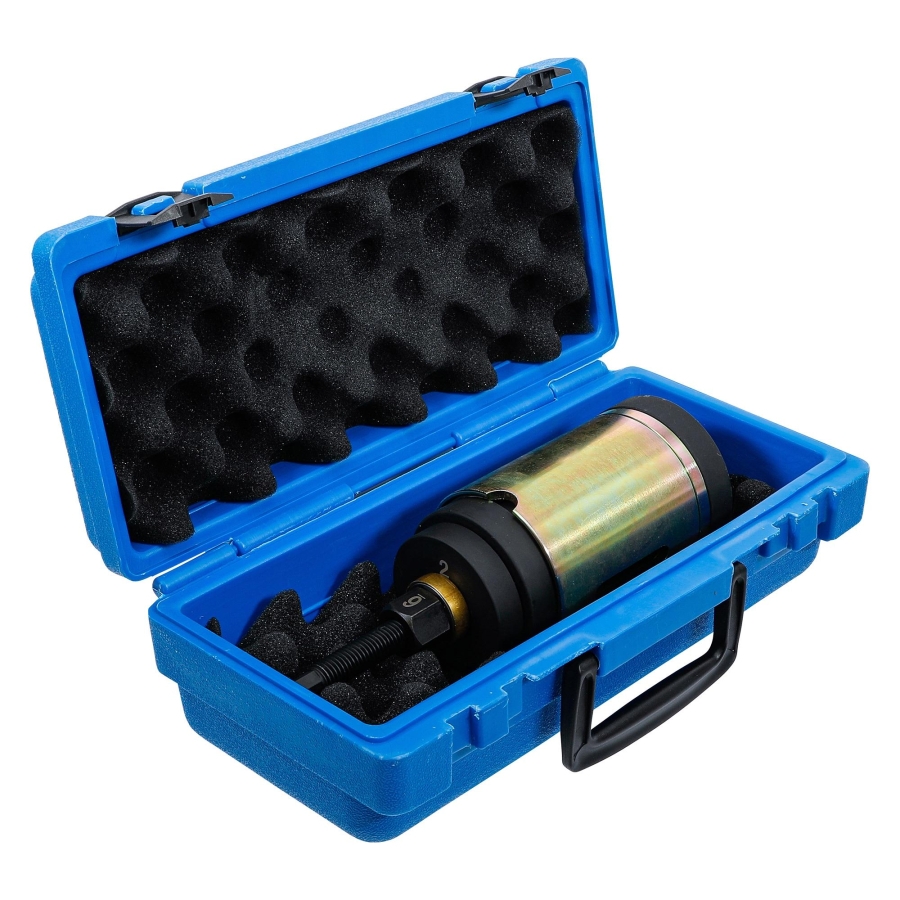

Package Contents

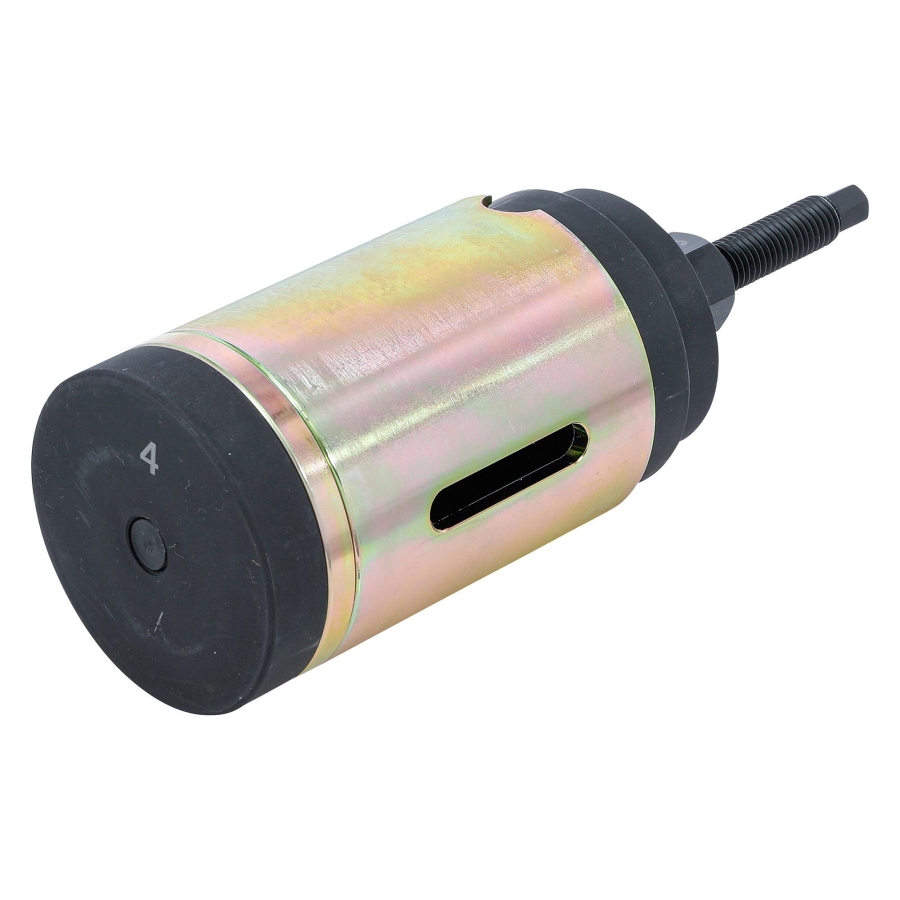

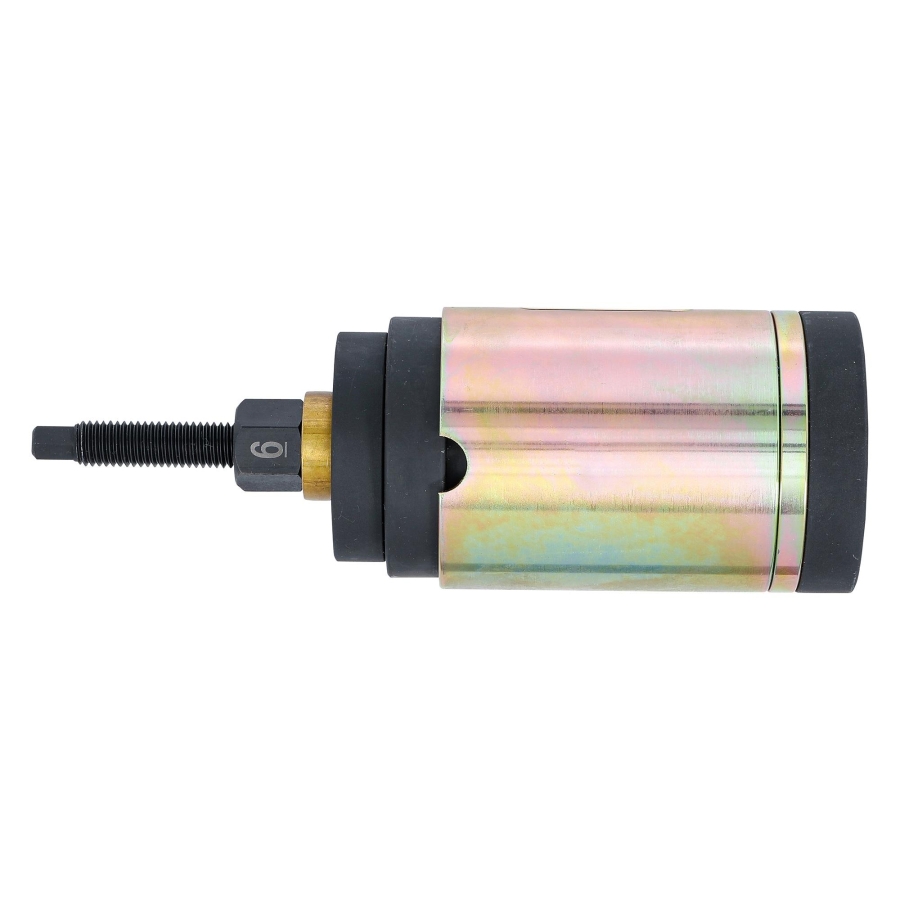

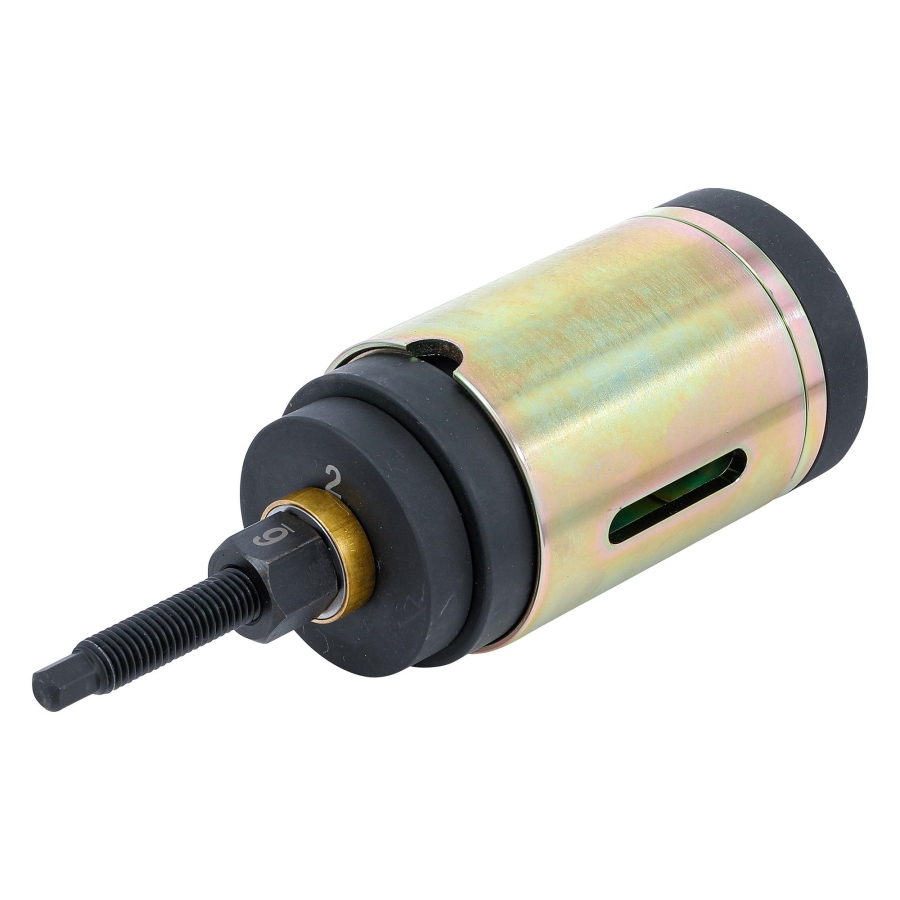

1 × Removal sleeve, used as BMW 83300496501
1 × Extraction plate, used as BMW 83300496500
2 × Installation plates, used as BMW 83300496502 and BMW 83300496503
1 × Spindle with bearing nut, used as BMW 83300496505 and BMW 83300496506

Professional Workshop Construction

Manufactured for demanding workshop use, the tool provides accurate alignment and controlled force application during bush extraction and installation. The robust construction ensures durability and reliable performance during repeated servicing operations.

Original part and tool numbers are provided for reference and comparison purposes only. This product is not an original BMW tool.
