Rear Trailing Arm Bush Tool for Ford Fiesta IV and Ford Ka
-
Code:8846
-
Weight:2.870 Kgs
Overview:
✔ Designed for removal and installation of rear trailing arm bushes
✔ Suitable for Ford Fiesta IV and Ford Ka models from 1996 onwards
✔ Allows bush replacement directly on the vehicle
✔ No need to remove the rear trailing arm
✔ Enables efficient and controlled bush servicing
✔ Suitable for professional workshop use
This professional tool set is designed for the removal and installation of rear trailing arm bushes on Ford Fiesta IV and Ford Ka vehicles manufactured from 1996 onwards.
The tool allows the bushes to be replaced directly on the vehicle without removing the rear trailing arm, significantly reducing repair time and labour compared to conventional methods.
Using the supplied spindle and press cups, the bush can be extracted and installed in a controlled manner while minimizing the risk of damage to suspension components.
Applications
Suitable for:
- Rear trailing arm bushes
- Rear suspension bush replacement
- Rear axle repairs
- Suspension maintenance and servicing
Vehicle Compatibility
Ford
- Fiesta IV (from 1996)
- Ka (from 1996)
Features
- Direct on-vehicle bush replacement
- No removal of the trailing arm required
- Designed for rear axle trailing arm bushes
- Reduces repair time
- Suitable for professional workshop use
Package Contents
- Spindle
- Spindle nut
- Pressure cup
- Receiving cup
- Installation cup
- Bearing-supported spindle nut
Benefits
- Saves workshop labour time
- Eliminates unnecessary suspension disassembly
- Enables precise bush installation
- Designed for safe and controlled operation
OEM numbers are not specified for this application. Vehicle compatibility should always be verified before use.
Bushing Removal
- Apply a penetrating oil to facilitate easier bushing removal.

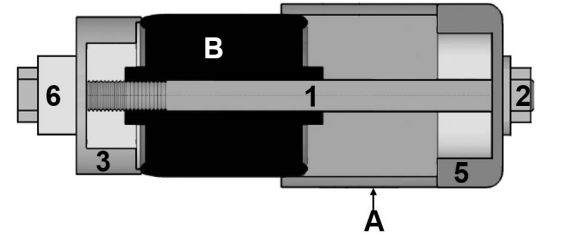

- Install the tool as shown in the illustration for bushing removal.
- Ensure that the spindle (1) is properly lubricated before installation.
- Hold spindle nut (2) stationary using a 24 mm combination wrench.
- Using a 24 mm ratchet wrench or a 24 mm deep socket, turn spindle nut (6) clockwise to press the bushing (B) out of the bushing housing (A).
Bushing Installation

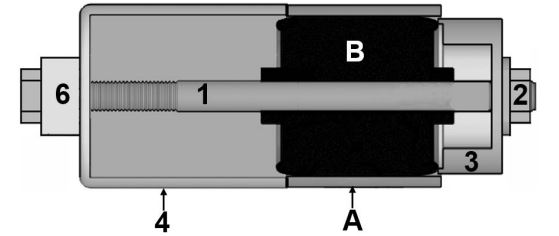

- Install the tool as shown in the illustration for bushing installation.
- Ensure that the spindle (1) is properly lubricated before installation.
- Hold spindle nut (2) stationary using a 24 mm combination wrench.
- Using a 24 mm ratchet wrench or a 24 mm deep socket, turn spindle nut (6) clockwise to press the bushing into the bushing housing (A).
