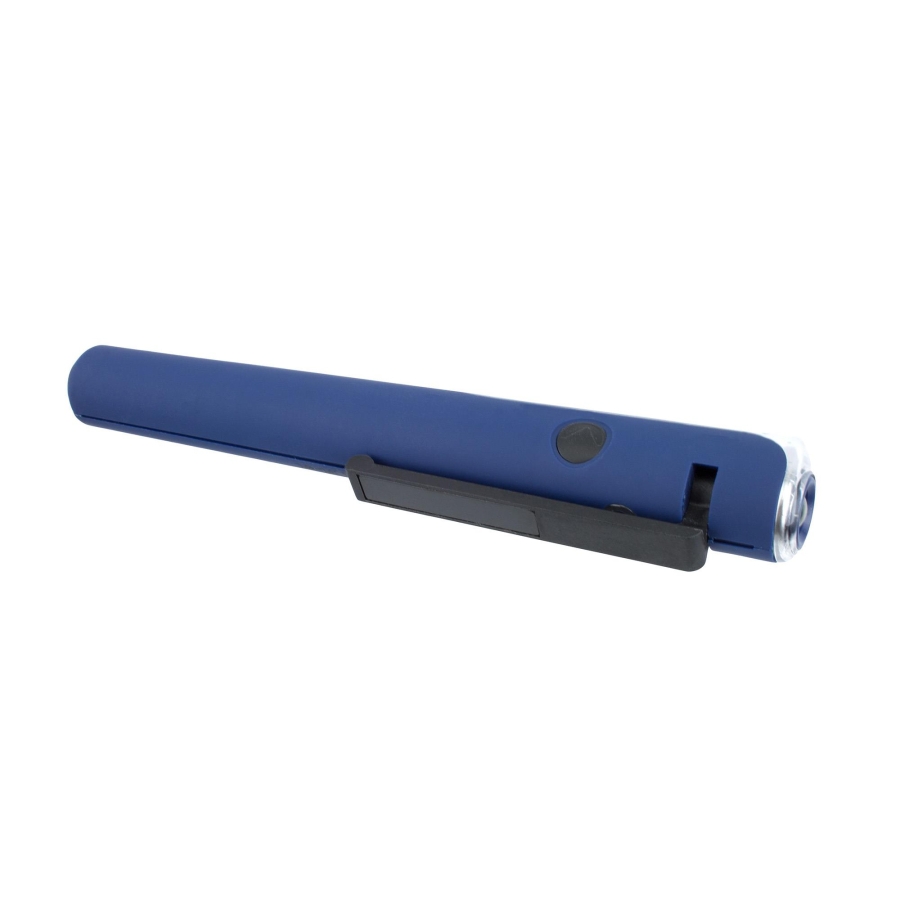

Scangrip MAG PEN 3 Rechargeable LED Pen Light

The MAG PEN 3 combines a main work light with a spotlight at the tip. The main light uses seven SMD LEDs and produces 80 lm. The CREE XP-G2 R5 spotlight produces 60 lm for directing light into a smaller area.

At a distance of 0.5 m, the main light provides 110 lux and the spotlight provides 1500 lux. The side-mounted switch allows one-handed operation.

Positioning in Confined Spaces

The slim body reaches into narrow work areas, while its rubber surface provides a secure grip.

Magnets in the base and clip allow the light to be attached to suitable metal surfaces. The clip rotates so the light can be positioned at different angles.

Battery and Charging

The integrated 3.7 V, 750 mAh lithium-ion battery provides approximately 2 hours of operation with either the main light or the spotlight. Charging takes approximately 1.5 hours.

A 1.8 m USB charging cable is included. The USB mains adapter, Item no. 03.5305, is not included.

Scope of Delivery

• 1 Scangrip MAG PEN 3 LED pen light
• 1 USB charging cable, 1.8 m

Technical Specifications

• Product number: Item no. 03.5116
• Main light source: 7 SMD LEDs
• Spotlight source: CREE XP-G2 R5
• Main light output: 80 lm
• Spotlight output: 60 lm
• Main light illuminance at 0.5 m: 110 lux
• Spotlight illuminance at 0.5 m: 1500 lux
• Main light operating time: approximately 2 hours
• Spotlight operating time: approximately 2 hours
• Battery: 3.7 V, 750 mAh lithium-ion
• Charging time: approximately 1.5 hours
• USB charging cable: 1.8 m, included
• Protection rating: IP20
• Weight: 98 g
