Silentlager Installation Tool Set for Fiat Rear Axle Bushings

Price: €69.50 135.93лв.

Code:

8464
Weight:

2.442 Kgs

Overview:
✔ Professional tool set for rear axle bushing installation
✔ Designed for Fiat and Lancia rear axle silent blocks
✔ Suitable for multiple OEM rear axle bushing references
✔ Enables controlled and precise installation without damage
✔ Includes spindle, pressure pieces, and bearing-supported nut
✔ Suitable for workshop and professional repair use

Silentlager Installation Tool Set for Fiat Rear Axle Bushings

Send to friend

Rate this product

This tool set is designed for the installation of rear axle carrier bushings (silent blocks) on selected Fiat and Lancia vehicles. It enables safe and precise fitting of the bushings directly on the rear axle assembly, helping to prevent damage during installation.

Vehicle Compatibility

Suitable for:

Fiat Stilo (2001–2007)
Fiat Bravo (from 2007)
Lancia Delta (from 2008)

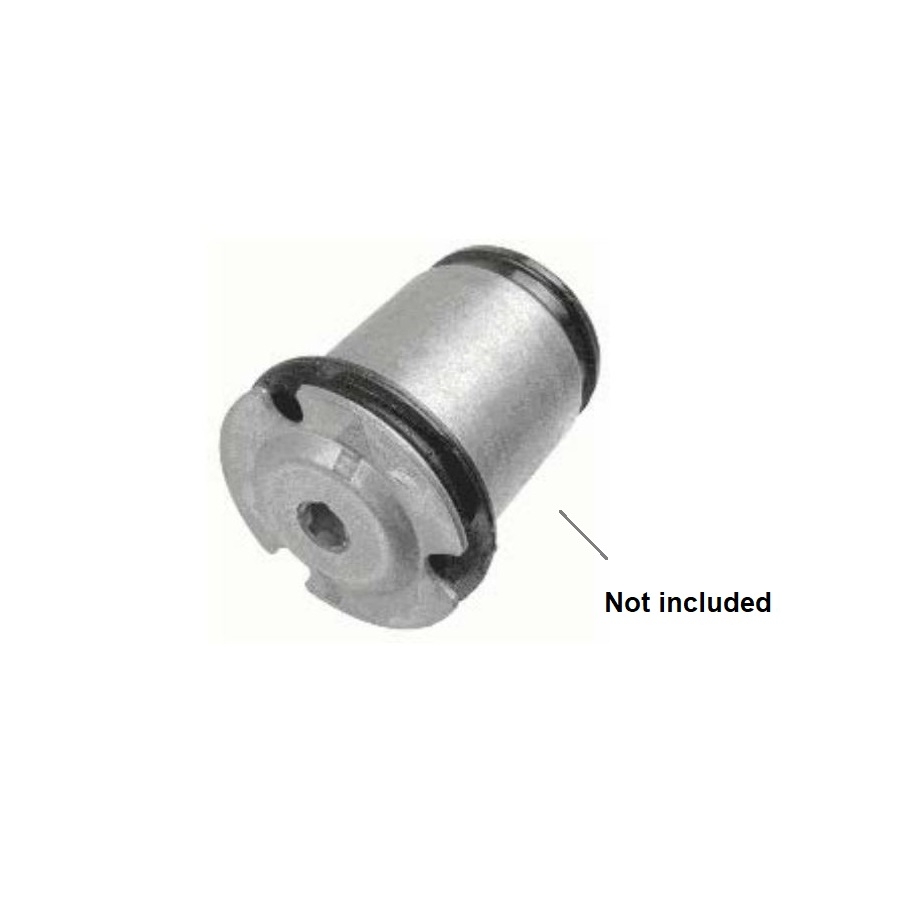

Compatible Rear Axle Bushings

Designed for installation of rear axle bushings such as:

OEM 50700796
OEM 50702649
OEM 50706312
OEM 50706505
OEM 51795336
OEM 51812443
OEM 51840600

Technical Specifications

Pressure piece with recess and 3 locating pins
Pressure piece dimensions: Ø 79 × 68 mm
Spindle: M12 × 1.75
Bearing-supported nut
Spindle length: 255 mm
Drive size: 19 mm external hexagon

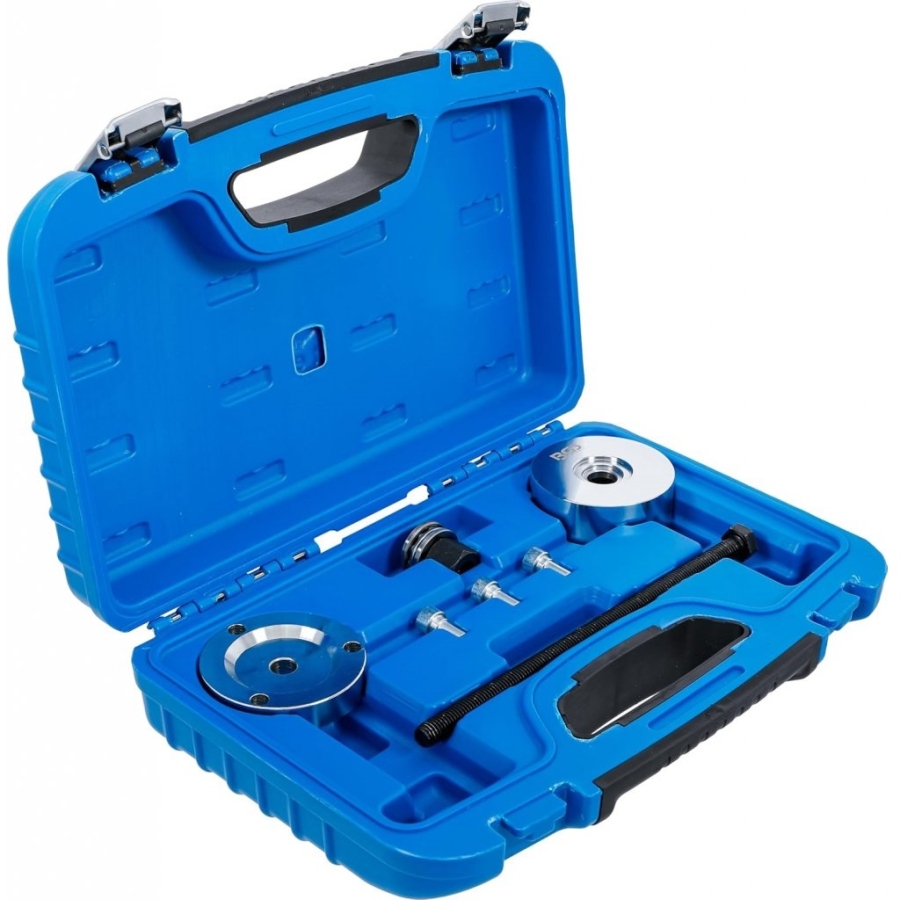

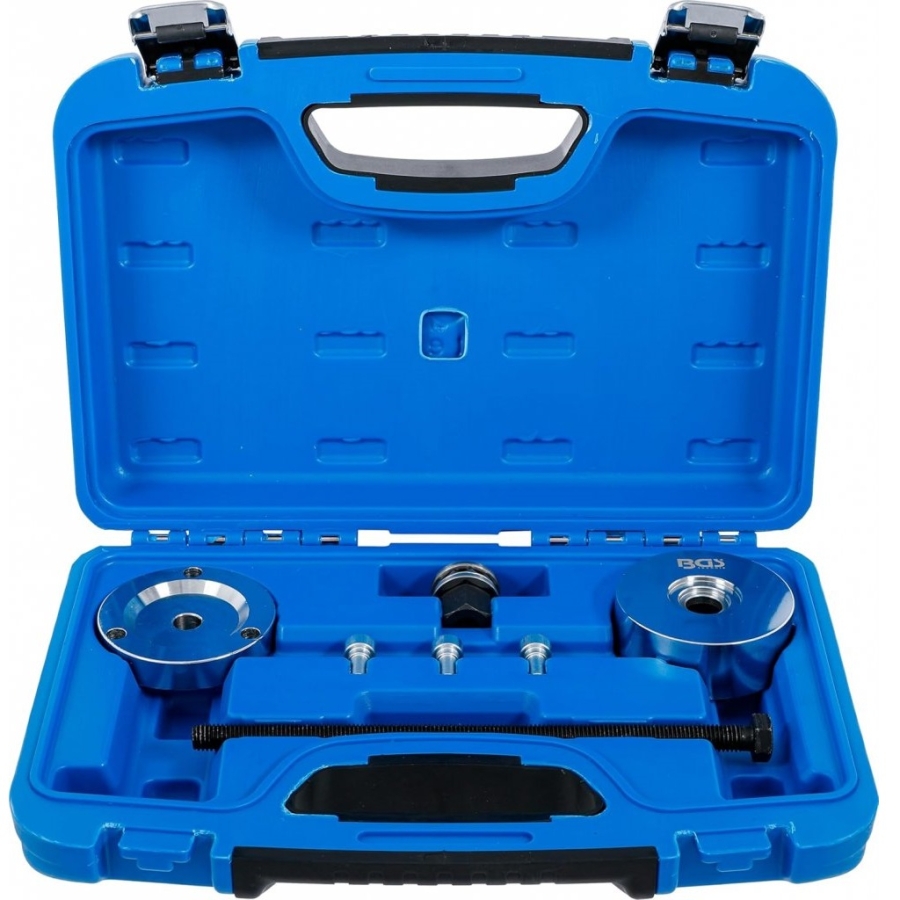

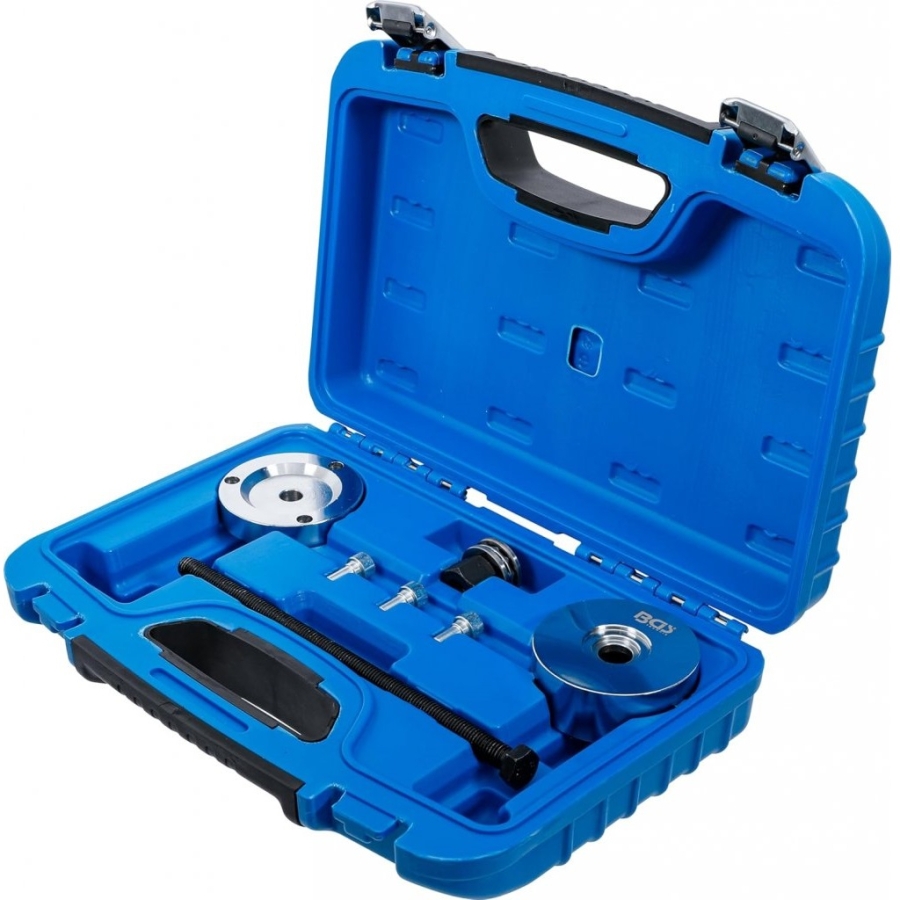

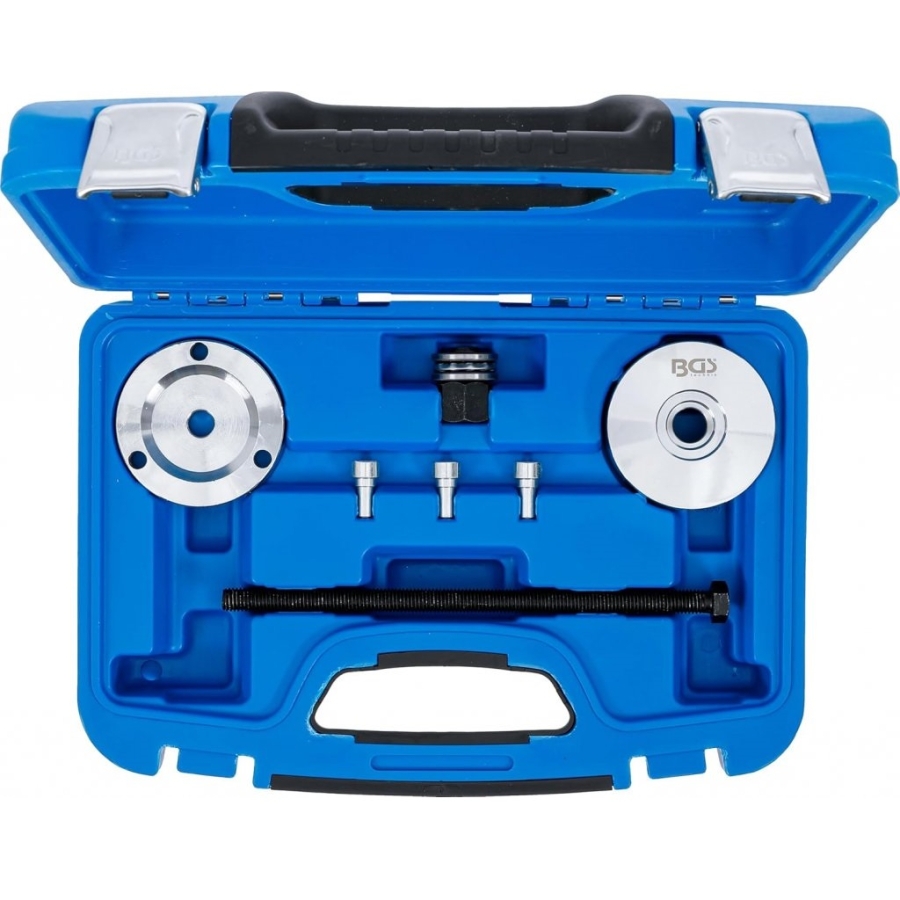

Package Contents

Pressure piece with recess and 3 locating pins
Pressure piece Ø 79 × 68 mm
Spindle M12 × 1.75 with bearing-supported nut, length 255 mm
19 mm external hexagon drive

Suitable for installing rear axle silent blocks on selected Fiat and Lancia vehicles. OEM numbers are provided for identification purposes only.

FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.4 (198AXA1B) (90 HP, 66 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.4 16V (198AXS1B) (140 HP, 103 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.4 LPG (198AXA1B) (90 HP, 66 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.4 T-Jet (198257) (152 HP, 112 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.4 T-Jet (198AXF1B) (150 HP, 110 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.4 T-Jet (198AXG1B) (120 HP, 88 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.6 D Multijet (115 HP, 85 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.6 D Multijet (198AXH1B) (105 HP, 77 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.6 D Multijet (198AXL1B) (120 hp, 88 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.6 D Multijet (198AXM1B) (90 hp, 66 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.8 (198AXA) (131 hp, 96 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.8 16V (130 hp, 96 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.8 Flex (198211, 198251) (132 hp, 97 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.9 D Multijet (198AXB1A) (120 HP, 88 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.9 D Multijet (198AXC1B) (150 HP, 110 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.9 D Multijet (198AXD1A) (116 HP, 85 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 1.9 D Multijet (198AXE1A) (90 HP, 66 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 2.0 D Multijet (198AXN1B) (165 HP, 121 kW) FIAT BRAVO II (198_) (11.2006 - 12.2016) 2.0 D Multijet (198AXPIB) (163 HP, 120 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.2 16V (192_XA1B) (80 HP, 59 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.4 16V (192AXH1B, 192BXH1B) (95 HP, 70 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.4 16V (90 HP, 66 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.6 (136 HP, 100 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.6 16V (105 HP, 77 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.6 16V (192_XB1A) (103 HP, 76 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.8 (192BX) (122 HP, 90 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.8 16V (122 HP, 90 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.8 16V (192AXC1A, 192BXC1A) (133 HP, 98 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.8 8V (103 HP, 76 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.8 Flex (114 HP, 84 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 D Multijet (100 HP, 74 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 D Multijet (120 HP, 88 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 D Multijet (150 HP, 110 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 JTD (126 HP, 93 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 JTD (136 HP, 100 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 JTD (140 hp, 103 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 JTD (192AXS1B, 192BXS1B) (90 HP, 66 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 JTD (192_XE1A) (115 HP, 85 kW) FIAT STILO (192_) (10.2001 - 11.2010) 1.9 JTD (192_XF1A) (80 HP, 59 kW) FIAT STILO (192_) (10.2001 - 11.2010) 2.4 20V (167 HP, 123 kW) FIAT STILO (192_) (10.2001 - 11.2010) 2.4 20V (192_XD1A, 192AXD12) (170 HP, 125 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.4 16V (90 HP, 66 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.4 16V (95 HP, 70 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.6 16V (103 HP, 76 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.6 16V (105 HP, 77 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.8 (103 HP, 76 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.8 (122 HP, 90 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.8 16V (133 HP, 98 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.8 Flex (114 HP, 84 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 D (90 HP, 66 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 D Multijet (100 HP, 74 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 D Multijet (120 HP, 88 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 D Multijet (192DXT1B) (150 HP, 110 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 JTD (115 HP, 85 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 JTD (126 hp, 93 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 JTD (136 HP, 100 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 JTD (140 HP, 103 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 1.9 JTD (80 HP, 59 kW) FIAT STILO Multi Wagon (192_) (01.2003 - 08.2008) 2.4 20V (19245ZO) (167 HP, 123 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.4 (192DXH1B) (95 HP, 70 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.6 (192DXB1A) (136 HP, 100 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.6 (192DXR1A) (105 HP, 77 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.9 JTD (192DXE1A) (116 HP, 85 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.9 JTD (192DXF1A) (80 HP, 59 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.9 JTD (192DXG1B) (126 HP, 93 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.9 JTD (192DXG1B) (136 HP, 100 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.9 JTD (192DXG1B) (140 HP, 103 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.9 JTD (192DXS1A) (120 HP, 88 kW) FIAT STILO VAN (192_) (10.2001 - 08.2008) 1.9 JTD (192DXT1B) (150 HP, 110 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.4 (844.AXA1A) (120 HP, 88 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.4 (844.AXB1A) (150 HP, 110 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.4 16V (844.AXL1A) (140 HP, 103 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.4 Bifuel (844.AXA1A) (120 HP, 88 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.6 D Multijet (844.AXC11, 844.AXC1A) (120 HP, 88 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.6 D Multijet (844.AXF11, 844.AXF1A) (116 HP, 85 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.6 D Multijet (844.AXP1A) (105 HP, 77 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.8 (844.AXH12) (200 HP, 147 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 1.9 D Multijet (844.AXE1A) (190 HP, 140 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 2.0 D Multijet (844.AXD1A, 844.AXM1A) (165 HP, 121 kW) LANCIA DELTA III (844_) (08.2008 - 08.2014) 2.0 D Multijet (844.AXG1A, 844.AXN1A) (163 HP, 120 kW)
