Solder Seal Wire Connector Assortment with Heat Shrink Tubing – 30 pcs.

This assortment contains 30 solder seal wire connectors for joining and insulating cable ends. Each connector consists of a transparent heat-shrink sleeve with a color-coded ring and an integrated solder ring.

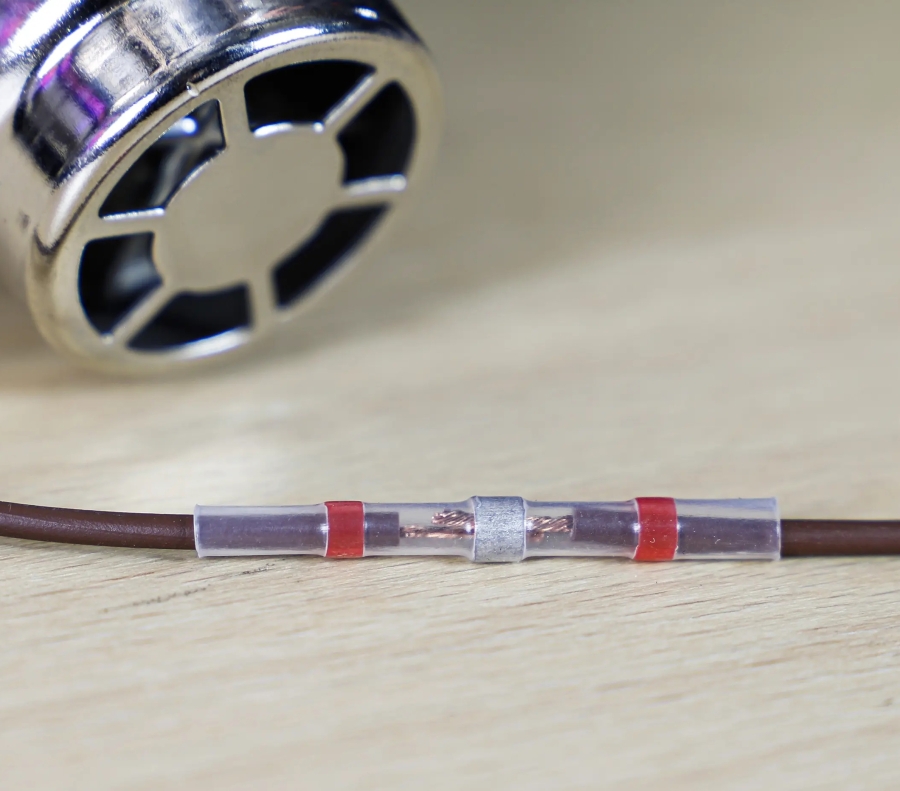

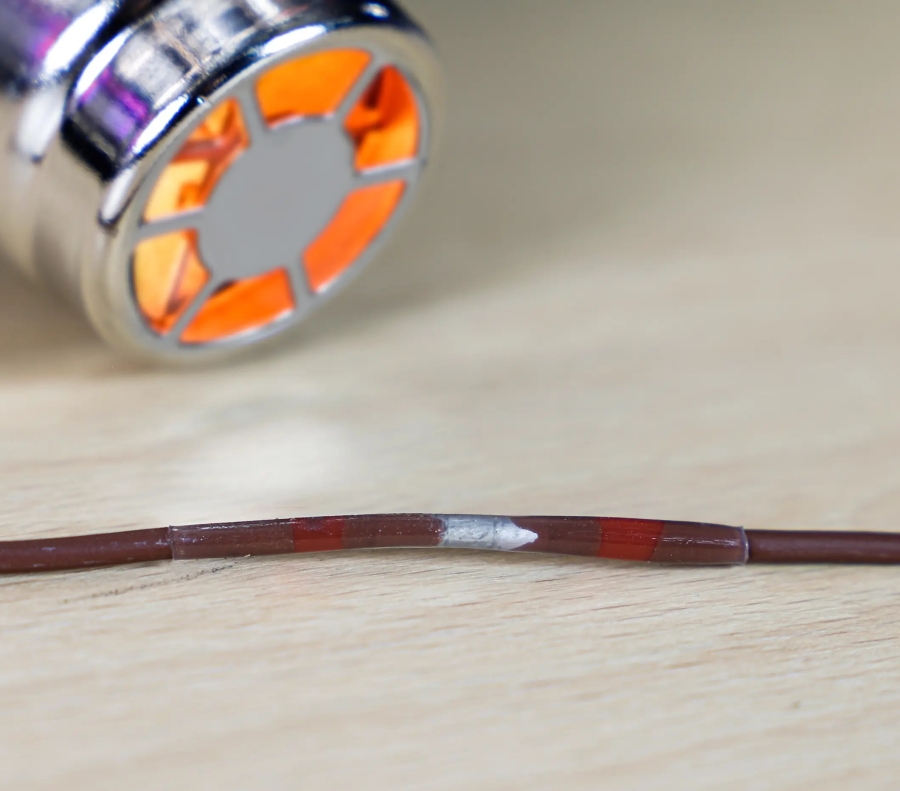

When heated with a suitable hot-air tool, the solder inside the connector melts and joins the cable ends while the sleeve shrinks around the connection. Soldering and shrinking are therefore completed in a single heating operation.

Areas of Application

The solder seal connectors are suitable for use in:

• Automotive applications
• Railway applications
• Watercraft and marine applications
• Aerospace applications
• Electrical power systems
• Electronics industry

Mechanical Strength and Protection

The connectors provide high tensile and elongation strength. When correctly installed, the finished connection has an IP67 protection rating.

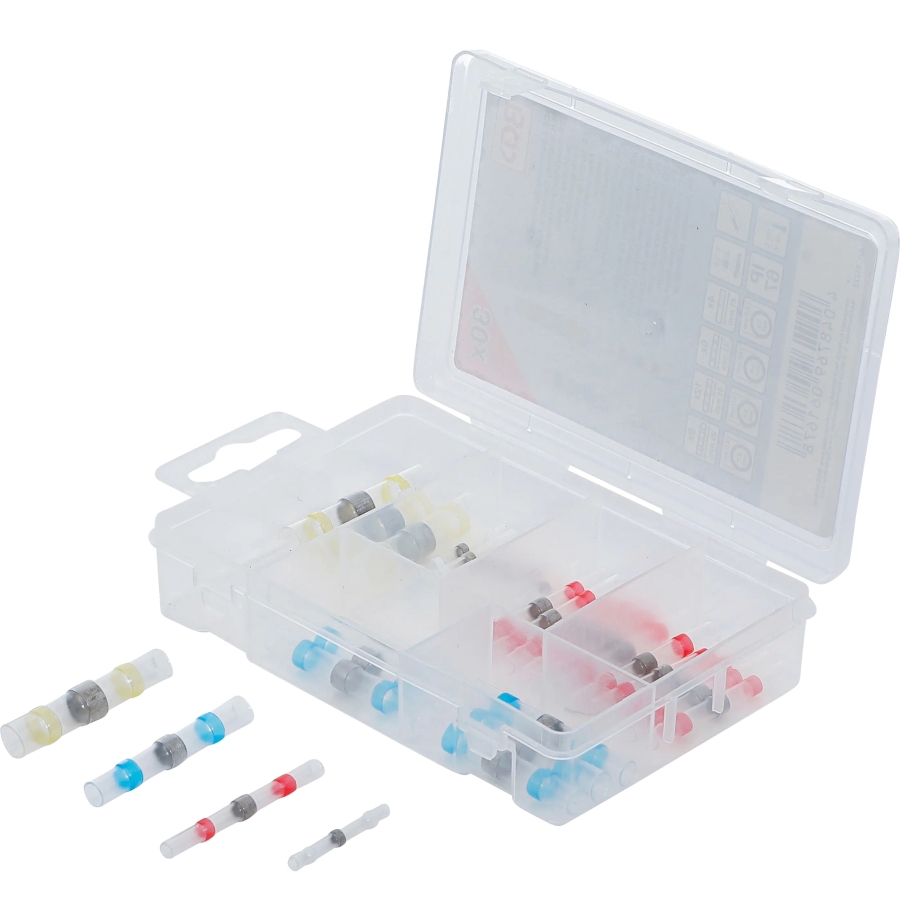

The different connector sizes are color-coded for easy identification and are supplied in a compartmented organizer case.

Included

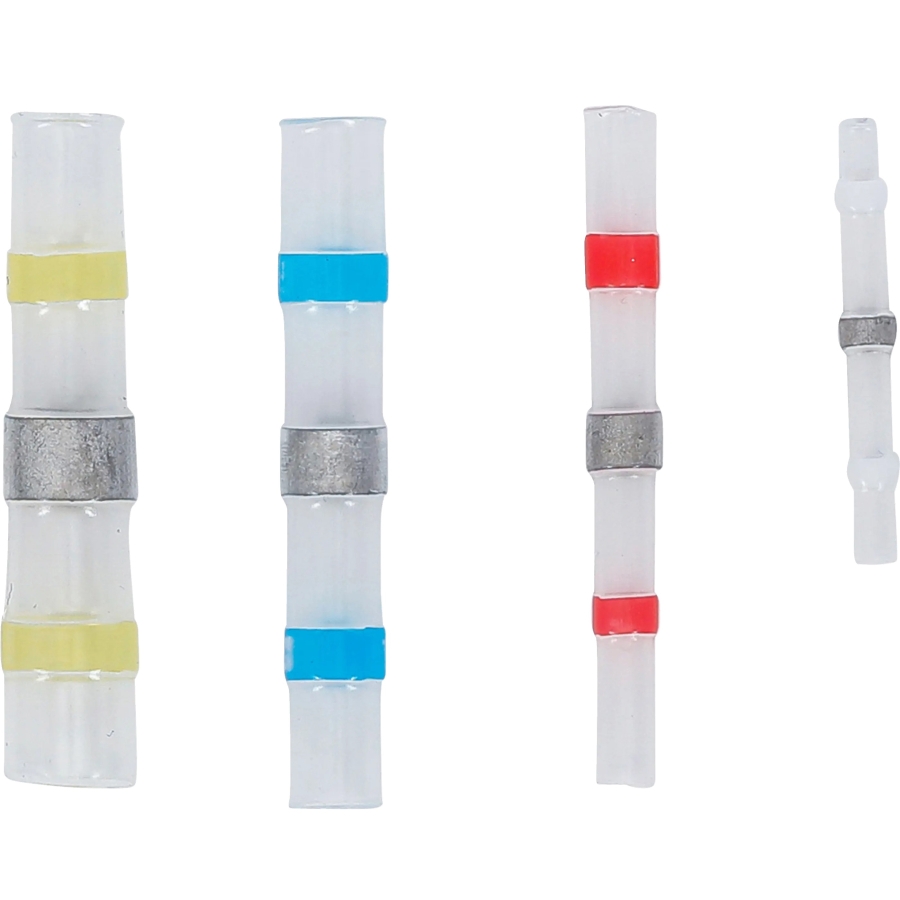

• 8 white solder seal connectors, 2.0 mm inside diameter, 2.5 mm outside diameter, 25 mm length
• 12 red solder seal connectors, 2.5 mm inside diameter, 3.0 mm outside diameter, 41 mm length
• 6 blue solder seal connectors, 5.0 mm inside diameter, 5.5 mm outside diameter, 41 mm length
• 4 yellow solder seal connectors, 5.5 mm inside diameter, 6.0 mm outside diameter, 41 mm length

Technical Data

• Connection method: Simultaneous soldering and heat shrinking
• Heating method: Hot-air tool
• Protection rating: IP67
• Sleeve: Transparent and heat-shrinkable
• Size identification: Color-coded rings
• Packaging: Compartmented organizer case
• Contents: 30 pcs.
