Spark Plug Thread Repair Set M14 × 1.25 mm, 5 pcs.

This five-piece repair set is designed for restoring damaged M14 × 1.25 mm spark plug threads.

The supplied HSS thread repair tap features a 17 mm external hex drive. Four flanged thread inserts in different lengths allow the suitable insert to be selected according to the depth of the original spark plug thread.

Applications

• Repairing damaged M14 spark plug threads
• Restoring worn spark plug mounting threads
• Selecting the appropriate insert according to the thread depth

Technical Data

• Spark plug thread: M14 × 1.25 mm
• Thread tap material: HSS
• Thread tap drive: external hex, 17 mm
• Insert lengths: 9.7, 11.0, 13.0 and 19.1 mm
• Flange thickness: 1.0 mm
• Flange diameter: 17.9 mm
• Number of pieces: 5

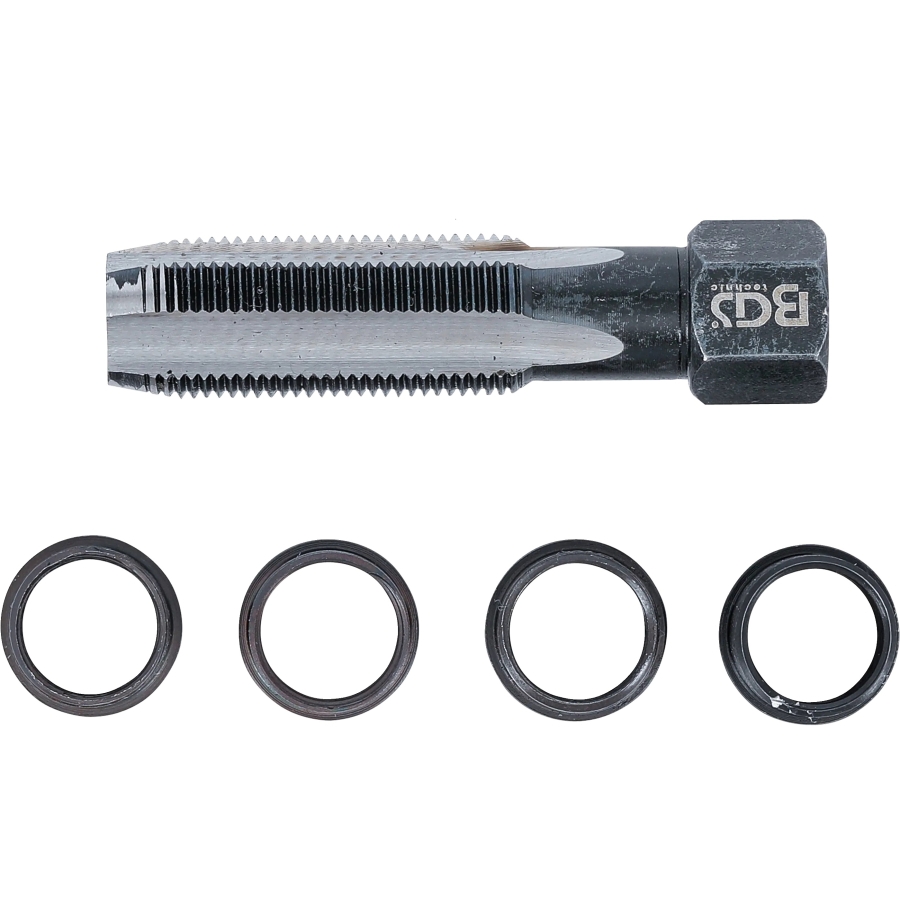

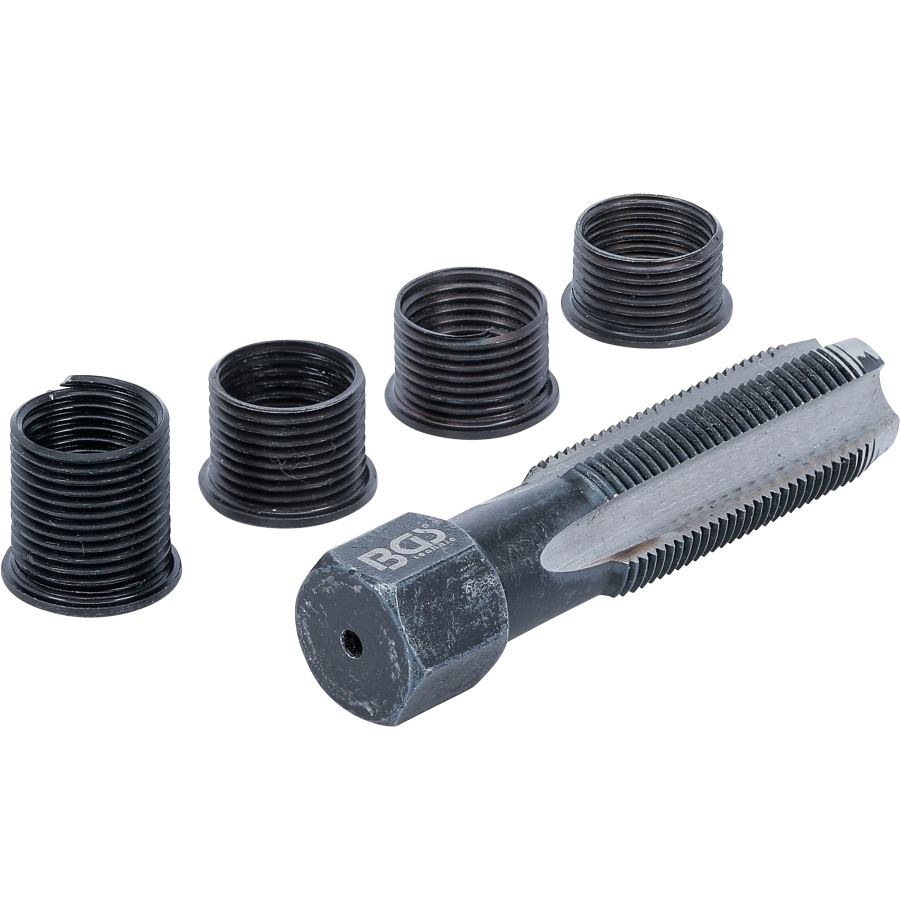

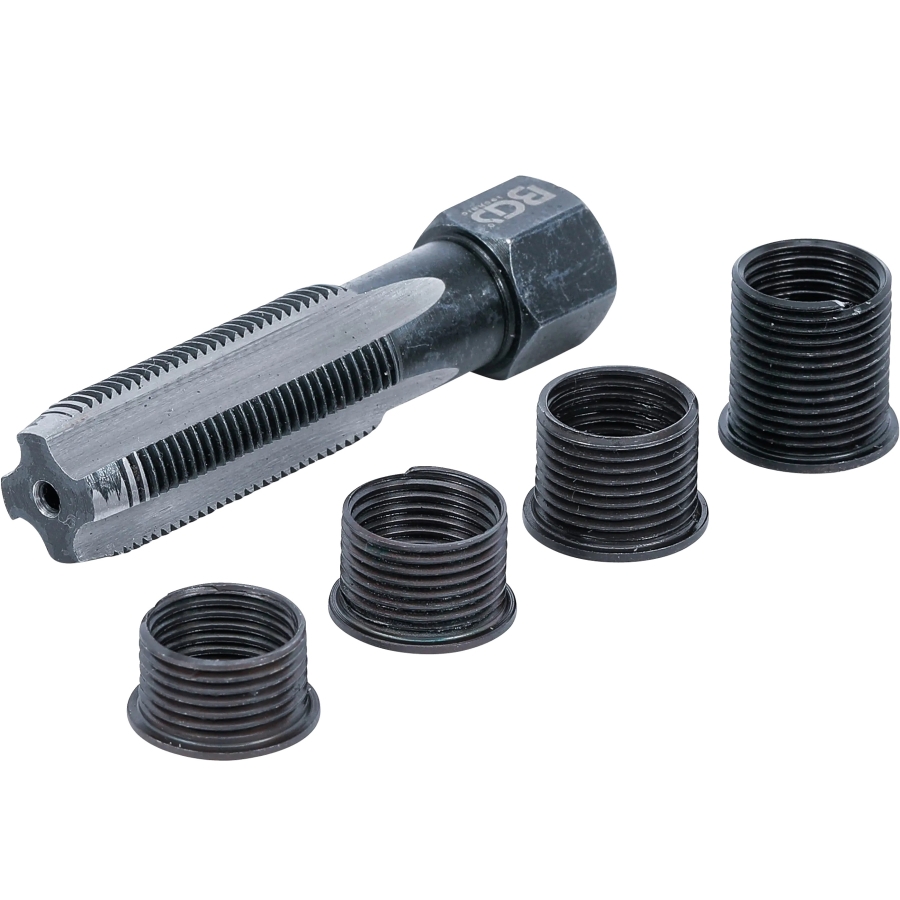

Scope of Delivery

• 1 × HSS thread repair tap with 17 mm external hex drive
• 1 × flanged thread insert, length 9.7 mm
• 1 × flanged thread insert, length 11.0 mm
• 1 × flanged thread insert, length 13.0 mm
• 1 × flanged thread insert, length 19.1 mm
