Special Tool for S-Tronic, Multitronic & CVT Clutch and Input Shaft Packages, as VAG T40123B, T40050

Price: €108.50 212.21лв.

Code:

123280
Weight:

5.040 Kgs

Overview:
✔ Professional special tool for S-Tronic, Multitronic, and CVT transmissions
✔ Designed for removal and installation of clutch and input shaft packages
✔ Prevents damage during transmission disassembly procedures
✔ Suitable for Audi DSG, S-Tronic, and Multitronic gearboxes
✔ Improved design for compatibility with additional transmission variants
✔ Allows controlled extraction using spindle pressure
✔ Supports safer and more comfortable handling of heavy clutch assemblies
✔ item no. compatible references: as VAG T40123B, T40050

Special Tool for S-Tronic, Multitronic & CVT Clutch and Input Shaft Packages, as VAG T40123B, T40050

Send to friend

Rate this product

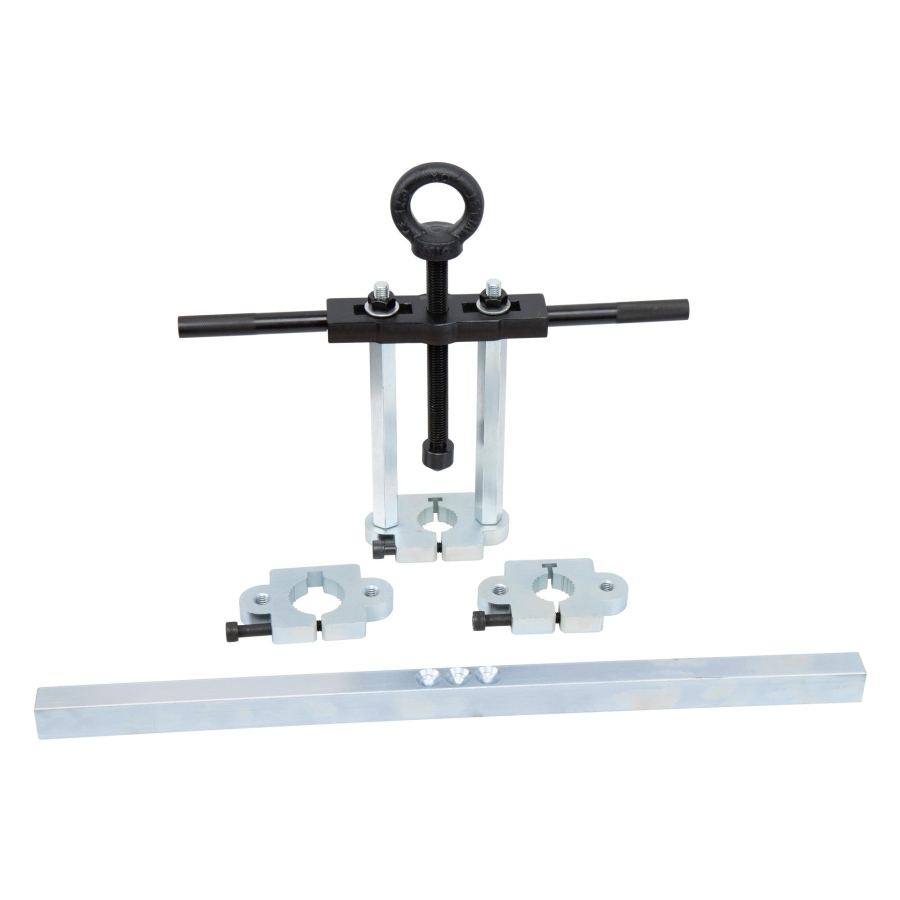

Specialized tool designed for the removal and installation of clutch packages in CVT and S-Tronic transmissions, as well as input shaft assemblies in Audi Multitronic gearboxes.

The sealing O-rings often hold the clutch and shaft assemblies tightly in position. Using unsuitable tools or levering methods may lead to transmission damage or deformation of components.

Due to the considerable weight of the clutch assemblies, the use of this tool significantly improves handling and allows safer removal procedures.

The revised tool design has been optimized to support a wider range of transmission variants compared to the original OE tool.

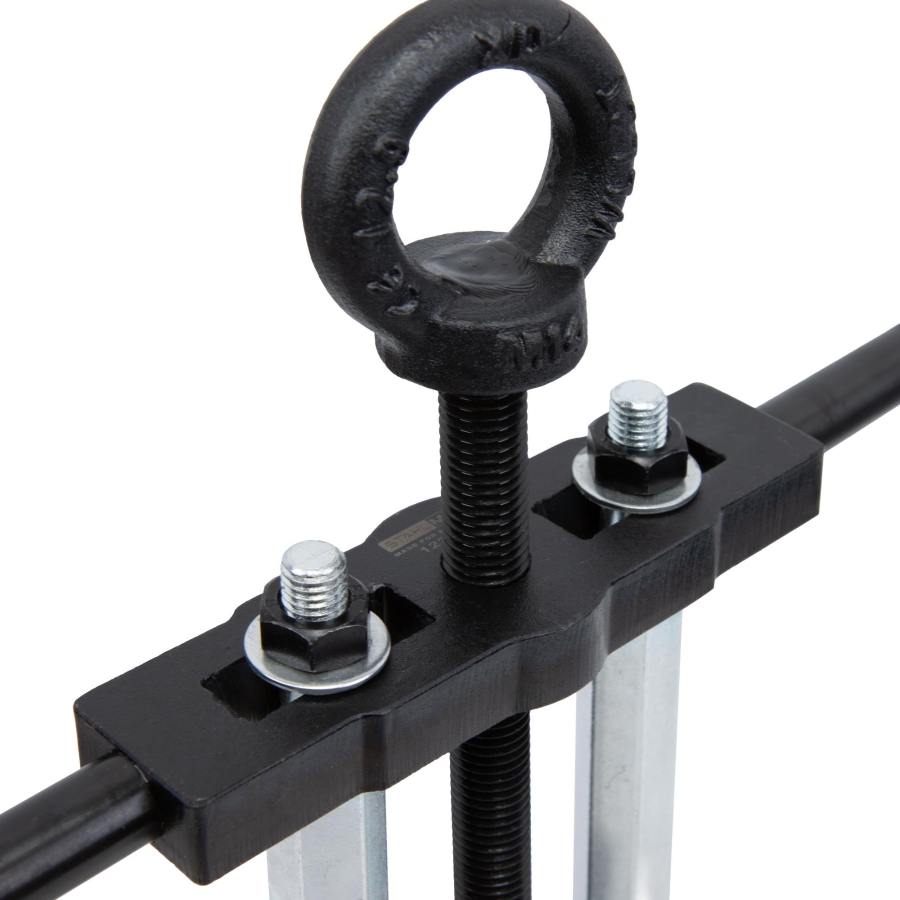

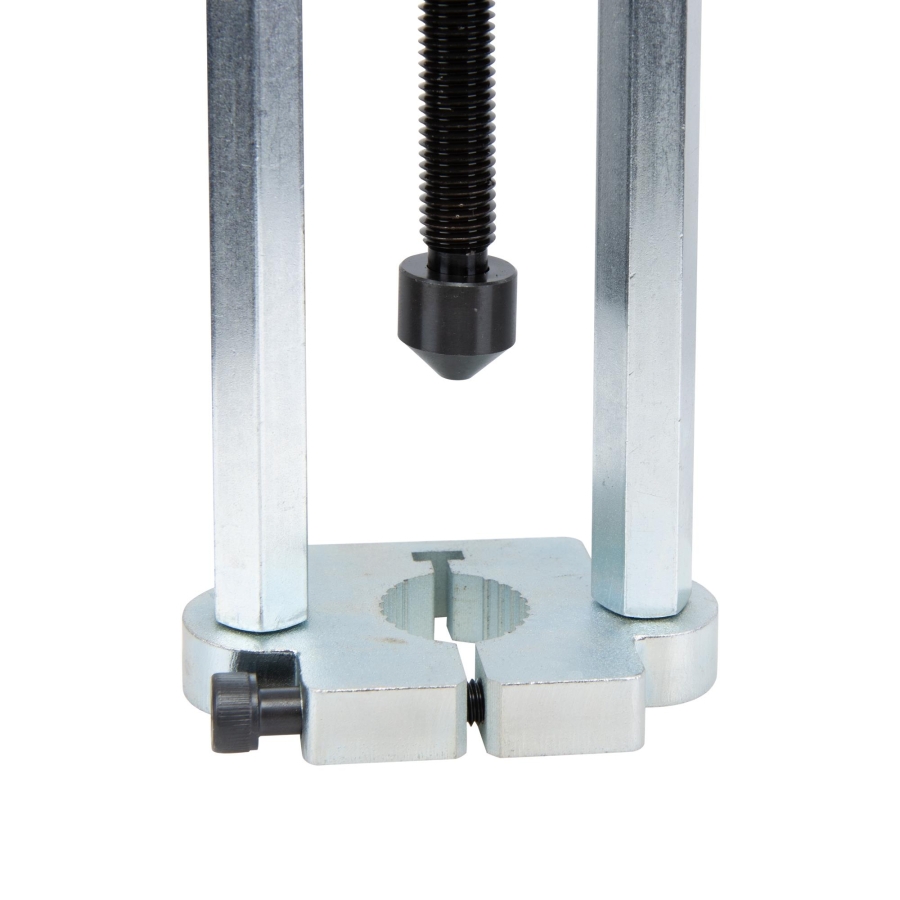

The spindle mechanism allows the clutch package to be pressed out in a controlled manner before removal using an engine crane or manual lifting.

Suitable for professional workshop transmission repair and overhaul operations.

Recommended Additional Tools

For safe storage and measurement of the clutch assembly installation height, the use of the support stand item no. 123279, to be used as T40099, is recommended.

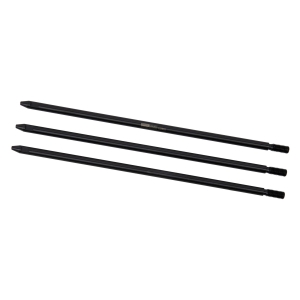

For installation procedures, guide bolts item no. 122953, to be used as T40288, are recommended.

Compatible Transmission Codes

7-Speed CVT / S-Tronic

0AT, 0B5, 0B6, 0BQ, 0CK, 0CL, 0CJ, 0CW, 0DK, 0DN, 0DP, 0HL, 09E

Multitronic

01J, 0AN

Compatible Vehicles

Audi A4
Audi A5
Audi A6
Audi A7
Audi A8
Audi Q3
Audi Q5

Compatible Clutch Package Reference Numbers

VAG 0CK141030H
VAG 0CK141030L
VAG 0CK141030M
VAG 0CK141030N

Reference Numbers

To be used as:

VAG T40123B (includes T40123, T40123/1, T40123/2)
VAG T40050

Product Highlights

✔ Professional-grade Stahlmaxx quality tool
✔ Wide coverage of transmission variants
✔ Improved handling during servicing procedures

Original numbers are used for comparison purposes only. This is not an original manufacturer tool.

AUDI A4 Allroad B9 (8WH, 8WJ) (01.2016 - 10.2019) 2.0 TDI quattro (163 HP, 120 kW) AUDI A4 Allroad B9 (8WH, 8WJ) (01.2016 - 10.2019) 2.0 TDI quattro (190 HP, 140 kW) AUDI A4 Allroad B9 (8WH, 8WJ) (01.2016 - 10.2019) 2.0 TFSI Mild Hybrid quattro (252 HP, 185 kW) AUDI A4 Allroad B9 (8WH, 8WJ) (01.2016 - 10.2019) 2.0 TFSI quattro (249 HP, 183 kW) AUDI A4 Allroad B9 (8WH, 8WJ) (01.2016 - 10.2019) 2.0 TFSI quattro (252 HP, 185 kW) AUDI A4 Allroad B9 (8WH, 8WJ) (01.2016 - 10.2019) 3.0 TDI quattro (218 HP, 160 kW) AUDI A4 Allroad B9 (8WH, 8WJ) (01.2016 - 10.2019) 45 TFSI Mild Hybrid quattro (245 HP, 180 kW) AUDI A4 Allroad B9 (8WH, 8WJ) (01.2016 - 10.2019) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TDI (190 HP, 140 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TDI quattro (163 HP, 120 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TDI quattro (190 HP, 140 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TFSI (249 HP, 183 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TFSI (252 HP, 185 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TFSI Mild Hybrid (252 HP, 185 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TFSI quattro (249 HP, 183 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 2.0 TFSI quattro (252 HP, 185 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 3.0 TDI (218 HP, 160 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 3.0 TDI quattro (218 HP, 160 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 35 TFSI Mild Hybrid (150 HP, 110 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 40 TFSI Mild Hybrid (190 HP, 140 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 40 TFSI Mild Hybrid (204 HP, 150 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 40 TFSI Mild Hybrid quattro (204 HP, 150 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 45 TFSI Mild Hybrid (245 HP, 180 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 45 TFSI Mild Hybrid quattro (245 HP, 180 kW) AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TDI (190 HP, 140 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TDI quattro (163 HP, 120 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TDI quattro (190 HP, 140 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI (249 HP, 183 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI (252 HP, 185 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI Mild hybrid (252 hp, 185 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI Mild Hybrid quattro (252 HP, 185 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI quattro (249 HP, 183 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 2.0 TFSI quattro (252 HP, 185 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 3.0 TDI (218 HP, 160 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 3.0 TDI quattro (218 HP, 160 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 35 TFSI Mild Hybrid (150 HP, 110 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 40 TFSI Mild Hybrid (190 HP, 140 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 40 TFSI Mild Hybrid (204 HP, 150 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 40 TFSI Mild Hybrid quattro (204 HP, 150 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 45 TFSI Mild Hybrid (245 HP, 180 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 45 TFSI Mild Hybrid quattro (245 HP, 180 kW) AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TDI (190 HP, 140 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TDI quattro (190 HP, 140 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TFSI (190 HP, 140 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TFSI (252 HP, 185 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TFSI Mild Hybrid (252 HP, 185 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TFSI Mild Hybrid quattro (252 HP, 185 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TFSI quattro (249 HP, 183 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 2.0 TFSI quattro (252 hp, 185 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 3.0 TDI (218 HP, 160 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 3.0 TDI quattro (218 HP, 160 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 35 TFSI Mild Hybrid (150 HP, 110 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 40 TFSI Mild Hybrid (190 HP, 140 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 40 TFSI Mild Hybrid (204 HP, 150 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 40 TFSI Mild Hybrid quattro (204 HP, 150 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 45 TFSI Mild Hybrid (245 HP, 180 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 45 TFSI Mild Hybrid quattro (245 HP, 180 kW) AUDI A5 (F53, F5P) (06.2016 - 02.2020) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TDI (190 HP, 140 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TDI quattro (190 HP, 140 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TFSI (190 HP, 140 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TFSI (252 HP, 185 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TFSI Mild Hybrid (252 HP, 185 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TFSI Mild Hybrid quattro (252 HP, 185 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 2.0 TFSI quattro (252 HP, 185 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 3.0 TDI (218 HP, 160 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 3.0 TDI quattro (218 HP, 160kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 40 TFSI Mild Hybrid (190 HP, 140 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 40 TFSI Mild Hybrid (204 HP, 150 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 40 TFSI Mild Hybrid quattro (204 HP, 150 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 45 TFSI Mild Hybrid (245 HP, 180 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 45 TFSI Mild Hybrid quattro (245 HP, 180 kW) AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TDI (136 HP, 100 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TDI (190 HP, 140 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TDI quattro (190 HP, 140 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TFSI (190 HP, 140 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TFSI (252 HP, 185 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TFSI Mild Hybrid (252 HP, 185 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TFSI Mild Hybrid quattro (252 HP, 185 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TFSI quattro (249 HP, 183 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 2.0 TFSI quattro (252 HP, 185 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 3.0 TDI (218 HP, 160 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 3.0 TDI quattro (218 HP, 160 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 35 TFSI Mild Hybrid (150 HP, 110 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 40 TFSI Mild Hybrid (190 HP, 140 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 40 TFSI Mild Hybrid (204 HP, 150 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 40 TFSI Mild Hybrid quattro (204 HP, 150 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 45 TFSI Mild Hybrid (245 HP, 180 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 45 TFSI Mild Hybrid quattro (245 HP, 180 kW) AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 1.8 TFSI (190 HP, 140 kW) AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TDI (150 HP, 110 kW) AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TDI (190 HP, 140 kW) AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TFSI (252 HP, 185 kW) AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TFSI quattro (249 HP, 183 kW) AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 2.0 TFSI quattro (252 HP, 185 kW) AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 3.0 TDI (211 HP, 155 kW) AUDI A6 C7 (4G2, 4GC) (11.2010 - 09.2018) 3.0 TDI (218 HP, 160 kW) AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 1.8 TFSI (190 HP, 140 kW) AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 2.0 TDI (150 HP, 110 kW) AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 2.0 TDI (190 HP, 140 kW) AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 2.0 TFSI (252 HP, 185 kW) AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 2.0 TFSI quattro (249 HP, 183 kW) AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 2.0 TFSI quattro (252 HP, 185 kW) AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 3.0 TDI (211 HP, 155 kW) AUDI A6 C7 Avant (4G5, 4GD) (05.2011 - 09.2018) 3.0 TDI (218 HP, 160 kW) AUDI A6 C8 (4A2) (02.2018 - ) 45 TFSI Mild Hybrid (245 HP, 180 kW) AUDI A6 C8 (4A2) (02.2018 - ) 45 TFSI Mild Hybrid (265 HP, 195 kW) AUDI A6 C8 (4A2) (02.2018 - ) 45 TFSI Mild Hybrid quattro (245 HP, 180 kW) AUDI A6 C8 (4A2) (02.2018 - ) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A6 C8 Avant (4A5) (05.2018 - ) 45 TFSI Mild Hybrid (245 HP, 180 kW) AUDI A6 C8 Avant (4A5) (05.2018 - ) 45 TFSI Mild Hybrid (265 HP, 195 kW) AUDI A6 C8 Avant (4A5) (05.2018 - ) 45 TFSI Mild Hybrid quattro (245 HP, 180 kW) AUDI A6 C8 Avant (4A5) (05.2018 - ) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 1.8 TFSI (190 HP, 140 kW) AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 2.0 TFSI (252 HP, 185 kW) AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 2.0 TFSI quattro (249 HP, 183 kW) AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 2.0 TFSI quattro (252 HP, 185 kW) AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 3.0 TDI (190 HP, 140 kW) AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 3.0 TDI (211 HP, 155 kW) AUDI A7 Sportback (4GA, 4GF) (10.2010 - 05.2018) 3.0 TDI (218 HP, 160 kW) AUDI A7 Sportback (4KA) (10.2017 - ) 45 TFSI Mild Hybrid (245 HP, 180 kW) AUDI A7 Sportback (4KA) (10.2017 - ) 45 TFSI Mild Hybrid (265 HP, 195 kW) AUDI A7 Sportback (4KA) (10.2017 - ) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI A7 Sportback (4KA) (10.2017 - ) 45 TFSI mild hybrid quattro (245 HP, 180 kW) AUDI A8 (4H2, 4H8, 4HC, 4HL) (11.2009 - 01.2018) 2.0 TFSI quattro (252 HP, 185 kW) AUDI Q5 (8RB) (11.2008 - 12.2017) 2.0 TDI (190 HP, 140 kW) AUDI Q5 (FYB, FYG) (06.2016 - 11.2020) 45 TFSI Mild Hybrid quattro (265 HP, 195 kW) AUDI Q5 Sportback (FYT) (11.1994 - 07.1999) 45 TFSI quattro (265 HP, 195 kW)
