Fastening & Assembly Kit for Timing Chain Riveting Tool – for item no. 112444 / 101189

This fastening and assembly kit is designed as a replacement and refill set for timing chain riveting tools (item no. 112444 and 101189).

It includes all essential small components required for timing chain installation, such as guide pins, pulling aids, and quick connectors, ensuring uninterrupted workshop operation when original parts are worn or missing.

Kit Contents and Purpose

The set is configured to support both assembly and installation of timing chains:

• Guide tools for holding the timing chain during pressing of the chain link
• Pulling aids for connecting chain ends during installation
• Components designed for both 3 mm and 4 mm chain sizes

Key Features

• Complete refill set for timing chain riveting tools
• Covers both simplex and duplex chain applications
• Ensures efficient and precise chain assembly
• Reduces downtime caused by missing or worn components
• Professional-grade components for repeated use

Compatibility

• Only suitable for timing chain riveting tools:
  • item no. 112444
  • item no. 101189

Scope of Delivery

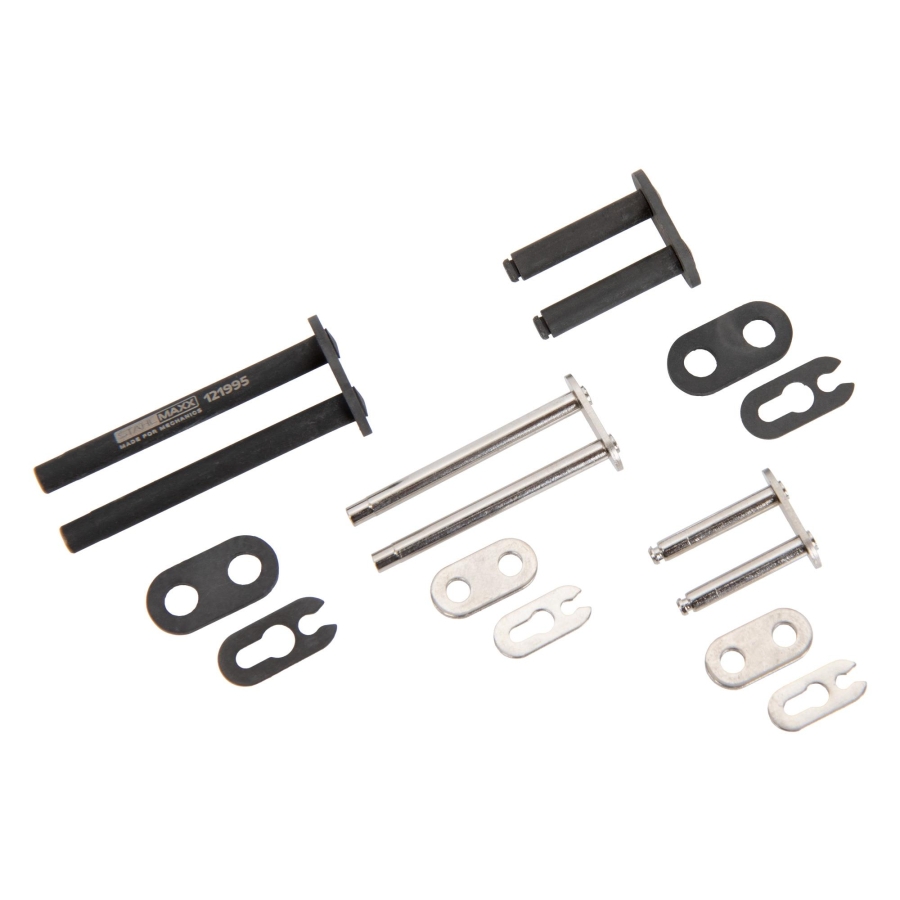

• 1 x Guide tool for holding timing chain during pressing – 3 mm
• 1 x Guide tool for holding timing chain during pressing – 4 mm
• 1 x Pulling aid set (pin, spacer, detachable chain link) – 3 mm
• 1 x Pulling aid set (pin, spacer, detachable chain link) – 4 mm

Recommended Additional Tools (not included)

• item no. 112444 – Timing chain riveting tool for simplex and duplex chains
• item no. 115693 – Bolt set for pulling timing chains (3 mm / 4 mm simplex & duplex)
