Engine Timing Chain Tool Kit for Opel 1.6 SIDI Turbo Engines (A16 / B16 / D16)

Price: €295.00 576.97лв.

Code:

999075
Weight:

2.360 Kgs

Overview:
✔ Professional timing chain tool kit for Opel 1.6 SIDI turbo engines
✔ Suitable for EcoFLEX and direct injection petrol engines
✔ Designed for timing chain replacement and engine repair
✔ Includes tools for camshaft, crankshaft and balance shaft locking
✔ Ensures precise timing alignment
✔ Ideal for workshop and professional use

Engine Timing Chain Tool Kit for Opel 1.6 SIDI Turbo Engines (A16 / B16 / D16)

Send to friend

Rate this product

This engine timing tool kit is designed for timing chain replacement and engine repair on Opel 1.6L SIDI turbo petrol engines, including EcoFLEX variants.

It allows accurate locking and positioning of camshaft, crankshaft, and balance shaft components during maintenance procedures.

Functionality

The kit enables:

Locking of camshafts during service operations
Securing crankshaft position
Locking of balance shaft gears
Fixing timing chain tensioner
Accurate alignment during timing chain replacement

Vehicle Compatibility

Suitable for the following Opel models:

Astra J
Astra K
Cascada
Insignia A
Insignia B
Zafira C

Engine Compatibility

Compatible with engines with the following codes:

A16SHT, A16XHT, B16XHT, B16SHT, B16SHL,
D16SHT, D16SHL, D16SHJ,
LVP, LWC

OEM Reference

Tools correspond to:

EN-51153, EN-50513, EN-51148, EN-51147

Torque Specifications (Reference)

(Example: Opel Zafira C D16SHJ)

Crankshaft pulley central bolt: 250 Nm + 45°
Camshaft sprocket: 65 Nm + 128° ±7°
Cylinder head cover: 9 Nm

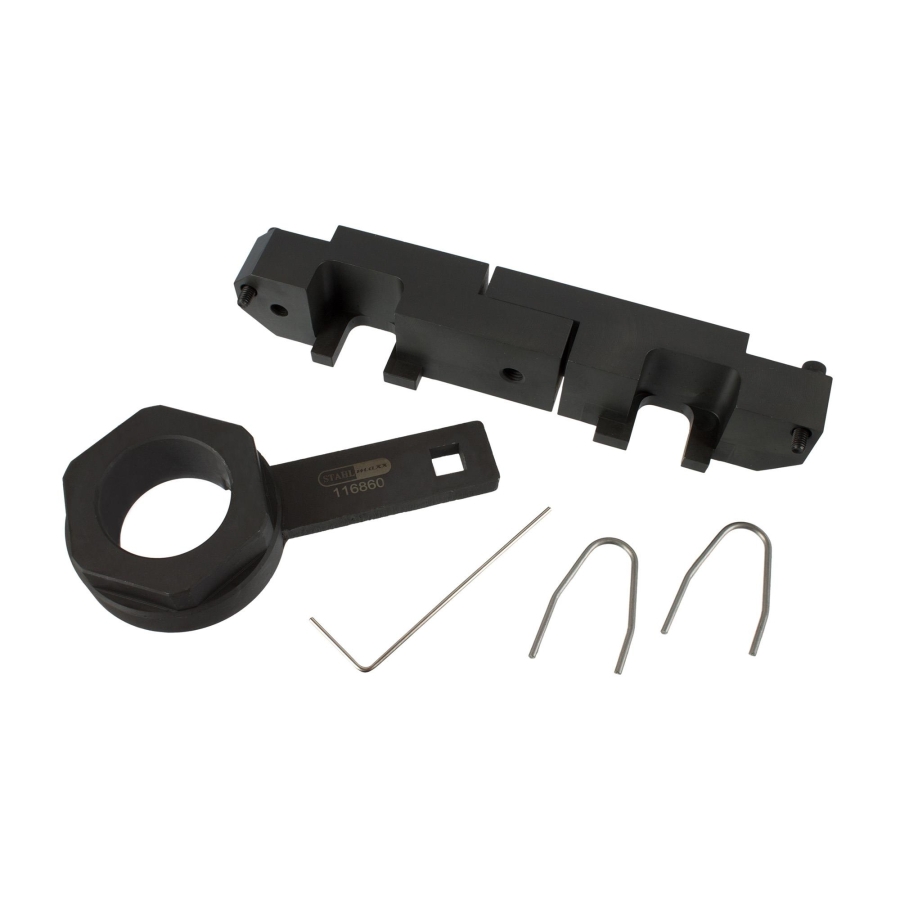

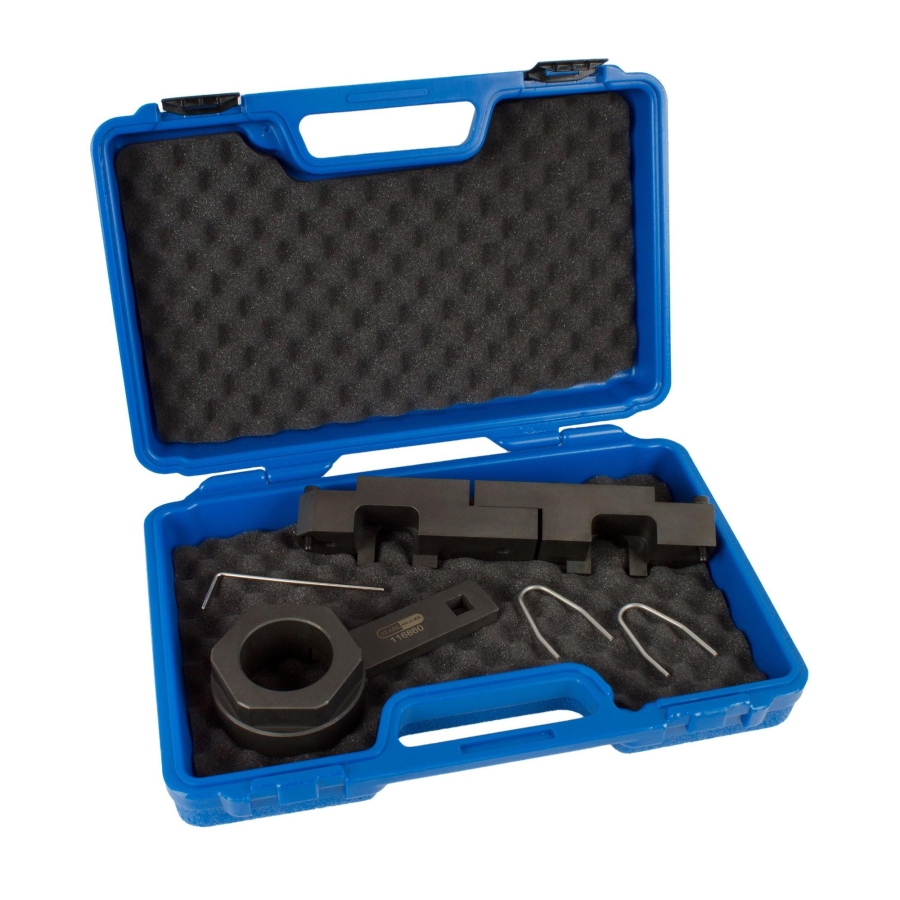

Included Tools

The kit includes:

Balance shaft gear locking tool (2 pcs), use as EN-51153 (item.no. 116861)
Timing chain tensioner pin, use as EN-50513 (item.no. 116862)
Camshaft holding and alignment tools, use as EN-51148 (item.no. 115414)
Crankshaft pulley holding tool, use as EN-51147 (item.no. 116860)

Technical Notes

This kit includes all essential tools required for locking and aligning timing components during timing chain replacement or engine overhaul.

OEM numbers are provided for reference purposes only. This product is not original equipment.

Usage Instructions

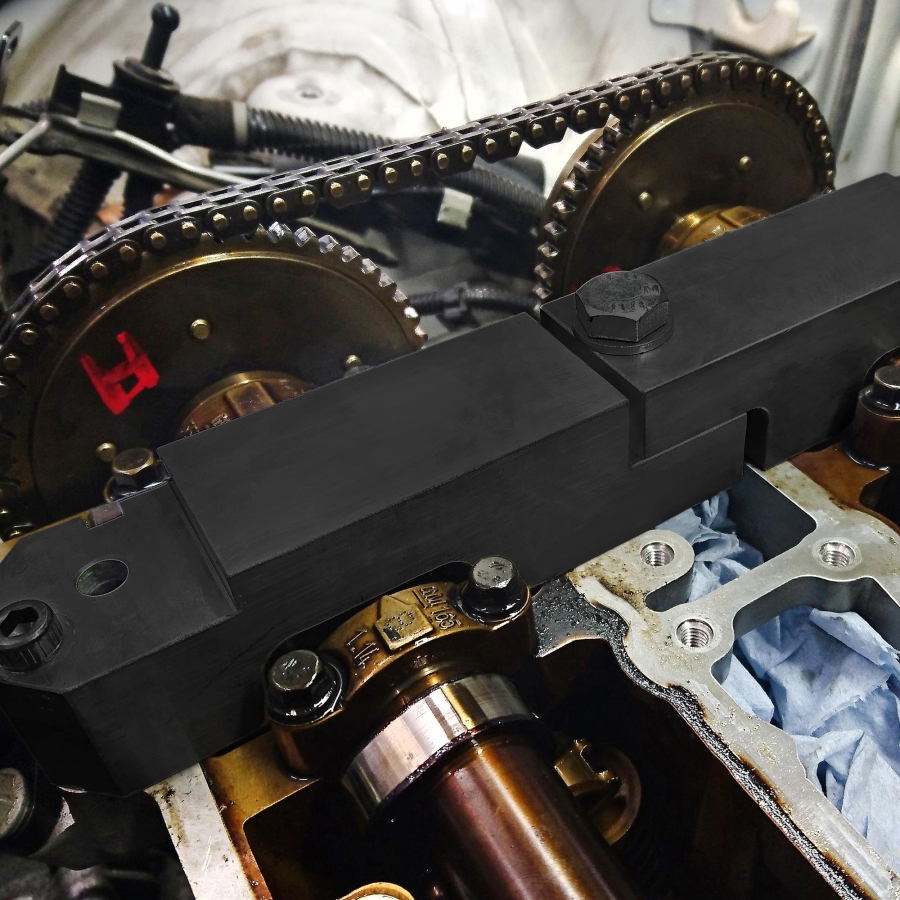

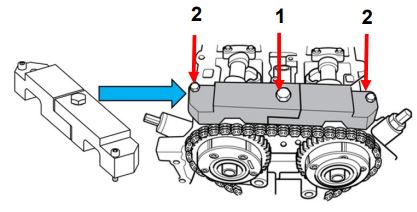

Camshaft Alignment Tool, equivalent to OEM EN-51148

This tool consists of two camshaft locking/alignment brackets, which are installed together on the engine.

Rotate cylinder 1 to Top Dead Center (TDC)
Ensure that the timing marks on the crankshaft and camshaft sprockets are correctly aligned (refer to manufacturer specifications)
Install the camshaft alignment tool as shown
Tighten the mounting bolts hand-tight in the specified sequence

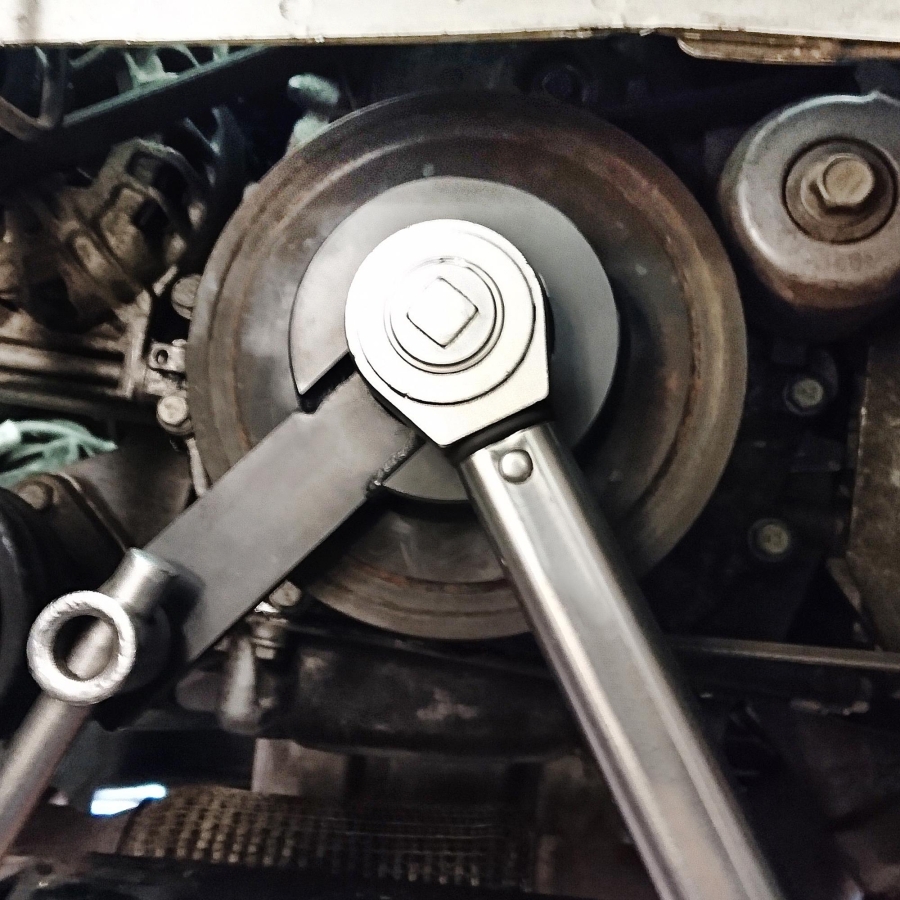

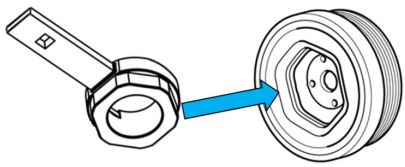

Crankshaft Pulley Holding Tool, equivalent to OEM EN-51147

This tool is used to hold the crankshaft pulley while loosening and tightening the pulley retaining bolt.

Always follow the manufacturer’s specified torque values
Use a 12.5 mm (1/2") breaker bar or equivalent drive tool

Balance Shaft Holding Tools, equivalent to OEM EN-51153

The balance shaft sprockets and chain are located on the transmission side of the engine. Access requires removal of the clutch assembly and flywheel.

Set cylinder 1 to Top Dead Center (TDC)
Install the camshaft alignment tool as previously described
Verify that the balance shaft timing marks are correctly aligned
Install the balance shaft holding tools according to manufacturer instructions to secure their position
