Engine Timing Chain Tool Set for VAG 1.2 TSI / TFSI

This engine timing tool set is designed for precise locking of the camshaft and crankshaft on VAG 1.2 TSI and TFSI engines during timing chain replacement and engine service procedures.

It ensures correct synchronization of engine timing components, preventing misalignment and potential engine damage during maintenance.

Vehicle Compatibility

Suitable for a wide range of VAG vehicles including:

• Audi: A1, A3, A3 Sportback, A3 Cabriolet
• Volkswagen: New Beetle, Caddy, Golf, Golf Plus, Golf Cabriolet, Golf Variant, Jetta, Polo, Touran
• Skoda: Fabia, Fabia Combi, Rapid, Octavia, Octavia Combi, Roomster, Yeti
• Seat: Altea, Altea XL, Ibiza, Ibiza Sportcoupe, Leon, Toledo

Engine Compatibility

Compatible with the following engine codes:

• CBZA
• CBZB
• CBZC
• CYVD

Tool Functions

The set allows:

• Accurate locking of camshaft and crankshaft
• Secure positioning during timing chain service
• Prevention of timing misalignment
• Safe and efficient engine maintenance

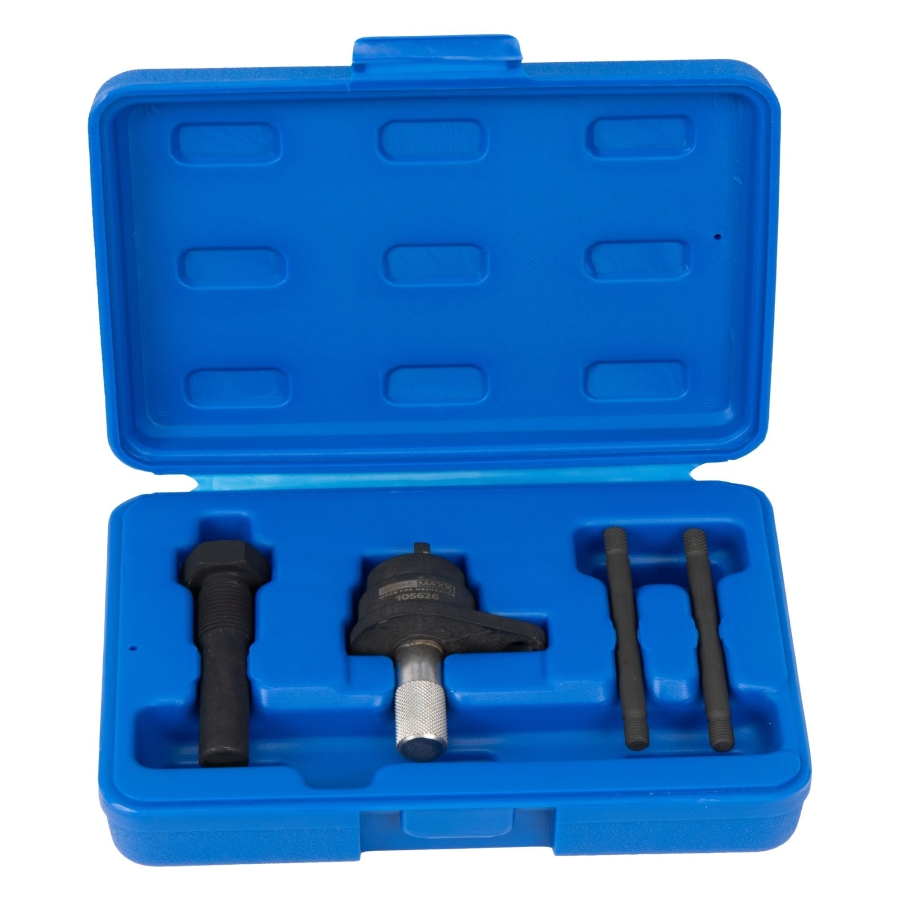

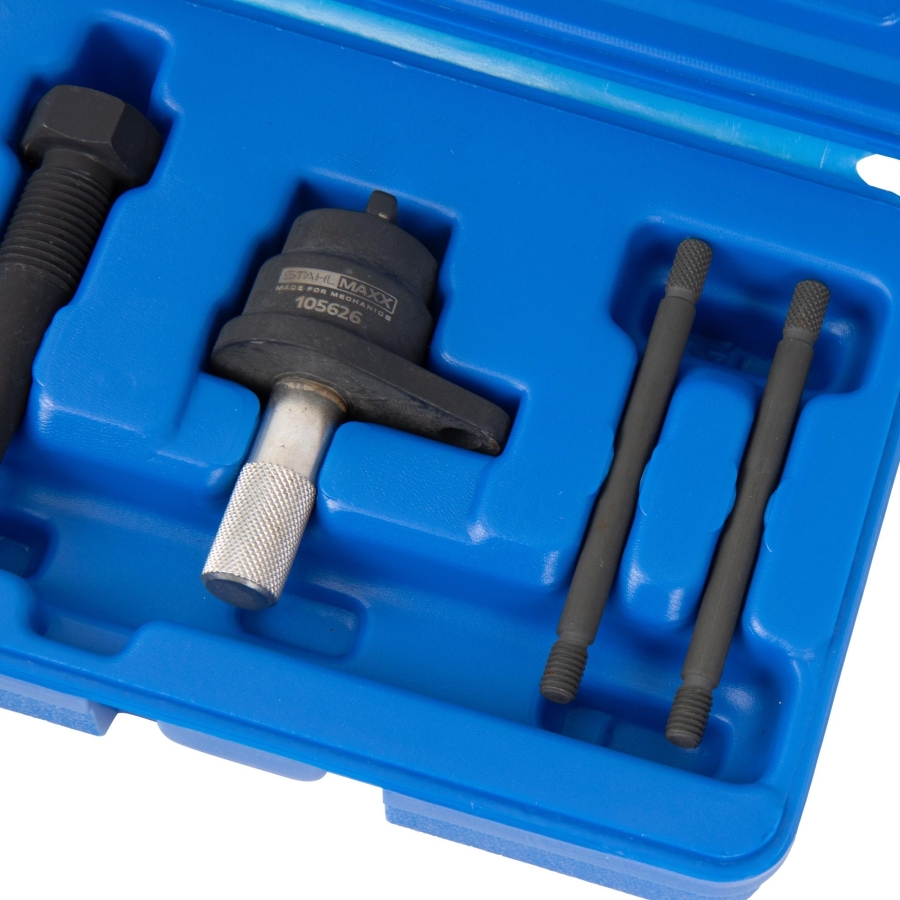

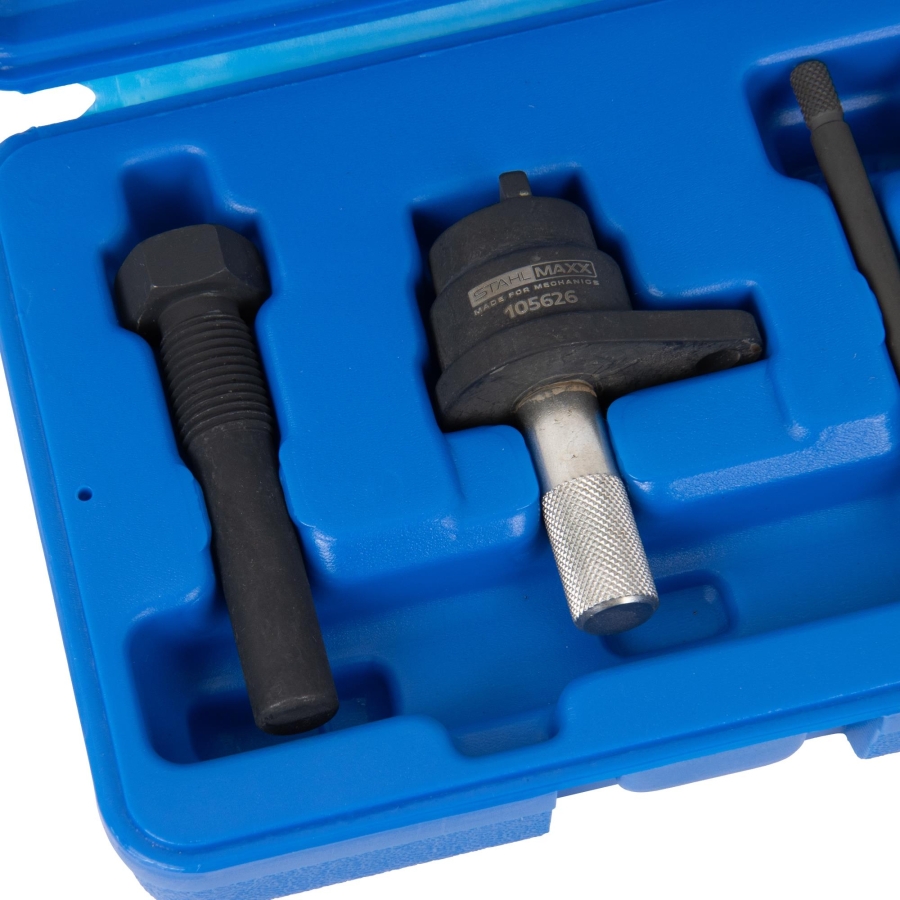

Contents of the Set

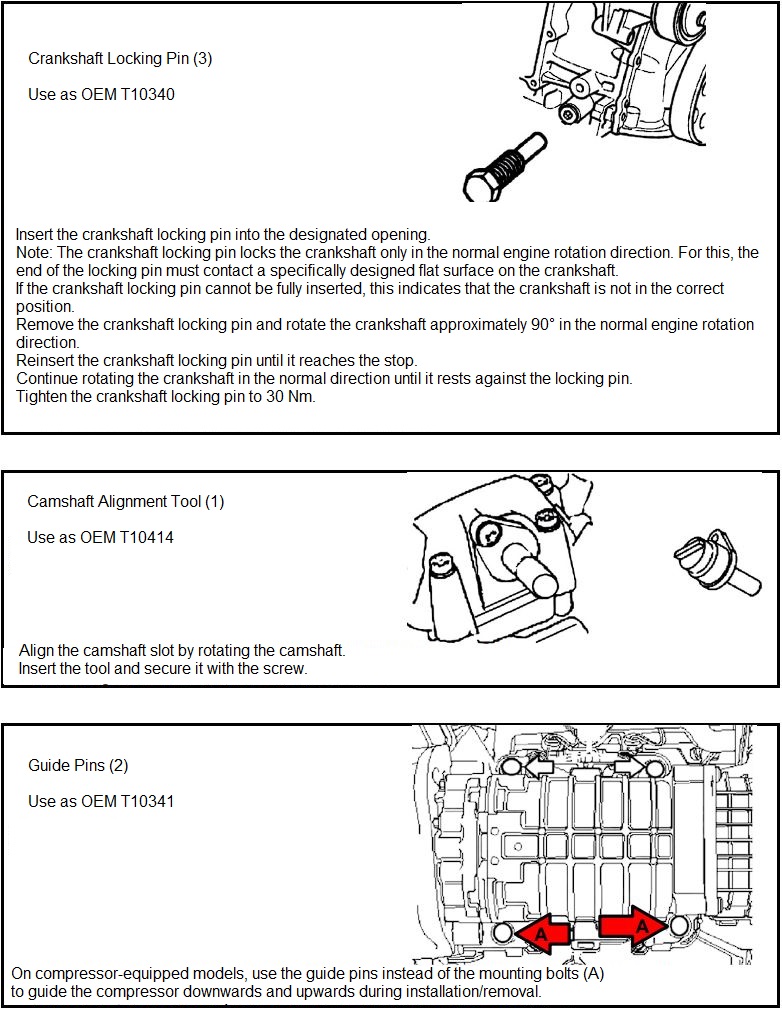

• 1 x Camshaft locking tool (T10414)
• 2 x Guide bolts for supercharger installation (T10341)
• 1 x Crankshaft locking pin (T10340)

OEM Reference

(T10340)
(T10341)
(T10414)

Reference numbers are provided for identification purposes only. These tools are not OEM products.

Reference numbers are provided for identification purposes only. These tools are not OEM products.
