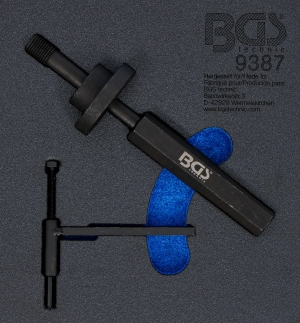

Timing Cover Alignment & High-Pressure Pump Sprocket Removal Tool Set for Ford 1.8 TDDi / TDCi – as 303-652, 303-095

This specialized tool set is designed for accurate alignment of the timing cover and safe removal of the high-pressure fuel pump sprocket. It ensures correct positioning and damage-free disassembly during engine service operations.

Application

Used during:

• Timing chain and pump drive service
• High-pressure pump removal
• Engine repair and maintenance
• Timing housing cover alignment

Compatibility – Vehicles & Engines

Ford Focus 1.8 TDCi (2004–2011):
KKDA, KKDB

Ford C-Max 1.8 TDCi (2003–2007):
KKDA, BHPA, HCPA

Ford Tourneo Connect 1.8 TDCi (2002–2013):
HCPA, HCPB (2002–2006), RWPA, R2PA, P7PA, P9PA, R3PA (2006–2013), P9PB, RWPC (2009–2013)

Ford Tourneo Connect 1.8 TDDi (2002–2006):
BHPA

Ford Mondeo 1.8 TDCi (2007–2010):
FFBA, QYBA, KHBA

Ford Mondeo 1.8 TDCi ECOnetic (2008–2010):
KHBA

Ford Transit Connect 1.8 TDCi (2002–2013):
HCPA, HCPB (2002–2006), RWPA, P7PA, R2PA, P9PA, R3PA (2006–2013), P9PB, RWPC (2009–2013)

Ford Transit Connect 1.8 TDDi (2002–2006):
BHPA

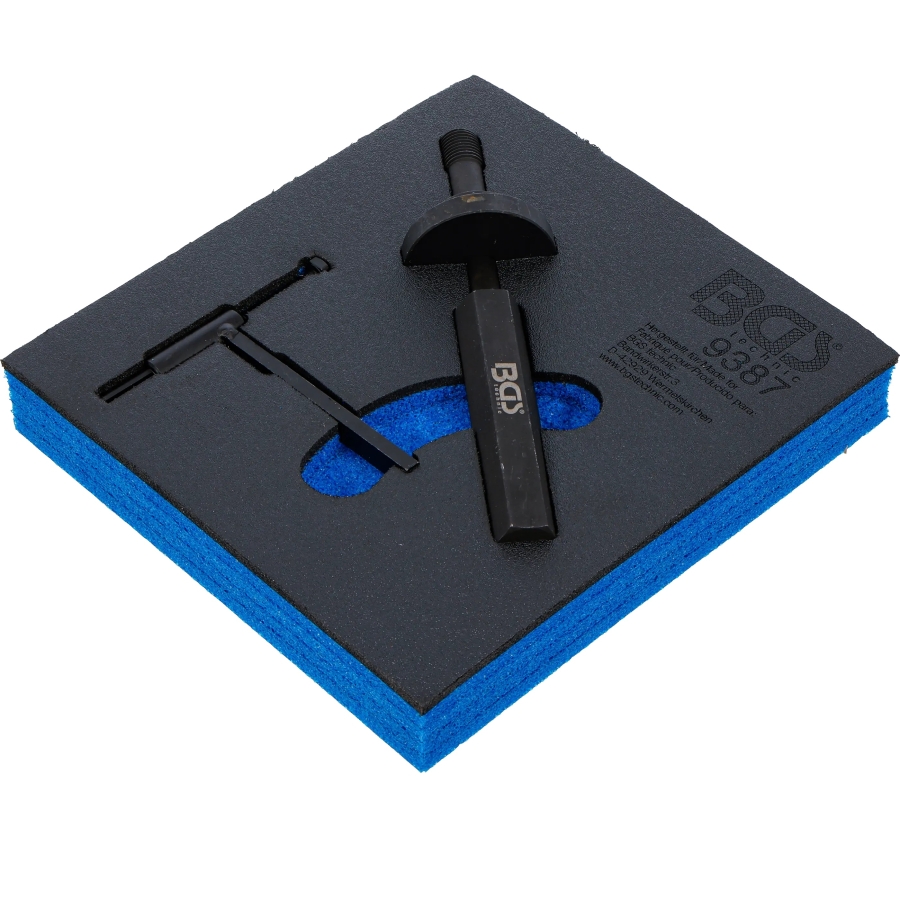

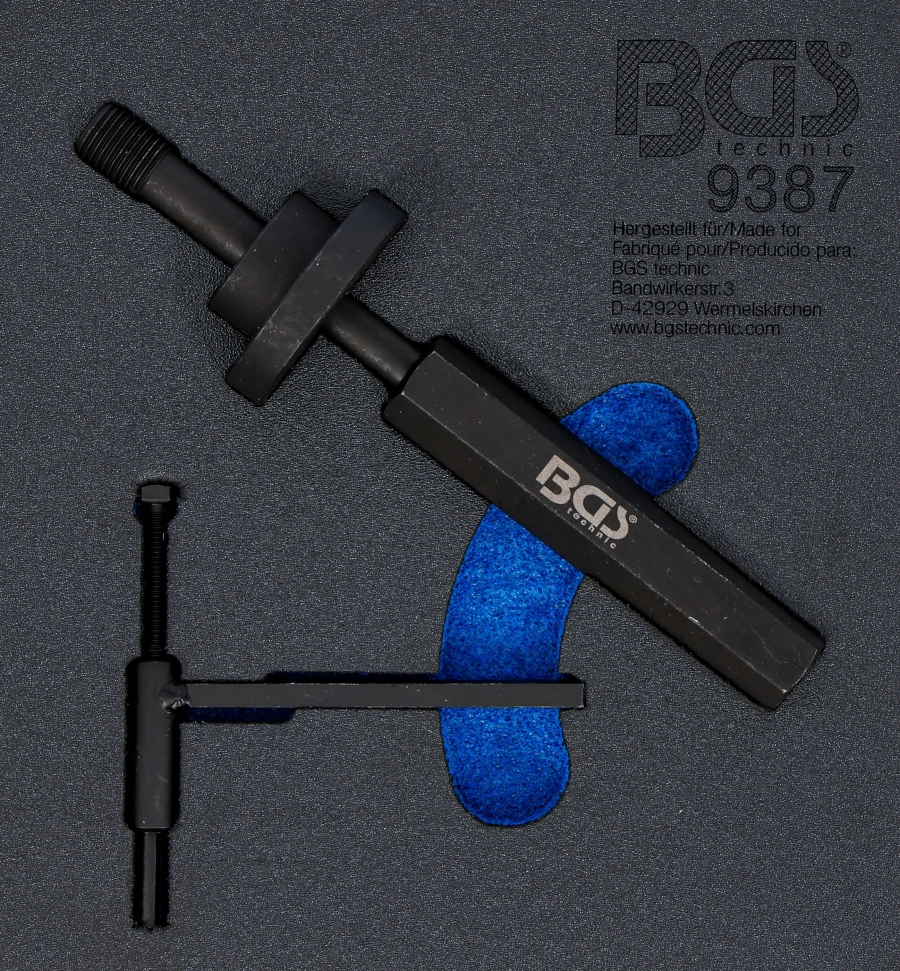

Scope of Delivery

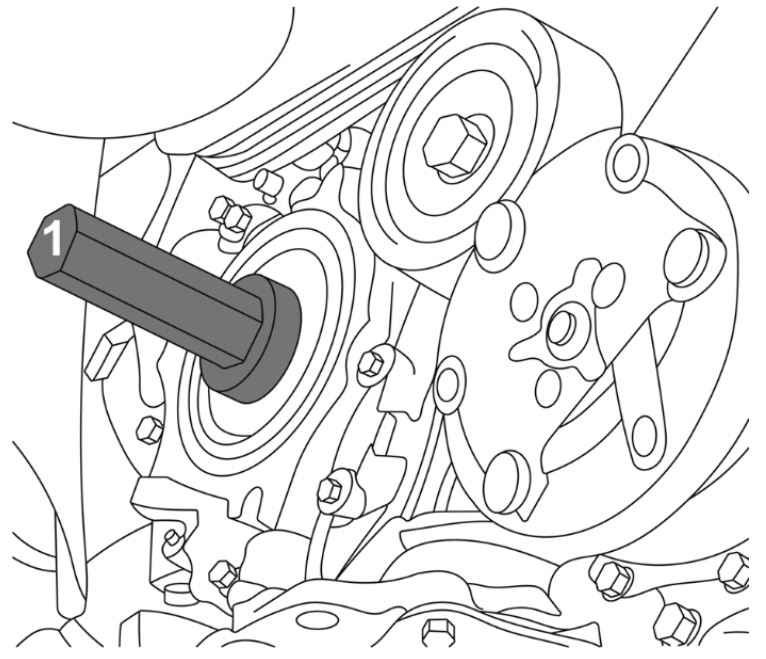

• Timing cover alignment tool (as Ford 303-652 / 21-230)

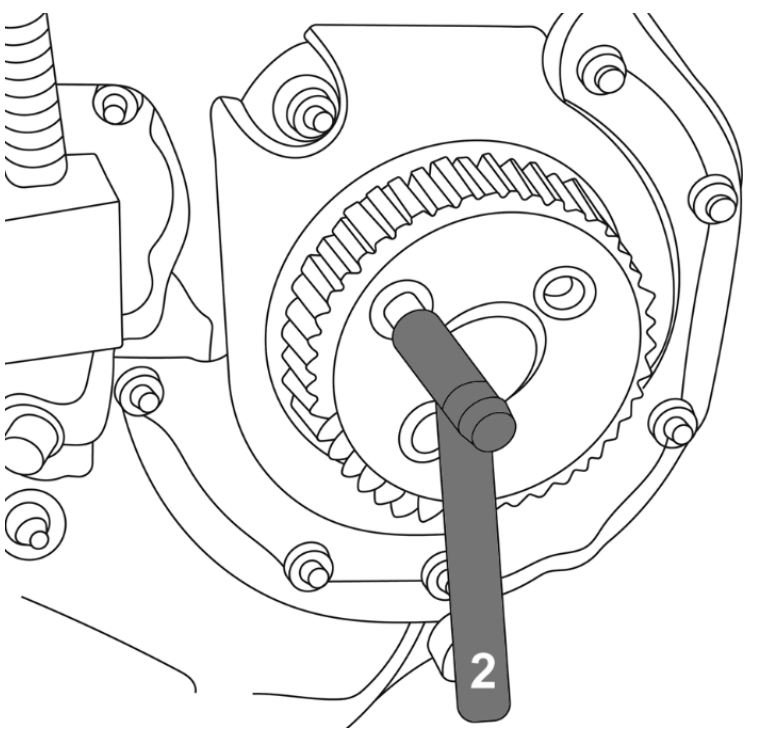

• High-pressure pump sprocket removal tool (as Ford 303-095 / 23-067)

Reference Numbers

Used as:

• Ford: 303-652
• Ford: 21-230
• Ford: 303-095
• Ford: 23-067

The OEM reference numbers are for identification purposes only. This tool set is not an original OEM product.
