Engine Timing Tool Set for Citroën Peugeot Renault Fiat Lancia 3.0L V6 Timing Belt Engines
-
Code:999163
-
Weight:2.409 Kgs
Overview:
✔ Professional engine timing tool set for 3.0L V6 petrol engines
✔ Suitable for Citroën, Peugeot, Renault, Fiat and Lancia vehicles
✔ Designed for timing belt replacement and engine timing adjustment
✔ Includes tools for locking camshafts, crankshaft and timing components
✔ Supplied with precision foam insert and storage case
✔ Includes application reference sheet and engine compatibility guide
✔ Suitable for professional workshop and engine repair applications
This professional special service tool set is designed for precise engine timing adjustment on 3.0L V6 petrol engines used in Citroën, Peugeot, Renault, Fiat and Lancia vehicles.
The kit contains all necessary tools required for timing belt replacement, engine timing adjustment and engine repair procedures involving camshaft and crankshaft locking.

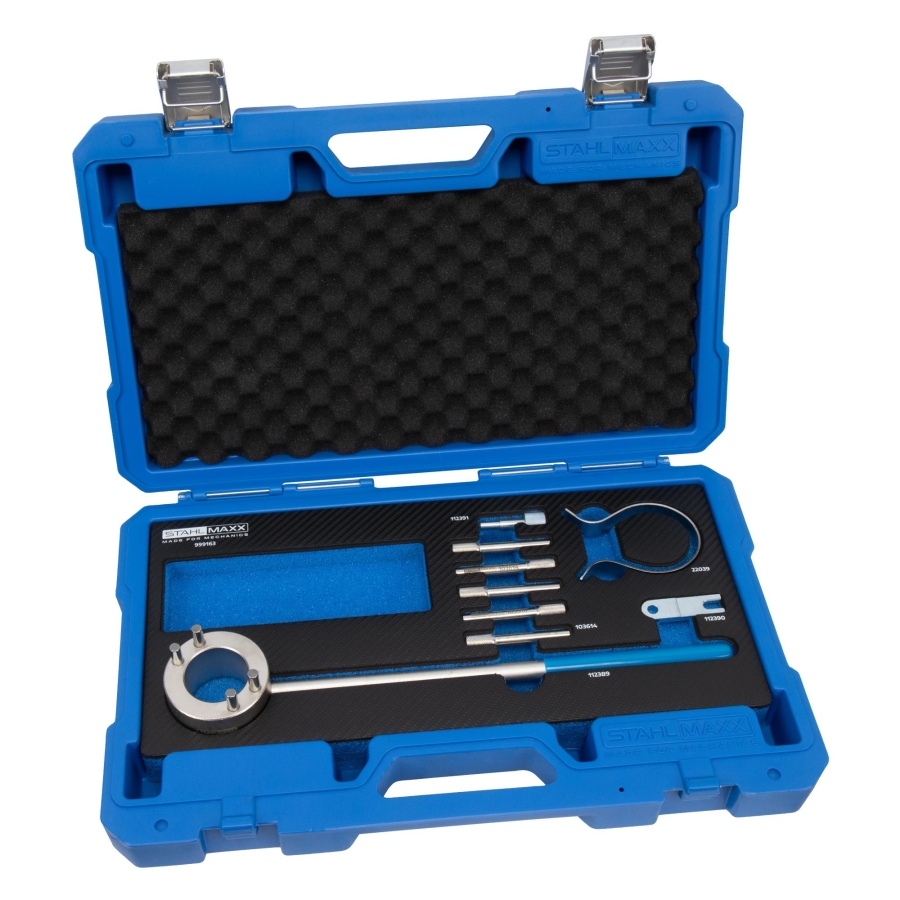

For safe and practical storage, the tools are supplied in a high-quality precision-fit foam insert and storage case.
Vehicle Compatibility
Suitable for the following vehicles:
Citroën
- C5
- C8
- XM
- Xantia
Fiat
- Ulysse
Peugeot
- 406
- 407
- 605
Renault
- Avantime
- Clio
- Espace
- Laguna
- Safrane
Lancia
- Phedra
Engine Compatibility
Citroën / Peugeot
ES9J4, ES9J4S, XFV, XFU, XFX, XFZ, XFW
Renault
L7X700, L7X701, L7X713, L7X720, L7X721, L7X722, L7X727, L7X731, L7X732, L7X733, L7X760, L7X762
Fiat / Lancia
XFW, XFU, XFV, XFX, XFZ
OEM Reference Compatibility
To be used as:
Renault
- as Mot.1428
- as Mot.1429
- as Mot.1430
- as Mot.1430-01
- as Mot.1436
Citroën / Peugeot
- as 0187-A
- as 0187-B
- as 0187-C
- as 0187-CZ
- as 0187-F
- as 0187-J
Lancia
- as 1.870.893.000
- as 1.870.900.100

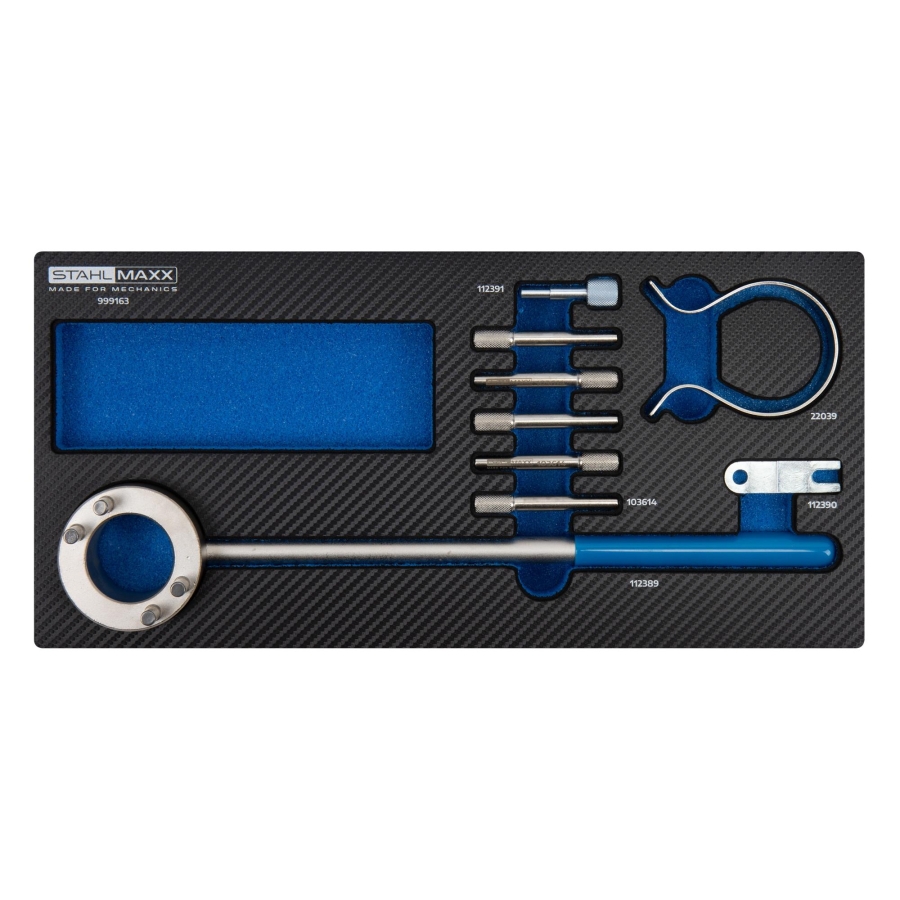

Package Contents
- Item No. 22039 Timing belt retaining clip, to be used as 0187J, MOT1436, 1870900100
- 5 x Item No. 103614 Locking pins for crankshaft and camshaft, to be used as 0187A, 0187B, MOT1430, 1870893000
- Item No. 112390 Tensioning tool for tensioner unit, to be used as 0187E, MOT1429
- Item No. 112391 Camshaft checking pin, to be used as MOT1430-01, 0187CZ
- Item No. 112389 Camshaft counter holder for Peugeot / Citroën / Renault, to be used as 0187C, 0187F, MOT1428

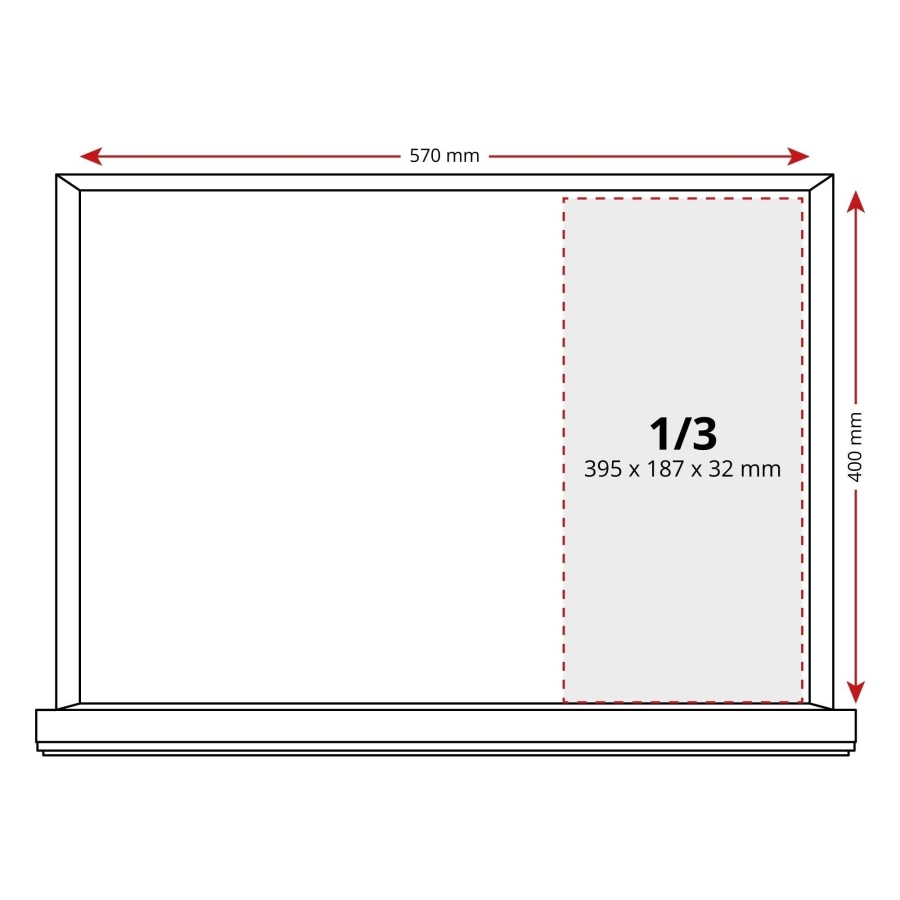

- Item No. 9990163S Precision-fit foam insert 1/3 [395 x 187 x 32 mm (L x W x H)]
- Item No. 115269 Storage case 1/3
Additional Information
As an alternative to a digital tension tester, the universal timing belt tension tester:
- Item No. 70956
can be used.
Product Features
✔ Stahlmaxx quality tool
✔ Precision-manufactured special tools
✔ Includes application guide and compatibility chart
✔ Professional foam insert storage system
Reference Tightening Torques
Reference engine:
Renault L7X731
- Idler pulleys: 80 Nm
- Tensioner bracket with tensioner pulley: 25 Nm
- Camshaft sprockets to hub: 10 Nm
- Hub to camshaft*: 20 Nm + 60°
- Crankshaft pulley: 25 Nm
- Central crankshaft bolt*: 40 Nm + 80°
* Does not need to be loosened during timing belt service.
OEM numbers are provided for comparison purposes only. This is not an original manufacturer tool.
