Engine Timing Tool Set for Porsche 911 / Boxster / Cayman MA1 MAB

Professional special tool set for setting engine timing on Porsche vehicles equipped with MA1 and MAB engines.

Required for camshaft removal/installation, timing chain replacement and engine repair procedures.

Functionality

The tool set provides all essential components to secure engine timing and prevent misalignment during service.

• Locks and aligns camshafts precisely
• Fixes crankshaft position securely
• Allows controlled rotation of crankshaft
• Holds crankshaft pulley during service
• Ensures accurate and safe timing procedures

Important Notes

• When removing the camshaft adjuster, a new drive plate (behind the adjuster) must be installed during reassembly.

For Porsche 991 MA1.03 only:

• Maximum friction torque must be observed
• Recommended tightening method: angle torque (approx. 5 Nm + 65°)
• Maximum torque must not exceed 30 Nm

For other engines, different torque specifications apply.

Compatibility

Suitable for engine codes:

• MA1.01
• MA1.02
• MA1.03
• MA1.04
• MA1.20
• MA1.21
• MA1.22
• MA1.23
• MA1.70
• MA1.71
• MA1.75
• MAB.03
• MAB.04

Suitable for vehicles:

• Porsche Boxster (987 / 981)
• Porsche Cayman (987 / 981)
• Porsche 911 (997 / 991)

OEM Reference

To be used as:

• as 9595 / 9595/1
• as 9772 / 9773 / 9775
• as 00072195950 / 00072195951
• as 00072197720 / 00072197730 / 00072197750

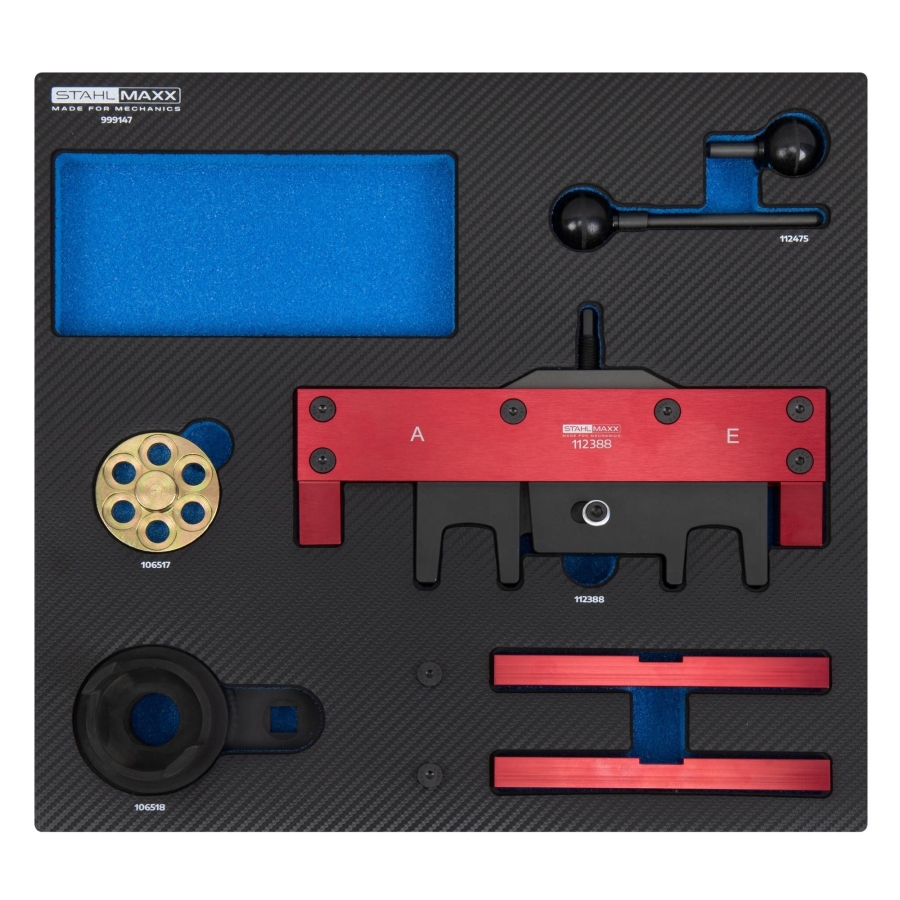

Scope of Delivery

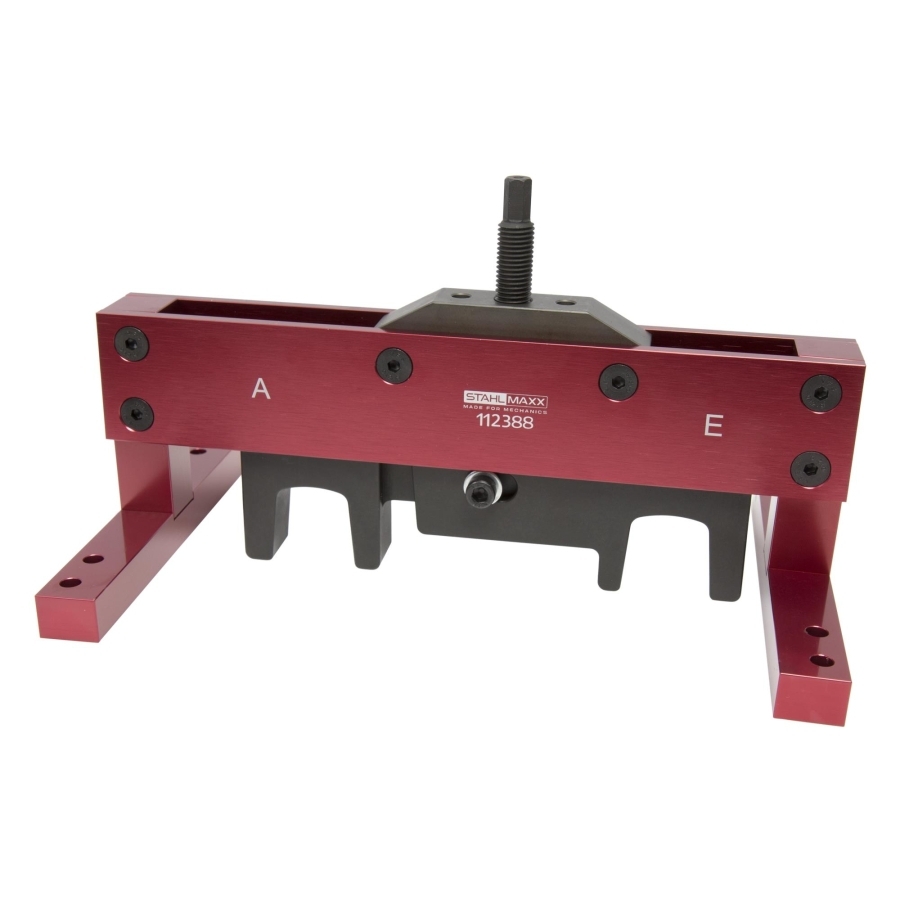

• 1 x item no. 112388 – Camshaft adjustment / locking tool (as 9772 / 00072197720)

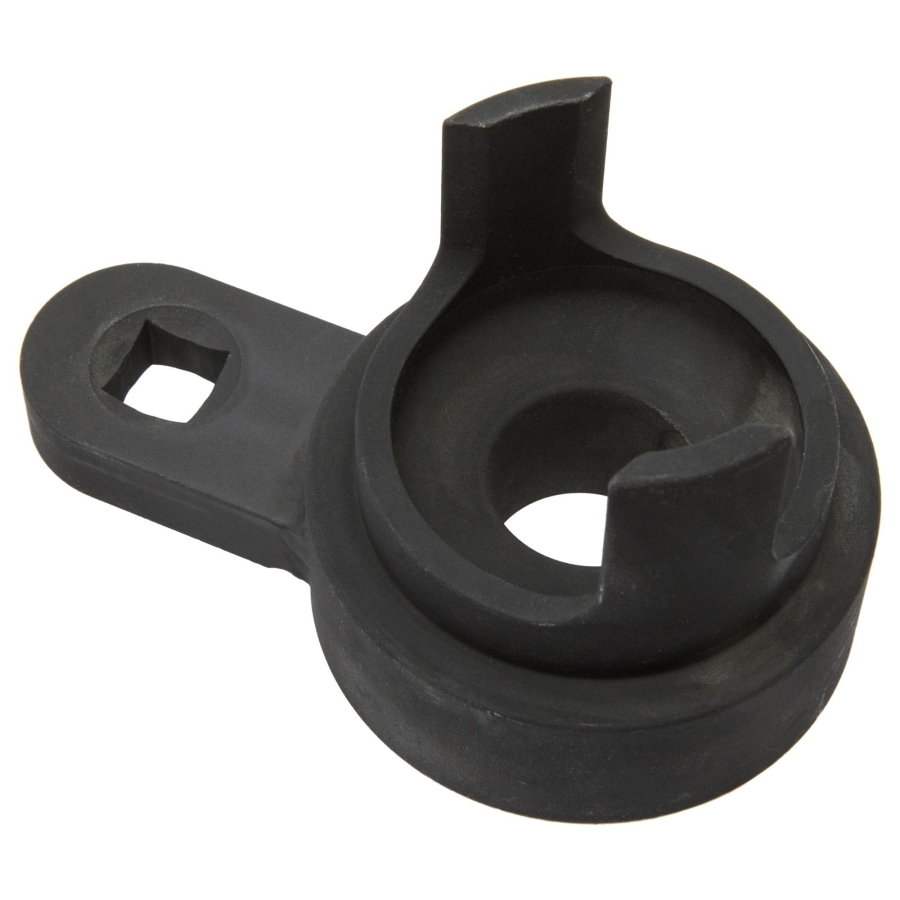

• 1 x item no. 106518 – Crankshaft pulley holding tool (as 9775 / 00072197750)

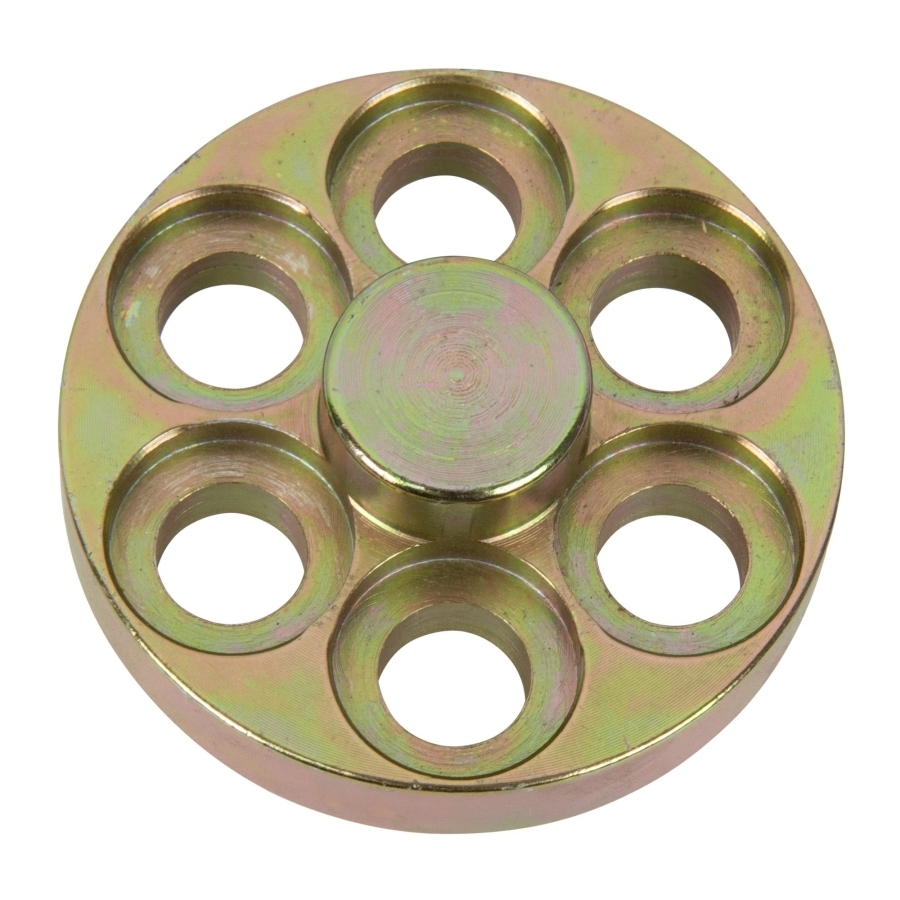

• 1 x item no. 106517 – Crankshaft turning tool / adapter (as 9773 / 00072197730)

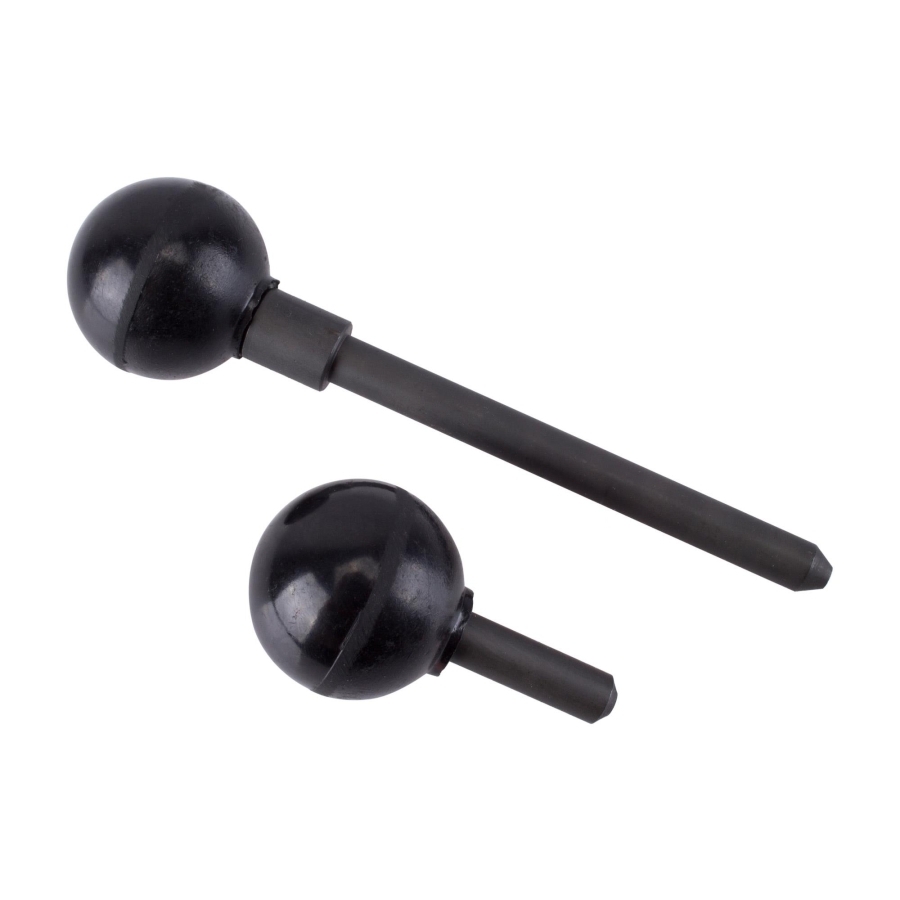

• 1 x item no. 112475 – Crankshaft locking pin set (as 9595 / 9595/1 / 00072195950 / 00072195951)

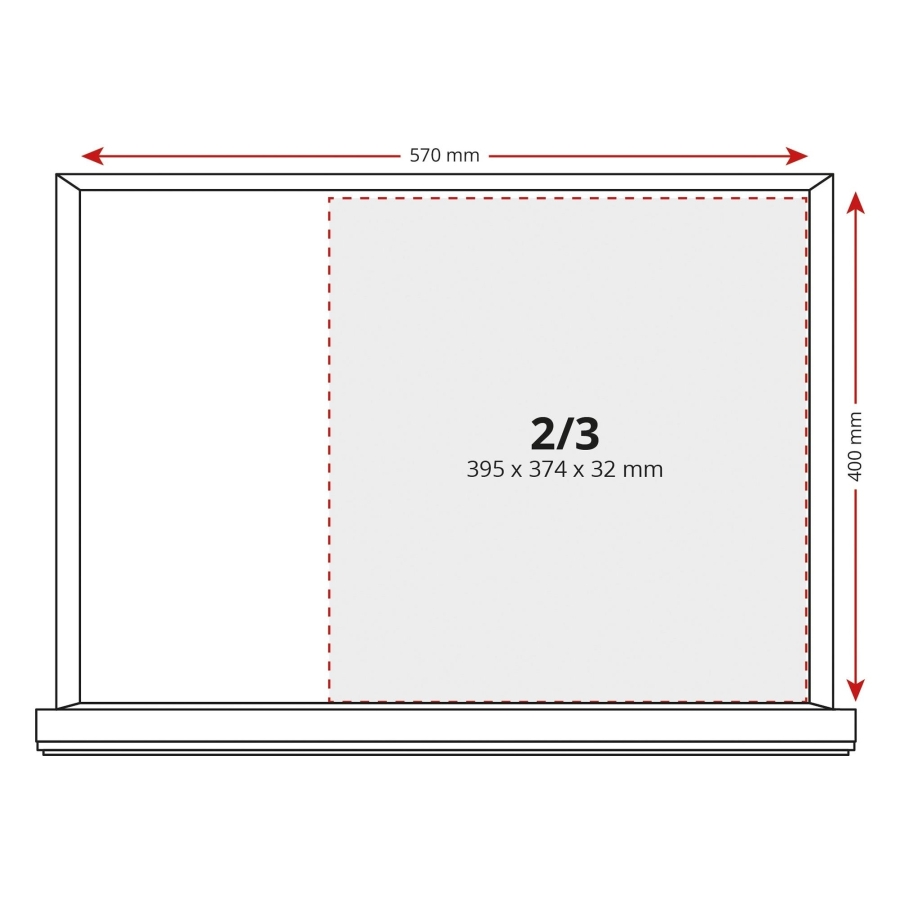

• 1 x item no. 999147S – Foam insert 2/3

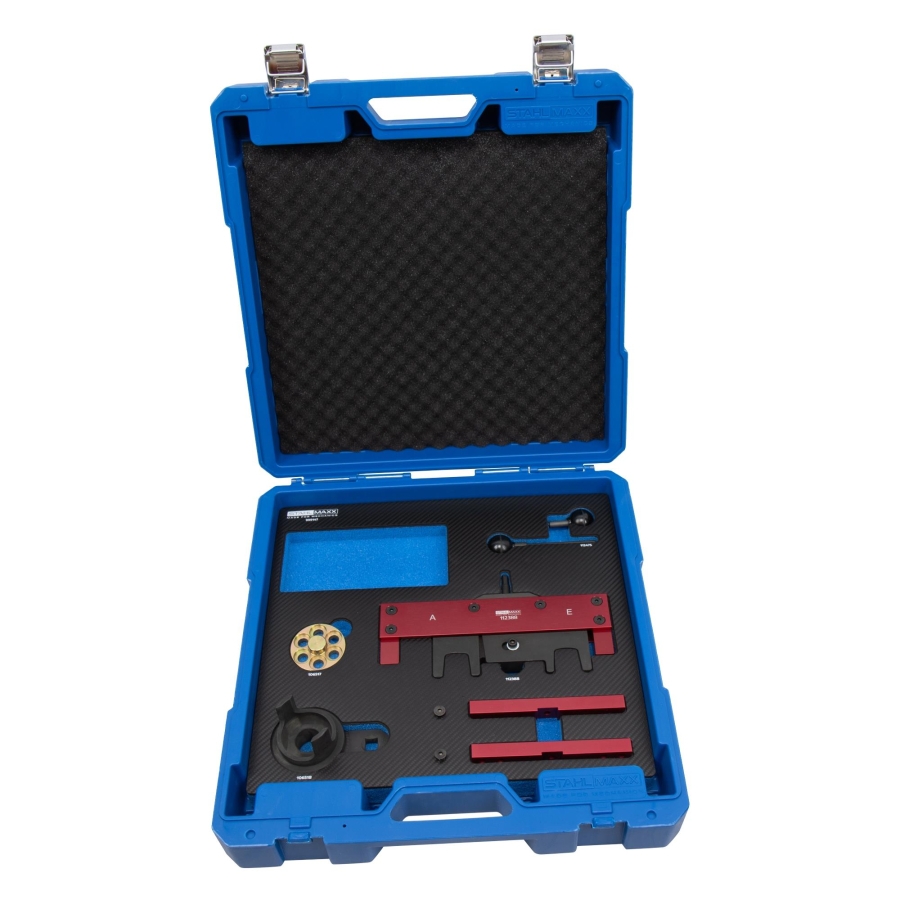

• 1 x item no. 122802 – Storage case

OEM numbers are for comparison purposes only. This product is not an original tool.

PORSCHE 911 (991) (12.2011 - 12.2016) 3.4 Carrera (350 HP, 257 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.4 Carrera 4 (350 HP, 257 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.4 Carrera 4 (355 HP, 261 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 4 GTS (436 HP, 321 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Carrera 4S (400 HP, 294 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Carrera 4S (413 HP, 304 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Carrera 4S / 4 GTS (430 HP, 316 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Carrera S (400 HP, 294 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Carrera S (413 HP, 304 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Carrera S / GTS (430 hp, 316 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 GT3 (475 hp, 350 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 GT3 (481 hp, 354 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Turbo (520 hp, 383 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Turbo (528 hp, 388 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Turbo (530 HP, 389 kW)

PORSCHE 911 (991) (12.2011 - 12.2016) 3.8 Turbo S (560 HP, 412 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.6 Carrera (345 HP, 254 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.6 Carrera 4 (345 HP, 254 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Carrera 4S (385 HP, 283 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Carrera 4S / 4 GTS (408 HP, 300 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Carrera S (385 HP, 283 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Carrera S / GTS (408 HP, 300 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Turbo (500 HP, 368 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Turbo (507 hp, 373 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Turbo (568 hp, 418 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Turbo S (530 hp, 390 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Turbo S (537 hp, 395 kW)

PORSCHE 911 (997) (07.2004 - 12.2013) 3.8 Turbo S (568 hp, 418 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.4 Carrera (350 hp, 257 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.4 Carrera (355 HP, 261 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.4 Carrera 4 (350 HP, 257 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.4 Carrera 4 (355 HP, 261 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.8 Carrera 4S (400 HP, 294 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.8 Carrera 4S / 4 GTS (430 HP, 316 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.8 Carrera S (400 HP, 294 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.8 Carrera S / GTS (430 HP, 316 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.8 Turbo (520 HP, 383 kW)

PORSCHE 911 Cabriolet (991) (03.2012 - 12.2013) 3.8 Turbo S (560 hp, 412 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.6 Carrera (345 HP, 254 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.6 Carrera 4 (345 HP, 254 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Carrera (405 HP, 298 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Carrera 4S (385 HP, 283 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Carrera 4S / 4 GTS (408 HP, 300 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Carrera GTS (413 HP, 304 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Carrera S (385 HP, 283 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Carrera S / GTS (408 HP, 300 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Turbo (500 hp, 368 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Turbo (507 hp, 373 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Turbo S (530 hp, 390 kW)

PORSCHE 911 Cabriolet (997) (04.2005 - 12.2012) 3.8 Turbo S (537 hp, 395 kW)

PORSCHE 911 Speedster (997) (08.2010 - 05.2011) 3.8 (997,720, 997,721) (408 hp, 300 kW)

PORSCHE 911 Targa (991) (05.2014 - ) 3.4 Carrera 4 (350 HP, 257 kW)

PORSCHE 911 Targa (991) (05.2014 - ) 3.8 Carrera 4S (400 HP, 294 kW)

PORSCHE 911 Targa (991) (05.2014 - ) 3.8 Carrera 4S / 4 GTS (430 HP, 316 kW)

PORSCHE 911 Targa (997) (07.2006 - 12.2012) 3.6 Carrera (345 HP, 254 kW)

PORSCHE 911 Targa (997) (07.2006 - 12.2012) 3.6 Carrera 4 (345 HP, 254 kW)

PORSCHE 911 Targa (997) (07.2006 - 12.2012) 3.8 Carrera 4S (385 HP, 283 kW)

PORSCHE 911 Targa (997) (07.2006 - 12.2012) 3.8 Carrera 4S (408 HP, 300 kW)

PORSCHE 911 Targa (997) (07.2006 - 12.2012) 3.8 Carrera S (385 HP, 283 kW)

PORSCHE BOXSTER (981) (04.2012 - ) 2.7 (211 HP, 155 kW)

PORSCHE BOXSTER (981) (04.2012 - ) 2.7 (265 hp, 195 kW)

PORSCHE BOXSTER (981) (04.2012 - ) GTS 3.4 (330 hp, 243 kW)

PORSCHE BOXSTER (981) (04.2012 - ) S 3.4 (315 hp, 232 kW)

PORSCHE BOXSTER (987) (06.2004 - 12.2013) 2.9 (211 hp, 155 kW)

PORSCHE BOXSTER (987) (06.2004 - 12.2013) 2.9 (255 hp, 188 kW)

PORSCHE BOXSTER (987) (06.2004 - 12.2013) S 3.4 (310 hp, 228 kW)

PORSCHE BOXSTER (987) (06.2004 - 12.2013) S 3.4 (987.760, 987.761) (320 hp, 235 kW)

PORSCHE BOXSTER Spyder (981) (01.2015 - ) 3.4 GTS (334 hp, 246 kW)

PORSCHE BOXSTER Spyder (987) (09.2007 - 12.2011) 3.4 (314 hp, 231 kW)

PORSCHE BOXSTER Spyder (987) (09.2007 - 12.2011) 3.4 (320 hp, 235 kW)

PORSCHE CAYMAN (981) (03.2013 - ) 2.7 (211 hp, 155 kW)

PORSCHE CAYMAN (981) (03.2013 - ) 2.7 (275 hp, 202 kW)

PORSCHE CAYMAN (981) (03.2013 - ) GTS 3.4 (340 hp, 250 kW)

PORSCHE CAYMAN (981) (03.2013 - ) S 3.4 (325 hp, 239 kW)

PORSCHE CAYMAN (987) (01.2008 - 12.2013) 2.7 (279 hp, 205 kW)

PORSCHE CAYMAN (987) (01.2008 - 12.2013) 2.9 (211 hp, 155 kW)

PORSCHE CAYMAN (987) (01.2008 - 12.2013) 2.9 (265 hp, 195 kW)

PORSCHE CAYMAN (987) (01.2008 - 12.2013) R 3.4 (330 hp, 243 kW)

PORSCHE CAYMAN (987) (01.2008 - 12.2013) S 3.4 (320 hp, 235 kW)

PORSCHE CAYMAN (987) (01.2008 - 12.2013) S 3.4 (329 hp, 242 kW)
