Transmission Oil Filling Adapter Set, Variant 1, 16-Piece, for Automatic, DSG, CVT, Multitronic and More

Professional and comprehensive base adapter set for servicing many common transmission types, bevel gearboxes, Haldex systems and differentials.

Specific filling adapters are essential for performing clean and professional transmission oil services according to the vehicle manufacturer’s specifications.

This base version includes many of the newer and frequently required transmission oil filling adapters, as well as the ball-valve handle with quick coupling, item no. 123194.

The set can be used to upgrade existing transmission oil filling equipment to the current adapter standard, allowing it to remain in economical service.

Connection and Compatibility

The supplied ball valve features a 10 mm hose connection and can be combined with many different transmission oil filling pumps.

The set includes vehicle- and transmission-specific adapters as well as universal filling adapters.

When ordering individual components, always verify the type of quick connection used on the relevant adapter.

Set Configuration

Variant 1, item no. 123198-1, is supplied with:

• Ball-valve handle with quick coupling, item no. 123194
• Fitted 1/3 foam insert
• Robust 1/3 workshop case

Vehicle and transmission applications, together with the corresponding original reference numbers, are listed in the scope of delivery.

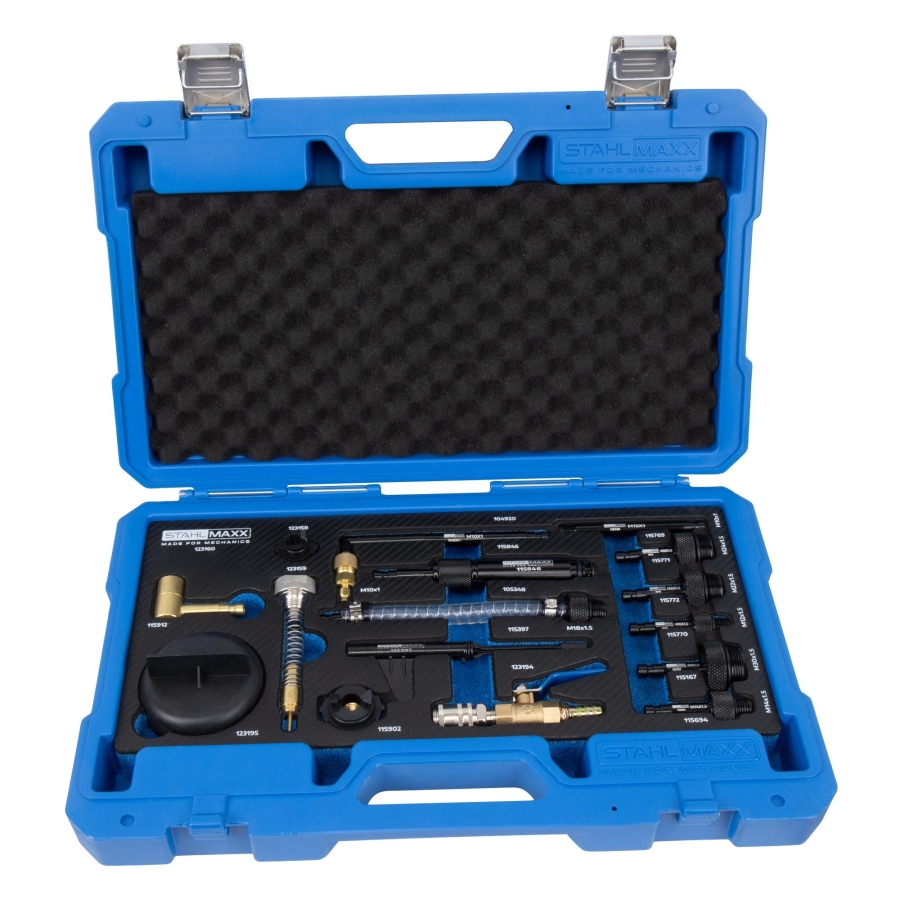

Scope of Delivery

1 × item no. 123194 ball-valve handle for transmission oil and ATF filling adapters, with quick coupling
1 × item no. 123195 socket for Mercedes 724.2, 725.0 and 725.1 transmission oil-pan plugs, to be used as Mercedes W724589010900
1 × item no. 115397 tool for transmission oil changes and level checking on Mercedes 725.0 and 725.1, to be used as Mercedes W7255890009000
1 × item no. 115846A ATF adapter for VAG 7-speed DSG transmissions in Audi A6 4G from 2011, to be used as VAG 6617/9 and 6617/12
1 × item no. 115912A transmission oil adapter for VAG 7- and 8-speed DSG transmissions, to be used as VAG 6262/4
1 × item no. 123158 small bayonet adapter for Mercedes 7G-Tronic and 9G-Tronic 725.0 and 725.1 transmissions, to be used as Mercedes W725589039000
1 × item no. 115902 large bayonet adapter for Mercedes 7G-Tronic and 9G-Tronic 725.0 and 725.1 transmissions, to be used as Mercedes W725589009000
1 × item no. 123159 transmission oil thermostat adapter for Mercedes 7G-Tronic and 9G-Tronic 724.. and 725.. transmissions, to be used as Mercedes W724589002100
1 × item no. 115771A ATF106 adapter, M24 × 1.5, for VAG DSG transmissions, to be used as VAG 6262-1
1 × item no. 115772A ATF107 adapter, M22 × 1.5, for VAG CVT and Multitronic transmissions
1 × item no. 115770A ATF108 adapter, M12 × 1.5, for Mercedes 722.9 transmissions, to be used as Mercedes W213589009000
1 × item no. 115769 ATF105 adapter, M10 × 1, for MINI and VAG, to be used as VAG 6262/2
1 × item no. 115167 ATF110 adapter, M30 × 1.5, for VAG automatic transmissions
1 × item no. 105348 ATF113 flexible filling adapter, M18 × 1.5, for Lexus, Subaru, Toyota and VAG
1 × item no. 104920A ATF115 adapter, M10 × 1, for VAG Haldex and AWD couplings
1 × item no. 115694 ATF117 adapter, M14 × 1.5, for MINI Cooper CVT transmissions, to be used as BMW 248100

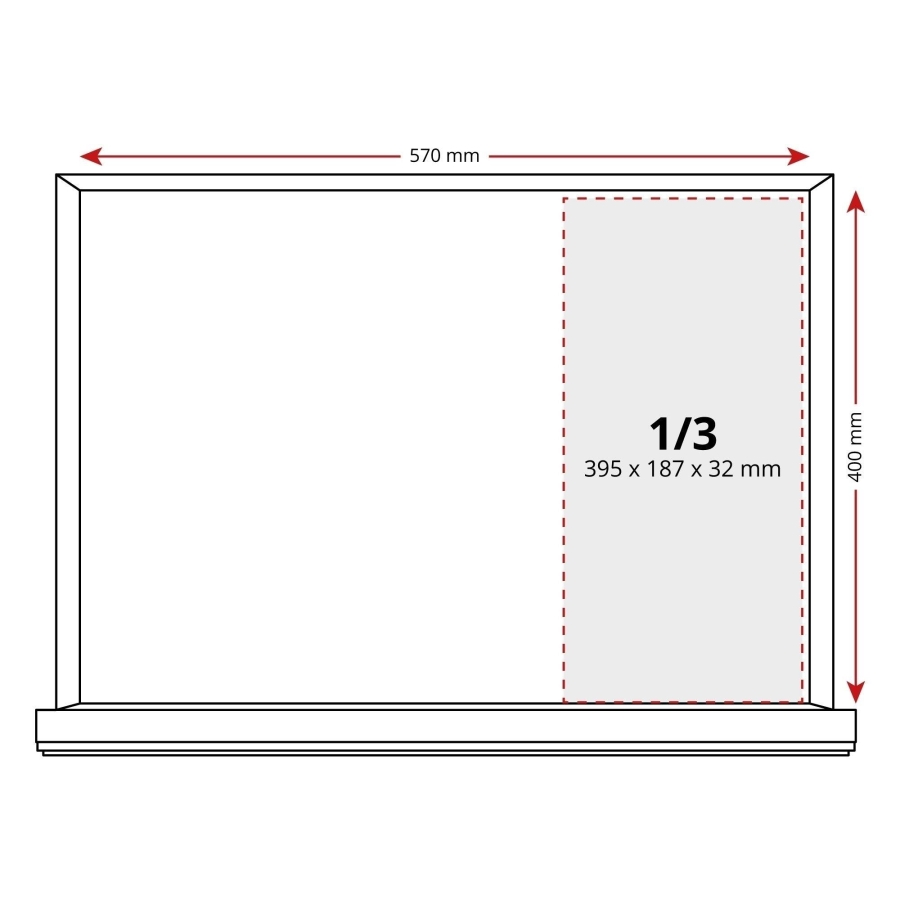

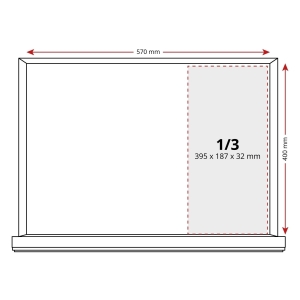

1 × fitted 1/3 foam insert, 395 × 187 × 32 mm
1 × item no. 115269 robust storage case

Expansion Options

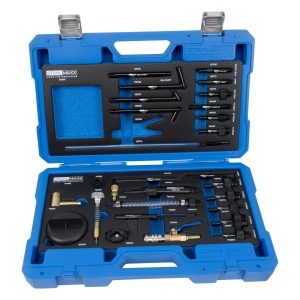

Variant 1, item no. 123198-1, is also included in the complete 27-piece set under item no. 123198.

If this base set is already available, the 1/3 case can be expanded with variant 2, item no. 123198-2.

The ball-valve handle is not supplied again with the expansion set.

Original numbers are provided for comparison purposes only. This is not an original tool.
