Trigger Wheel Alignment and Locking Tool for Opel F15 / D15 / F20 (EN-52771)
-
Code:120769
-
Weight:0.670 Kgs
Overview:
✔ Trigger wheel alignment and locking tool for Opel diesel engines
✔ Suitable for F15, D15 and F20 engine generations
✔ Designed for precise positioning of camshaft sensor wheel
✔ Ensures accurate timing setup during engine repair
✔ OEM-equivalent design for exact fit
✔ Ideal for professional workshop use

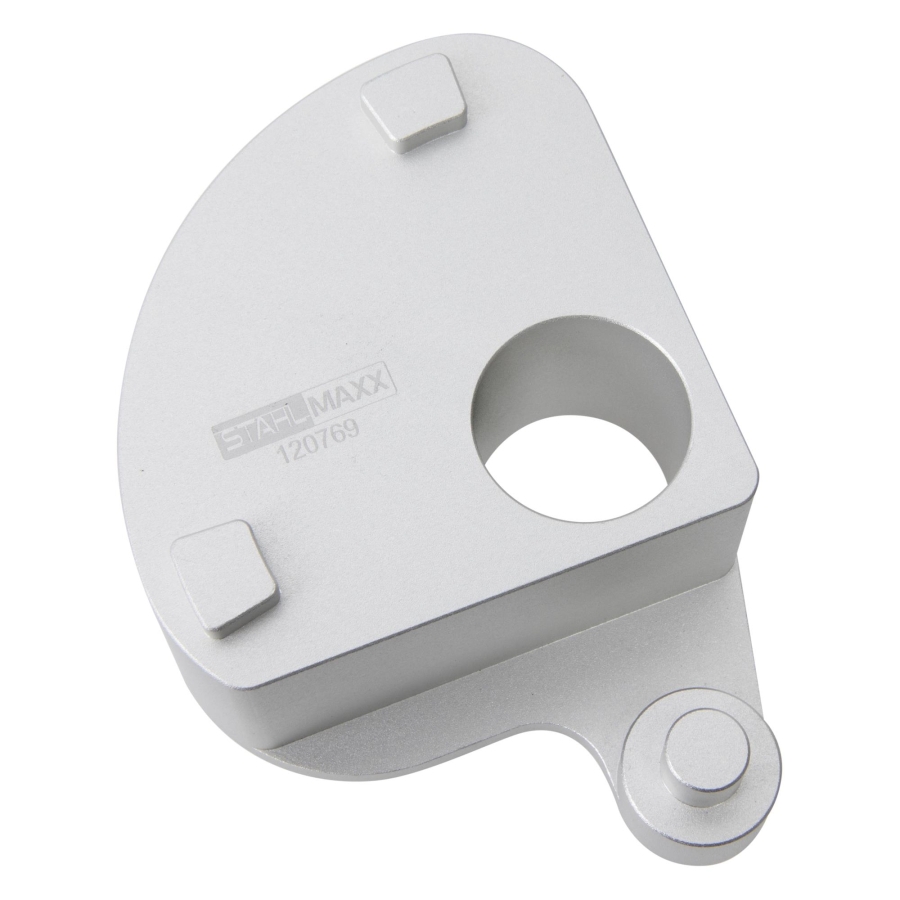

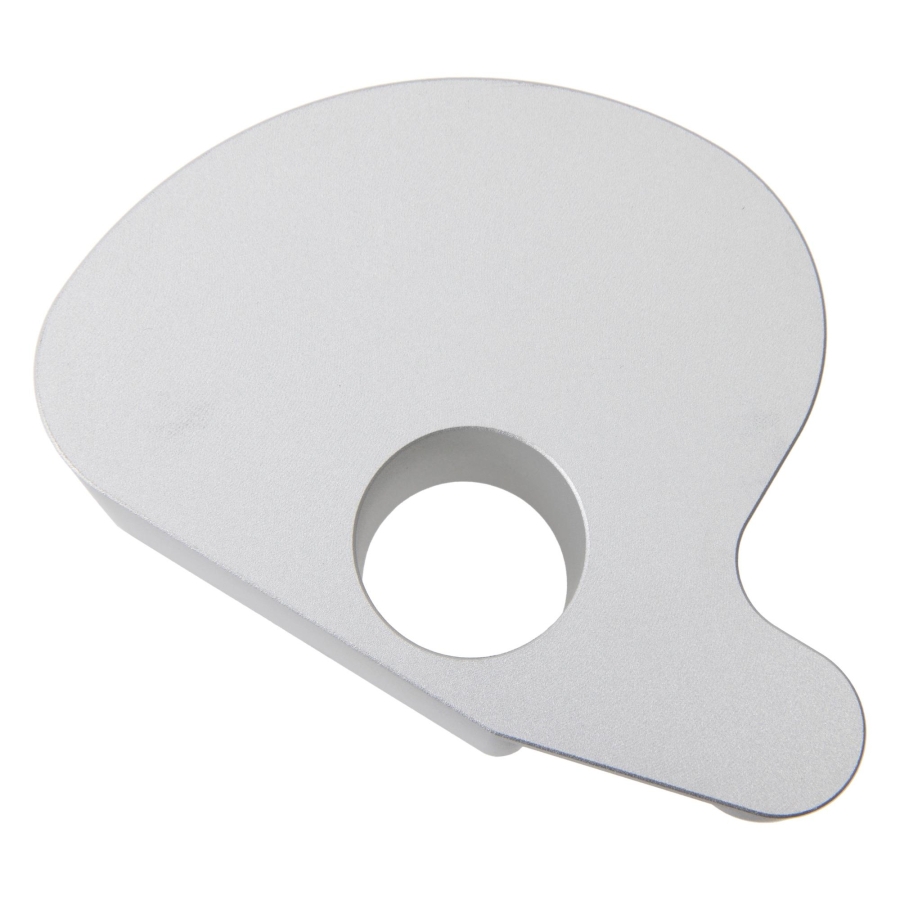

This specialized tool is designed for locking and adjusting the camshaft trigger wheel (impulse wheel) on Opel F15, D15 and F20 engines.

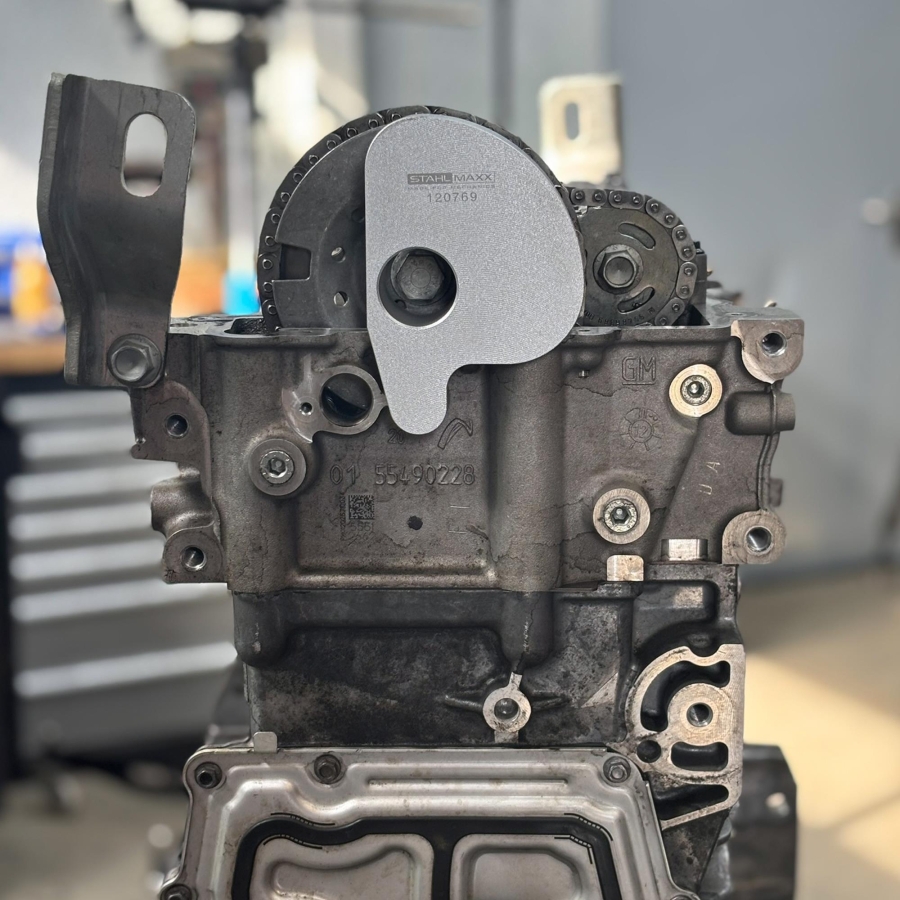

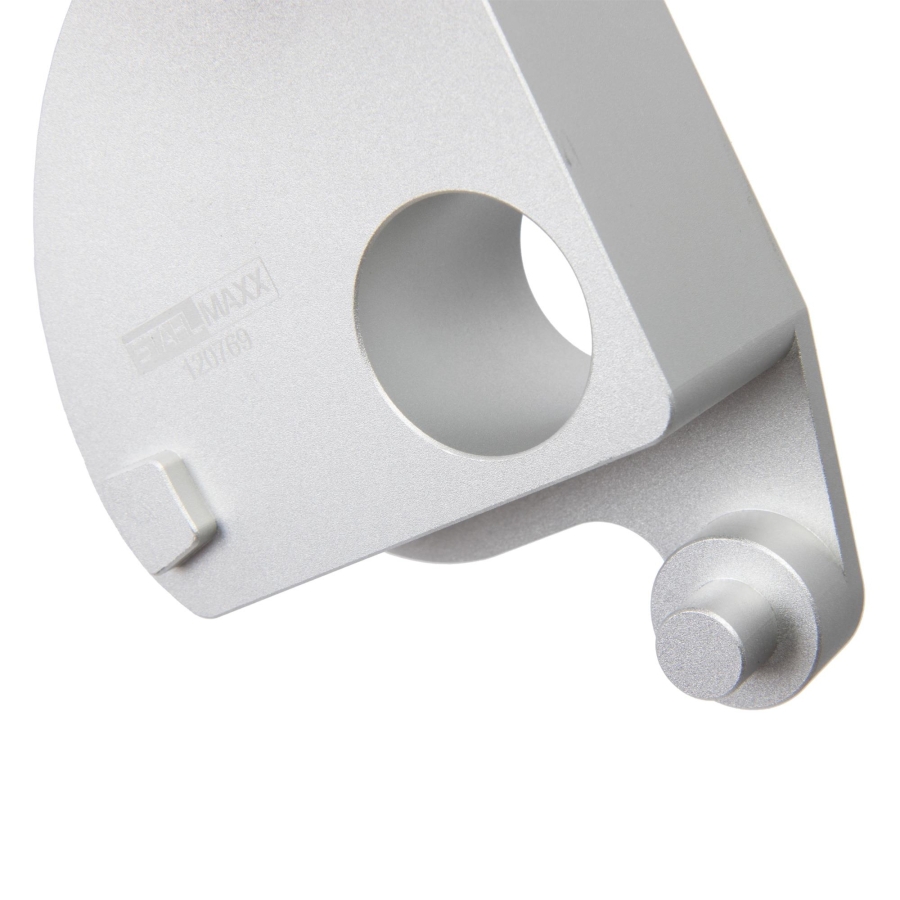

The positioning tool is mounted directly onto the cylinder head and engages with the two alignment holes located near the central bolt of the trigger wheel.
The tool remains installed until final tightening is completed.
Functionality
The tool enables:
- Secure locking of the camshaft trigger wheel
- Precise alignment during timing adjustment
- Accurate positioning for engine timing procedures
- Stable fixation during assembly and tightening
Important Note
- The correct fixing hole for the alignment tool is located next to the camshaft sensor opening
Torque Information
(Always follow manufacturer specifications)
- Camshaft main chain: 60 Nm + 90°
Vehicle Compatibility
Compatible with:
Opel models:
- Astra K
- Crossland (P17)
- Insignia B
- Mokka
Engine Compatibility
Engine generation: 1.5 CRDI, 2.0 CDTi
Engine codes:
D15DVC, D15DVH, F15DVC, F15DVH,
LXD, F20DVH, LSQ
OEM Reference
Use as:
EN-52771
Quality Features
- Precision-manufactured tool
- OEM-equivalent design
- Durable construction
- Suitable for professional workshop use
OEM numbers are provided for reference purposes only. This product is not original equipment.
