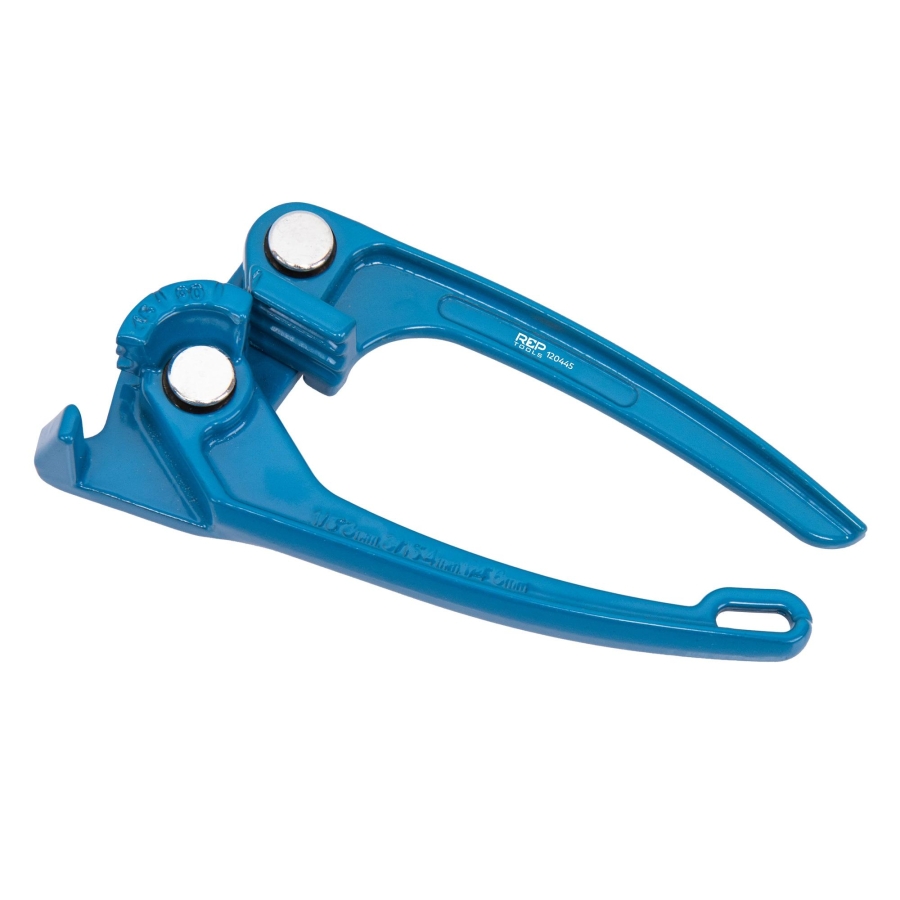

Tube Bending Pliers for Brake Lines 3 mm, 4.75 mm and 6 mm

The tube bending pliers from REPTOOLS are a compact and practical tool designed for precise bending of brake lines and tubes without kinking or reducing the inner diameter.

The tool is suitable for all common brake line sizes in both metric and inch dimensions. It supports metric tube diameters of 3 mm, 4.75 mm and 6 mm, as well as 1/8", 3/16" and 1/4" tubes.

Thanks to its compact design, the pliers are easy to handle and ideal for use in confined spaces. Tight bending radii down to 15 mm with a bending angle of up to 90° can be achieved while maintaining the original tube shape.

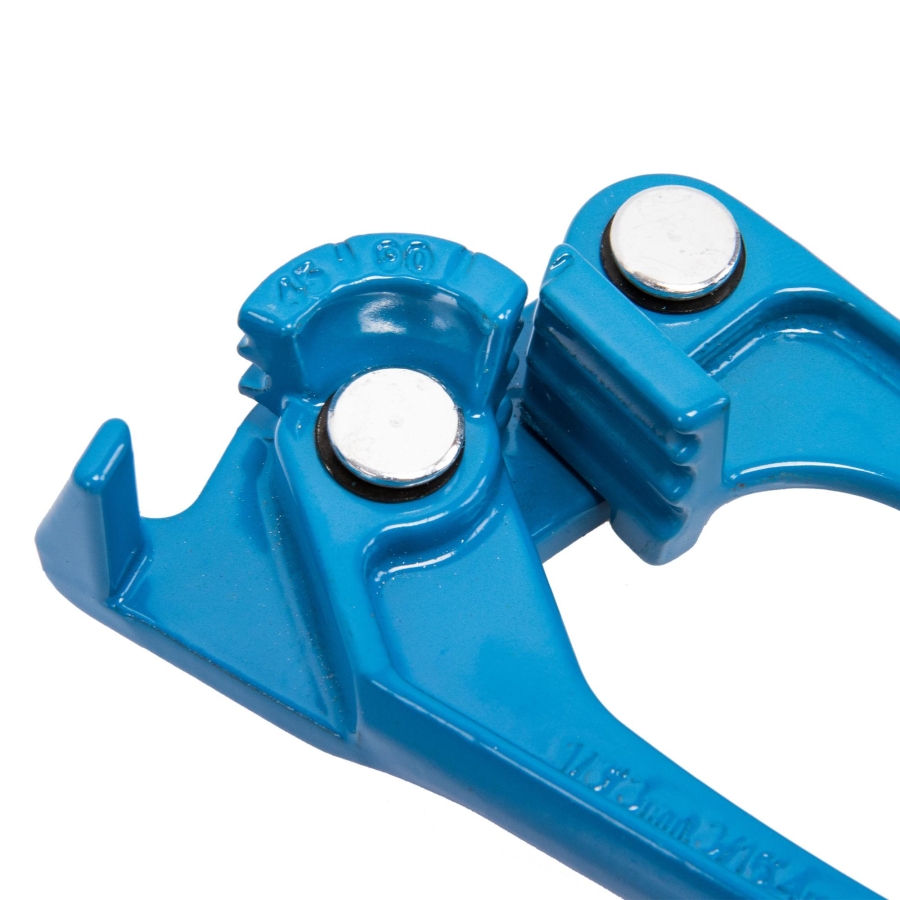

Stamped angle markings clearly indicate when 45° and 90° bends have been reached, ensuring accurate and repeatable results.

The tool is suitable for aluminium, copper, brass, copper-nickel and steel tubes, with steel tube wall thicknesses up to 1 mm.

Applications

• Brake lines
• Fuel lines
• Hydraulic lines
• Automotive repair and restoration
• General tube bending applications

Features

• Compact tube bending pliers
• Bending without kinking or reducing the inner diameter
• Suitable for metric and inch tube sizes
• Minimum bending radius: 15 mm
• Maximum bending angle: 90°
• Stamped angle markings
• 45° and 90° angle indicators
• Handle with hanging loop
• Compact and lightweight design

Compatible Tube Sizes

Metric:

• 3 mm
• 4.75 mm
• 6 mm

Inch:

• 1/8"
• 3/16"
• 1/4"

Suitable Materials

• Aluminium
• Copper
• Brass
• Copper-nickel
• Steel (up to 1 mm wall thickness)

Technical Specifications

• Overall length: 140 mm
• Minimum bending radius: 15 mm
• Maximum bending angle: 90°
• Angle markings: 45° and 90°
• Handle with hanging loop
